Dewalt DW629 Type 2 Plunge Router Spare Parts

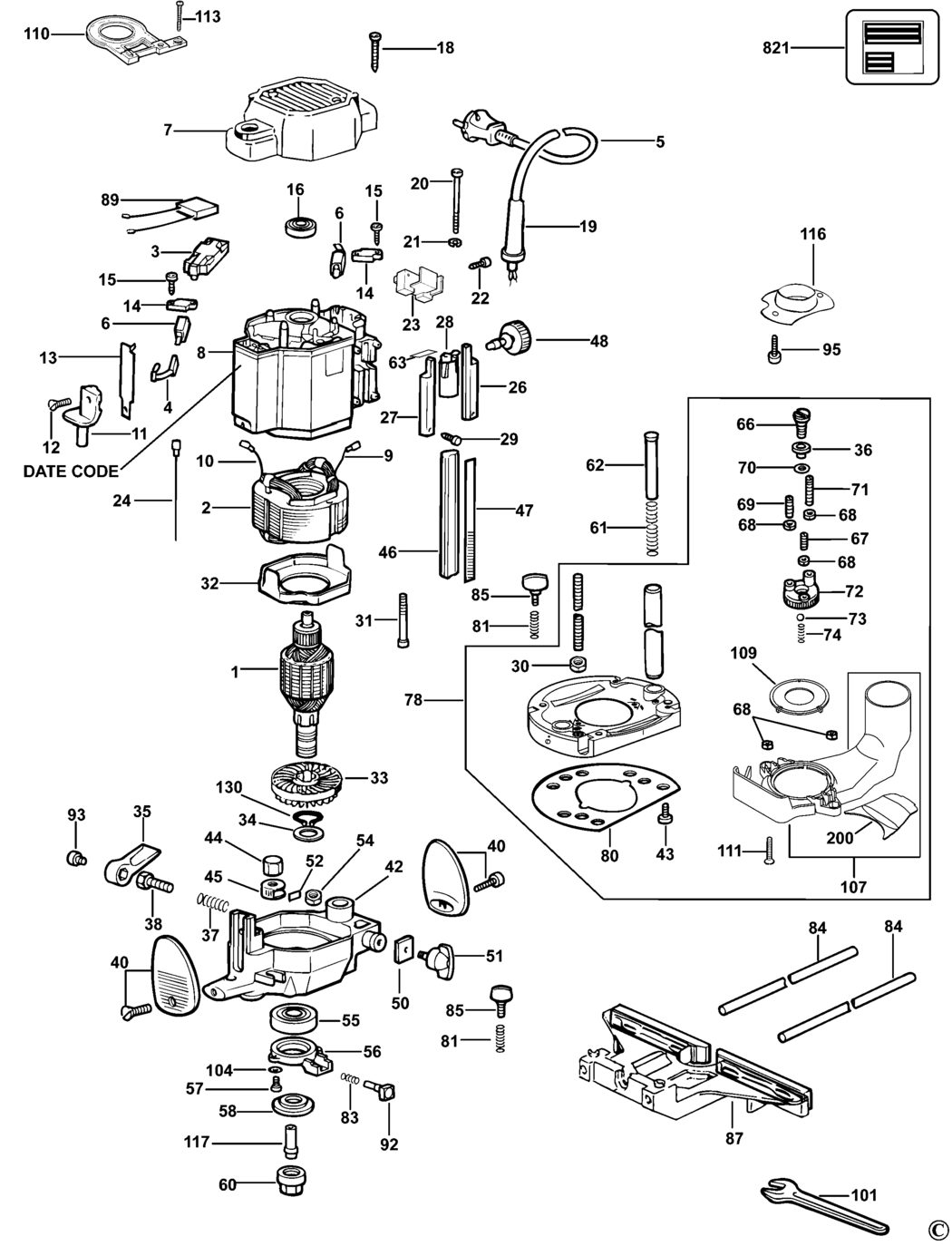

An exploded drawing and spare parts listing for the Dewalt DW629 Type 2 Plunge Router

	Ex VAT	Inc VAT
3 - SWITCH BDE-868128-00.A3 868128-00	-
6 - BRUSHBOX SA BDE-761202-00.A42 761202-00	£3.30	£3.96
7 - COVER SA BDE-249019-01.A5 249019-01	£24.39	£29.27
8 - HOUSING MOTOR BDE-N410361.A1 N410361	£25.70	£30.84
9 - LEAD YELLOW BDE-N426130.A1 N426130	£1.50	£1.80
10 - LEAD 175MM RED BDE-868129-00.A12 868129-00	£1.82	£2.19
11 - LEVER BDE-868145-00.A6 868145-00	£1.82	£2.19
12 - SCREW BDE-249412-10.A14 249412-10	£1.50	£1.80
13 - SLIDER BDE-868123-00.A7 868123-00	£5.88	£7.06
14 - CLAMP BDE-868133-00.A0 868133-00	£2.26	£2.71
15 - SCREW BDE-860084-11.A62 860084-11	£1.50	£1.80
16 - BEARING BDE-N110359.A163 N110359	£3.75	£4.50
18 - SCREW BDE-760978-01.A30 760978-01	£1.50	£1.80
20 - SCREW BDE-249424-24.A19 249424-24	£1.50	£1.80
21 - WASHER BDE-930248-00.A47 930248-00	£1.50	£1.80
22 - SCREW BDE-860084-04.A27 860084-04	£1.50	£1.80
23 - CABLE CLAMP BDE-248180-00.A4 248180-00	£1.50	£1.80
24 - LEAD 80MM RED BDE-868129-02.A0 868129-02	£1.82	£2.19
26 - SUPPORT LH BDE-248395-00.A0 248395-00	£1.50	£1.80
27 - SUPPORT RH BDE-248394-00.A7 248394-00	£1.50	£1.80
28 - LENS BDE-868124-01.A18 868124-01	£1.82	£2.19
29 - SCREW BDE-860428-04.A25 860428-04	£1.50	£1.80
30 - NUT BDE-761225-02.A8 761225-02	£1.50	£1.80
31 - SCREW BDE-248935-00.A0 248935-00	£1.42	£1.70
32 - BAFFLE FAN BDE-N388121.A0 N388121	£4.69	£5.63
33 - FAN BDE-N388100.A2 N388100	£5.88	£7.06
34 - SPACER BDE-868127-02.A15 868127-02	£1.50	£1.80
35 - LEVER BDE-942906-00.A11 942906-00	£3.80	£4.56
36 - BUSH BDE-329836-00.A7 329836-00	£1.50	£1.80
37 - SPRING BDE-942909-00.A15 942909-00	£1.50	£1.80
38 - SCREW BDE-868204-00.A5 868204-00	£7.85	£9.42
40 - REPAIR KIT BDE-869355-00.A82 869355-00	£14.57	£17.48
42 - HOUSING LOWER BDE-942898-00.A6 942898-00	£74.15	£88.98
43 - SCREW BDE-860205-04.A61 860205-04	£1.50	£1.80
44 - NUT BDE-868150-00.A20 868150-00	£3.30	£3.96
45 - NUT BDE-942910-00.A1 942910-00	£4.69	£5.63
46 - RACK BDE-868139-00.A5 868139-00	£7.64	£9.17
47 - SCALE BDE-249281-00.A15 249281-00	£1.50	£1.80
48 - PINION BDE-761243-05.A14 761243-05	£3.80	£4.56
50 - PLATE BDE-868119-00.A11 868119-00	£1.50	£1.80
51 - SCREW WING BDE-939840-05.A18 939840-05	£2.78	£3.34
52 - SPRING BDE-942912-00.A1 942912-00	£1.50	£1.80
54 - NUT BDE-942911-00.A19 942911-00	£7.18	£8.62
55 - BEARING BDE-868132-03.A21 868132-03	£10.85	£13.02
56 - CLAMP BDE-942900-03.A10 942900-03	£7.85	£9.42
57 - SCREW BDE-249424-02.A9 249424-02	£1.50	£1.80
58 - LOCK NUT BDE-942901-00.A6 942901-00	£7.85	£9.42
60 - COLLET NUT BDE-942893-01.A6 942893-01	£7.18	£8.62
61 - SPRING BDE-868115-00.A16 868115-00	£1.50	£1.80
62 - ROD BDE-868566-01.A19 868566-01	£1.50	£1.80
63 - LENS BDE-868124-01.A19 868124-01	£1.82	£2.19
66 - SCREW BDE-330045-05.A244 330045-05	£1.50	£1.80
67 - SCREW.TEMP BDE-942931-02.A8 942931-02	£1.50	£1.80
68 - NUT BDE-860083-02.A83 860083-02	£1.50	£1.80
69 - SCREW BDE-942931-01.A49 942931-01	£1.50	£1.80
70 - WASHER SPRING BDE-327012-00.A11 327012-00	£1.50	£1.80
71 - SCREW BDE-942931-00.A4 942931-00	£1.50	£1.80
72 - TURRET BDE-N547463.A10 N547463	£4.69	£5.63
73 - BALL BDE-720664-00.A44 720664-00	£1.50	£1.80
74 - SPRING BDE-868082-00.A12 868082-00	£1.50	£1.80
78 - BASEPLATE SA BDE-329820-49.A12 329820-49	£84.42	£101.30
80 - BASE BDE-328645-00.A1 328645-00	£12.17	£14.60
81 - SPRING BDE-868082-00.A13 868082-00	£1.50	£1.80
83 - SPRING BDE-942904-00.A5 942904-00	£1.50	£1.80
84 - ROD 10MM X 300MM BDE-326966-00.A13 326966-00	£7.18	£8.62
85 - SCREW WING BDE-326573-01.A3 326573-01	£1.82	£2.19
87 - FENCE SA BDE-948581-00.A6 948581-00	£38.80	£46.56
89 - CAPACITOR BDE-868120-00.A7 868120-00	£3.80	£4.56
92 - LOCK BDE-942930-00.A13 942930-00	£1.50	£1.80
93 - SCREW BDE-943023-00.A22 943023-00	£1.50	£1.80
95 - SCREW BDE-249412-20.A92 249412-20	£1.50	£1.80
101 - SPANNER BDE-868111-00.A14 868111-00	£7.85	£9.42
104 - WASHER BDE-932839-00.A39 932839-00	£1.50	£1.80
107 - HOUSING BDE-329839-00.A6 329839-00	£45.14	£54.17
109 - CAP 27 MM BDE-326599-01.A11 326599-01	£1.66	£1.99
110 - HOLDER BDE-944817-00.A9 944817-00	£3.30	£3.96
111 - SCREW BDE-869076-00.A13 869076-00	£1.50	£1.80
113 - SCREW BDE-931297-00.A288 931297-00	£1.50	£1.80
116 - GUIDE BUSH BDE-249098-00.A4 249098-00	£10.85	£13.02
130 - CIRCLIP BDE-941541-00.A16 941541-00	£1.50	£1.80
200 - COVER BDE-329538-00.A4 329538-00	£19.90	£23.88

Attribute Name	Value
Brand	Dewalt
