Dewalt DW629 Type 1 Router Spare Parts

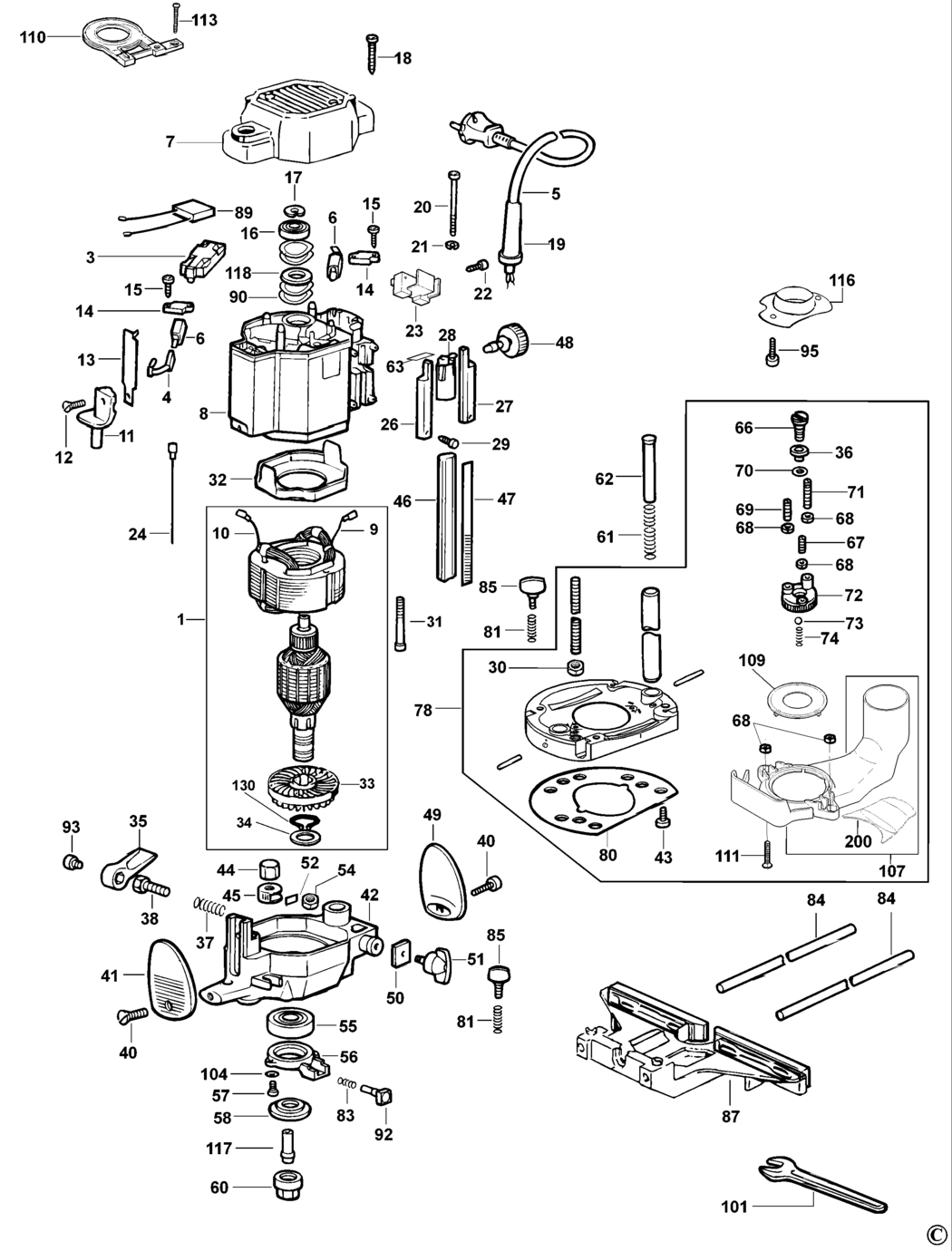

An exploded drawing and spare parts listing for the Dewalt DW629 Type 1 Router

	Ex VAT	Inc VAT
1 - ARMATURE 115V XW BDE-869074-07.A0 869074-07	£140.47	£168.56
1 - ARMATURE 240V GB BDE-869074-01.A0 869074-01	-
3 - SWITCH BDE-868128-00.A7 868128-00	-
4 - BRUSH 115V XW BDE-940146-01.A2 940146-01	£9.41	£11.29
4 - BRUSH 230V GB BDE-940146-00.A27 940146-00	£5.88	£7.06
5 - CORDSET (M/PLUG) XW BDE-248488-13.A3 248488-13	£58.69	£70.43
5 - CORDSET (M/PLUG) GB BDE-325612-03.A4 325612-03	£19.90	£23.88
6 - BRUSHBOX SA BDE-761202-00.A29 761202-00	£3.30	£3.96
7 - COVER SA BDE-249019-01.A0 249019-01	£24.39	£29.27
8 - FIELDCASE BDE-942934-03.A4 942934-03	-
9 - BRUSH LEAD BDE-868140-00.A6 868140-00	£1.78	£2.13
10 - LEAD 175MM RED BDE-868129-00.A9 868129-00	£1.82	£2.19
11 - LEVER BDE-868145-00.A3 868145-00	£1.82	£2.19
12 - SCREW BDE-249412-10.A2 249412-10	£1.50	£1.80
13 - SLIDER BDE-868123-00.A8 868123-00	£5.88	£7.06
14 - CLAMP BDE-868133-00.A7 868133-00	£2.26	£2.71
15 - SCREW BDE-860084-11.A37 860084-11	£1.50	£1.80
16 - BEARING BDE-868768-13.A0 868768-13	£7.85	£9.42
17 - CIRCLIP BDE-860079-03.A75 860079-03	£1.50	£1.80
18 - SCREW BDE-760978-01.A43 760978-01	£1.50	£1.80
19 - PROTECTOR GB BDE-720703-00.A3 720703-00	£1.50	£1.80
19 - PROTECTOR XW BDE-942277-00.A11 942277-00	£1.66	£1.99
20 - SCREW BDE-249424-24.A3 249424-24	£1.50	£1.80
21 - WASHER BDE-930248-00.A6 930248-00	£1.50	£1.80
22 - SCREW BDE-860084-04.A10 860084-04	£1.50	£1.80
23 - CABLE CLAMP BDE-248180-00.A13 248180-00	£1.50	£1.80
24 - LEAD 80MM RED BDE-868129-02.A16 868129-02	£1.82	£2.19
26 - SUPPORT LH BDE-248395-00.A4 248395-00	£1.50	£1.80
27 - SUPPORT RH BDE-248394-00.A3 248394-00	£1.50	£1.80
28 - LENS BDE-868124-01.A28 868124-01	£1.82	£2.19
29 - SCREW BDE-860428-04.A36 860428-04	£1.50	£1.80
30 - NUT BDE-761225-02.A35 761225-02	£1.50	£1.80
31 - SCREW BDE-248935-00.A5 248935-00	£1.42	£1.70
32 - BAFFLE FAN BDE-942902-01.A5 942902-01	£2.26	£2.71
33 - FAN BDE-N041821.A0 N041821	-
34 - SPACER BDE-868127-02.A3 868127-02	£1.50	£1.80
35 - LEVER BDE-942906-00.A3 942906-00	£3.80	£4.56
36 - BUSH BDE-329836-00.A0 329836-00	£1.50	£1.80
37 - SPRING BDE-942909-00.A3 942909-00	£1.50	£1.80
38 - SCREW BDE-868204-00.A13 868204-00	£7.85	£9.42
40 - REPAIR KIT >202008 BDE-869355-00.A36 869355-00	£14.57	£17.48
40 - REPAIR KIT <192008 BDE-869355-00.A37 869355-00	£14.57	£17.48
41 - REPAIR KIT <192008 BDE-869355-00.A38 869355-00	£14.57	£17.48
41 - REPAIR KIT >202008 BDE-869355-00.A39 869355-00	£14.57	£17.48
42 - HOUSING LOWER BDE-942898-00.A13 942898-00	£74.15	£88.98
43 - SCREW BDE-860205-04.A41 860205-04	£1.50	£1.80
44 - NUT BDE-868150-00.A10 868150-00	£3.30	£3.96
45 - NUT BDE-942910-00.A19 942910-00	£4.69	£5.63
46 - RACK BDE-868139-00.A0 868139-00	£7.64	£9.17
47 - SCALE BDE-249281-00.A7 249281-00	£1.50	£1.80
48 - PINION BDE-761243-05.A0 761243-05	£3.80	£4.56
49 - REPAIR KIT <192008 BDE-869355-00.A34 869355-00	£14.57	£17.48
49 - REPAIR KIT >202008 BDE-869355-00.A35 869355-00	£14.57	£17.48
50 - PLATE BDE-868119-00.A16 868119-00	£1.50	£1.80
51 - SCREW WING BDE-939840-05.A7 939840-05	£2.78	£3.34
52 - SPRING BDE-942912-00.A16 942912-00	£1.50	£1.80
54 - NUT BDE-942911-00.A4 942911-00	£7.18	£8.62
55 - BEARING BDE-868132-03.A9 868132-03	£10.85	£13.02
56 - CLAMP BDE-942900-03.A3 942900-03	£7.85	£9.42
57 - SCREW BDE-249424-02.A26 249424-02	£1.50	£1.80
58 - LOCK NUT BDE-942901-00.A13 942901-00	£7.85	£9.42
60 - COLLET NUT BDE-942893-01.A3 942893-01	£7.18	£8.62
61 - SPRING BDE-868115-00.A5 868115-00	£1.50	£1.80
62 - ROD BDE-868566-01.A4 868566-01	£1.50	£1.80
63 - LENS BDE-868124-01.A27 868124-01	£1.82	£2.19
66 - SCREW BDE-330045-05.A282 330045-05	£1.50	£1.80
67 - SCREW.TEMP BDE-942931-02.A43 942931-02	£1.50	£1.80
68 - NUT BDE-860083-02.A196 860083-02	£1.50	£1.80
69 - SCREW BDE-942931-01.A11 942931-01	£1.50	£1.80
70 - WASHER SPRING BDE-327012-00.A24 327012-00	£1.50	£1.80
71 - SCREW BDE-942931-00.A15 942931-00	£1.50	£1.80
72 - TURRET BDE-N547463.A15 N547463	£4.69	£5.63
73 - BALL BDE-720664-00.A11 720664-00	£1.50	£1.80
74 - SPRING BDE-868082-00.A196 868082-00	£1.50	£1.80
78 - BASEPLATE SA BDE-329820-49.A23 329820-49	£84.42	£101.30
80 - BASE BDE-328645-00.A7 328645-00	£12.17	£14.60
81 - SPRING BDE-868082-00.A197 868082-00	£1.50	£1.80
83 - SPRING BDE-942904-00.A13 942904-00	£1.50	£1.80
84 - ROD 10MM X 300MM BDE-326966-00.A3 326966-00	£7.18	£8.62
85 - SCREW WING BDE-326573-01.A102 326573-01	£1.82	£2.19
87 - FENCE SA BDE-948581-00.A7 948581-00	£38.80	£46.56
89 - CAPACITOR BDE-868120-00.A1 868120-00	£3.80	£4.56
90 - WASHER SPRING BDE-248978-00.A19 248978-00	£3.80	£4.56
92 - LOCK BDE-942930-00.A3 942930-00	£1.50	£1.80
95 - SCREW BDE-249412-20.A47 249412-20	£1.50	£1.80
101 - SPANNER BDE-868111-00.A6 868111-00	£7.85	£9.42
104 - WASHER BDE-932839-00.A62 932839-00	£1.50	£1.80
107 - HOUSING BDE-329839-00.A11 329839-00	£45.14	£54.17
109 - CAP 27 MM BDE-326599-01.A4 326599-01	£1.66	£1.99
110 - HOLDER BDE-944817-00.A0 944817-00	£3.30	£3.96
111 - SCREW BDE-869076-00.A45 869076-00	£1.50	£1.80
113 - SCREW BDE-931297-00.A122 931297-00	£1.50	£1.80
116 - GUIDE BUSH BDE-249098-00.A6 249098-00	£10.85	£13.02
117 - COLLET GB BDE-868116-01.A11 868116-01	£12.17	£14.60
117 - COLLET XW BDE-868116-01.A12 868116-01	£12.17	£14.60
118 - SPACER BDE-868127-01.A14 868127-01	£3.80	£4.56
130 - CIRCLIP BDE-941541-00.A4 941541-00	£1.50	£1.80
200 - COVER BDE-329538-00.A7 329538-00	£19.90	£23.88
