Dewalt DW622 Type 3 Router Spare Parts

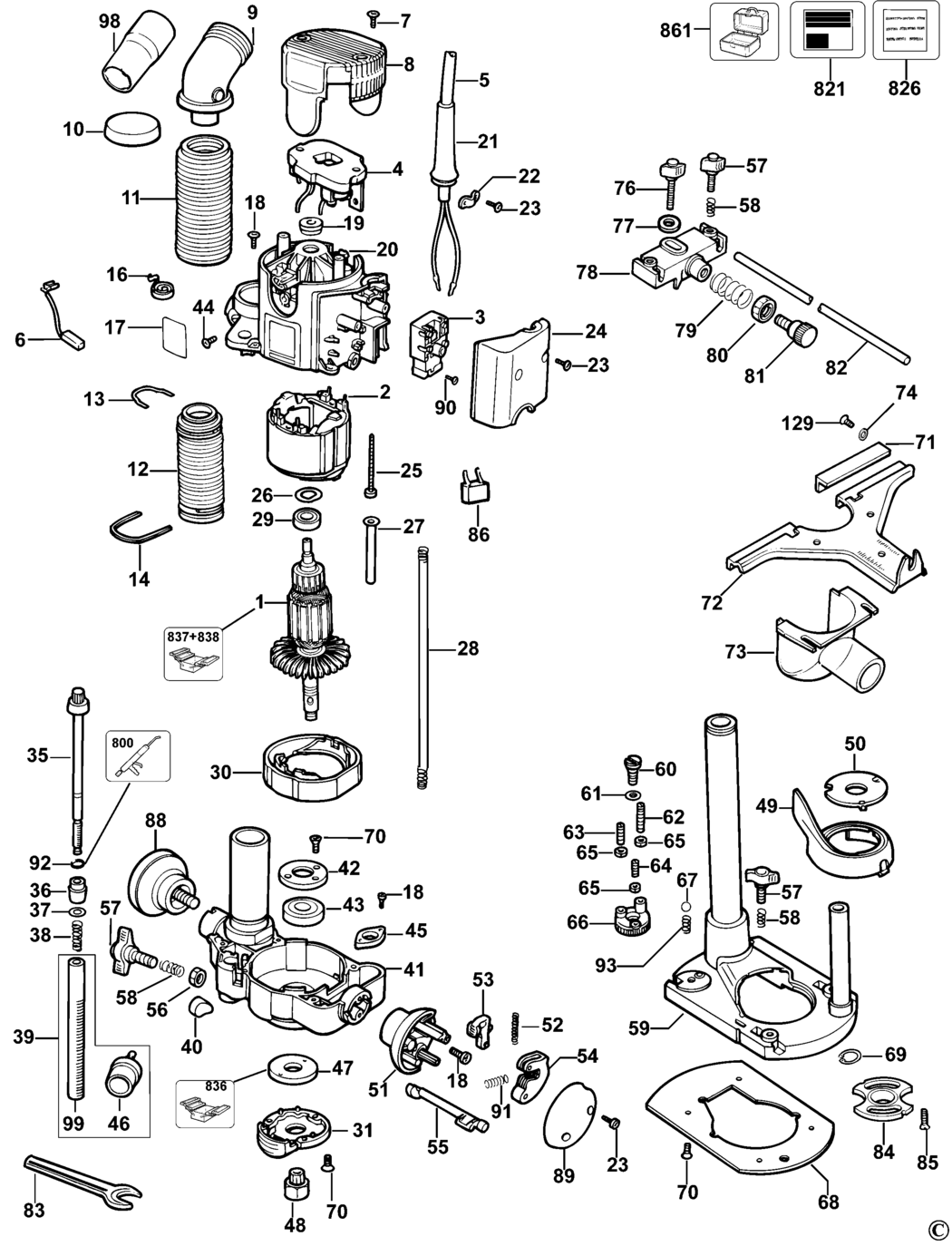

An exploded drawing and spare parts listing for the Dewalt DW622 Type 3 Router

	Ex VAT	Inc VAT
1 - ARMATURE 230V GB BDE-N030337 N030337	£165.92	£199.11
1 - ARMATURE 115/120V LX BDE-N030338 N030338	£232.38	£278.85
2 - FIELD 230V GB BDE-N030421.A1 N030421	£38.80	£46.56
2 - FIELD 120V LX BDE-N030422.A0 N030422	£41.24	£49.49
3 - SWITCH BDE-323132-00.A0 323132-00	£14.57	£17.48
4 - ELECTRONIC 115V LX BDE-326297-01.A1 326297-01	£65.52	£78.62
4 - ELECTRONIC 230V GB BDE-326297-00.A8 326297-00	£71.44	£85.73
5 - CORDSET (M/PLUG) GB BDE-330060-44.A36 330060-44	£14.57	£17.48
5 - CORDSET LX BDE-324438-72.A6 324438-72	£19.90	£23.88
6 - BRUSH 115V LX BDE-580017-01.A1 580017-01	£5.88	£7.06
6 - BRUSH 230V GB BDE-580017-00.A14 580017-00	£5.88	£7.06
7 - SCREW BDE-330065-13.A59 330065-13	£1.50	£1.80
8 - END CAP BDE-326259-01.A8 326259-01	£5.88	£7.06
9 - VACUUM ADAPTOR BDE-N434647.A0 N434647	£3.80	£4.56
9 - VACUUM ADAPTOR DW622KT BDE-N434648.A1 N434648	£10.85	£13.02
10 - CAP BDE-326287-00.A3 326287-00	£1.50	£1.80
11 - BELLOWS BDE-326268-00.A12 326268-00	£16.03	£19.24
12 - SPRING SA BDE-326283-00.A12 326283-00	£14.57	£17.48
13 - CLIP BDE-326279-00.A3 326279-00	£1.50	£1.80
14 - CLIP BDE-326607-00.A15 326607-00	£3.80	£4.56
16 - BRUSH SPRING LX BDE-326667-01.A4 326667-01	£1.50	£1.80
16 - BRUSH SPRING GB BDE-326667-00.A40 326667-00	£1.50	£1.80
17 - BRAND LABEL BDE-861315-00.A2 861315-00	£1.50	£1.80
18 - SCREW BDE-324006-00.A33 324006-00	£1.50	£1.80
19 - MAGNET BDE-326251-00.A3 326251-00	£7.85	£9.42
20 - HOUSING MOTOR GB BDE-328252-02.A1 328252-02	£37.35	£44.82
20 - HOUSING MOTOR LX BDE-328252-01.A12 328252-01	£25.70	£30.84
21 - CORD PROTECTOR BDE-320785.A1183 320785	£1.50	£1.80
22 - CORD CLAMP BDE-821070.A648 821070	£1.50	£1.80
23 - SCREW BDE-330065-06.A161 330065-06	£1.50	£1.80
24 - SWITCH COVER BDE-326258-01.A6 326258-01	£2.26	£2.71
25 - SCREW BDE-330065-10.A35 330065-10	£1.50	£1.80
26 - WASHER SPRING BDE-326845-00.A15 326845-00	£1.50	£1.80
27 - GUIDE BDE-329016-00.A5 329016-00	£1.50	£1.80
28 - SPRING BDE-323395-13.A10 323395-13	£1.50	£1.80
29 - BEARING BDE-605040-63.A34 605040-63	£3.30	£3.96
30 - BAFFLE FAN BDE-326604-00.A15 326604-00	£3.80	£4.56
31 - SPINDLE LOCK BDE-326616-03.A1 326616-03	£12.17	£14.60
35 - ADJUSTER BDE-326600-00.A0 326600-00	£4.69	£5.63
36 - SCALE BDE-326265-00.A5 326265-00	£3.30	£3.96
37 - WASHER BDE-321118.A5 321118	£1.50	£1.80
38 - SPRING BDE-323395-14.A5 323395-14	£1.50	£1.80
39 - ADJUSTER HEIGHT BDE-329023-49.A8 329023-49	£17.48	£20.97
40 - INSERT BDE-326602-00.A0 326602-00	£1.82	£2.19
41 - HOUSING LOWER BDE-328254-01 328254-01	£25.70	£30.84
42 - CLAMP BDE-326285-00.A6 326285-00	£1.50	£1.80
43 - BEARING BDE-570936-01.A1 570936-01	£14.57	£17.48
44 - SCREW BDE-330065-04.A20 330065-04	£1.50	£1.80
45 - GUIDE BDE-326606-00.A0 326606-00	£1.50	£1.80
46 - PINION BDE-326294-02.A9 326294-02	£7.18	£8.62
47 - LOCKING RING BDE-326673-01 326673-01	£4.69	£5.63
48 - COLLET & NUT SA GB BDE-326286-03.A0 326286-03	£45.14	£54.17
48 - COLLET & NUT SA LX BDE-326286-03.A1 326286-03	£45.14	£54.17
49 - DUST GUARD BDE-326273-00.A9 326273-00	£1.82	£2.19
50 - CAP 27 MM BDE-326599-01.A10 326599-01	£1.66	£1.99
51 - HANDLE RH BDE-326598-01.A15 326598-01	£1.82	£2.19
52 - SPRING BDE-328202-01.A39 328202-01	£3.80	£4.56
53 - LOCKING KNOB BDE-328202-01.A15 328202-01	£3.80	£4.56
54 - ACTUATOR BDE-328202-01.A22 328202-01	£3.80	£4.56
55 - LEVER BDE-326256-00.A1 326256-00	£1.50	£1.80
56 - NUT BDE-949726-05.A65 949726-05	£1.50	£1.80
57 - SCREW WING BDE-326573-01.A0 326573-01	£1.82	£2.19
58 - SPRING BDE-868082-00.A1 868082-00	£1.50	£1.80
59 - BASEPLATE SA BDE-328253-00.A15 328253-00	£87.82	£105.39
60 - SCREW BDE-326610-00.A0 326610-00	£1.50	£1.80
61 - WASHER SPRING BDE-327012-00.A10 327012-00	£1.50	£1.80
62 - SCREW BDE-868109-00.A7 868109-00	£1.50	£1.80
63 - SCREW BDE-942931-01.A50 942931-01	£1.50	£1.80
64 - SCREW.TEMP BDE-942931-02.A7 942931-02	£1.50	£1.80
65 - NUT BDE-860083-02.A82 860083-02	£1.50	£1.80
66 - TURRET BDE-N547463.A9 N547463	£4.69	£5.63
67 - BALL BDE-720664-00.A45 720664-00	£1.50	£1.80
68 - BASEPLATE BDE-326270-00.A5 326270-00	£18.91	£22.69
69 - CIRCLIP BDE-324821-00.A5 324821-00	£1.50	£1.80
70 - SCREW.TEMP BDE-945121-00.A27 945121-00	£1.50	£1.80
71 - GUIDE BDE-328788-00.A11 328788-00	£4.69	£5.63
72 - FENCE BDE-328784-00.A14 328784-00	£10.85	£13.02
73 - EXHAUST BDE-328786-00.A14 328786-00	£7.18	£8.62
74 - WASHER BDE-330016-01.A1 330016-01	£1.50	£1.80
76 - SCREW WING BDE-326573-02.A18 326573-02	£2.26	£2.71
77 - WASHER BDE-330016-02.A44 330016-02	£1.50	£1.80
78 - BRACKET BDE-328785-00.A0 328785-00	£3.80	£4.56
79 - SPRING BDE-323395-21.A7 323395-21	£1.50	£1.80
80 - INDEX BDE-942918-00.A26 942918-00	£1.50	£1.80
81 - ADJUSTER BDE-326239-00.A20 326239-00	£3.80	£4.56
82 - ROD BDE-868080-00.A42 868080-00	£2.78	£3.34
83 - SPANNER BDE-31351301.A23 31351301	£2.78	£3.34
84 - GUIDE BUSH BDE-326276-03.A19 326276-03	£12.17	£14.60
85 - SCREW BDE-911141.A22 911141	£1.50	£1.80
86 - CAPACITOR BDE-949877-01.A49 949877-01	£1.50	£1.80
88 - KNOB SA BDE-326300-00.A15 326300-00	£10.85	£13.02
89 - COVER BDE-326313-01.A15 326313-01	£12.17	£14.60
90 - SCREW BDE-911026.A87 911026	£1.50	£1.80
91 - SPRING BDE-323395-22.A10 323395-22	£1.50	£1.80
92 - O RING BDE-323711-26.A110 323711-26	£1.50	£1.80
93 - SPRING BDE-868082-00.A0 868082-00	£1.50	£1.80
98 - ADAPTOR BDE-328592-00.A8 328592-00	£1.50	£1.80
99 - RACK BDE-326309-01.A0 326309-01	£16.03	£19.24
129 - SCREW BDE-324006-00.A32 324006-00	£1.50	£1.80
800 - GREASE 90 GMS BDE-870889-02.A331 870889-02	£7.85	£9.42
821 - RATING PLATE LX BDE-N086642 N086642	£1.50	£1.80
821 - RATING PLATE GB BDE-N086645 N086645	£1.50	£1.80
826 - BRAND LABEL BDE-861315-00.A1 861315-00	£1.50	£1.80
836 - S.T.WRENCH BDE-559582-99.A5 559582-99	£107.82	£129.39
837 - S.T.ASSEMBLY JIG BDE-559585-98.A14 559585-98	£74.15	£88.98
837 - GUIDE BDE-559585-96.A4 559585-96	£336.69	£404.03
838 - S.T.ASSEMBLY JIG BDE-559585-98.A13 559585-98	£74.15	£88.98
838 - PIN BDE-559585-99.A6 559585-99	£19.40	£23.28
861 - KITBOX BDE-578772-53.A1 578772-53	£51.90	£62.28
