Dewalt DW621-220 Type 1 Router Spare Parts

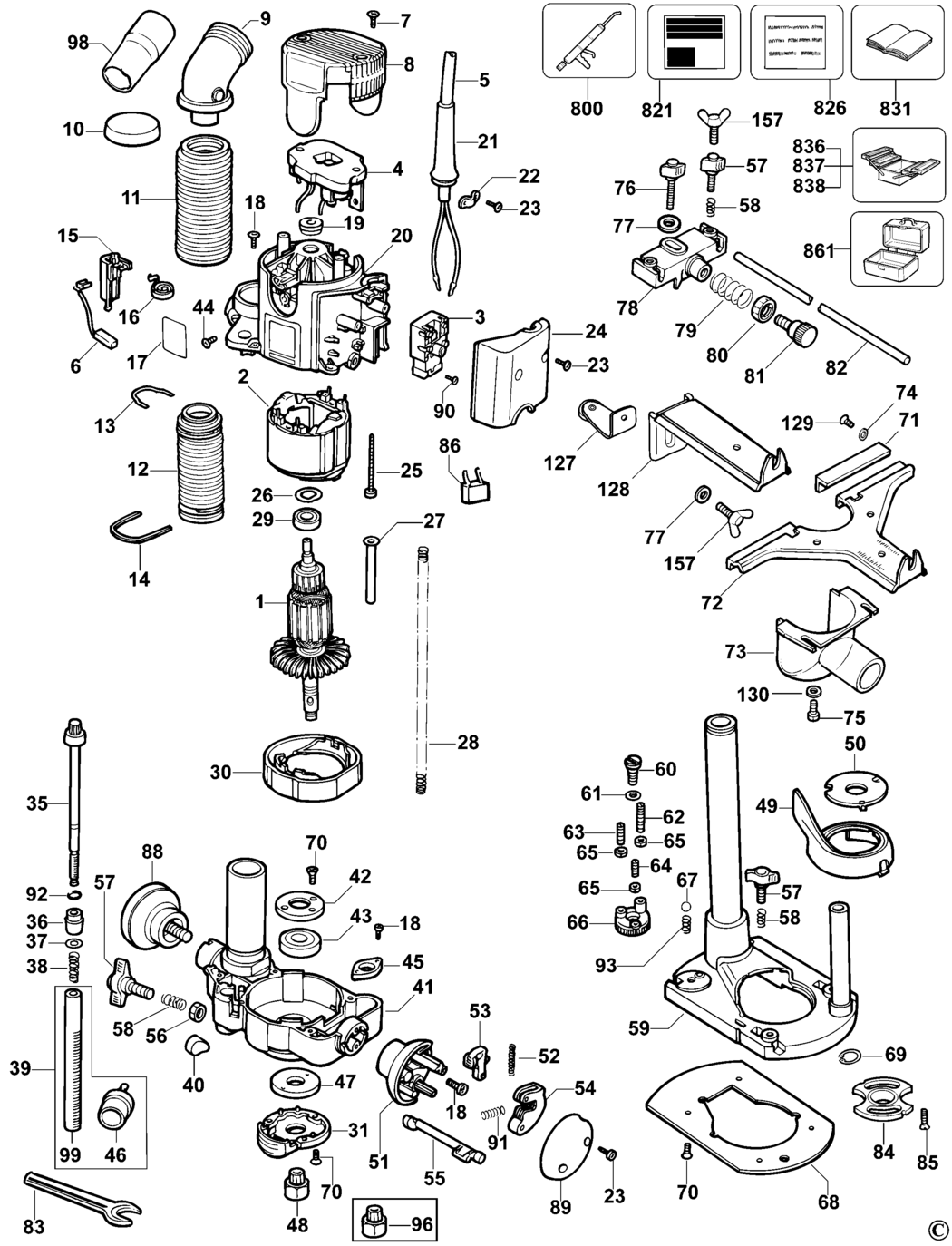

An exploded drawing and spare parts listing for the Dewalt DW621-220 Type 1 Router

	Ex VAT	Inc VAT
1 - MOTOR SA 115V XW BDE-N030341.A3 N030341	£135.36	£162.43
1 - MOTOR SA 230V GB BDE-N030339.A3 N030339	£200.77	£240.92
2 - FIELD 230V GB BDE-327429-10.A80 327429-10	-
2 - NO LONGER AVAILABLE XW BDE-000000-00.A118236 000000-00	-
3 - SWITCH BDE-323132-00.A15 323132-00	£14.57	£17.48
4 - ELECTRONIC 230V GB BDE-326297-00.A5 326297-00	£71.44	£85.73
4 - ELECTRONIC 115V XW BDE-326297-01.A4 326297-01	£65.52	£78.62
5 - CORDSET (M/PLUG) GB BDE-330060-44.A3 330060-44	£14.57	£17.48
5 - CORDSET (M/PLUG) XW BDE-330061-04.A70 330061-04	£12.17	£14.60
6 - BRUSH 115V XW BDE-580017-01.A5 580017-01	£5.88	£7.06
6 - BRUSH 230V GB BDE-580017-00.A10 580017-00	£5.88	£7.06
7 - SCREW BDE-330065-13.A20 330065-13	£1.50	£1.80
8 - END CAP BDE-326259-01.A6 326259-01	£5.88	£7.06
9 - VACUUM ADAPTOR BDE-N434647.A13 N434647	£3.80	£4.56
10 - CAP BDE-326287-00.A15 326287-00	£1.50	£1.80
11 - BELLOWS BDE-326268-00.A9 326268-00	£16.03	£19.24
12 - SPRING SA BDE-326283-00.A9 326283-00	£14.57	£17.48
13 - CLIP BDE-326279-00.A5 326279-00	£1.50	£1.80
14 - CLIP BDE-326607-00.A10 326607-00	£3.80	£4.56
15 - HOLDER BDE-326933-01.A51 326933-01	£3.30	£3.96
16 - BRUSH SPRING XW BDE-326667-01.A8 326667-01	£1.50	£1.80
16 - BRUSH SPRING GB BDE-326667-00.A3 326667-00	£1.50	£1.80
17 - BRAND LABEL BDE-861315-00.A5 861315-00	£1.50	£1.80
18 - SCREW BDE-324006-00.A83 324006-00	£1.50	£1.80
19 - MAGNET BDE-326251-00.A14 326251-00	£7.85	£9.42
20 - HOUSING MOTOR XW BDE-328252-01.A7 328252-01	£25.70	£30.84
20 - HOUSING MOTOR GB BDE-328252-02.A2 328252-02	£37.35	£44.82
21 - CORD PROTECTOR BDE-320785.A1171 320785	£1.50	£1.80
22 - CORD CLAMP BDE-821070.A751 821070	£1.50	£1.80
23 - SCREW BDE-330065-06.A83 330065-06	£1.50	£1.80
24 - SWITCH COVER BDE-326258-01.A5 326258-01	£2.26	£2.71
25 - SCREW BDE-330065-10.A16 330065-10	£1.50	£1.80
26 - WASHER SPRING BDE-326845-00.A10 326845-00	£1.50	£1.80
27 - GUIDE BDE-329016-00.A0 329016-00	£1.50	£1.80
28 - SPRING BDE-323395-13.A15 323395-13	£1.50	£1.80
29 - BEARING BDE-605040-63.A19 605040-63	£3.30	£3.96
30 - BAFFLE FAN BDE-326604-00.A14 326604-00	£3.80	£4.56
31 - SPINDLE LOCK GB BDE-326616-04.A0 326616-04	£14.57	£17.48
31 - SPINDLE LOCK XW BDE-326616-04.A1 326616-04	£14.57	£17.48
35 - ADJUSTER BDE-326600-00.A1 326600-00	£4.69	£5.63
36 - SCALE GB BDE-326265-00.A4 326265-00	£3.30	£3.96
37 - WASHER BDE-321118.A0 321118	£1.50	£1.80
38 - SPRING BDE-323395-14.A0 323395-14	£1.50	£1.80
40 - INSERT BDE-326602-00.A1 326602-00	£1.82	£2.19
41 - HOUSING LOWER GB BDE-328254-00.A4 328254-00	£80.98	£97.18
41 - HOUSING LOWER XW BDE-328254-00.A5 328254-00	£80.98	£97.18
42 - CLAMP BDE-326285-00.A5 326285-00	£1.50	£1.80
43 - BEARING XW BDE-570936-00.A0 570936-00	£10.85	£13.02
43 - BEARING GB BDE-570936-00.A1 570936-00	£10.85	£13.02
44 - SCREW BDE-330065-04.A15 330065-04	£1.50	£1.80
45 - GUIDE BDE-326606-00.A1 326606-00	£1.50	£1.80
46 - PINION GB BDE-326294-02.A10 326294-02	£7.18	£8.62
46 - PINION XW BDE-326294-02.A11 326294-02	£7.18	£8.62
47 - LOCKING RING GB BDE-326673-00.A15 326673-00	£3.30	£3.96
47 - LOCKING RING XW BDE-326673-00.A16 326673-00	£3.30	£3.96
48 - COLLET & NUT SA XW BDE-326286-01.A1 326286-01	£24.39	£29.27
48 - COLLET & NUT SA GB BDE-326286-01.A2 326286-01	£24.39	£29.27
49 - DUST GUARD BDE-326273-00.A10 326273-00	£1.82	£2.19
50 - CAP 21 MM GB BDE-326599-00.A0 326599-00	£1.50	£1.80
50 - CAP 21 MM XW BDE-326599-00.A1 326599-00	£1.50	£1.80
51 - HANDLE RH BDE-326598-01.A14 326598-01	£1.82	£2.19
52 - SPRING BDE-328202-01.A30 328202-01	£3.80	£4.56
53 - LOCKING KNOB BDE-328202-01.A14 328202-01	£3.80	£4.56
54 - ACTUATOR BDE-328202-01.A21 328202-01	£3.80	£4.56
55 - LEVER BDE-326256-00.A2 326256-00	£1.50	£1.80
56 - NUT BDE-949726-05.A57 949726-05	£1.50	£1.80
57 - SCREW WING XW BDE-326573-01.A20 326573-01	£1.82	£2.19
57 - SCREW WING GB BDE-326573-01.A21 326573-01	£1.82	£2.19
58 - SPRING BDE-868082-00.A28 868082-00	£1.50	£1.80
59 - BASEPLATE SA BDE-328253-00.A10 328253-00	£87.82	£105.39
60 - SCREW BDE-326610-00.A5 326610-00	£1.50	£1.80
61 - WASHER SPRING BDE-327012-00.A2 327012-00	£1.50	£1.80
62 - SCREW BDE-868109-00.A2 868109-00	£1.50	£1.80
63 - SCREW BDE-942931-01.A44 942931-01	£1.50	£1.80
64 - SCREW.TEMP BDE-942931-02.A13 942931-02	£1.50	£1.80
65 - NUT BDE-860083-02.A46 860083-02	£1.50	£1.80
66 - TURRET BDE-N547463.A6 N547463	£4.69	£5.63
67 - BALL BDE-720664-00.A47 720664-00	£1.50	£1.80
68 - BASEPLATE BDE-326270-00.A4 326270-00	£18.91	£22.69
69 - CIRCLIP BDE-324821-00.A0 324821-00	£1.50	£1.80
70 - SCREW.TEMP BDE-945121-00.A7 945121-00	£1.50	£1.80
71 - GUIDE DW621 GB BDE-328788-00.A12 328788-00	£4.69	£5.63
71 - GUIDE DW621 XW BDE-328788-00.A13 328788-00	£4.69	£5.63
71 - GUIDE DW621B GB BDE-249090-00.A7 249090-00	£1.82	£2.19
71 - GUIDE DW621B XW BDE-249090-00.A8 249090-00	£1.82	£2.19
72 - NO LONGER AVAILABLE DW621B GB BDE-000000-00.A52018 000000-00	-
72 - FENCE DW621 GB BDE-328784-00.A13 328784-00	£10.85	£13.02
72 - NO LONGER AVAILABLE DW621B XW BDE-000000-00.A52019 000000-00	-
72 - FENCE DW621 XW BDE-328784-00.A12 328784-00	£10.85	£13.02
73 - EXHAUST DW621B GB BDE-326274-00.A4 326274-00	-
73 - EXHAUST DW621B XW BDE-326274-00.A5 326274-00	-
73 - EXHAUST DW621 XW BDE-328786-00.A12 328786-00	£7.18	£8.62
73 - EXHAUST DW621 GB BDE-328786-00.A13 328786-00	£7.18	£8.62
74 - WASHER DW621 GB BDE-330016-01.A7 330016-01	£1.50	£1.80
74 - WASHER DW621 XW BDE-330016-01.A8 330016-01	£1.50	£1.80
75 - SCREW DW621B GB BDE-949886-30.A0 949886-30	-
75 - SCREW DW621B XW BDE-949886-30.A1 949886-30	-
76 - SCREW WING GB BDE-326573-02.A15 326573-02	£2.26	£2.71
76 - SCREW WING XW BDE-326573-02.A16 326573-02	£2.26	£2.71
77 - WASHER GB BDE-330016-02.A34 330016-02	£1.50	£1.80
77 - WASHER XW BDE-330016-02.A35 330016-02	£1.50	£1.80
78 - BRACKET DW621B GB BDE-326237-00.A0 326237-00	-
78 - BRACKET DW621B XW BDE-326237-00.A1 326237-00	-
78 - BRACKET DW621 GB BDE-328785-00.A1 328785-00	£3.80	£4.56
79 - SPRING GB BDE-323395-21.A4 323395-21	£1.50	£1.80
79 - SPRING XW BDE-323395-21.A5 323395-21	£1.50	£1.80
80 - INDEX XW BDE-942918-00.A23 942918-00	£1.50	£1.80
80 - INDEX GB BDE-942918-00.A24 942918-00	£1.50	£1.80
81 - ADJUSTER GB BDE-326239-00.A17 326239-00	£3.80	£4.56
81 - ADJUSTER XW BDE-326239-00.A18 326239-00	£3.80	£4.56
82 - ROD GB BDE-868080-00.A37 868080-00	£2.78	£3.34
82 - ROD XW BDE-868080-00.A38 868080-00	£2.78	£3.34
83 - SPANNER GB BDE-31351301.A17 31351301	£2.78	£3.34
83 - SPANNER XW BDE-31351301.A18 31351301	£2.78	£3.34
84 - GUIDE BUSH GB BDE-326276-03.A13 326276-03	£12.17	£14.60
84 - GUIDE BUSH XW BDE-326276-03.A14 326276-03	£12.17	£14.60
85 - SCREW BDE-911141.A17 911141	£1.50	£1.80
86 - CAPACITOR BDE-949877-01.A36 949877-01	£1.50	£1.80
88 - KNOB SA BDE-326300-00.A14 326300-00	£10.85	£13.02
89 - COVER BDE-326313-01.A10 326313-01	£12.17	£14.60
90 - SCREW BDE-911026.A8 911026	£1.50	£1.80
91 - SPRING BDE-323395-22.A11 323395-22	£1.50	£1.80
92 - O RING BDE-323711-26.A92 323711-26	£1.50	£1.80
93 - SPRING BDE-868082-00.A27 868082-00	£1.50	£1.80
98 - ADAPTOR BDE-328592-00.A7 328592-00	£1.50	£1.80
99 - RACK GB BDE-326309-01.A1 326309-01	£16.03	£19.24
99 - RACK XW BDE-326309-01.A2 326309-01	£16.03	£19.24
129 - SCREW.TEMP DW621B XW BDE-945121-00.A9 945121-00	£1.50	£1.80
129 - SCREW DW621 GB BDE-324006-00.A0 324006-00	£1.50	£1.80
129 - SCREW DW621 XW BDE-324006-00.A1 324006-00	£1.50	£1.80
129 - SCREW.TEMP DW621B GB BDE-945121-00.A8 945121-00	£1.50	£1.80
130 - WASHER DW621B GB BDE-937883.A10 937883	-
130 - WASHER DW621B XW BDE-937883.A11 937883	-
800 - GREASE 90 GMS BDE-870889-02.A230 870889-02	£7.85	£9.42
836 - S.T.WRENCH BDE-559582-99.A0 559582-99	£107.82	£129.39
837 - S.T.ASSEMBLY JIG GB BDE-559585-98.A19 559585-98	£74.15	£88.98
837 - S.T.ASSEMBLY JIG XW BDE-559585-98.A20 559585-98	£74.15	£88.98
838 - PIN GB BDE-559585-99.A0 559585-99	£19.40	£23.28
838 - PIN XW BDE-559585-99.A1 559585-99	£19.40	£23.28
