Dewalt D26203K Type 1 Router Spare Parts

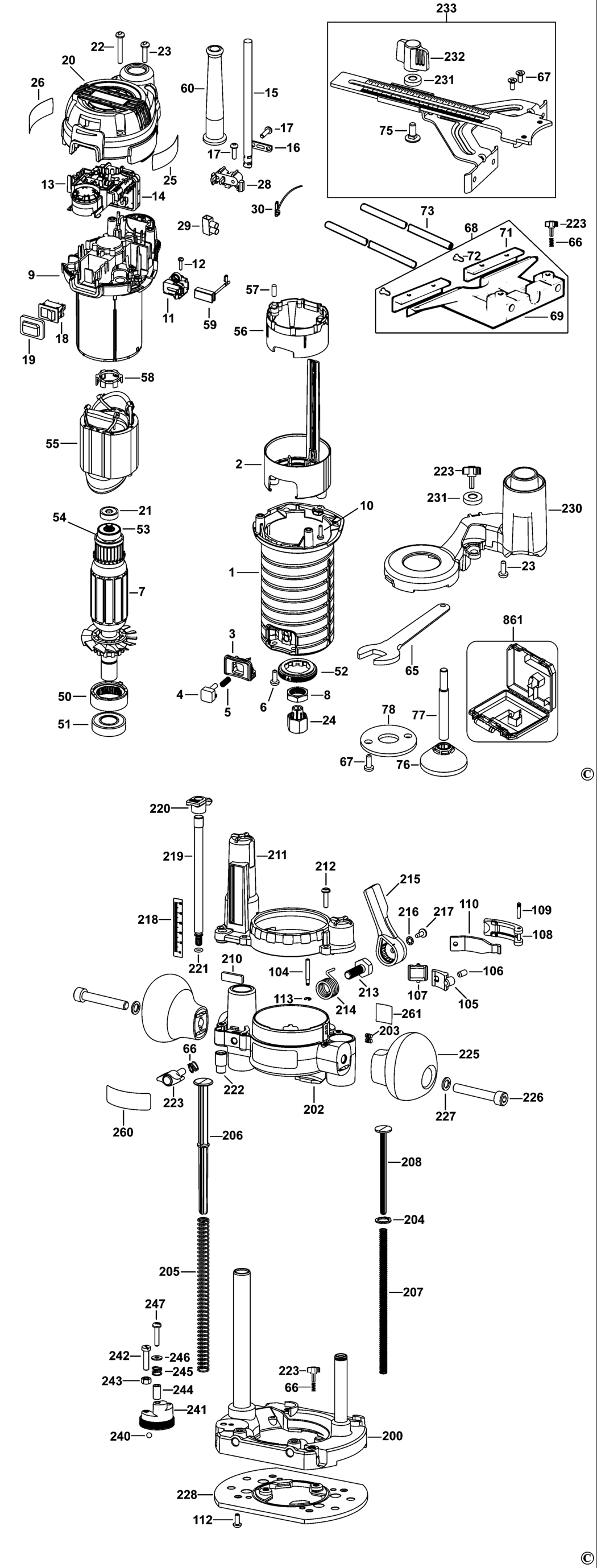

An exploded drawing and spare parts listing for the Dewalt D26203K Type 1 Router

	Ex VAT	Inc VAT
1 - MOTOR HOUSING SA BDE-A26126SV.A0 A26126SV	£60.94	£73.13
2 - LED LIGHT BDE-N074107.A2 N074107	£45.14	£54.17
3 - INSERT BDE-A26131.A2 A26131	£1.50	£1.80
4 - LOCK BUTTON BDE-N038183.A1 N038183	£1.50	£1.80
5 - SPRING BDE-A23489.A1 A23489	£1.50	£1.80
6 - SCREW BDE-330065-06.A163 330065-06	£1.50	£1.80
7 - ARMATURE 120V INCL 5354 LX BDE-A26132.A0 A26132	£135.36	£162.43
7 - ARMATURE 230V INC 5354 GB BDE-A28455SV.A1 A28455SV	£157.18	£188.61
8 - NUT BDE-A25248.A0 A25248	£3.80	£4.56
9 - FIELDCASE BDE-A28680.A2 A28680	£17.48	£20.97
10 - SCREW BDE-330065-07.A64 330065-07	£1.50	£1.80
11 - BRUSH HOLDER SA INCL 59 GB BDE-A28458.A1 A28458	£12.17	£14.60
11 - BRUSH HOLDER 120V LX BDE-A27345.A1 A27345	£12.17	£14.60
12 - SCREW.TEMP BDE-330019-01.A46 330019-01	£1.50	£1.80
13 - CONTROL MODULE SA GB BDE-N074135.A2 N074135	£71.44	£85.73
13 - CONTROL MODULE SA LX BDE-N074136.A0 N074136	£71.44	£85.73
14 - MODULE LX BDE-N074104.A0 N074104	£96.55	£115.86
14 - CONTROL MODULE SA GB BDE-N074109.A0 N074109	£71.44	£85.73
15 - CORDSET GB BDE-A28691.A0 A28691	£30.08	£36.10
15 - CORDSET LX BDE-A28692.A2 A28692	£41.24	£49.49
16 - CORD CLAMP BDE-329301-00.A238 329301-00	£1.50	£1.80
17 - SCREW BDE-330019-02.A92 330019-02	£1.50	£1.80
18 - SWITCH BDE-887453.A2 887453	£3.30	£3.96
19 - SWITCH COVER BDE-A29360.A1 A29360	£1.50	£1.80
20 - END CAP BDE-A28679.A0 A28679	£14.57	£17.48
21 - MAGNET BDE-A27330.A1 A27330	£5.88	£7.06
22 - SCREW BDE-330045-09.A10 330045-09	£1.50	£1.80
23 - SCREW BDE-330065-08.A170 330065-08	£1.50	£1.80
24 - COLLET & NUT SA GB BDE-326286-01.A11 326286-01	£24.39	£29.27
24 - COLLET & NUT SA LX BDE-326286-01.A12 326286-01	£24.39	£29.27
25 - RATING PLATE GB BDE-N084829 N084829	£5.88	£7.06
25 - RATING PLATE LX BDE-N084830 N084830	£5.88	£7.06
26 - WARNING LABEL BDE-A28464.A0 A28464	£1.50	£1.80
28 - MOUNT BDE-A28476.A1 A28476	£1.50	£1.80
29 - TERMINAL BLOCK BDE-398100-00.A5 398100-00	£1.50	£1.80
30 - LEAD SA BDE-A29361.A1 A29361	£1.82	£2.19
50 - INSERT BDE-A26125.A2 A26125	£1.82	£2.19
51 - BEARING BDE-A27537.A1 A27537	£4.69	£5.63
52 - NUT LH BDE-A25250.A2 A25250	£1.50	£1.80
53 - BEARING BDE-330003-60.A12 330003-60	£2.78	£3.34
54 - INSULATOR BDE-A25585.A0 A25585	£1.50	£1.80
55 - FIELD 230V GB BDE-N278879.A0 N278879	£58.69	£70.43
55 - FIELD SA 115V LX BDE-A21119.A2 A21119	£38.80	£46.56
56 - BAFFLE BDE-A23504.A2 A23504	£2.78	£3.34
57 - DAMPER BDE-949638-02.A204 949638-02	£1.50	£1.80
58 - WASHER BDE-A27937.A1 A27937	£1.50	£1.80
59 - BRUSH 120V LX BDE-A27343.A1 A27343	£9.41	£11.29
59 - BRUSH GB BDE-A28459.A2 A28459	£7.85	£9.42
60 - CORD PROTECTOR BDE-N542553.A116 N542553	£3.80	£4.56
65 - WRENCH SPECIAL BDE-A27895.A1 A27895	£5.88	£7.06
66 - SPRING BDE-609118-00.A1 609118-00	£1.50	£1.80
67 - SCREW.TEMP BDE-945121-00.A28 945121-00	£1.50	£1.80
68 - FENCE SA BDE-948651-00.A11 948651-00	£41.24	£49.49
69 - FENCE SA BDE-948651-00.A12 948651-00	£41.24	£49.49
71 - GUIDE BDE-249090-00.A9 249090-00	£1.82	£2.19
72 - SCREW BDE-860205-04.A59 860205-04	£1.50	£1.80
73 - ROD BDE-868080-00.A43 868080-00	£2.78	£3.34
75 - SCREW BDE-931405-00.A7 931405-00	£1.50	£1.80
76 - CONE BDE-A27315.A1 A27315	£1.50	£1.80
77 - PIN BDE-A27316.A1 A27316	£3.80	£4.56
78 - BUSH BDE-249014-01.A3 249014-01	£10.85	£13.02
104 - PIN BDE-A24452.A3 A24452	£1.50	£1.80
105 - ADJUSTER BDE-A24764.A0 A24764	£4.69	£5.63
106 - SCREW BDE-330022-18.A3 330022-18	£12.17	£14.60
107 - PAD BDE-A24767.A3 A24767	£2.26	£2.71
108 - CLAMPING BAR BDE-A24771.A3 A24771	£5.88	£7.06
109 - PIN BDE-A24770.A0 A24770	£1.50	£1.80
110 - SPRING BDE-A27362.A1 A27362	£2.78	£3.34
112 - SCREW BDE-N029178.A1 N029178	£1.50	£1.80
113 - RETAINER BDE-N028373.A1 N028373	£1.50	£1.80
200 - BASE SA BDE-N095607.A0 N095607	£34.00	£40.80
202 - CARRIER SA BDE-N095608.A1 N095608	£45.14	£54.17
203 - PIN BDE-N042079.A1 N042079	£1.50	£1.80
204 - RING BDE-684179.A4 684179	£1.50	£1.80
205 - SPRING BDE-N037001.A1 N037001	£1.50	£1.80
206 - GUIDE BDE-N034346.A1 N034346	£1.50	£1.80
207 - SPRING BDE-A29112.A0 A29112	£1.50	£1.80
208 - GUIDE BDE-A29651.A0 A29651	£1.50	£1.80
210 - PLATE BDE-N027873.A1 N027873	£1.50	£1.80
211 - COVER BDE-N029880.A1 N029880	£3.80	£4.56
212 - SCREW BDE-330045-06.A145 330045-06	£1.50	£1.80
213 - BOLT BDE-N029497.A1 N029497	£3.80	£4.56
214 - SPRING BDE-N029508.A1 N029508	£1.50	£1.80
215 - LEVER BDE-N027646.A0 N027646	£1.50	£1.80
216 - WASHER SPECIAL BDE-608298-00.A0 608298-00	£1.50	£1.80
217 - SCREW BDE-324007-10.A45 324007-10	£1.50	£1.80
218 - SCALE BDE-N032095.A1 N032095	£1.50	£1.80
219 - ROD BDE-A28031.A1 A28031	£2.26	£2.71
220 - ADJUSTER BDE-N031168.A1 N031168	£1.50	£1.80
221 - O RING BDE-N027984.A0 N027984	£1.50	£1.80
222 - ADJUSTER BDE-N027987.A0 N027987	£3.30	£3.96
223 - SCREW BDE-608930-00.A0 608930-00	£1.66	£1.99
225 - KNOB BDE-397560-00.A1 397560-00	£3.30	£3.96
226 - SCREW BDE-607395-00.A0 607395-00	£1.50	£1.80
227 - WASHER BDE-098197-09.A4 098197-09	£1.50	£1.80
228 - BASEPLATE BDE-N029742.A1 N029742	£9.41	£11.29
230 - ADAPTOR INCL 23 BDE-A29660.A1 A29660	£10.85	£13.02
231 - WASHER OPTIONAL NOTSUPPLIED BDE-N028927.A2 N028927	£1.50	£1.80
232 - KNOB OPTIONAL NOTSUPPLIED BDE-147107-00.A21 147107-00	£1.82	£2.19
233 - GUIDE SA OPTIONAL NOTSUPPLIED BDE-N026733.A1 N026733	£17.48	£20.97
240 - BALL BDE-652836-00.A1 652836-00	£1.50	£1.80
241 - TURRET BDE-326976-01.A0 326976-01	£1.50	£1.80
242 - SCREW BDE-608928-00.A1 608928-00	£1.50	£1.80
243 - NUT BDE-330015-04.A23 330015-04	£1.50	£1.80
244 - SPACER BDE-652835-00.A0 652835-00	£1.50	£1.80
245 - SPRING BDE-652834-00.A1 652834-00	£1.50	£1.80
246 - WASHER BDE-653599-00.A1 653599-00	£1.50	£1.80
247 - SCREW BDE-330045-07.A11 330045-07	£1.50	£1.80
260 - BRAND LABEL BDE-N029502.A1 N029502	£1.50	£1.80
261 - NAMEPLATE BDE-N029503.A0 N029503	£5.88	£7.06
861 - KITBOX OPTIONAL NOTSUPPLIED BDE-A28470.A0 A28470	£55.30	£66.36
