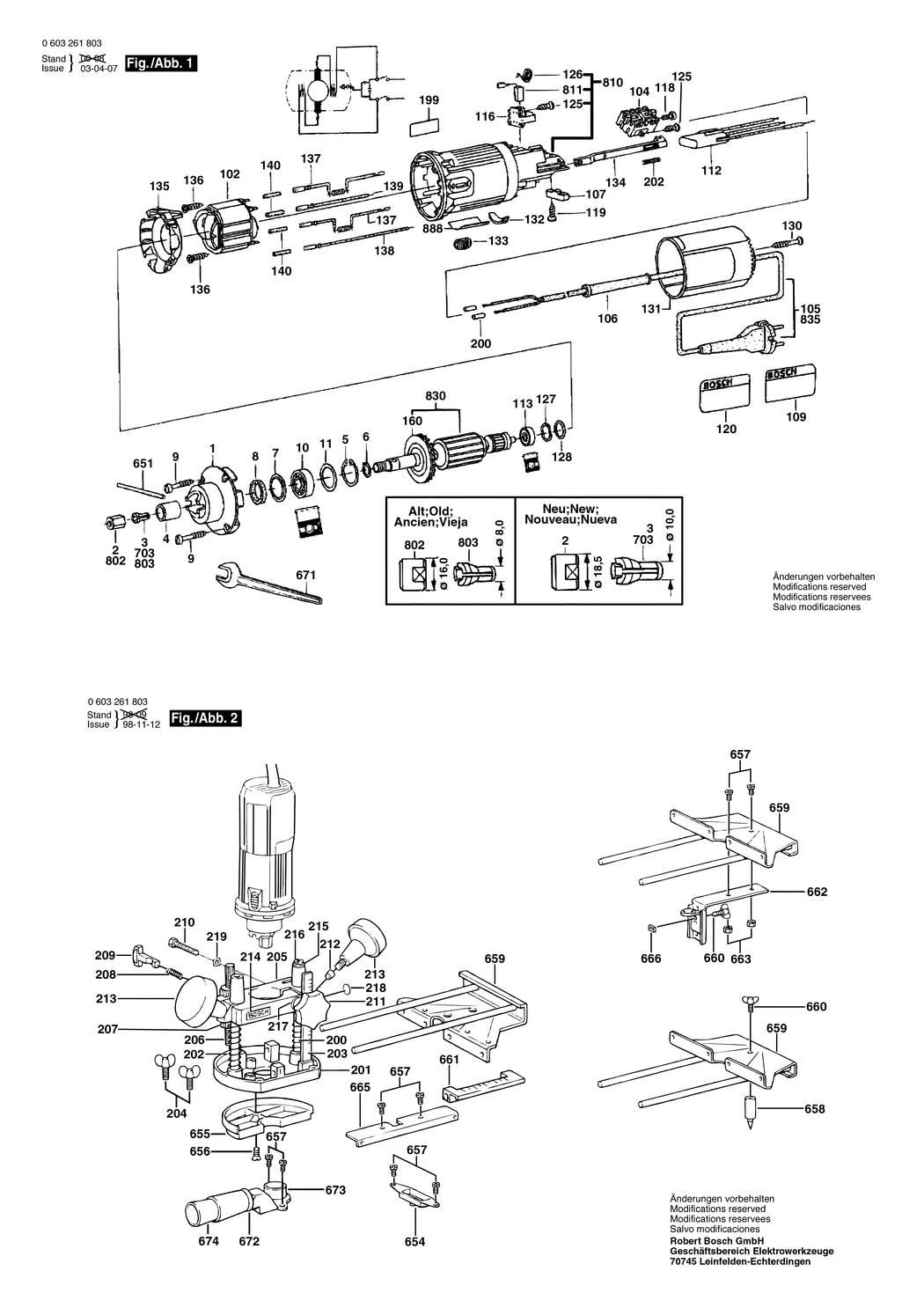

1 - SPINDLE HOUSING
BSD-2605806376.A4
2605806376
|
-
|
|
|
|
2 - UNION NUT SW 17. dia 18.5 MM
BSD-2603312006.A19
2603312006
|
£6.85
|
£8.22
|
|
|
3 - COLLET dia 6 MM / dia 10 MM
BSD-2608570047.A42
2608570047
|
£10.82
|
£12.99
|
|
|
3 - COLLET dia 6.4MM=1/4 / dia 10MM
BSD-2608570048.A3
2608570048
|
£12.49
|
£14.99
|
|
|
3 - COLLET dia 8 MM / dia 10 MM
BSD-2608570049.A42
2608570049
|
£12.49
|
£14.99
|
|
|
4 - SEAL BUSHING
BSD-2600300073.A38
2600300073
|
£6.52
|
£7.83
|
|
|
5 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A252
2916660013
|
£2.16
|
£2.59
|
|
|
6 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A522
2916650006
|
£1.75
|
£2.10
|
|
|
7 - CUPPED WASHER
BSD-2600500033.A117
2600500033
|
£2.74
|
£3.29
|
|
|
8 - FELT WASHER
BSD-2600108033.A49
2600108033
|
£1.84
|
£2.21
|
|
|
9 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A824
2603490023
|
£1.84
|
£2.21
|
|
|
10 - GROOVE BALL BEARING 15x32x9
BSD-2600905017.A42
2600905017
|
£10.61
|
£12.73
|
|
|
11 - SHIM 0.1 MM
BSD-1600102626.A49
1600102626
|
£2.27
|
£2.72
|
|
|
102 - FIELD 220-230V
BSD-2604220445.A71
2604220445
|
£28.59
|
£34.31
|
|
|
104 - SWITCH
BSD-2607200674.A18
2607200674
|
£16.41
|
£19.69
|
|
|
105 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460277.A1
2604460277
|
£12.64
|
£15.17
|
|
|
106 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1002
2600703012
|
£2.94
|
£3.53
|
|
|
107 - CABLE CLIP
BSD-2601035001.A529
2601035001
|
£1.84
|
£2.21
|
|
|
109 - STICKER
BSD-2601118930.A3
2601118930
|
-
|
|
|
|
112 - SUPPRESSION FILTER
BSD-2607329104.A151
2607329104
|
£10.10
|
£12.12
|
|
|
113 - GROOVE BALL BEARING 7x22x7
BSD-2600905018.A13
2600905018
|
-
|
|
|
|
116 - BRUSH HOLDER
BSD-1600A003G4.A225
1600A003G4
|
£3.72
|
£4.47
|
|
|
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A484
2603410001
|
£1.84
|
£2.21
|
|
|
119 - SCREW 4x16
BSD-2603490022.A1352
2603490022
|
£1.84
|
£2.21
|
|
|
120 - STICKER
BSD-2601118931.A6
2601118931
|
-
|
|
|
|
125 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1041
2603490017
|
£2.27
|
£2.72
|
|
|
126 - SPIRAL SPRING
BSD-2604652009.A201
2604652009
|
£1.84
|
£2.21
|
|
|
127 - SHIM
BSD-2600150033.A36
2600150033
|
£2.27
|
£2.72
|
|
|
128 - SHIM WASHER 0.3 MM
BSD-2600101027.A94
2600101027
|
£1.84
|
£2.21
|
|
|
128 - SHIM WASHER 0.5 MM
BSD-2600101667.A140
2600101667
|
£1.84
|
£2.21
|
|
|
128 - SHIM WASHER 0.2 MM
BSD-2600101665.A78
2600101665
|
£1.84
|
£2.21
|
|
|
130 - TAPPING SCREW DIN 7982-ST3.9x22C-H
BSD-2910601321.A99
2910601321
|
-
|
|
|
|
131 - HOUSING COVER
BSD-2600508040.A3
2600508040
|
-
|
|
|
|
132 - INTERMEDIATE PIECE
BSD-2600026002.A19
2600026002
|
-
|
|
|
|
133 - SWITCH HANDLE
BSD-2602026014.A5
2602026014
|
-
|
|
|
|
134 - ADJUSTING SLIDE
BSD-2602319005.A108
2602319005
|
£1.84
|
£2.21
|
|
|
135 - COVER DISC
BSD-2601328045.A87
2601328045
|
£2.16
|
£2.59
|
|
|
136 - TAPPING SCREW
BSD-2603435086.A268
2603435086
|
£1.84
|
£2.21
|
|
|
137 - SUPPRESSOR BOX
BSD-2604465106.A57
2604465106
|
£4.26
|
£5.11
|
|
|
137 - CONNECTING CABLE L=88 MM
BSD-2604448034.A185
2604448034
|
£1.75
|
£2.10
|
|
|
137 - SUPPRESSION FILTER
BSD-1619P15513.A57
1619P15513
|
£4.75
|
£5.70
|
|
|
138 - CONNECTING CABLE L=119MM
BSD-2604448078.A12
2604448078
|
£1.84
|
£2.21
|
|
|
139 - CONNECTING CABLE L=86MM
BSD-2604448044.A64
2604448044
|
£1.75
|
£2.10
|
|
|
140 - SHRINKABLE TUBE
BSD-1610712034.A55
1610712034
|
£1.74
|
£2.09
|
|
|
160 - FAN
BSD-2606610050.A12
2606610050
|
-
|
|
|
|
201 - BASE PLATE
BSD-2608000014.A15
2608000014
|
-
|
|
|
|
202 - COMPRESSION SPRING
BSD-2604615011.A6
2604615011
|
-
|
|
|
|
203 - DEPTH MEASURE
BSD-2601010052.A5
2601010052
|
-
|
|
|
|
204 - WING SCREW
BSD-1603480003.A11
1603480003
|
-
|
|
|
|
205 - GUIDE PLATE
BSD-2608005014.A10
2608005014
|
-
|
|
|
|
206 - KNURLED THUMBSCREW
BSD-1603501018.A15
1603501018
|
£2.52
|
£3.02
|
|
|
207 - ADJUSTING NUT
BSD-2603345015.A31
2603345015
|
-
|
|
|
|
208 - COMPRESSION SPRING
BSD-2604611008.A13
2604611008
|
-
|
|
|
|
209 - DETENT PIN
BSD-2602305044.A8
2602305044
|
£1.84
|
£2.21
|
|
|
210 - HEX SCREW DIN 931-M8x60-8.8
BSD-2911001258.A2
2911001258
|
-
|
|
|
|
211 - STAR KNOB
BSD-1613349015.A22
1613349015
|
£2.94
|
£3.53
|
|
|
212 - PRESSURE SPINDLE
BSD-2603200020.A4
2603200020
|
-
|
|
|
|
213 - HANDLE
BSD-1603481001.A54
1603481001
|
-
|
|
|
|
214 - MANUFACTURER'S NAMEPLATE
BSD-2601118933.A8
2601118933
|
-
|
|
|
|
215 - PLAIN WASHER DIN 9021-A6.4-ST
BSD-2916011884.A54
2916011884
|
-
|
|
|
|
216 - SOCKET HEAD CAP SCREW DIN 84-AM6x16-5.8
BSD-2910011191.A51
2910011191
|
-
|
|
|
|
217 - PLAIN WASHER 8.4 DIN 433-ST
BSD-2916011015.A42
2916011015
|
£1.84
|
£2.21
|
|
|
218 - STICKER
BSD-2601110137.A14
2601110137
|
-
|
|
|
|
219 - PERFORATED PANEL
BSD-2601031002.A11
2601031002
|
-
|
|
|
|
651 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A117
2603101035
|
£2.94
|
£3.53
|
|
|
654 - TOOL GUIDE
BSD-2602053000.A10
2602053000
|
-
|
|
|
|
655 - GUIDE PLATE
BSD-2607000032.A20
2607000032
|
-
|
|
|
|
656 - COUNTERSUNK-HEAD SCREW M 6x16 DIN 963-4.8
BSD-2910761197.A17
2910761197
|
-
|
|
|
|
657 - SOCKET HEAD CAP SCREW DIN 84-AM6x16-5.8
BSD-2910011191.A50
2910011191
|
-
|
|
|
|
658 - GUIDING BOLT
BSD-2603102007.A12
2603102007
|
-
|
|
|
|
659 - EDGE GUIDE
BSD-2607000067.A20
2607000067
|
-
|
|
|
|
660 - WING SCREW
BSD-1603480003.A10
1603480003
|
-
|
|
|
|
661 - FLUID-LEVEL GAUGE
BSD-2607000033.A4
2607000033
|
-
|
|
|
|
662 - GUIDE ROLLER
BSD-2607000031.A4
2607000031
|
-
|
|
|
|
663 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1247
2915011007
|
-
|
|
|
|
665 - GUIDE-PLATE
BSD-2601332007.A15
2601332007
|
-
|
|
|
|
666 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1248
2915011007
|
-
|
|
|
|
671 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A607
2607950511
|
£4.48
|
£5.37
|
|
|
671 - SINGLE-HEAD ENG. WRENCH SW 14
BSD-1907950508.A138
1907950508
|
£15.65
|
£18.78
|
|
|
672 - EXTRACTOR HEAD
BSD-2608190008.A10
2608190008
|
-
|
|
|
|
673 - PROTECTIVE RING
BSD-2605730034.A24
2605730034
|
-
|
|
|
|
701 - ROUTER ATTACHMENT
BSD-2607020300.A10
2607020300
|
-
|
|
|
|
701 - MILLING FIXTURE
BSD-2607030004.A7
2607030004
|
-
|
|
|
|
703 - COLLET dia 6.4 MM=1/4/dia 8 MM
BSD-2608570066.A20
2608570066
|
£13.08
|
£15.69
|
|
|
799 - EDGE CUTTER ATTACHMENT
BSD-2607020301.A5
2607020301
|
-
|
|
|
|
801 - MOTOR HOUSING
BSD-2605108905.A12
2605108905
|
-
|
|
|
|
802 - UNION NUT SW 14
BSD-2603312001.A12
2603312001
|
-
|
|
|
|
803 - COLLET dia 6 MM / dia 8 MM
BSD-2608570065.A10
2608570065
|
-
|
|
|
|
811 - CARBON-BRUSH SET
BSD-2604320912.A10
2604320912
|
£10.61
|
£12.73
|
|
|
830 - ARMATURE 220-230V
BSD-2604010915.A10
2604010915
|
£98.57
|
£118.28
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1346
160111A3H3
|
£2.74
|
£3.29
|
|
