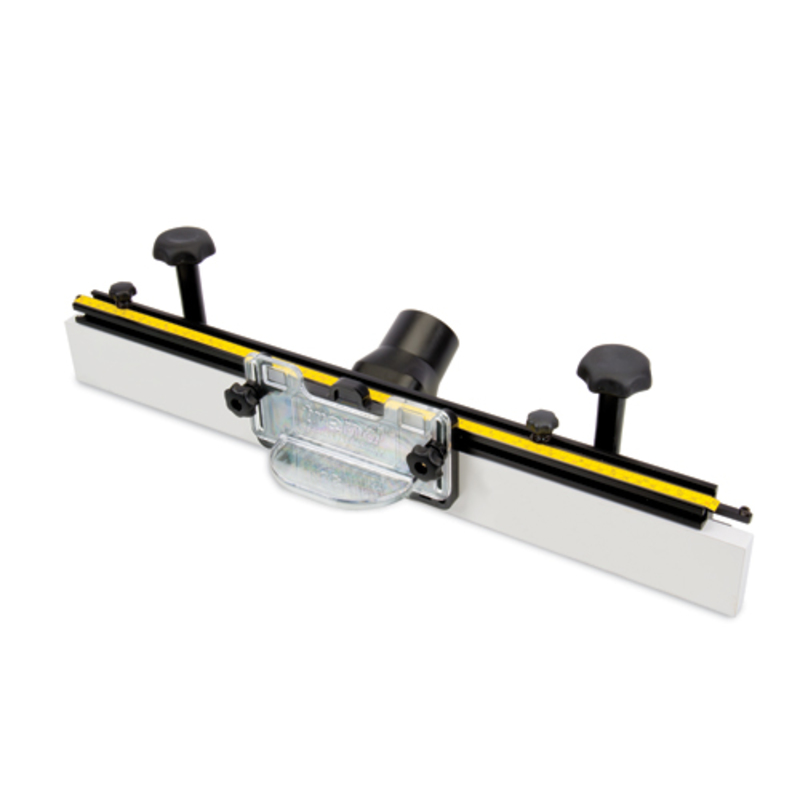

Back fence complete for incorporation into user made router tables.

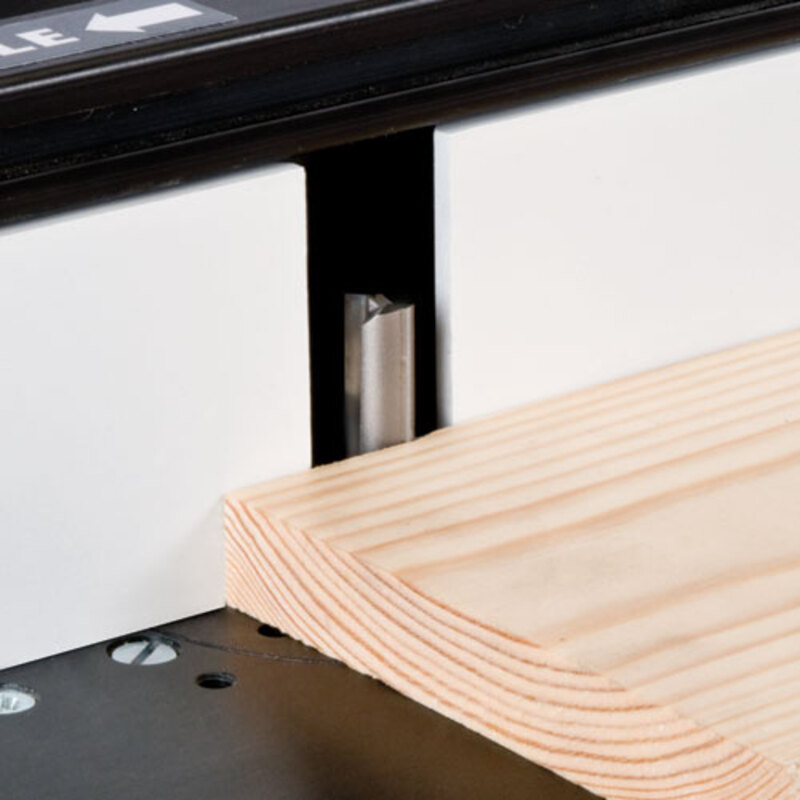

Sliding cheeks to reduce cutter aperture size.
With edge planing facility of 1.4mm and 2.4mm.

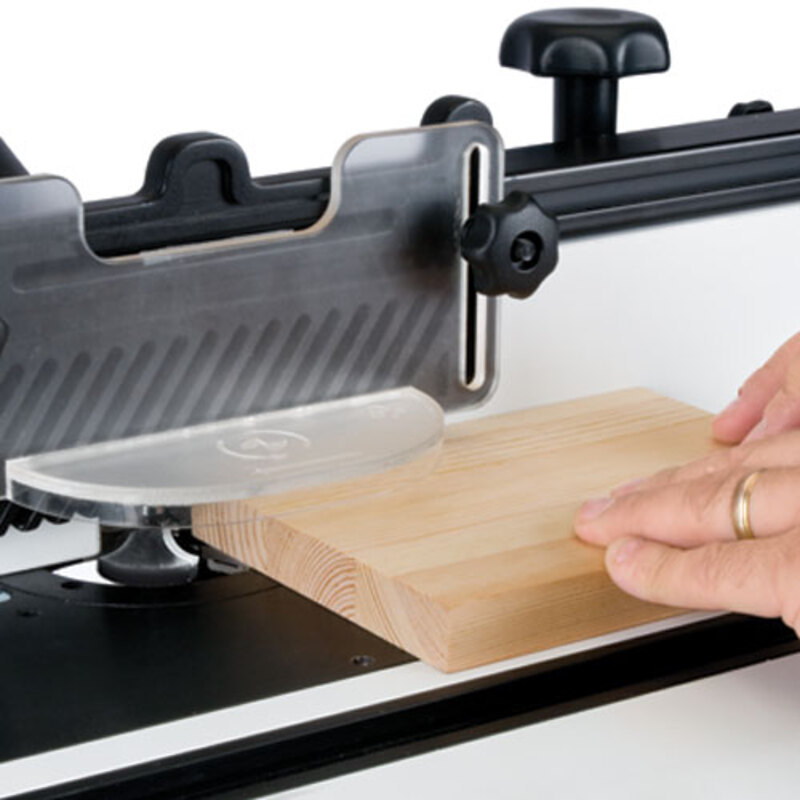

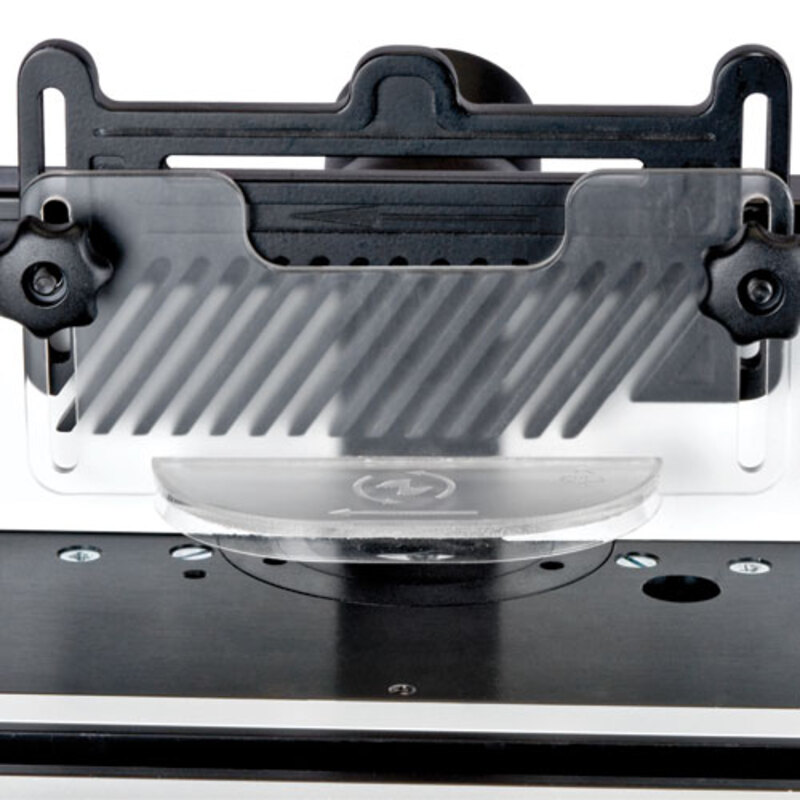

Comes with a top featherboard pressure and a clear safety guard.
Supplied with dust spout aperture and table fixing bolts.

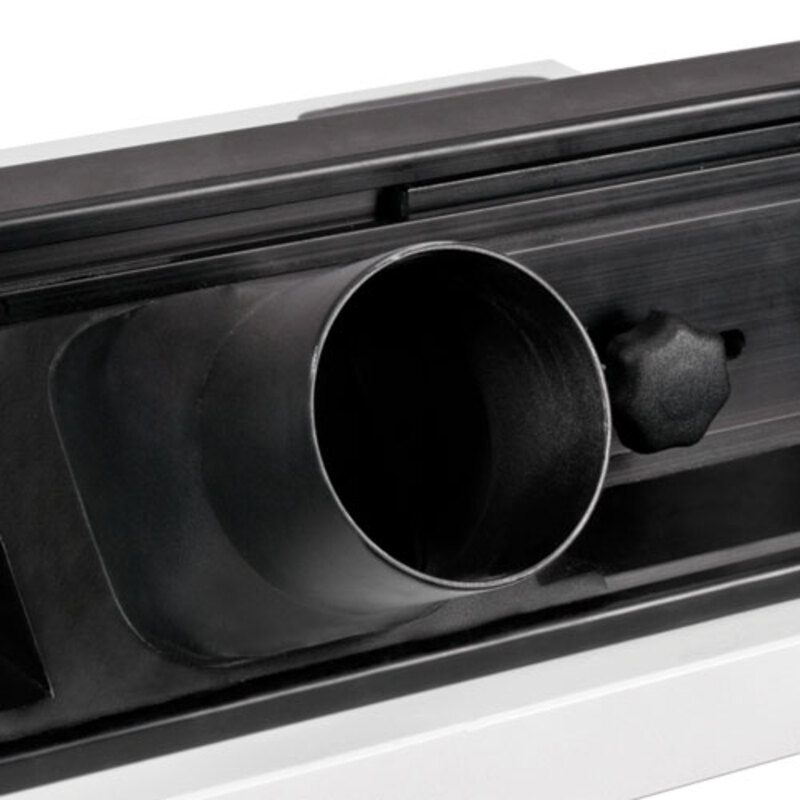

The dust extraction spout has a 57mm diameter.
Router table will require two slots to accept fixing bolts.
User made router table will require safety device accessories to be fitted.

Specification:
Back fence height=68 mm
Back fence length=595 mm
Dust spout aperture=57 mm
Edge planing up to=1.4 & 2.4 mm
Table top slot width=8.5 mm
Table top slot length=100 mm
Table slot centres=408 mm
Max. material thickness with pressures=60 mm

Includes:
2 x Sliding cheeks
1 x Dust spout
1 x Top finger pressure
1 x Safety guard
