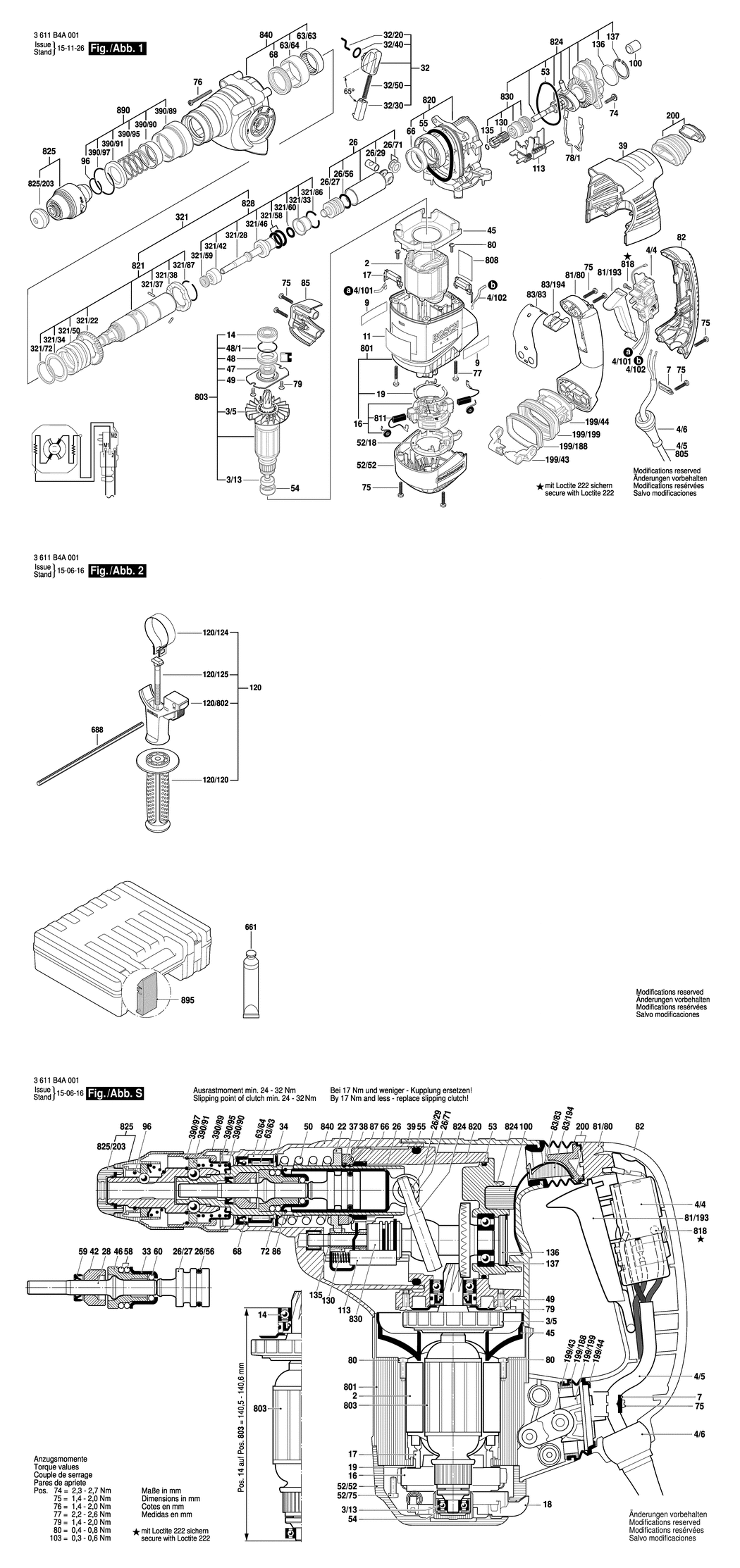

An exploded drawing and listing for the Bosch GBH 3-28 DFR / 3611B4A031 / --- 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220117.A26 1614220117	£16.41	£19.69
3/5 - FAN BSD-1616610104.A20 1616610104	£8.67	£10.41
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A27 1610905032	£5.57	£6.68
4/4 - SWITCH BSD-1617200127.A25 1617200127	£28.59	£34.31
4/5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460450.A23 1604460450	£22.76	£27.31
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A97 1600703034	£2.74	£3.29
4/101 - CONNECTING CABLE BSD-1614490015.A18 1614490015	£2.80	£3.36
4/102 - CONNECTING CABLE BSD-1614490016.A18 1614490016	£2.94	£3.53
7 - FASTENING CLAMP BSD-1601302017.A811 1601302017	£1.84	£2.21
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0UU.A1 160111C0UU	£2.61	£3.13
11 - REFERENCE PLATE BSD-1611110Z43.A19 1611110Z43	£2.61	£3.13
14 - GROOVE BALL BEARING BSD-1610905044.A36 1610905044	£8.67	£10.41
16 - BRUSH PLATE BSD-1614336064.A37 1614336064	£21.52	£25.83
17 - SUPPRESSION FILTER BSD-1614465011.A142 1614465011	£6.85	£8.22
19 - SWITCH CONTACT BSD-1611329024.A119 1611329024	£1.84	£2.21
26 - HAMMER PISTON BSD-16170006A5.A17 16170006A5	£41.62	£49.95
26/27 - STRIKER BSD-1610311019.A35 1610311019	£22.60	£27.12
26/29 - PISTON PIN BSD-1613105020.A19 1613105020	£5.30	£6.36
26/56 - O-RING 17.0x3.0 MM BSD-1610210121.A74 1610210121	£2.74	£3.29
26/71 - GUIDE DISC BSD-1610100016.A85 1610100016	£1.75	£2.10
32 - CLAMP HANDLE BSD-1612026151.A17 1612026151	£14.91	£17.89
32/20 - DRIVER PIN BSD-1614690009.A19 1614690009	£3.91	£4.69
32/30 - SWITCH BUTTON BSD-1612026035.A266 1612026035	£1.75	£2.10
32/40 - O-RING 10.5x2.7 MM BSD-1610210046.A326 1610210046	£2.16	£2.59
32/50 - COMPRESSION SPRING BSD-1614611006.A118 1614611006	£3.91	£4.69
39 - GEAR COVER BSD-1615808102.A14 1615808102	£13.78	£16.54
45 - AIR-DEFLECTOR RING BSD-1610591046.A21 1610591046	£1.84	£2.21
47 - ROTARY SHAFT LIP SEAL BSD-1610283047.A1 1610283047	£12.64	£15.17
48 - BEARING RING BSD-1610290102.A25 1610290102	£6.85	£8.22
48/1 - O-RING 24.0x2.0 MM BSD-1610210208.A13 1610210208	£1.84	£2.21
49 - END SHIELD BSD-1615700044.A151 1615700044	£2.27	£2.72
52/18 - CLUTCH SLEEVE BSD-1610290098.A33 1610290098	£4.26	£5.11
52/52 - COVER BSD-1615108154.A13 1615108154	£10.61	£12.73
53 - O-RING BSD-1610210245.A17 1610210245	£2.94	£3.53
54 - INTERMEDIATE RING BSD-1600502023.A118 1600502023	£2.27	£2.72
55 - SEAL RING 63.0x5.0 MM BSD-1610210206.A35 1610210206	£5.87	£7.04
63/63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A173 1610910063	£5.87	£7.04
63/64 - BUSHING BSD-1610390069.A68 1610390069	£2.27	£2.72
66 - PLAIN BEARING BSD-1610202021.A24 1610202021	£2.74	£3.29
68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A136 1610283036	£7.72	£9.27
74 - TORX OVAL-HEAD SCREW BSD-160343000V.A36 160343000V	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A985 2603490023	£1.84	£2.21
76 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A141 2603490027	£1.84	£2.21
77 - THREAD-FORMING TAP. SCREW M4x30 DIN7500-1 T-20 BSD-1613490017.A24 1613490017	£2.61	£3.13
78/1 - SHIM 0.3 MM BSD-1600A003TA.A18 1600A003TA	£1.75	£2.10
78/1 - SHIM 0.15 MM BSD-1600A004FU.A16 1600A004FU	£1.75	£2.10
78/1 - SHIM 0.45 MM BSD-1600A004FV.A18 1600A004FV	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A49 1613435023	£1.84	£2.21
80 - LENS HEAD SCREW BSD-1613435038.A9 1613435038	£1.84	£2.21
81/80 - HANDLE BSD-1615133033.A29 1615133033	£11.30	£13.56
81/193 - SWITCH-PAWL BSD-1612026126.A39 1612026126	£2.74	£3.29
82 - HANDLE COVER BSD-16170006AE.A12 16170006AE	£12.04	£14.45
83/83 - LEAF SPRING BSD-1614690008.A18 1614690008	£5.30	£6.36
83/194 - SCREW PLATE BSD-1610099013.A13 1610099013	£2.16	£2.59
85 - COVER BSD-1615500404.A14 1615500404	£2.94	£3.53
96 - RETAINING RING BSD-1614601046.A79 1614601046	£1.84	£2.21
100 - DAMPING RUBBER BSD-1610026003.A23 1610026003	£1.75	£2.10
113 - SWITCHING PANEL BSD-1616325002.A19 1616325002	£12.04	£14.45
120 - AUXILIARY HANDLE BSD-160202508Y.A21 160202508Y	£21.68	£26.01
120/120 - AUXILIARY HANDLE BSD-160202507H.A489 160202507H	£11.87	£14.24
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A143 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x80 MM BSD-1613490001.A70 1613490001	£9.11	£10.93
120/802 - SUPPORT CLAMP BSD-1617000685.A16 1617000685	£5.30	£6.36
130 - GEAR SLEEVE BSD-1616333049.A40 1616333049	£19.91	£23.89
135 - RETAINING RING BSD-1614601067.A17 1614601067	£1.84	£2.21
136 - FELT DISC BSD-1610205017.A0 1610205017	£1.84	£2.21
137 - SPRING RETAINING RING 30x1.2MM. DIN 472 BSD-2916660012.A101 2916660012	£1.75	£2.10
199/43 - ROCKER ARM BSD-1612099002.A14 1612099002	£2.74	£3.29
199/44 - ROCKER FOOT BSD-1614611025.A26 1614611025	£2.80	£3.36
199/188 - GRIP-SPRING TENSIONING E BSD-1610209008.A11 1610209008	£3.72	£4.47
199/199 - BELLOWS BSD-1610284002.A20 1610284002	£5.58	£6.70
200 - BELLOWS BSD-1610284007.A7 1610284007	£5.58	£6.70
321 - TOOLHOLDER BSD-16170006BV.A23 16170006BV	£88.07	£105.68
321/22 - CYLINDRICAL GEAR BSD-1616312004.A14 1616312004	£12.64	£15.17
321/28 - STRIKER PIN BSD-1613124097.A36 1613124097	£21.68	£26.01
321/33 - HOLDING JACKET BSD-1610590020.A52 1610590020	£6.85	£8.22
321/34 - SUPPORTING DISC BSD-1610190067.A85 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A168 1613100019	£1.84	£2.21
321/38 - CATCH DISK BSD-1600A008AG.A68 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610102084.A21 1610102084	£9.11	£10.93
321/46 - GUIDE BUSHING BSD-1610390068.A3 1610390068	£16.41	£19.69
321/50 - COMPRESSION SPRING BSD-1614615008.A70 1614615008	£5.58	£6.70
321/58 - O-RING 18.0x3.5 MM BSD-1610210105.A171 1610210105	£4.26	£5.11
321/59 - SHAFT SEAL BSD-1600A009VC.A52 1600A009VC	£2.80	£3.36
321/60 - O-RING 9.5x3.5 MM BSD-1610210209.A51 1610210209	£1.84	£2.21
321/72 - RETAINING RING BSD-1604601027.A53 1604601027	£1.75	£2.10
321/86 - RETAINING RING BSD-1614601034.A124 1614601034	£2.27	£2.72
321/87 - RETAINING RING A22 DIN 7993 BSD-1604601028.A244 1604601028	£1.84	£2.21
390/89 - GUIDE SLEEVE BSD-1600A00NC8.A32 1600A00NC8	£2.74	£3.29
390/90 - COLLAR SLEEVE BSD-1610590016.A12 1610590016	£4.48	£5.37
390/91 - BACKUP RING BSD-1610200033.A55 1610200033	£2.94	£3.53
390/95 - COMPRESSION SPRING BSD-1614643016.A53 1614643016	£2.27	£2.72
390/97 - RETAINING RING BSD-1614601047.A13 1614601047	£1.75	£2.10
661 - GREASE TUBE 30 ML BSD-1615430010.A271 1615430010	£6.85	£8.22
688 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A568 1613001009	£3.91	£4.69
801 - MOTOR HOUSING BSD-1617000689.A30 1617000689	£50.80	£60.96
803 - ARMATURE 230V BSD-1617000690.A5 1617000690	£81.81	£98.17
808 - NAMEPLATE BSD-160111A3H5.A489 160111A3H5	£2.74	£3.29
811 - CARBON-BRUSH SET BSD-1617000525.A171 1617000525	£11.87	£14.24
811 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A24 1607000485	£75.79	£90.95
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A72 2603410001	£1.84	£2.21
820 - INTERMEDIATE FLANGE BSD-1617000A5J.A16 1617000A5J	£33.22	£39.87
821 - TOOL HOLDING FIXTURE BSD-16170006BU.A24 16170006BU	£63.50	£76.20
824 - JACK SHAFT BSD-1617000A5K.A18 1617000A5K	£62.51	£75.01
825 - TOOL HOLDING FIXTURE BSD-1617000895.A8 1617000895	£49.16	£58.99
825/203 - PROTECTIVE CAP BSD-1610508047.A159 1610508047	£2.41	£2.89
828 - STRIKER PIN BSD-16170006A7.A27 16170006A7	£48.38	£58.06
830 - GEAR SLEEVE BSD-1617000698.A40 1617000698	£33.22	£39.87
840 - IMPACT MECHANISM HOUSING BSD-1617000699.A5 1617000699	£57.14	£68.57
890 - GUIDE SLEEVE BSD-1617000V41.A10 1617000V41	£11.87	£14.24
895 - LOCK BSD-1615438426.A40 1615438426	-
