Bosch GBH 2 SR / 0611226863 / EU 230 Volt Spare Parts

Home Details Reviews Delivery

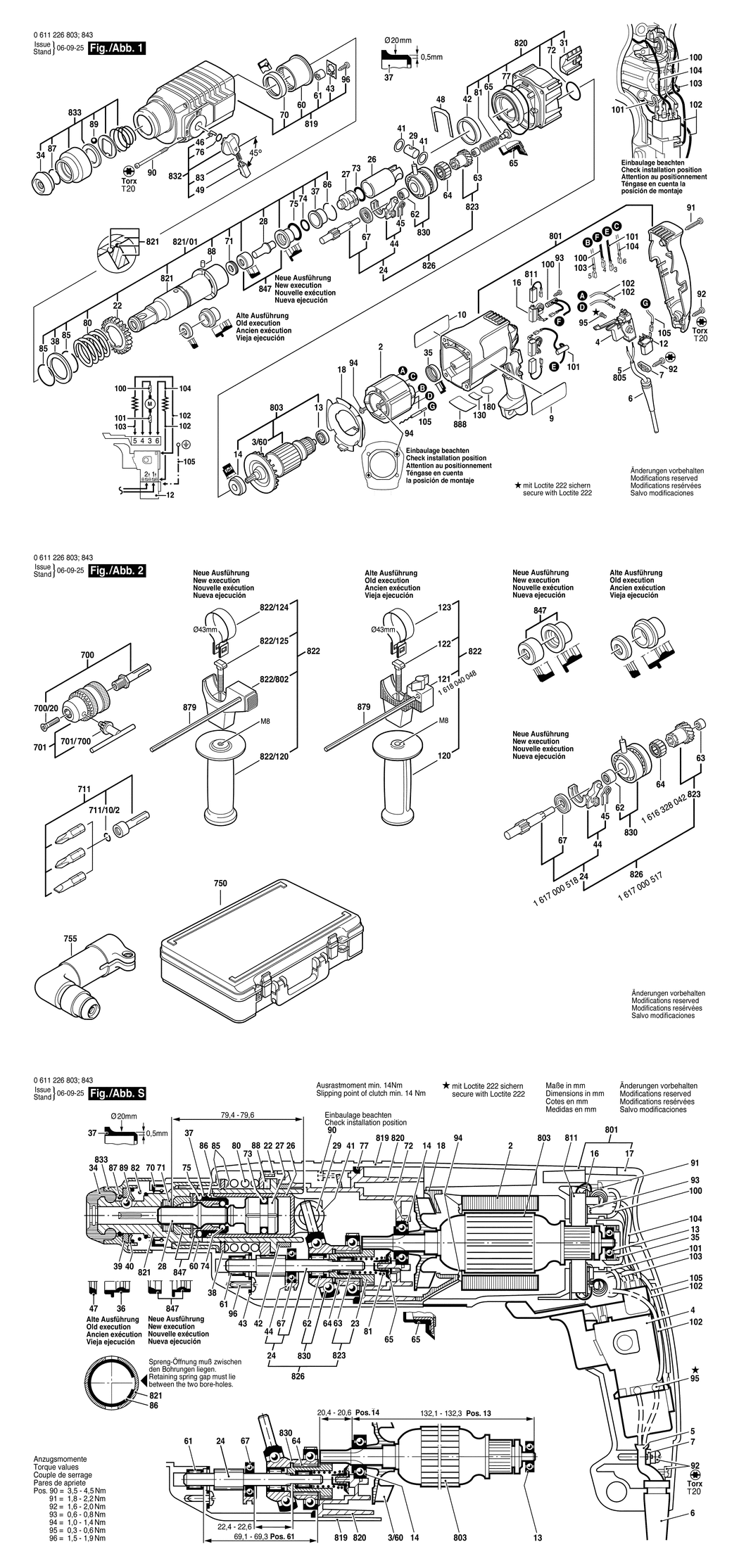

An exploded drawing and listing for the Bosch GBH 2 SR / 0611226863 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-230V BSD-1614220172.A6 1614220172	£22.76	£27.31
3/60 - FAN BSD-1616610095.A33 1616610095	£2.27	£2.72
4 - SWITCH BSD-1617200077.A13 1617200077	£35.42	£42.51
4 - SWITCH BSD-1617200056.A1 1617200056	£45.67	£54.80
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A279 2600703018	£2.74	£3.29
7 - CABLE CLIP BSD-1611035005.A177 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110X28.A4 1611110X28	-
10 - REFERENCE PLATE BSD-1611110660.A11 1611110660	£3.72	£4.47
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A142 1610905025	£6.85	£8.22
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A311 1610905048	£8.67	£10.41
16 - BRUSH HOLDER BSD-1617000343.A60 1617000343	£11.87	£14.24
18 - AIR-DEFLECTOR RING BSD-1610522009.A53 1610522009	£1.38	£1.66
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A77 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000518.A93 1617000518	£40.80	£48.96
26 - HAMMER PISTON BSD-1618700062.A87 1618700062	£14.91	£17.89
27 - STRIKER BSD-1618710057.A68 1618710057	£16.41	£19.69
28 - STRIKER PIN BSD-1613124040.A53 1613124040	£5.30	£6.36
29 - PISTON PIN BSD-1613105012.A324 1613105012	£3.91	£4.69
31 - PROTECTIVE GRILLE BSD-1615510003.A34 1615510003	£2.74	£3.29
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A203 1610508008	£2.27	£2.72
35 - RUBBER RING BSD-1610206021.A248 1610206021	£1.84	£2.21
37 - DAMPING BUSHING BSD-1610390017.A80 1610390017	£5.57	£6.68
38 - SUPPORTING DISC BSD-1610102026.A128 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A145 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A132 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A74 1611098005	£2.94	£3.53
44 - SWITCHING ELEMENT BSD-1615820092.A86 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A91 1614651014	£1.84	£2.21
46 - DRIVER PIN BSD-1614690002.A67 1614690002	£1.84	£2.21
48 - HOLDING PLATE BSD-1611016003.A213 1611016003	£2.27	£2.72
49 - SWITCH BUTTON BSD-1612026035.A53 1612026035	£1.75	£2.10
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A55 1610910073	£11.87	£14.24
61 - NEEDLE BEARING BSD-1610910098.A108 1610910098	£3.91	£4.69
62 - NEEDLE BEARING BSD-1610910074.A67 1610910074	£3.91	£4.69
63 - NEEDLE BEARING BSD-1610910064.A163 1610910064	£2.64	£3.17
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A74 1610913010	£4.48	£5.37
65 - PLAIN BEARING BSD-1610591016.A36 1610591016	£2.94	£3.53
67 - GROOVE BALL BEARING BSD-1610905016.A55 1610905016	£10.10	£12.12
70 - SHAFT SEAL BSD-1610283019.A87 1610283019	£7.72	£9.27
71 - SCRAPER BSD-1610290029.A67 1610290029	£3.91	£4.69
72 - O-RING 24.0x2.5 MM BSD-1610210068.A191 1610210068	£1.75	£2.10
73 - O-RING BSD-1610210187.A225 1610210187	£2.27	£2.72
74 - O-RING 11.0x3.5 MM BSD-1610210104.A81 1610210104	£2.74	£3.29
75 - O-RING 18.0x3.5 MM BSD-1610210105.A54 1610210105	£4.26	£5.11
76 - O-RING 10.5x2.7 MM BSD-1610210046.A87 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A81 1610210106	£2.74	£3.29
80 - COMPRESSION SPRING BSD-1614634005.A55 1614634005	£1.75	£2.10
81 - COMPRESSION SPRING BSD-1614611009.A42 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A342 1614611006	£3.91	£4.69
85 - RETAINING RING BSD-1614601011.A126 1614601011	£1.84	£2.21
86 - RETAINING RING BSD-1614601024.A47 1614601024	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A156 2916540012	-
88 - ROLLER BSD-1613200007.A89 1613200007	£1.84	£2.21
89 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A695 1903230013	£2.27	£2.72
90 - TAPPING SCREW 4.8x78 MM. TORX T-20 BSD-1603435036.A36 1603435036	£1.84	£2.21
91 - LENS HEAD SCREW 4x32 BSD-2603490026.A183 2603490026	£1.84	£2.21
92 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A100 2603490023	£1.84	£2.21
93 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A506 2910211005	£1.84	£2.21
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A568 2603435015	£2.27	£2.72
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2755 2603410001	£1.84	£2.21
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A122 2912401018	£1.75	£2.10
102 - CABLE L=130 MM BSD-2604448005.A134 2604448005	£1.84	£2.21
103 - CONNECTING CABLE L=55 MM BSD-1614448017.A104 1614448017	£2.16	£2.59
104 - CONNECTING CABLE L=78 MM BSD-2604448137.A47 2604448137	-
700 - DRILL CHUCK SHANK 1/2 BSD-1617000154.A36 1617000154	£33.22	£39.87
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A266 2603421226	£1.84	£2.21
701 - CHUCK BSD-1608571088.A244 1608571088	£28.59	£34.31
701/700 - CHUCK WRENCH SG2 BSD-2607950007.A567 2607950007	£6.85	£8.22
711 - PARTS SET BSD-1617000133.A230 1617000133	-
711/10/2 - RETAINING RING BSD-2604601004.A208 2604601004	£1.75	£2.10
750 - CARRYING CASE BSD-2605438294.A31 2605438294	-
755 - ANGLE DRILL HEAD BSD-1618580000.A80 1618580000	£239.08	£286.90
801 - MOTOR HOUSING BSD-1617000477.A31 1617000477	£19.91	£23.89
803 - ARMATURE WITH FAN 220-230V BSD-1614010227.A31 1614010227	£66.68	£80.01
805 - POWER SUPPLY CORD BSD-1604460026.A2 1604460026	-
811 - CARBON-BRUSH SET BSD-1617014134.A11 1617014134	£9.11	£10.93
819 - GEAR HOUSING BSD-1617000385.A26 1617000385	£35.12	£42.15
820 - INTERMEDIATE FLANGE BSD-1617000981.A39 1617000981	£28.59	£34.31
821 - RATCHET SLEEVE SDS-PLUS BSD-1616490061.A31 1616490061	£62.51	£75.01
821/01 - RATCHET SLEEVE SDS-PLUS BSD-1616490060.A66 1616490060	£75.79	£90.95
822 - AUXILIARY HANDLE dia43 MM BSD-2602025118.A71 2602025118	£14.91	£17.89
822/120 - AUXILIARY HANDLE M8 BSD-1612025019.A219 1612025019	£6.85	£8.22
822/124 - CLAMPING BAND dia43 MM BSD-1611316006.A182 1611316006	£2.61	£3.13
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A341 1613490002	£4.48	£5.37
822/802 - SUPPORT CLAMP dia43 MM BSD-2608040176.A46 2608040176	£6.52	£7.83
823 - GEAR SLEEVE Z=26/6 BSD-1616328042.A63 1616328042	£42.84	£51.41
826 - TOOTHED SHAFT Z=3/9 BSD-1617000517.A32 1617000517	£75.79	£90.95
830 - DRIVE BEARING BSD-1615819018.A61 1615819018	£53.78	£64.54
832 - CLAMP HANDLE BSD-1612026037.A169 1612026037	£10.82	£12.99
833 - PROTECTION SLEEVE BSD-1617000163.A193 1617000163	£7.72	£9.27
847 - GUIDE RING BSD-1617000348.A30 1617000348	£14.91	£17.89
879 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A158 1613001009	£3.91	£4.69
888 - NAMEPLATE BSD-160111A3H5.A136 160111A3H5	£2.74	£3.29
