Bosch GBH 2 SE / 0611226603 / EU 230 Volt Spare Parts

Home Details Reviews Delivery

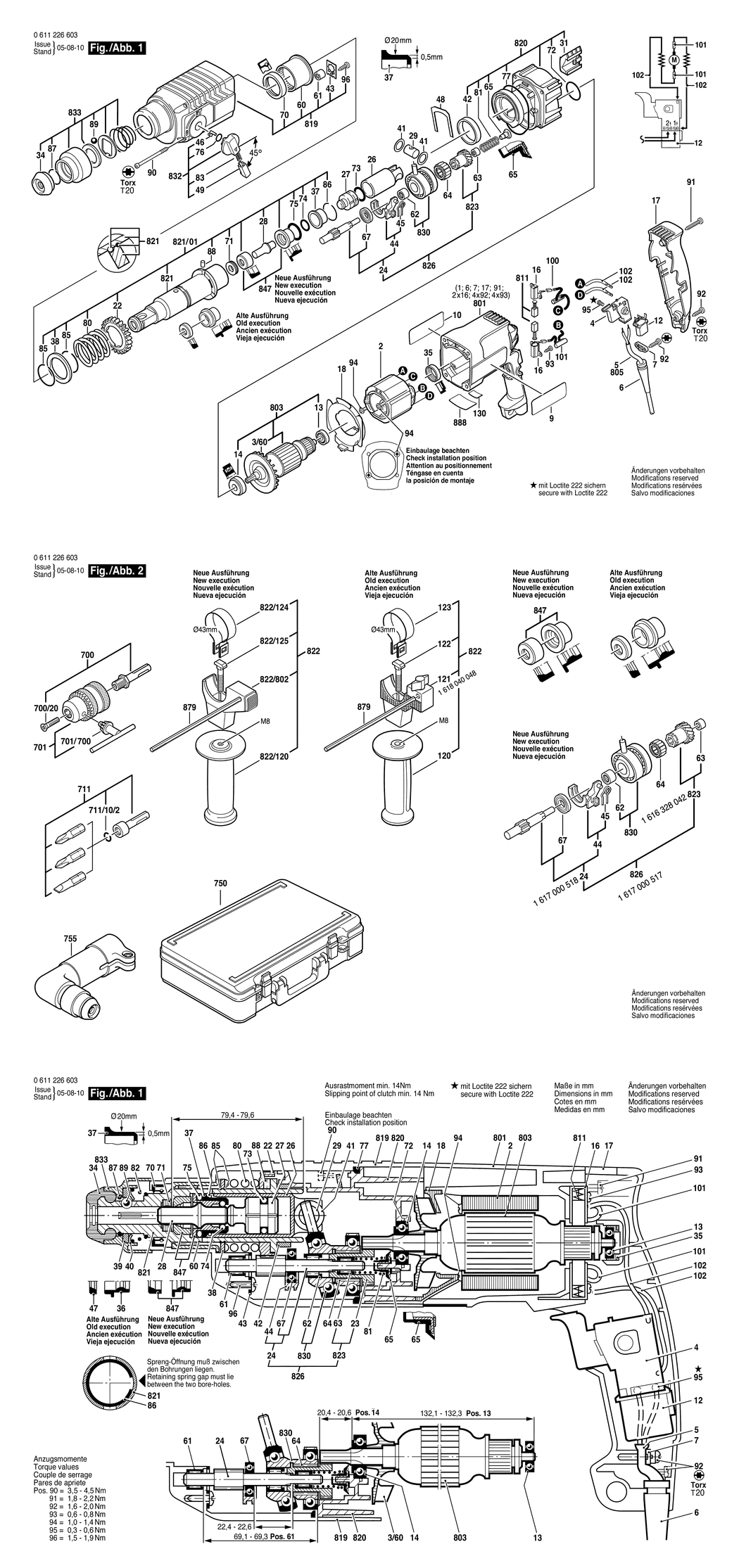

An exploded drawing and listing for the Bosch GBH 2 SE / 0611226603 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-230V BSD-1614220172.A13 1614220172	£22.76	£27.31
3/60 - FAN BSD-1616610095.A43 1616610095	£2.27	£2.72
4 - SWITCH BSD-2607200204.A32 2607200204	-
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A263 2600703017	£2.74	£3.29
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A262 2600703018	£2.74	£3.29
7 - CABLE CLIP BSD-1611035005.A168 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110X25.A7 1611110X25	£4.26	£5.11
10 - REFERENCE PLATE BSD-1611110658.A8 1611110658	£2.16	£2.59
12 - SUPPRESSION FILTER BSD-1617328025.A26 1617328025	-
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A132 1610905025	£6.85	£8.22
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A321 1610905048	£8.67	£10.41
16 - BRUSH HOLDER BSD-2604337016.A111 2604337016	£1.75	£2.10
17 - HOUSING COVER BSD-1615132065.A5 1615132065	-
17 - HOUSING COVER BSD-1615132089.A5 1615132089	£6.52	£7.83
18 - AIR-DEFLECTOR RING BSD-1610522009.A64 1610522009	£1.38	£1.66
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A87 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000518.A112 1617000518	£40.80	£48.96
26 - HAMMER PISTON BSD-1618700062.A101 1618700062	£14.91	£17.89
27 - STRIKER BSD-1618710057.A54 1618710057	£16.41	£19.69
28 - STRIKER PIN BSD-1613124040.A69 1613124040	£5.30	£6.36
29 - PISTON PIN BSD-1613105012.A308 1613105012	£3.91	£4.69
31 - PROTECTIVE GRILLE BSD-1615510003.A51 1615510003	£2.74	£3.29
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A219 1610508008	£2.27	£2.72
35 - RUBBER RING BSD-1610206021.A264 1610206021	£1.84	£2.21
37 - DAMPING BUSHING BSD-1610390017.A64 1610390017	£5.57	£6.68
38 - SUPPORTING DISC BSD-1610102026.A143 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A129 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A116 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A84 1611098005	£2.94	£3.53
44 - SWITCHING ELEMENT BSD-1615820092.A77 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A76 1614651014	£1.84	£2.21
46 - DRIVER PIN BSD-1614690002.A82 1614690002	£1.84	£2.21
48 - HOLDING PLATE BSD-1611016003.A223 1611016003	£2.27	£2.72
49 - SWITCH BUTTON BSD-1612026035.A68 1612026035	£1.75	£2.10
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A65 1610910073	£11.87	£14.24
61 - NEEDLE BEARING BSD-1610910098.A118 1610910098	£3.91	£4.69
62 - NEEDLE BEARING BSD-1610910074.A57 1610910074	£3.91	£4.69
63 - NEEDLE BEARING BSD-1610910064.A153 1610910064	£2.64	£3.17
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A64 1610913010	£4.48	£5.37
65 - PLAIN BEARING BSD-1610591016.A51 1610591016	£2.94	£3.53
67 - GROOVE BALL BEARING BSD-1610905016.A65 1610905016	£10.10	£12.12
70 - SHAFT SEAL BSD-1610283019.A96 1610283019	£7.72	£9.27
71 - SCRAPER BSD-1610290029.A83 1610290029	£3.91	£4.69
72 - O-RING 24.0x2.5 MM BSD-1610210068.A207 1610210068	£1.75	£2.10
73 - O-RING BSD-1610210187.A241 1610210187	£2.27	£2.72
74 - O-RING 11.0x3.5 MM BSD-1610210104.A65 1610210104	£2.74	£3.29
75 - O-RING 18.0x3.5 MM BSD-1610210105.A70 1610210105	£4.26	£5.11
76 - O-RING 10.5x2.7 MM BSD-1610210046.A71 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A65 1610210106	£2.74	£3.29
80 - COMPRESSION SPRING BSD-1614634005.A71 1614634005	£1.75	£2.10
81 - COMPRESSION SPRING BSD-1614611009.A46 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A338 1614611006	£3.91	£4.69
85 - RETAINING RING BSD-1614601011.A122 1614601011	£1.84	£2.21
86 - RETAINING RING BSD-1614601024.A51 1614601024	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A166 2916540012	-
88 - ROLLER BSD-1613200007.A73 1613200007	£1.84	£2.21
89 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A681 1903230013	£2.27	£2.72
90 - TAPPING SCREW 4.8x78 MM. TORX T-20 BSD-1603435036.A49 1603435036	£1.84	£2.21
91 - LENS HEAD SCREW 4x32 BSD-2603490026.A171 2603490026	£1.84	£2.21
92 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A111 2603490023	£1.84	£2.21
93 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A517 2910211005	£1.84	£2.21
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A557 2603435015	£2.27	£2.72
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2744 2603410001	£1.84	£2.21
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A111 2912401018	£1.75	£2.10
100 - SUPPRESSION FILTER L=55 MM BSD-1614465008.A33 1614465008	£7.72	£9.27
101 - SUPPRESSION FILTER L=55 MM BSD-1614465008.A34 1614465008	£7.72	£9.27
102 - CABLE L=130 MM BSD-2604448005.A114 2604448005	£1.84	£2.21
130 - STICKER BSD-1601110265.A384 1601110265	-
700 - DRILL CHUCK SHANK 1/2 BSD-1617000154.A44 1617000154	£33.22	£39.87
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A278 2603421226	£1.84	£2.21
701 - CHUCK BSD-1608571088.A260 1608571088	£28.59	£34.31
701/700 - CHUCK WRENCH SG2 BSD-2607950007.A553 2607950007	£6.85	£8.22
711 - PARTS SET BSD-1617000133.A222 1617000133	-
711/10/2 - RETAINING RING BSD-2604601004.A199 2604601004	£1.75	£2.10
750 - CARRYING CASE BSD-2605438294.A40 2605438294	-
755 - ANGLE DRILL HEAD BSD-1618580000.A92 1618580000	£239.08	£286.90
801 - MOTOR HOUSING BSD-1615108062.A0 1615108062	£28.59	£34.31
803 - ARMATURE WITH FAN 220-230V BSD-1614010732.A8 1614010732	£85.90	£103.08
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A23 1614460026	£18.96	£22.75
811 - CARBON BRUSH BSD-1607014117.A133 1607014117	£10.61	£12.73
819 - GEAR HOUSING BSD-1617000385.A11 1617000385	£35.12	£42.15
820 - INTERMEDIATE FLANGE BSD-1617000981.A21 1617000981	£28.59	£34.31
821 - RATCHET SLEEVE SDS-PLUS BSD-1616490061.A22 1616490061	£62.51	£75.01
821/01 - RATCHET SLEEVE SDS-PLUS BSD-1616490060.A75 1616490060	£75.79	£90.95
822 - AUXILIARY HANDLE dia43 MM BSD-2602025118.A82 2602025118	£14.91	£17.89
822/120 - AUXILIARY HANDLE M8 BSD-1612025019.A210 1612025019	£6.85	£8.22
822/124 - CLAMPING BAND dia43 MM BSD-1611316006.A195 1611316006	£2.61	£3.13
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A358 1613490002	£4.48	£5.37
822/802 - SUPPORT CLAMP dia43 MM BSD-2608040176.A62 2608040176	£6.52	£7.83
823 - GEAR SLEEVE Z=26/6 BSD-1616328042.A53 1616328042	£42.84	£51.41
826 - TOOTHED SHAFT Z=3/9 BSD-1617000517.A16 1617000517	£75.79	£90.95
830 - DRIVE BEARING BSD-1615819018.A71 1615819018	£53.78	£64.54
832 - CLAMP HANDLE BSD-1612026037.A154 1612026037	£10.82	£12.99
833 - PROTECTION SLEEVE BSD-1617000163.A183 1617000163	£7.72	£9.27
847 - GUIDE RING BSD-1617000348.A48 1617000348	£14.91	£17.89
879 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A173 1613001009	£3.91	£4.69
888 - NAMEPLATE BSD-160111A3H5.A152 160111A3H5	£2.74	£3.29
