Bosch GBH 2 S / 0611226003 / EU 230 Volt Spare Parts

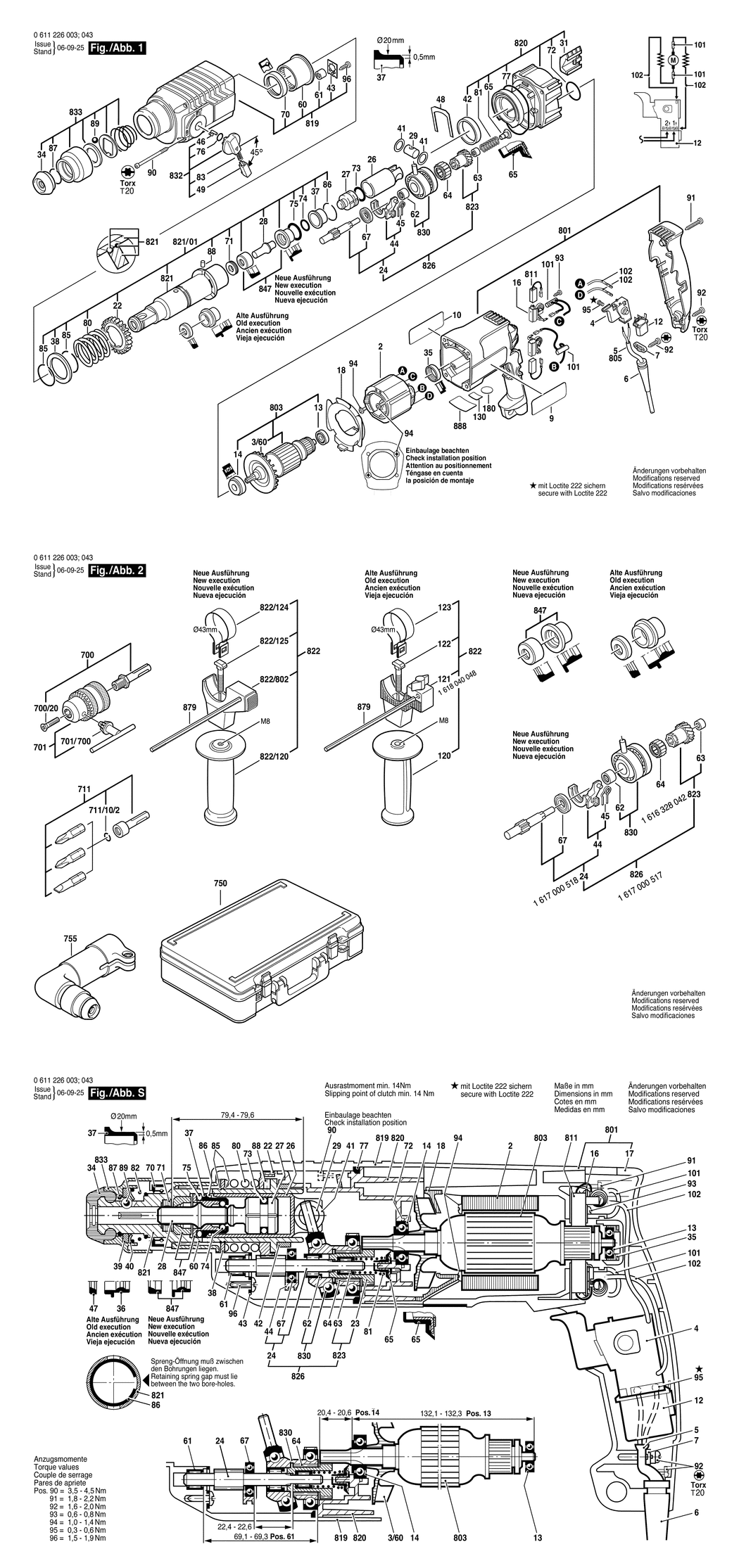

An exploded drawing and listing for the Bosch GBH 2 S / 0611226003 / EU 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-230V BSD-1614220172.A27 1614220172	£21.68	£26.01
3/60 - FAN BSD-1616610095.A22 1616610095	£2.16	£2.59
4 - ON-OFF SWITCH BSD-1617200047.A21 1617200047	£21.68	£26.01
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A254 2600703018	£2.61	£3.13
7 - CABLE CLIP BSD-1611035005.A199 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110X23.A0 1611110X23	-
10 - REFERENCE PLATE BSD-1611110656.A4 1611110656	-
12 - SUPPRESSION FILTER BSD-1617328025.A6 1617328025	£5.58	£6.70
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A112 1610905025	£6.52	£7.83
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A332 1610905048	£8.67	£10.41
16 - BRUSH HOLDER BSD-1614336022.A11 1614336022	£2.80	£3.36
18 - AIR-DEFLECTOR RING BSD-1610522009.A87 1610522009	£1.32	£1.58
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A54 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000518.A114 1617000518	£40.80	£48.96
26 - HAMMER PISTON BSD-1618700062.A71 1618700062	£14.91	£17.89
27 - STRIKER BSD-1618710057.A73 1618710057	£16.41	£19.69
28 - STRIKER PIN BSD-1613124040.A80 1613124040	£5.30	£6.36
29 - PISTON PIN BSD-1613105012.A287 1613105012	£3.72	£4.47
31 - PROTECTIVE GRILLE BSD-1615510003.A23 1615510003	£2.61	£3.13
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A236 1610508008	£2.16	£2.59
35 - RUBBER RING BSD-1610206021.A274 1610206021	£1.75	£2.10
37 - DAMPING BUSHING BSD-1610390017.A42 1610390017	£5.30	£6.36
38 - SUPPORTING DISC BSD-1610102026.A110 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A161 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A94 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A40 1611098005	£2.80	£3.36
44 - SWITCHING ELEMENT BSD-1615820092.A61 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A43 1614651014	£1.75	£2.10
46 - DRIVER PIN BSD-1614690002.A43 1614690002	£1.75	£2.10
48 - HOLDING PLATE BSD-1611016003.A179 1611016003	£2.16	£2.59
49 - SWITCH BUTTON BSD-1612026035.A39 1612026035	£1.75	£2.10
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A86 1610910073	£11.30	£13.56
61 - NEEDLE BEARING BSD-1610910098.A85 1610910098	£3.72	£4.47
62 - NEEDLE BEARING BSD-1610910074.A40 1610910074	£3.72	£4.47
63 - NEEDLE BEARING BSD-1610910064.A132 1610910064	£2.52	£3.02
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A85 1610913010	£4.26	£5.11
65 - PLAIN BEARING BSD-1610591016.A17 1610591016	£2.80	£3.36
67 - GROOVE BALL BEARING BSD-1610905016.A87 1610905016	£10.10	£12.12
70 - SHAFT SEAL BSD-1610283019.A65 1610283019	£7.36	£8.83
71 - SCRAPER BSD-1610290029.A60 1610290029	£3.72	£4.47
72 - O-RING 24.0x2.5 MM BSD-1610210068.A215 1610210068	£1.75	£2.10
73 - O-RING BSD-1610210187.A200 1610210187	£2.16	£2.59
74 - O-RING 11.0x3.5 MM BSD-1610210104.A99 1610210104	£2.61	£3.13
75 - O-RING 18.0x3.5 MM BSD-1610210105.A46 1610210105	£4.26	£5.11
76 - O-RING 10.5x2.7 MM BSD-1610210046.A63 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A99 1610210106	£2.61	£3.13
80 - COMPRESSION SPRING BSD-1614634005.A42 1614634005	£1.75	£2.10
81 - COMPRESSION SPRING BSD-1614611009.A15 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A366 1614611006	£3.72	£4.47
85 - RETAINING RING BSD-1614601011.A104 1614601011	£1.75	£2.10
86 - RETAINING RING BSD-1614601024.A21 1614601024	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A176 2916540012	-
88 - ROLLER BSD-1613200007.A54 1613200007	£1.75	£2.10
89 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A660 1903230013	£2.16	£2.59
90 - TAPPING SCREW 4.8x78 MM. TORX T-20 BSD-1603435036.A57 1603435036	£1.75	£2.10
91 - LENS HEAD SCREW 4x32 BSD-2603490026.A206 2603490026	£1.75	£2.10
92 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A76 2603490023	£1.75	£2.10
93 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A494 2910211005	£1.75	£2.10
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A603 2603435015	£2.16	£2.59
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2737 2603410001	£1.75	£2.10
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A75 2912401018	£1.75	£2.10
101 - SUPPRESSION FILTER L=55 MM BSD-1614465008.A52 1614465008	£7.36	£8.83
102 - CABLE L=130 MM BSD-2604448005.A153 2604448005	£1.75	£2.10
700 - DRILL CHUCK SHANK BSD-1617000132.A30 1617000132	£16.84	£20.21
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A242 2603421226	£1.75	£2.10
701 - KEY CHUCK R/L dia13 MM. 1/2-20 UNF BSD-1608571062.A33 1608571062	£17.49	£20.99
701/700 - CHUCK WRENCH SG2 BSD-2607950007.A517 2607950007	£6.52	£7.83
711 - PARTS SET BSD-1617000133.A195 1617000133	-
711/10/2 - RETAINING RING BSD-2604601004.A226 2604601004	£1.75	£2.10
750 - CARRYING CASE BSD-2605438294.A28 2605438294	-
755 - ANGLE DRILL HEAD BSD-1618580000.A70 1618580000	£239.08	£286.90
801 - MOTOR HOUSING BSD-1617000477.A46 1617000477	£18.96	£22.75
803 - ARMATURE WITH FAN 220-230V BSD-1614010732.A23 1614010732	£81.81	£98.17
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A33 1614460026	£18.96	£22.75
811 - CARBON-BRUSH SET BSD-1617014132.A1 1617014132	£12.04	£14.45
819 - GEAR HOUSING BSD-1617000385.A0 1617000385	£33.45	£40.14
820 - INTERMEDIATE FLANGE BSD-1617000981.A1 1617000981	£27.23	£32.68
821 - RATCHET SLEEVE SDS-PLUS BSD-1616490061.A56 1616490061	£59.53	£71.44
821/01 - RATCHET SLEEVE SDS-PLUS BSD-1616490060.A41 1616490060	£72.18	£86.62
822 - AUXILIARY HANDLE dia43 MM BSD-2602025118.A43 2602025118	£14.91	£17.89
822/120 - AUXILIARY HANDLE M8 BSD-1612025019.A168 1612025019	£6.52	£7.83
822/124 - CLAMPING BAND dia43 MM BSD-1611316006.A203 1611316006	£2.61	£3.13
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A397 1613490002	£4.26	£5.11
822/802 - SUPPORT CLAMP dia43 MM BSD-2608040176.A83 2608040176	£6.52	£7.83
823 - GEAR SLEEVE Z=26/6 BSD-1616328042.A38 1616328042	£40.80	£48.96
826 - TOOTHED SHAFT Z=3/9 BSD-1617000517.A11 1617000517	£72.18	£86.62
830 - DRIVE BEARING BSD-1615819018.A44 1615819018	£51.22	£61.47
832 - CLAMP HANDLE BSD-1612026037.A181 1612026037	£10.82	£12.99
833 - PROTECTION SLEEVE BSD-1617000163.A162 1617000163	£7.36	£8.83
847 - GUIDE RING BSD-1617000348.A63 1617000348	£14.91	£17.89
879 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A117 1613001009	£3.72	£4.47
888 - NAMEPLATE BSD-160111A3H5.A117 160111A3H5	£2.61	£3.13
