Bosch GBH 2-28 / 3611B670B0 / --- 220 Volt Spare Parts

Home Details Reviews Delivery

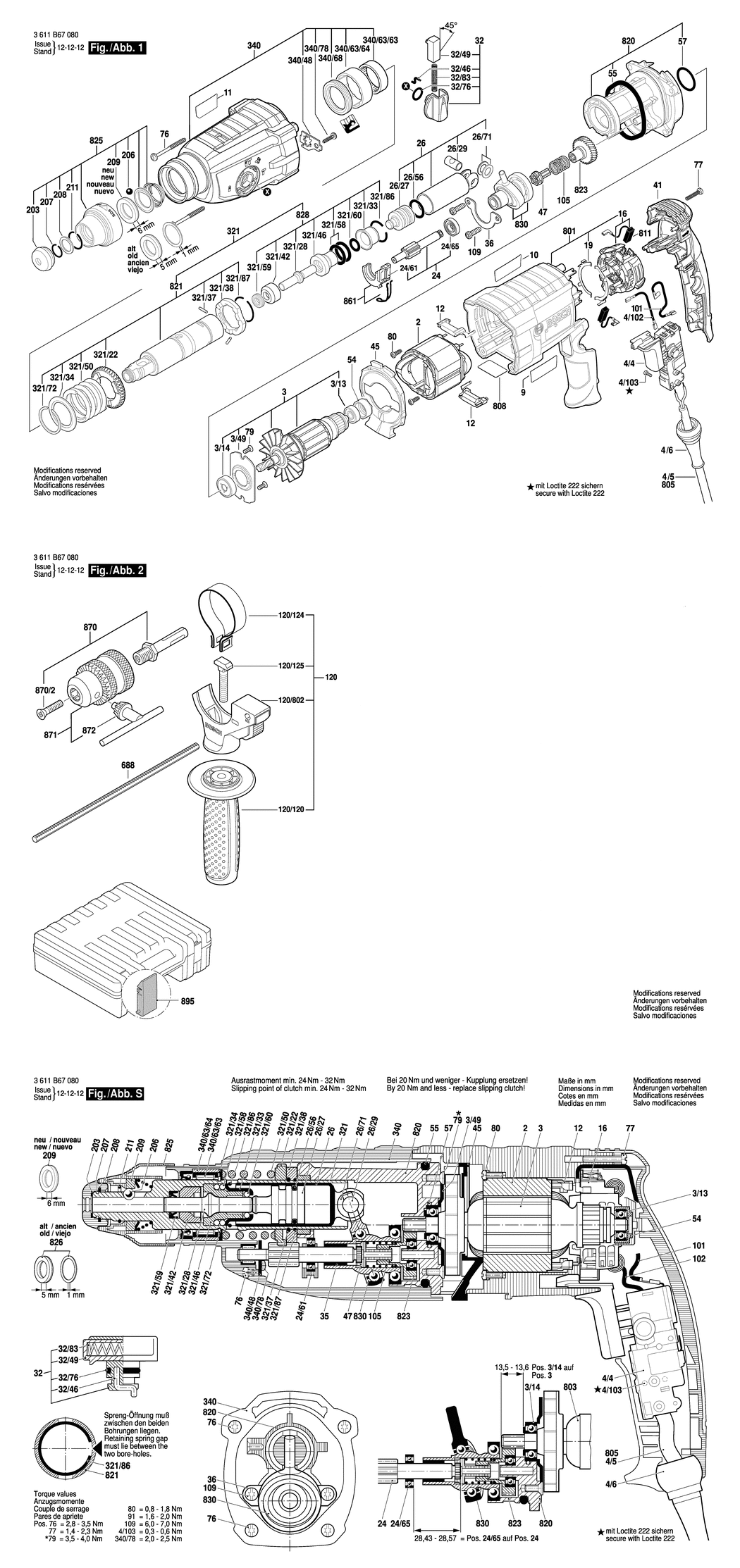

An exploded drawing and listing for the Bosch GBH 2-28 / 3611B670B0 / --- 220 Volt

	Ex VAT	Inc VAT
2 - POLE SHOE 220V BSD-1614220221.A3 1614220221	£22.60	£27.12
3 - ARMATURE 220V BSD-1614010270.A0 1614010270	£66.68	£80.01
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A69 1610905032	£5.57	£6.68
3/14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A18 1610905048	£8.67	£10.41
3/49 - END SHIELD BSD-1615700044.A77 1615700044	£2.27	£2.72
4/4 - SWITCH BSD-1617200532.A53 1617200532	£22.76	£27.31
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A60 1600703034	£2.74	£3.29
4/102 - CONNECTING CABLE BSD-1614449015.A58 1614449015	£1.84	£2.21
4/103 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A263 1613435034	£1.84	£2.21
9 - MANUFACTURER'S NAMEPLATE GBH 2-28 D BSD-1611110Z98.A1 1611110Z98	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE GBH 2-28 D BSD-1611110Z99.A0 1611110Z99	£2.61	£3.13
11 - REFERENCE PLATE BSD-1611110W02.A17 1611110W02	£2.74	£3.29
12 - SUPPRESSION FILTER BSD-1614465011.A73 1614465011	£6.85	£8.22
16 - BRUSH PLATE BSD-1614336093.A36 1614336093	£18.96	£22.75
19 - SWITCH CONTACT BSD-1611329024.A65 1611329024	£1.84	£2.21
24 - TOOTHED SHAFT BSD-16170006EJ.A25 16170006EJ	£36.62	£43.95
24/61 - SWITCHING ELEMENT BSD-1615820097.A92 1615820097	£5.30	£6.36
24/65 - GROOVE BALL BEARING BSD-1610905016.A162 1610905016	£10.10	£12.12
26 - HAMMER PISTON BSD-16170006A5.A80 16170006A5	£41.62	£49.95
26/27 - STRIKER BSD-1610311019.A38 1610311019	£22.60	£27.12
26/29 - PISTON PIN BSD-1613105020.A38 1613105020	£5.30	£6.36
26/56 - O-RING 17.0x3.0 MM BSD-1610210121.A110 1610210121	£2.74	£3.29
26/71 - GUIDE DISC BSD-1610100016.A52 1610100016	£1.75	£2.10
32 - CLAMP HANDLE BSD-1612026037.A5 1612026037	£10.82	£12.99
32/46 - DRIVER PIN BSD-1614690002.A217 1614690002	£1.84	£2.21
32/49 - SWITCH BUTTON BSD-1612026035.A317 1612026035	£1.75	£2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A287 1610210046	£2.16	£2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A5 1614611006	£3.91	£4.69
36 - BEARING HOLDER BSD-1615808106.A18 1615808106	£1.75	£2.10
41 - HOUSING COVER BSD-1615500428.A17 1615500428	£10.61	£12.73
45 - AIR-DEFLECTOR RING BSD-1610522015.A13 1610522015	£2.27	£2.72
47 - CONTROL ELEMENT BSD-1616312010.A20 1616312010	£5.87	£7.04
54 - RUBBER BUSHING BSD-1610502016.A39 1610502016	£1.84	£2.21
55 - O-RING 59.5x5.0 MM BSD-1610290104.A20 1610290104	£3.72	£4.47
57 - O-RING 24.0x2.0 MM BSD-1610210208.A86 1610210208	£1.84	£2.21
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A112 160343000A	£1.84	£2.21
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A295 2603490024	£1.84	£2.21
79 - THREAD-FORMING TAP. SCREW BSD-1613435042.A0 1613435042	£1.75	£2.10
80 - SCREW BSD-1613435043.A37 1613435043	£1.84	£2.21
101 - CONNECTING CABLE BSD-1614449014.A91 1614449014	£2.16	£2.59
105 - COMPRESSION SPRING BSD-1614643027.A30 1614643027	£1.84	£2.21
109 - THREAD-FORMING TAP. SCREW BSD-160343508E.A0 160343508E	£1.75	£2.10
120 - AUXILIARY HANDLE BSD-160202508X.A42 160202508X	£19.91	£23.89
120/120 - AUXILIARY HANDLE BSD-160202507H.A376 160202507H	£11.87	£14.24
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A92 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A88 1613490002	£4.48	£5.37
120/802 - SUPPORT CLAMP BSD-1617000475.A92 1617000475	£10.61	£12.73
203 - PROTECTIVE CAP BSD-1610508047.A123 1610508047	£2.41	£2.89
206 - BALL dia7.3 MM BSD-1613230003.A3 1613230003	£1.84	£2.21
207 - RETAINING RING BSD-1614601027.A11 1614601027	£1.84	£2.21
208 - RETAINING WASHER BSD-1610101629.A54 1610101629	£1.84	£2.21
209 - FRICTION WASHER BSD-1610102638.A2 1610102638	£3.72	£4.47
211 - RETAINING RING DIN 7993-A22 BSD-2916540012.A82 2916540012	-
321 - TOOLHOLDER BSD-16170006CA.A8 16170006CA	£98.11	£117.73
321/22 - CYLINDRICAL GEAR BSD-1616312004.A63 1616312004	£12.64	£15.17
321/28 - STRIKER PIN BSD-1613124098.A25 1613124098	£21.52	£25.83
321/33 - HOLDING JACKET BSD-1610590020.A46 1610590020	£6.85	£8.22
321/34 - SUPPORTING DISC BSD-1610190067.A152 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A213 1613100019	£1.84	£2.21
321/38 - CATCH DISK BSD-1600A008AG.A1 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610102084.A84 1610102084	£9.11	£10.93
321/46 - GUIDE BUSHING BSD-1610390068.A37 1610390068	£16.41	£19.69
321/50 - COMPRESSION SPRING BSD-1614615008.A46 1614615008	£5.58	£6.70
321/58 - O-RING 18.0x3.5 MM BSD-1610210105.A158 1610210105	£4.26	£5.11
321/59 - SHAFT SEAL BSD-1600A009VC.A42 1600A009VC	£2.80	£3.36
321/60 - O-RING 9.5x3.5 MM BSD-1610210209.A1 1610210209	£1.84	£2.21
321/72 - RETAINING RING BSD-1604601027.A91 1604601027	£1.75	£2.10
321/86 - RETAINING RING BSD-1614601034.A172 1614601034	£2.27	£2.72
321/87 - RETAINING RING A22 DIN 7993 BSD-1604601028.A206 1604601028	£1.84	£2.21
340 - GEAR HOUSING BSD-16170006CU.A1 16170006CU	£50.80	£60.96
340/48 - TAB WASHER BSD-1611098008.A18 1611098008	£2.27	£2.72
340/63/63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A215 1610910063	£5.87	£7.04
340/63/64 - BUSHING BSD-1610390069.A45 1610390069	£2.27	£2.72
340/68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A157 1610283036	£7.72	£9.27
340/78 - SCREW 4x16 BSD-2603490022.A919 2603490022	£1.84	£2.21
688 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A620 1613001009	£3.91	£4.69
801 - MOTOR HOUSING BSD-16170006BS.A30 16170006BS	£39.13	£46.96
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A133 1607000392	£21.52	£25.83
808 - NAMEPLATE BSD-160111A3H5.A446 160111A3H5	£2.74	£3.29
811 - CARBON-BRUSH SET BSD-1617000525.A230 1617000525	£11.87	£14.24
820 - INTERMEDIATE FLANGE BSD-16170006BT.A9 16170006BT	£46.37	£55.64
821 - TOOL HOLDING FIXTURE BSD-16170006C9.A8 16170006C9	£63.50	£76.20
823 - GEAR SLEEVE BSD-16170006BW.A29 16170006BW	£24.45	£29.34
825 - TOOL HOLDING FIXTURE BSD-16170006CB.A8 16170006CB	£12.64	£15.17
828 - STRIKER PIN BSD-1617000697.A17 1617000697	£48.38	£58.06
830 - DRIVE BEARING BSD-16170006CT.A1 16170006CT	£45.67	£54.80
861 - SWITCHING ELEMENT BSD-1615820097.A89 1615820097	£5.30	£6.36
870 - DRILL CHUCK SHANK 1/2. SDS-Plus BSD-1613523011.A2 1613523011	-
870/2 - COUNTERSUNK-HEAD SCREW M6x27-Kdia11 BSD-2603421207.A88 2603421207	£1.84	£2.21
871 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A94 1608571069	£25.05	£30.06
872 - CHUCK WRENCH SG2 BSD-2607950007.A1747 2607950007	£6.85	£8.22
895 - LOCK BSD-1615438409.A3 1615438409	£6.85	£8.22
