Bosch GBH 2-24DF / 3611BA0100 / EU 230 Volt Spare Parts

Home Details Reviews Delivery

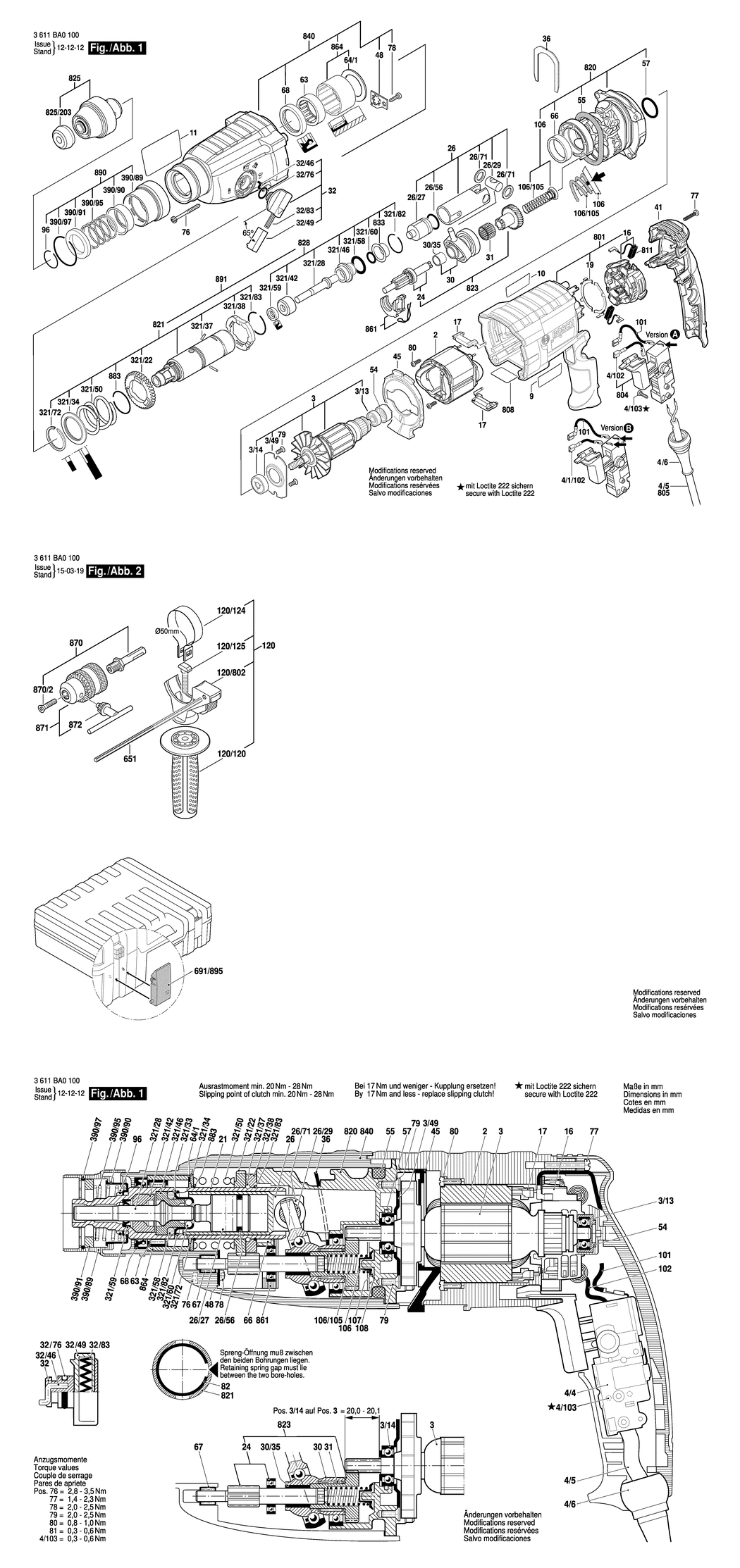

An exploded drawing and listing for the Bosch GBH 2-24DF / 3611BA0100 / EU 230 Volt

	Ex VAT	Inc VAT
2 - POLE SHOE 230V BSD-1614220227.A8 1614220227	£28.59	£34.31
3 - ARMATURE 230V BSD-1614010275.A6 1614010275	£59.87	£71.84
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A7 1610905032	£5.57	£6.68
3/14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A116 1610905048	£8.67	£10.41
3/49 - END SHIELD BSD-1615700044.A176 1615700044	£2.27	£2.72
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A181 1600703034	£2.74	£3.29
4/102 - CONNECTING CABLE BSD-1614449015.A83 1614449015	£1.84	£2.21
4/103 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A371 1613435034	£1.84	£2.21
4/1/102 - CONNECTING CABLE BSD-1614449021.A8 1614449021	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GBH 2-24 DF BSD-1611110W41.A0 1611110W41	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE GBH 2-24 DF BSD-1611110W43.A0 1611110W43	£2.61	£3.13
11 - REFERENCE PLATE BSD-1611110W39.A6 1611110W39	£2.61	£3.13
16 - BRUSH PLATE BSD-1614336093.A6 1614336093	£18.96	£22.75
17 - SUPPRESSION FILTER BSD-1614465011.A159 1614465011	£6.85	£8.22
19 - SWITCH CONTACT BSD-1611329024.A162 1611329024	£1.84	£2.21
24 - TOOTHED SHAFT BSD-1617000556.A51 1617000556	£42.84	£51.41
26 - HAMMER PISTON BSD-1617000557.A25 1617000557	£38.47	£46.16
26/27 - STRIKER BSD-1610311018.A52 1610311018	£18.96	£22.75
26/29 - PISTON PIN BSD-1613105012.A49 1613105012	£3.91	£4.69
26/56 - O-RING BSD-1610210187.A72 1610210187	£2.27	£2.72
26/71 - SHIM WASHER 1.2 MM BSD-1610101011.A441 1610101011	£1.75	£2.10
30 - DRIVE BEARING BSD-1615819028.A56 1615819028	£35.12	£42.15
30/35 - PLAIN BEARING BSD-1610202024.A49 1610202024	£5.57	£6.68
31 - NEEDLE-ROLLER ASSEMBLY BSD-1610913016.A69 1610913016	£3.72	£4.47
32 - CLAMP HANDLE BSD-1612026037.A44 1612026037	£10.82	£12.99
32/46 - DRIVER PIN BSD-1614690002.A246 1614690002	£1.84	£2.21
32/49 - SWITCH BUTTON BSD-1612026035.A220 1612026035	£1.75	£2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A435 1610210046	£2.16	£2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A145 1614611006	£3.91	£4.69
36 - HOLDING PLATE BSD-1611016003.A64 1611016003	£2.27	£2.72
41 - HOUSING COVER BSD-1615500428.A1 1615500428	£10.61	£12.73
45 - AIR-DEFLECTOR RING BSD-1610522015.A9 1610522015	£2.27	£2.72
48 - TAB WASHER BSD-1611098008.A63 1611098008	£2.27	£2.72
54 - RUBBER BUSHING BSD-1610502016.A16 1610502016	£1.84	£2.21
55 - SEAL RING 53.0x7.0 MM BSD-1610290226.A88 1610290226	£3.72	£4.47
57 - O-RING 24.0x2.5 MM BSD-1610210068.A374 1610210068	£1.75	£2.10
63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A258 1610910063	£5.87	£7.04
64/1 - SUPPORTING DISC BSD-1610190060.A19 1610190060	£2.27	£2.72
66 - PLAIN BEARING BSD-1610202021.A87 1610202021	£2.74	£3.29
68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A89 1610283036	£7.72	£9.27
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A162 160343000A	£1.84	£2.21
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A222 2603490024	£1.84	£2.21
78 - SCREW 4x16 BSD-2603490022.A478 2603490022	£1.84	£2.21
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A129 1613435023	£1.84	£2.21
80 - SCREW BSD-1613435043.A72 1613435043	£1.84	£2.21
96 - RETAINING RING BSD-1614601046.A24 1614601046	£1.84	£2.21
101 - CONNECTING CABLE BSD-1614449014.A71 1614449014	£2.16	£2.59
106 - PLAIN BEARING BSD-1614611022.A80 1614611022	£2.74	£3.29
106/105 - COMPRESSION SPRING BSD-1614611021.A12 1614611021	£1.75	£2.10
120 - AUXILIARY HANDLE BSD-160202508X.A61 160202508X	£19.91	£23.89
120/120 - AUXILIARY HANDLE BSD-160202507H.A332 160202507H	£11.87	£14.24
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A34 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A37 1613490002	£4.48	£5.37
120/802 - SUPPORT CLAMP BSD-1617000475.A51 1617000475	£10.61	£12.73
321/22 - CYLINDRICAL GEAR BSD-1616312004.A105 1616312004	£12.64	£15.17
321/28 - STRIKER PIN BSD-1613124082.A7 1613124082	£18.96	£22.75
321/34 - SUPPORTING DISC BSD-1610190067.A13 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A239 1613100019	£1.84	£2.21
321/38 - CATCH DISK BSD-1600A008AG.A111 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610290099.A7 1610290099	£5.57	£6.68
321/46 - GUIDE BUSHING BSD-1610390066.A1 1610390066	£12.04	£14.45
321/50 - COMPRESSION SPRING BSD-1614611020.A81 1614611020	£2.80	£3.36
321/58 - O-RING BSD-1610210178.A107 1610210178	£1.84	£2.21
321/59 - SHAFT SEAL BSD-1600A009VC.A108 1600A009VC	£2.80	£3.36
321/60 - O-RING 9.0x3.5 MM BSD-1610210176.A73 1610210176	£1.84	£2.21
321/72 - RETAINING RING BSD-1604601027.A133 1604601027	£1.75	£2.10
321/82 - RETAINING RING BSD-1614601034.A67 1614601034	£2.27	£2.72
321/83 - RETAINING RING A22 DIN 7993 BSD-1604601028.A151 1604601028	£1.84	£2.21
390/89 - GUIDE SLEEVE BSD-1600A00NC8.A60 1600A00NC8	£2.74	£3.29
390/90 - COLLAR SLEEVE BSD-1610590016.A53 1610590016	£4.48	£5.37
390/91 - BACKUP RING BSD-1610200033.A0 1610200033	£2.94	£3.53
390/95 - COMPRESSION SPRING BSD-1614643016.A80 1614643016	£2.27	£2.72
390/97 - RETAINING RING BSD-1614601047.A57 1614601047	£1.75	£2.10
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A506 1613001009	£3.91	£4.69
691/895 - LOCK BSD-1615438431.A21 1615438431	£6.52	£7.83
691/895 - LOCK BSD-1615438409.A37 1615438409	£6.85	£8.22
801 - MOTOR HOUSING BSD-16170006BS.A4 16170006BS	£39.13	£46.96
804 - ON-OFF SWITCH BSD-16170006D4.A1 16170006D4	£21.52	£25.83
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A171 1607000392	£21.52	£25.83
808 - NAMEPLATE BSD-160111A3H5.A333 160111A3H5	£2.74	£3.29
811 - CARBON-BRUSH SET BSD-1617000525.A261 1617000525	£11.87	£14.24
811 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A79 1607000485	£75.79	£90.95
820 - INTERMEDIATE FLANGE BSD-16170006DX.A76 16170006DX	£31.79	£38.15
821 - PIPE BSD-1617000V42.A25 1617000V42	£63.50	£76.20
823 - TOOTHED SHAFT BSD-16170006ET.A5 16170006ET	£48.68	£58.42
825 - TOOL HOLDING FIXTURE BSD-1617000895.A64 1617000895	£49.16	£58.99
825/203 - PROTECTIVE CAP BSD-1610508047.A235 1610508047	£2.41	£2.89
828 - STRIKER PIN BSD-1617000V43.A7 1617000V43	£40.80	£48.96
833 - HOLDING JACKET BSD-1610590018.A20 1610590018	£4.75	£5.70
840 - GEAR HOUSING BSD-16170006DY.A6 16170006DY	£35.42	£42.51
861 - SWITCHING ELEMENT BSD-1615820097.A163 1615820097	£5.30	£6.36
864 - SUPPORTING DISC BSD-1617000A07.A25 1617000A07	£11.87	£14.24
870 - DRILL CHUCK SHANK 1/2. SDS-Plus BSD-1613523011.A77 1613523011	-
870/2 - COUNTERSUNK-HEAD SCREW M6x27-Kdia11 BSD-2603421207.A126 2603421207	£1.84	£2.21
871 - KEY CHUCK BSD-1608571089.A8 1608571089	£28.59	£34.31
872 - CHUCK WRENCH SG2 BSD-2607950007.A1759 2607950007	£6.85	£8.22
883 - RETAINING RING A22 DIN 7993 BSD-1604601028.A152 1604601028	£1.84	£2.21
890 - GUIDE SLEEVE BSD-1617000V41.A55 1617000V41	£11.87	£14.24
891 - HAMMER PIPE BSD-1617000876.A20 1617000876	£80.61	£96.73
