Bosch GBH 2-24 DSR / 0611228732 / CH 230 Volt Spare Parts

Home Details Reviews Delivery

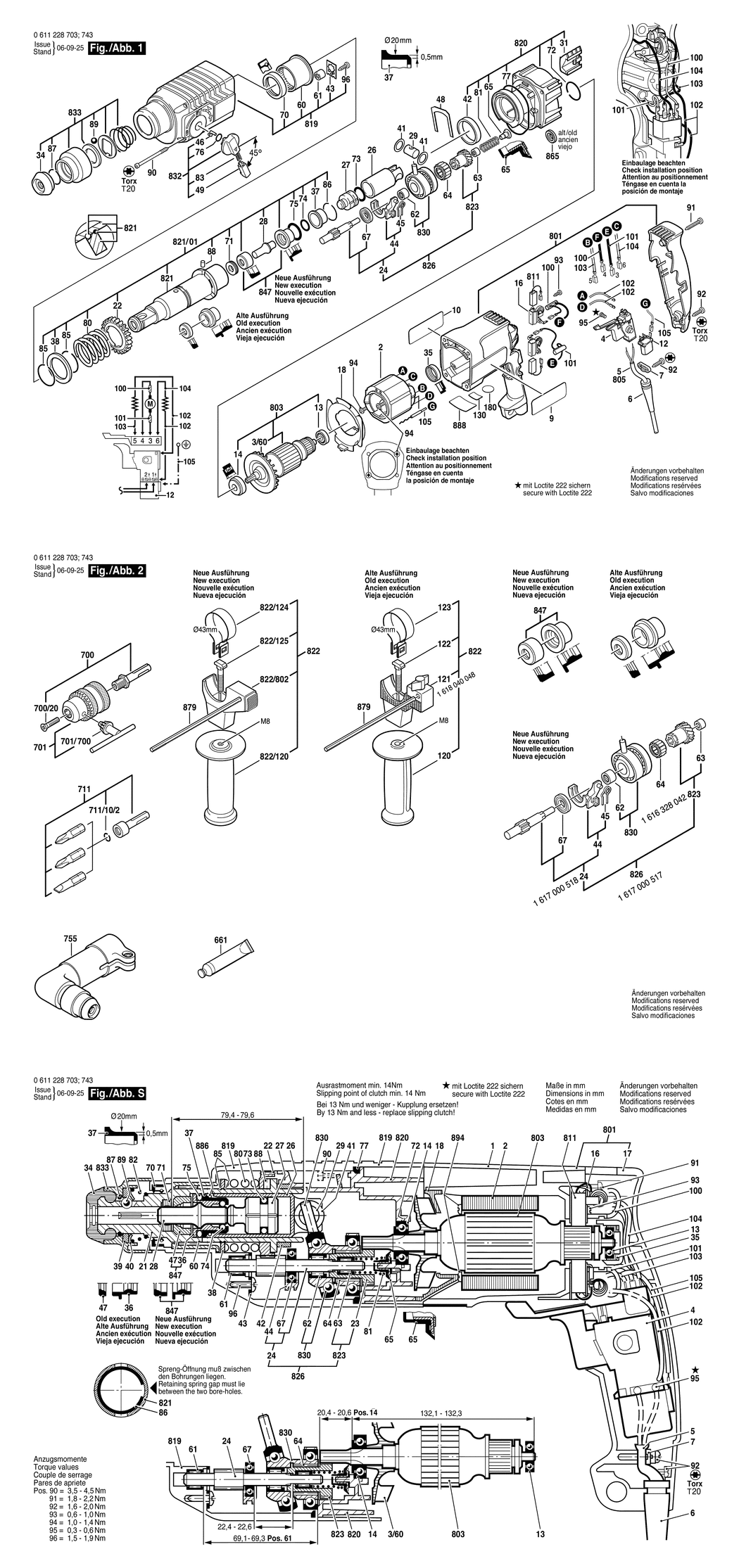

An exploded drawing and listing for the Bosch GBH 2-24 DSR / 0611228732 / CH 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 220-230V BSD-1614220172.A28 1614220172	£22.76	£27.31
3/60 - FAN BSD-1616610095.A21 1616610095	£2.27	£2.72
4 - SWITCH BSD-1617200077.A4 1617200077	£35.42	£42.51
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460450.A0 1604460450	£22.76	£27.31
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A171 2600703018	£2.74	£3.29
7 - CABLE CLIP BSD-1611035005.A64 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110X36.A15 1611110X36	£2.61	£3.13
10 - REFERENCE PLATE BSD-1611110569.A12 1611110569	£2.05	£2.46
12 - SUPPRESSION FILTER BSD-1617328026.A27 1617328026	£7.36	£8.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A13 1610905025	£6.85	£8.22
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A238 1610905048	£8.67	£10.41
16 - BRUSH HOLDER BSD-1617000343.A45 1617000343	£11.87	£14.24
18 - AIR-DEFLECTOR RING BSD-1610522009.A15 1610522009	£1.38	£1.66
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A127 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000518.A23 1617000518	£40.80	£48.96
26 - HAMMER PISTON BSD-1618700062.A11 1618700062	£14.91	£17.89
27 - STRIKER BSD-1618710057.A88 1618710057	£16.41	£19.69
28 - STRIKER PIN BSD-1613124040.A90 1613124040	£5.30	£6.36
29 - PISTON PIN BSD-1613105012.A433 1613105012	£3.91	£4.69
31 - PROTECTIVE GRILLE BSD-1615510003.A75 1615510003	£2.74	£3.29
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A244 1610508008	£2.27	£2.72
35 - RUBBER RING BSD-1610206021.A179 1610206021	£1.84	£2.21
37 - DAMPING BUSHING BSD-1610390017.A105 1610390017	£5.57	£6.68
38 - SUPPORTING DISC BSD-1610102026.A30 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A225 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A9 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A131 1611098005	£2.94	£3.53
44 - SWITCHING ELEMENT BSD-1615820092.A131 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A31 1614651014	£1.84	£2.21
46 - DRIVER PIN BSD-1614690002.A124 1614690002	£1.84	£2.21
48 - HOLDING PLATE BSD-1611016003.A172 1611016003	£2.27	£2.72
49 - SWITCH BUTTON BSD-1612026035.A89 1612026035	£1.75	£2.10
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A102 1610910073	£11.87	£14.24
61 - NEEDLE BEARING BSD-1610910098.A68 1610910098	£3.91	£4.69
62 - NEEDLE BEARING BSD-1610910074.A24 1610910074	£3.91	£4.69
63 - NEEDLE BEARING BSD-1610910064.A81 1610910064	£2.64	£3.17
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A22 1610913010	£4.48	£5.37
65 - PLAIN BEARING BSD-1610591016.A116 1610591016	£2.94	£3.53
67 - GROOVE BALL BEARING BSD-1610905016.A114 1610905016	£10.10	£12.12
70 - SHAFT SEAL BSD-1610283019.A11 1610283019	£7.72	£9.27
71 - SCRAPER BSD-1610290029.A26 1610290029	£3.91	£4.69
72 - O-RING 24.0x2.5 MM BSD-1610210068.A258 1610210068	£1.75	£2.10
73 - O-RING BSD-1610210187.A157 1610210187	£2.27	£2.72
74 - O-RING 11.0x3.5 MM BSD-1610210104.A17 1610210104	£2.74	£3.29
75 - O-RING 18.0x3.5 MM BSD-1610210105.A101 1610210105	£4.26	£5.11
76 - O-RING 10.5x2.7 MM BSD-1610210046.A165 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A17 1610210106	£2.74	£3.29
80 - COMPRESSION SPRING BSD-1614634005.A96 1614634005	£1.75	£2.10
81 - COMPRESSION SPRING BSD-1614611009.A111 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A247 1614611006	£3.91	£4.69
85 - RETAINING RING BSD-1614601011.A34 1614601011	£1.84	£2.21
86 - RETAINING RING BSD-1614601024.A119 1614601024	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A287 2916540012	-
88 - ROLLER BSD-1613200007.A42 1613200007	£1.84	£2.21
89 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A566 1903230013	£2.27	£2.72
90 - TAPPING SCREW 4.8x78 MM. TORX T-20 BSD-1603435036.A80 1603435036	£1.84	£2.21
91 - LENS HEAD SCREW 4x32 BSD-2603490026.A153 2603490026	£1.84	£2.21
92 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A133 2603490023	£1.84	£2.21
93 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A556 2910211005	£1.84	£2.21
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A495 2603435015	£2.27	£2.72
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2906 2603410001	£1.84	£2.21
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A36 2912401018	£1.75	£2.10
100 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A170 2604465086	£5.58	£6.70
101 - SUPPRESSION FILTER L=126 MM BSD-2604465097.A74 2604465097	£5.58	£6.70
102 - CABLE L=130 MM BSD-2604448005.A165 2604448005	£1.84	£2.21
103 - CONNECTING CABLE L=55 MM BSD-1614448017.A62 1614448017	£2.16	£2.59
104 - CONNECTING CABLE L=78 MM BSD-2604448137.A86 2604448137	-
105 - EARTH CONDUCTOR BSD-1614449010.A25 1614449010	-
661 - GREASE TUBE 30 ML BSD-1615430010.A15 1615430010	£6.85	£8.22
700 - DRILL CHUCK SHANK 1/2 BSD-1617000154.A77 1617000154	£33.22	£39.87
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A341 2603421226	£1.84	£2.21
701 - CHUCK BSD-1608571088.A137 1608571088	£28.59	£34.31
701/700 - CHUCK WRENCH SG2 BSD-2607950007.A687 2607950007	£6.85	£8.22
711 - PARTS SET BSD-1617000133.A170 1617000133	-
711/10/2 - RETAINING RING BSD-2604601004.A162 2604601004	£1.75	£2.10
755 - ANGLE DRILL HEAD BSD-1618580000.A19 1618580000	£239.08	£286.90
801 - MOTOR HOUSING BSD-1617000477.A9 1617000477	£19.91	£23.89
803 - ARMATURE WITH FAN 220-230V BSD-1614010227.A7 1614010227	£66.68	£80.01
811 - CARBON-BRUSH SET BSD-1617014134.A49 1617014134	£9.11	£10.93
811 - CARBON-BRUSH SET 10 x 1 617 014 134 BSD-1607000490.A3 1607000490	£54.42	£65.30
819 - GEAR HOUSING BSD-1615806093.A60 1615806093	£50.80	£60.96
820 - INTERMEDIATE FLANGE BSD-1617000981.A103 1617000981	£28.59	£34.31
821 - RATCHET SLEEVE SDS-PLUS BSD-1616490061.A0 1616490061	£62.51	£75.01
821/01 - RATCHET SLEEVE SDS-PLUS BSD-1616490060.A97 1616490060	£75.79	£90.95
822 - AUXILIARY HANDLE dia43 MM BSD-2602025118.A34 2602025118	£14.91	£17.89
822/120 - AUXILIARY HANDLE M8 BSD-1612025019.A332 1612025019	£6.85	£8.22
822/124 - CLAMPING BAND dia43 MM BSD-1611316006.A91 1611316006	£2.61	£3.13
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A220 1613490002	£4.48	£5.37
822/802 - SUPPORT CLAMP dia43 MM BSD-2608040176.A19 2608040176	£6.52	£7.83
823 - GEAR SLEEVE Z=26/6 BSD-1616328042.A81 1616328042	£42.84	£51.41
826 - TOOTHED SHAFT Z=3/9 BSD-1617000517.A87 1617000517	£75.79	£90.95
830 - DRIVE BEARING BSD-1615819018.A94 1615819018	£53.78	£64.54
832 - CLAMP HANDLE BSD-1612026037.A132 1612026037	£10.82	£12.99
833 - PROTECTION SLEEVE BSD-1617000163.A227 1617000163	£7.72	£9.27
847 - GUIDE RING BSD-1617000348.A11 1617000348	£14.91	£17.89
879 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A105 1613001009	£3.91	£4.69
888 - NAMEPLATE BSD-160111A3H5.A113 160111A3H5	£2.74	£3.29
