Bosch GAH 500 DSE / 0611221641 / GB 110 Volt Spare Parts

Home Details Reviews Delivery

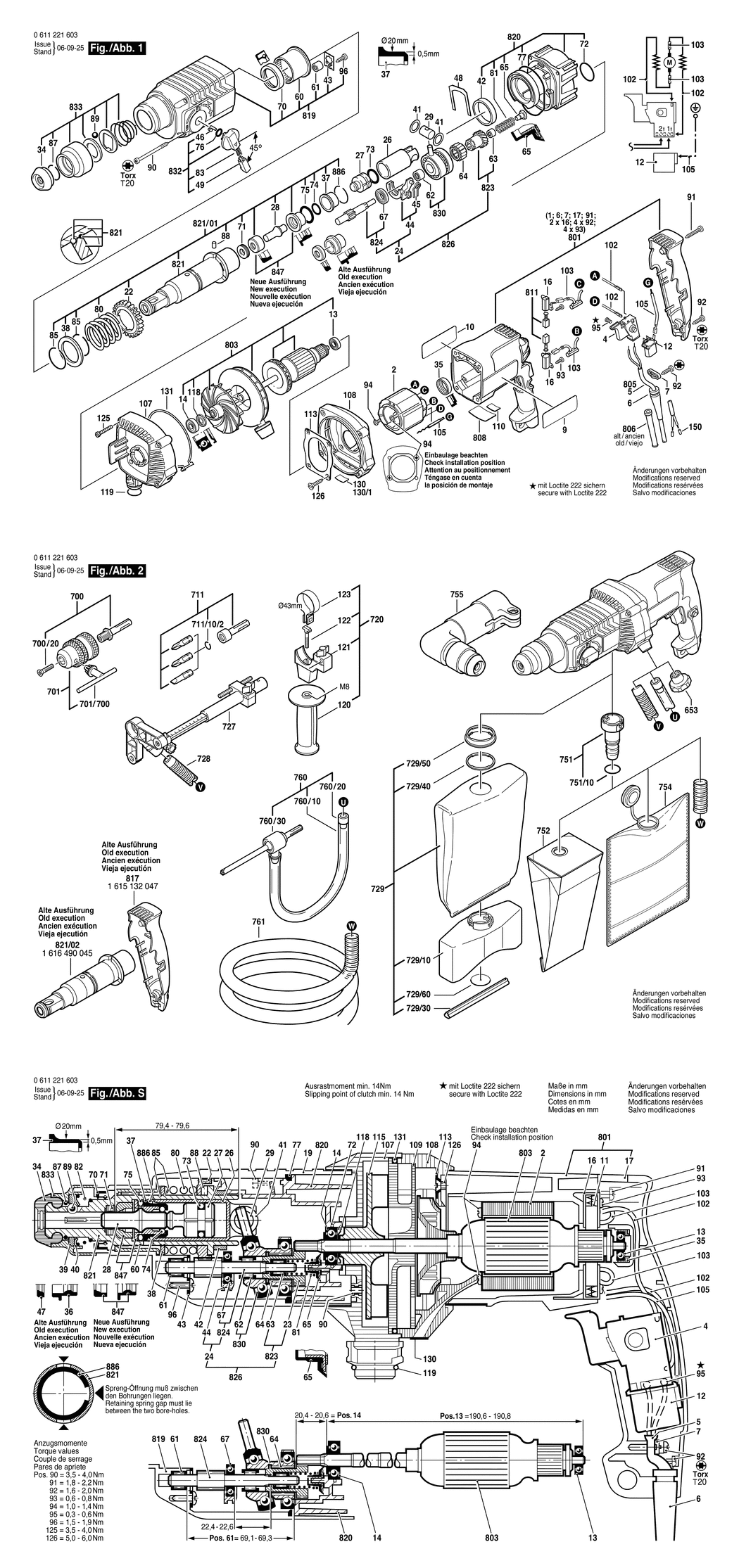

An exploded drawing and listing for the Bosch GAH 500 DSE / 0611221641 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 110-115V BSD-2604220439.A6 2604220439	-
4 - SWITCH BSD-2607200205.A3 2607200205	£42.84	£51.41
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1614460026.A12 1614460026	£18.96	£22.75
6 - GROMMET dia8.7-dia9.6x76 MM BSD-2600703019.A8 2600703019	£2.61	£3.13
7 - CABLE CLIP BSD-1611035005.A149 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110651.A0 1611110651	-
10 - REFERENCE PLATE BSD-1611110652.A9 1611110652	-
12 - SUPPRESSION FILTER BSD-1607328040.A132 1607328040	£6.52	£7.83
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A152 1610905032	£5.57	£6.68
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A252 1610905048	£8.67	£10.41
16 - BRUSH HOLDER BSD-2604337016.A83 2604337016	£1.75	£2.10
22 - CYLINDRICAL GEAR Z=50 BSD-1616317602.A26 1616317602	£12.04	£14.45
24 - TOOTHED SHAFT Z=3/9 BSD-1617000518.A67 1617000518	£40.80	£48.96
26 - HAMMER PISTON BSD-1618700062.A34 1618700062	£14.91	£17.89
27 - STRIKER BSD-1618710057.A15 1618710057	£16.41	£19.69
28 - STRIKER PIN BSD-1613124040.A7 1613124040	£5.30	£6.36
29 - PISTON PIN BSD-1613105012.A269 1613105012	£3.91	£4.69
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A163 1610508008	£2.27	£2.72
35 - RUBBER RING BSD-1610206021.A212 1610206021	£1.84	£2.21
37 - DAMPING BUSHING BSD-1610390017.A11 1610390017	£5.57	£6.68
38 - SUPPORTING DISC BSD-1610102026.A91 1610102026	£2.61	£3.13
41 - SHIM WASHER 1.2 MM BSD-1610101011.A206 1610101011	£1.75	£2.10
42 - PLAIN BEARING BSD-1610202015.A62 1610202015	£2.80	£3.36
43 - TAB WASHER BSD-1611098005.A25 1611098005	£2.94	£3.53
44 - SWITCHING ELEMENT BSD-1615820092.A25 1615820092	£2.61	£3.13
45 - SWITCH SPRING BSD-1614651014.A111 1614651014	£1.84	£2.21
46 - DRIVER PIN BSD-1614690002.A18 1614690002	£1.84	£2.21
48 - HOLDING PLATE BSD-1611016003.A247 1611016003	£2.27	£2.72
49 - SWITCH BUTTON BSD-1612026035.A34 1612026035	£1.75	£2.10
60 - NEEDLE-ROLLER BEARING BSD-1610910073.A20 1610910073	£11.87	£14.24
61 - NEEDLE BEARING BSD-1610910098.A138 1610910098	£3.91	£4.69
62 - NEEDLE BEARING BSD-1610910074.A102 1610910074	£3.91	£4.69
63 - NEEDLE BEARING BSD-1610910064.A225 1610910064	£2.64	£3.17
64 - NEEDLE-ROLLER ASSEMBLY BSD-1610913010.A126 1610913010	£4.48	£5.37
65 - PLAIN BEARING BSD-1610591016.A68 1610591016	£2.94	£3.53
67 - GROOVE BALL BEARING BSD-1610905016.A15 1610905016	£10.10	£12.12
70 - SHAFT SEAL BSD-1610283019.A46 1610283019	£7.72	£9.27
71 - SCRAPER BSD-1610290029.A136 1610290029	£3.91	£4.69
72 - O-RING 24.0x2.5 MM BSD-1610210068.A173 1610210068	£1.75	£2.10
73 - O-RING BSD-1610210187.A178 1610210187	£2.27	£2.72
74 - O-RING 11.0x3.5 MM BSD-1610210104.A126 1610210104	£2.74	£3.29
75 - O-RING 18.0x3.5 MM BSD-1610210105.A19 1610210105	£4.26	£5.11
76 - O-RING 10.5x2.7 MM BSD-1610210046.A0 1610210046	£2.16	£2.59
77 - O-RING 60.0x3.0 MM BSD-1610210106.A126 1610210106	£2.74	£3.29
80 - COMPRESSION SPRING BSD-1614634005.A36 1614634005	£1.75	£2.10
81 - COMPRESSION SPRING BSD-1614611009.A71 1614611009	£1.75	£2.10
83 - COMPRESSION SPRING BSD-1614611006.A315 1614611006	£3.91	£4.69
85 - RETAINING RING BSD-1614601011.A78 1614601011	£1.84	£2.21
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A207 2916540012	-
88 - ROLLER BSD-1613200007.A145 1613200007	£1.84	£2.21
89 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A724 1903230013	£2.27	£2.72
90 - SOCKET HEAD CAP SCREW DIN 84-M5x65-4.8 BSD-1613410004.A7 1613410004	-
91 - LENS HEAD SCREW 4x32 BSD-2603490026.A168 2603490026	£1.84	£2.21
92 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A114 2603490023	£1.84	£2.21
93 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A452 2910211005	£1.84	£2.21
94 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A536 2603435015	£2.27	£2.72
95 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2821 2603410001	£1.84	£2.21
96 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A166 2912401018	£1.75	£2.10
102 - CABLE L=130 MM BSD-2604448005.A84 2604448005	£1.84	£2.21
103 - SUPPRESSION FILTER L=55 MM BSD-1614465008.A6 1614465008	£7.72	£9.27
105 - EARTH CONDUCTOR BSD-1614449011.A1 1614449011	-
107 - BLOWER CASING BSD-1615190042.A9 1615190042	-
108 - FAN HOUSING BSD-1615190044.A5 1615190044	£28.68	£34.41
113 - PROFILE PLATE BSD-1611038017.A11 1611038017	-
118 - SEALING DISK 609 AV NILOS-RING BSD-2916130027.A15 2916130027	£5.26	£6.31
119 - O-RING 23.0x3.0 MM BSD-1610210045.A39 1610210045	£2.61	£3.13
120 - AUXILIARY HANDLE M8 BSD-1612025019.A252 1612025019	£6.85	£8.22
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A105 1618040048	£8.67	£10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A431 1613490002	£4.48	£5.37
123 - CLAMPING BAND dia43 MM BSD-1611316006.A152 1611316006	£2.61	£3.13
125 - SOCKET HEAD CAP SCREW DIN 84-AM5x35-8.8 BSD-2910021168.A1 2910021168	-
126 - REC CT-SUNK TAPPING SCREW BSD-1613435005.A6 1613435005	£2.33	£2.80
130/1 - STICKER BSD-1611110640.A6 1611110640	-
131 - SEALING FRAME BSD-1611015039.A3 1611015039	£3.99	£4.79
150 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A181 1900452012	£1.75	£2.10
653 - PLUG BSD-1610591008.A10 1610591008	£6.16	£7.39
700 - DRILL CHUCK SHANK BSD-1617000132.A23 1617000132	£17.68	£21.22
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A302 2603421226	£1.84	£2.21
701 - CHUCK BSD-1608571088.A206 1608571088	£28.59	£34.31
701/700 - CHUCK WRENCH SG2 BSD-2607950007.A612 2607950007	£6.85	£8.22
711 - PARTS SET BSD-1617000133.A235 1617000133	-
711/10/2 - RETAINING RING BSD-2604601004.A291 2604601004	£1.75	£2.10
720 - AUXILIARY HANDLE dia43 MM BSD-2602025070.A121 2602025070	£14.91	£17.89
727 - SUCTION DEVICE BSD-1607000263.A8 1607000263	-
728 - CORRUGATED HOSE dia 16.5x550 MM BSD-1610712042.A3 1610712042	-
729 - DUST BAG BSD-2605411044.A9 2605411044	-
729/10 - SUPPORTING FRAME BSD-1615190046.A3 1615190046	-
729/30 - SUPPORT CLAMP BSD-1612386001.A9 1612386001	£2.94	£3.53
729/40 - SLIDING DISC BSD-1619200408.A2 1619200408	-
729/50 - UNION NUT BSD-1619200409.A8 1619200409	£2.80	£3.36
729/60 - SEALING DISK BSD-1610121001.A3 1610121001	-
751 - HOSE FITTING BSD-2607000178.A9 2607000178	-
751/10 - O-RING 23.0x3.0 MM BSD-1610210045.A22 1610210045	£2.61	£3.13
752 - PAPER BAG BSD-1615411003.A13 1615411003	-
754 - DUST BAG BSD-2605411043.A0 2605411043	-
755 - ANGLE DRILL HEAD BSD-1618580000.A28 1618580000	£239.08	£286.90
760 - FLEXIBLE CONNECTION BSD-2607000176.A0 2607000176	-
760/10 - PVC HOSE BSD-2600712004.A7 2600712004	-
760/20 - HOSE FITTING BSD-2605702024.A0 2605702024	-
760/30 - FLUSHING JET BSD-2605702025.A9 2605702025	-
761 - AIR HOSE dia19 MM. L=5M. 3/4 BSD-1610793002.A20 1610793002	£36.74	£44.09
801 - MOTOR HOUSING BSD-1615108062.A7 1615108062	£28.59	£34.31
803 - ARMATURE WITH FAN 110V BSD-1614010197.A0 1614010197	-
806 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A642 2600703013	£2.74	£3.29
806 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A702 2600703011	£2.94	£3.53
808 - NAMEPLATE BSD-160111A3H5.A157 160111A3H5	£2.74	£3.29
811 - CARBON BRUSH BSD-1607014117.A138 1607014117	£10.61	£12.73
817 - HOUSING COVER BSD-1615132047.A7 1615132047	-
819 - GEAR HOUSING BSD-1615806093.A4 1615806093	£50.80	£60.96
820 - INTERMEDIATE FLANGE BSD-1617000981.A48 1617000981	£28.59	£34.31
821 - RATCHET SLEEVE SDS-PLUS BSD-1616490061.A88 1616490061	£62.51	£75.01
821/01 - RATCHET SLEEVE SDS-PLUS BSD-1616490060.A9 1616490060	£75.79	£90.95
823 - GEAR SLEEVE Z=26/6 BSD-1616328042.A5 1616328042	£42.84	£51.41
826 - TOOTHED SHAFT Z=3/9 BSD-1617000517.A52 1617000517	£75.79	£90.95
830 - DRIVE BEARING BSD-1615819018.A32 1615819018	£53.78	£64.54
832 - CLAMP HANDLE BSD-1612026037.A196 1612026037	£10.82	£12.99
833 - PROTECTION SLEEVE BSD-1617000163.A126 1617000163	£7.72	£9.27
847 - GUIDE RING BSD-1617000348.A72 1617000348	£14.91	£17.89
886 - RETAINING RING BSD-1614601024.A72 1614601024	£1.75	£2.10
