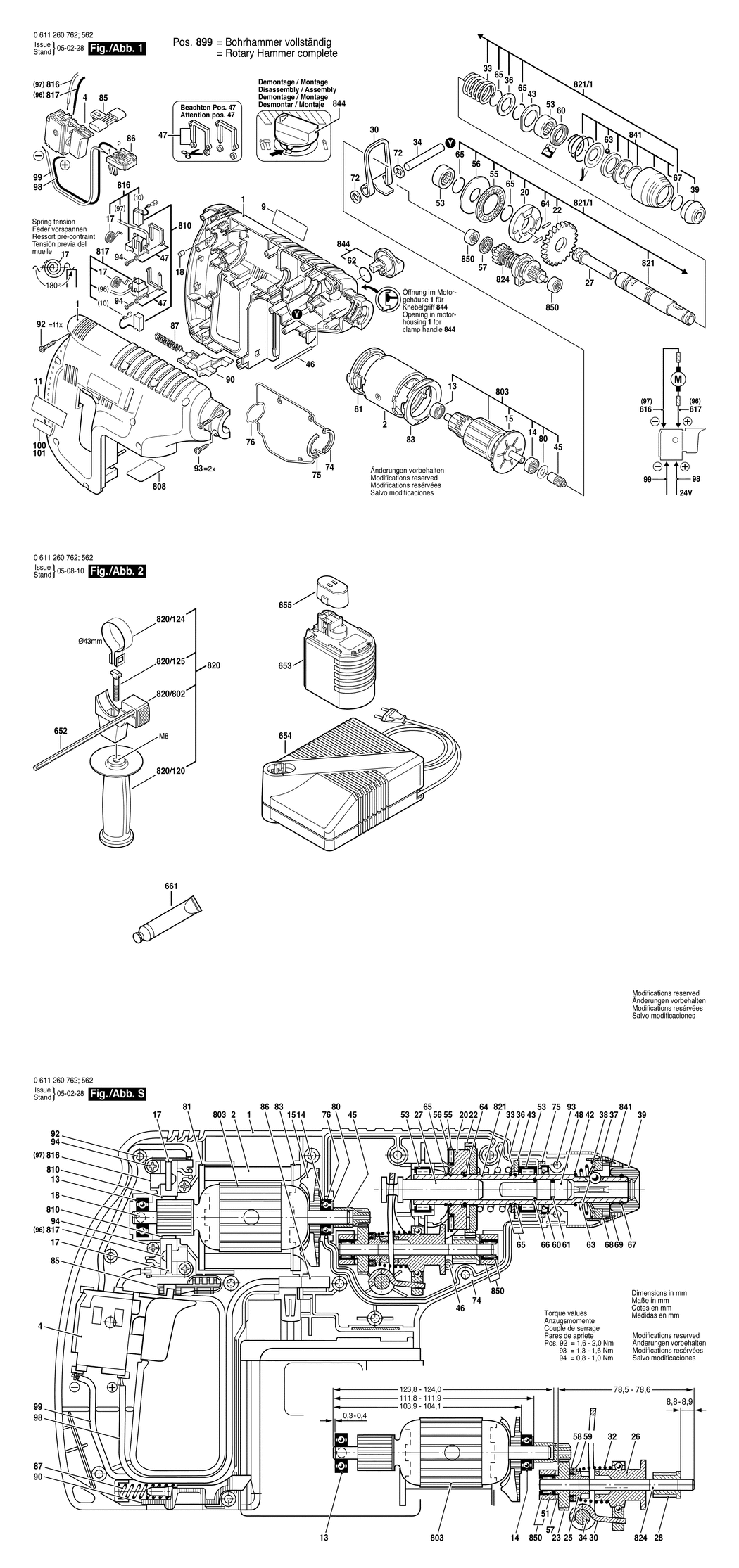

An exploded drawing and listing for the Bosch BTI-BH 24 VE / 0611260562 / EU 24 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-1615104035.A0 1615104035 £37.27 £44.72
2 - POLE HOUSING 14;4-24V BSD-2610942109.A12 2610942109 £21.68 £26.01
4 - ON-OFF SWITCH BSD-1617200067.A39 1617200067 £68.42 £82.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110Y07.A0 1611110Y07 £3.80 £4.56
11 - REFERENCE PLATE BSD-1611110Y08.A1 1611110Y08 -
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905033.A52 1600905033 £7.36 £8.83
14 - GROOVE BALL BEARING 8x22x7 BSD-2600905052.A341 2600905052 £7.36 £8.83
15 - FAN BSD-1616610092.A5 1616610092 £6.61 £7.93
17 - SPIRAL SPRING BSD-1614652008.A36 1614652008 £2.16 £2.59
18 - DAMPING RUBBER BSD-2603100056.A142 2603100056 £1.75 £2.10
20 - CATCH DISK BSD-1616409012.A28 1616409012 £5.87 £7.04
22 - CYLINDRICAL GEAR Z=53 BSD-1616317613.A31 1616317613 -
27 - STRIKER BSD-1618710068.A35 1618710068 £7.78 £9.33
30 - DRIVE LEVER BSD-1611911000.A35 1611911000 -
33 - COMPRESSION SPRING BSD-1614634008.A56 1614634008 £1.95 £2.34
34 - BEARING PIN BSD-1613100021.A48 1613100021 £2.33 £2.80
36 - SUPPORTING DISC BSD-1610190021.A74 1610190021 £2.16 £2.59
39 - PROTECTIVE CAP BSD-1610508021.A26 1610508021 £1.95 £2.34
43 - SUPPORTING DISC BSD-1610190020.A12 1610190020 £1.95 £2.34
45 - DRIVE PINION Z=9 BSD-1616316602.A48 1616316602 £14.75 £17.70
46 - STRAIGHT PIN BSD-1613160022.A72 1613160022 £1.75 £2.10
47 - INSULATING PLATE BSD-1601010010.A6 1601010010 £5.01 £6.01
53 - NEEDLE BEARING BSD-1610910077.A78 1610910077 £4.26 £5.11
55 - ROLLER THRUST BEARING BSD-1610920012.A51 1610920012 £3.34 £4.01
56 - SUPPORT DISC 1.0 MM BSD-1610102030.A6 1610102030 £2.61 £3.13
57 - ROLLER THRUST BEARING BSD-1610920009.A42 1610920009 £3.34 £4.01
60 - SEAL RING BSD-1610280006.A37 1610280006 £3.34 £4.01
62 - O-RING 18.0x2.5 MM BSD-1610210125.A46 1610210125 £1.95 £2.34
63 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A769 1903230013 £2.16 £2.59
64 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A47 1613100019 £1.75 £2.10
65 - RETAINING RING BSD-1614601018.A52 1614601018 £1.66 £1.99
67 - SPRING RETAINING RING BSD-3600224038.A37 3600224038 £1.32 £1.58
72 - SHIM WASHER 1.0 MM BSD-1610100007.A68 1610100007 £1.75 £2.10
74 - SEALING FRAME BSD-1611015045.A45 1611015045 £5.30 £6.36
75 - SEALING FRAME BSD-1611015041.A91 1611015041 £1.95 £2.34
76 - SEAL RING BSD-1610210138.A2 1610210138 £1.75 £2.10
80 - SEALING DISK BSD-1610100008.A17 1610100008 £1.75 £2.10
81 - LOCATING RING BSD-1610290043.A39 1610290043 £2.16 £2.59
83 - LOCATING RING BSD-1610290078.A14 1610290078 £2.33 £2.80
85 - SWITCH SLIDE BSD-1613231009.A9 1613231009 £1.95 £2.34
86 - CONTACT RETAINER BSD-1609280157.A16 1609280157 -
87 - COMPRESSION SPRING BSD-1614611012.A44 1614611012 £8.49 £10.19
90 - CATCH SLIDE BSD-1613231007.A8 1613231007 £1.32 £1.58
92 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A230 2912401021 £1.75 £2.10
93 - TAPPING SCREW DIN7981-ST3.9x16-C-Z BSD-2912401019.A245 2912401019 £1.75 £2.10
94 - TAPPING SCREW DIN 7981-ST2.9x16.0-C-Z BSD-2912401007.A5 2912401007 £1.75 £2.10
98 - CONNECTING CABLE L=260 MM BSD-1614416012.A35 1614416012 £1.75 £2.10
99 - CONNECTING CABLE L=270 MM BSD-1614416011.A18 1614416011 £1.75 £2.10
100 - REFERENCE PLATE BSD-1611110Y09.A0 1611110Y09 £3.80 £4.56
652 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A382 1613001009 £3.72 £4.47
653 - ACCUMULATOR BATTERY 24V. 3.0Ah. NiCd BSD-2607335223.A16 2607335223 £352.76 £423.31
654 - FAST CHARGER EU 230/7.2-24V. 15 MIN. BSD-2607224497.A0 2607224497 £218.41 £262.09
655 - PROTECTIVE CAP BSD-1610508032.A47 1610508032 £2.16 £2.59
661 - GREASE TUBE 30 ML BSD-1615430010.A179 1615430010 £6.52 £7.83
803 - ARMATURE WITH FAN 24V BSD-1617000511.A17 1617000511 £93.88 £112.65
808 - NAMEPLATE BSD-160111A3HD.A16 160111A3HD £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1617014131.A47 1617014131 -
816 - BRUSH HOLDER L=145 MM BSD-1617000379.A8 1617000379 -
817 - BRUSH HOLDER L=45 MM BSD-1617000380.A45 1617000380 -
820 - AUXILIARY HANDLE BSD-2602025131.A1 2602025131 £14.72 £17.67
820/120 - AUXILIARY HANDLE M8 BSD-1612025019.A148 1612025019 £6.52 £7.83
820/124 - CLAMPING BAND dia43 MM BSD-1611316006.A16 1611316006 £2.61 £3.13
820/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A613 1613490002 £4.26 £5.11
820/802 - SUPPORT CLAMP BSD-2608040207.A2 2608040207 £6.61 £7.93
821 - HAMMER PIPE BSD-1617000320.A35 1617000320 -
821/1 - HAMMER PIPE BSD-1617000375.A32 1617000375 -
824 - JACK SHAFT Z=31/12 BSD-1617000314.A38 1617000314 £46.82 £56.18
841 - PROTECTION SLEEVE BSD-1617000303.A47 1617000303 £14.91 £17.89
844 - CLAMP HANDLE BSD-1617000322.A26 1617000322 £3.72 £4.47
850 - BUSHING BSD-1617000975.A12 1617000975 £6.61 £7.93
