Bosch 510 / 0611212675 / GB 240 Volt Spare Parts

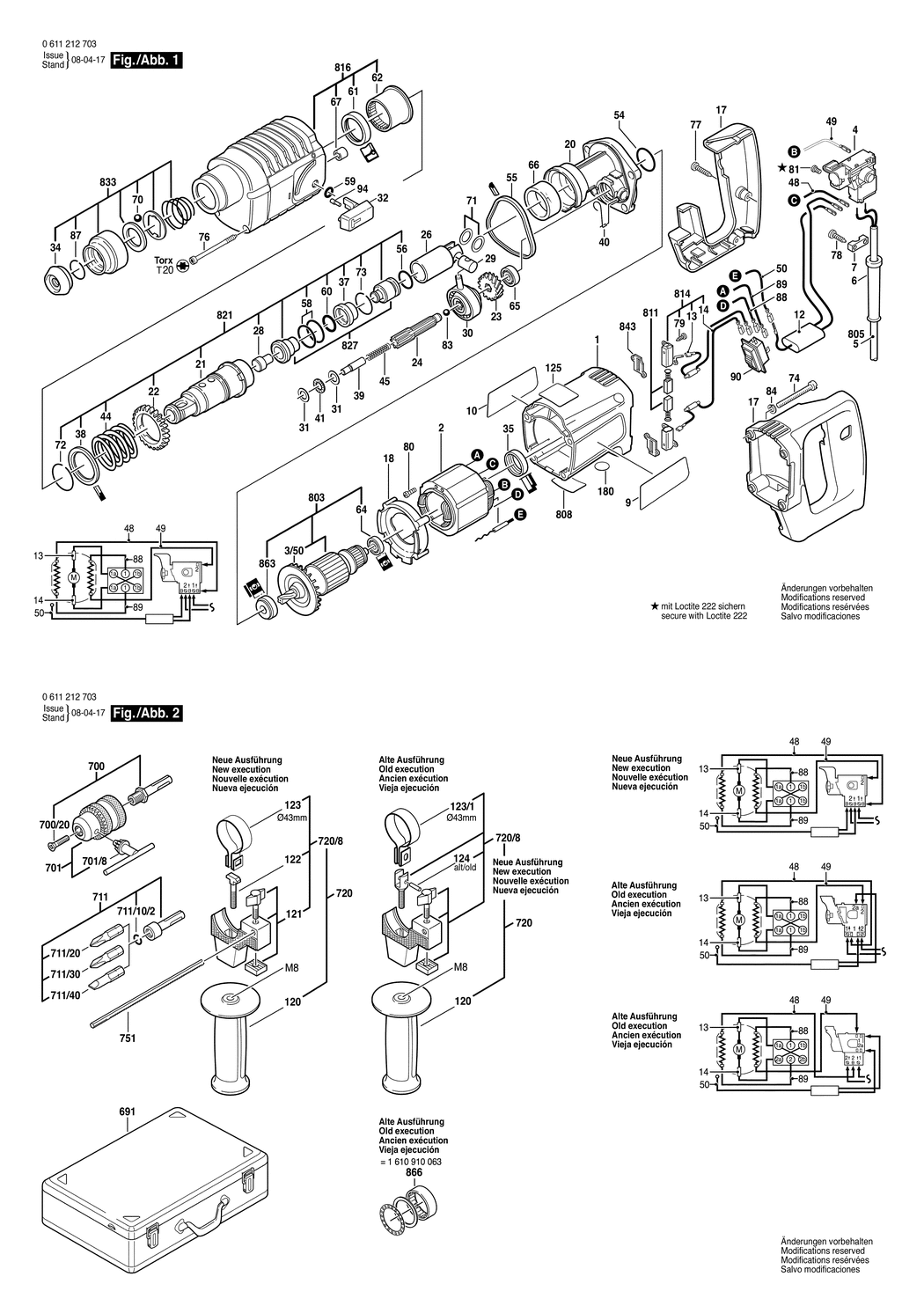

An exploded drawing and listing for the Bosch 510 / 0611212675 / GB 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605108014.A7 2605108014	-
2 - FIELD 240V BSD-2604220430.A16 2604220430	£27.23	£32.68
3/50 - FAN BSD-1616610072.A59 1616610072	£2.16	£2.59
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-3604460084.A10 3604460084	£21.68	£26.01
17 - HANDLE BSD-1615133022.A24 1615133022	-
18 - AIR-DEFLECTOR RING BSD-1610522008.A4 1610522008	£1.75	£2.10
18 - COVER DISC BSD-2601328033.A236 2601328033	-
20 - INTERMEDIATE FLANGE BSD-1615700037.A39 1615700037	£40.80	£48.96
21 - RATCHET SLEEVE SDS-PLUS BSD-1616490058.A65 1616490058	£218.41	£262.09
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A107 1616320007	£7.36	£8.83
23 - CYLINDRICAL GEAR Z=6/21 BSD-1616320002.A70 1616320002	£24.45	£29.34
24 - TOOTHED SHAFT Z=6/10 BSD-1613060010.A74 1613060010	£54.42	£65.30
26 - HAMMER PISTON BSD-1618700052.A8 1618700052	£13.12	£15.75
28 - STRIKER PIN BSD-1613124026.A3 1613124026	£2.80	£3.36
29 - PISTON PIN BSD-1613105012.A111 1613105012	£3.72	£4.47
30 - DRIVE BEARING BSD-1615819005.A110 1615819005	£31.64	£37.97
31 - SUPPORT DISC 0.8 MM BSD-1610100003.A145 1610100003	£1.75	£2.10
32 - CLAMP HANDLE BSD-1612026023.A75 1612026023	£2.61	£3.13
34 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A67 1610508008	£2.16	£2.59
35 - RUBBER RING BSD-1610206021.A5 1610206021	£1.75	£2.10
37 - DAMPING BUSHING BSD-1610390011.A40 1610390011	£3.72	£4.47
38 - SUPPORTING DISC BSD-1610102022.A42 1610102022	£2.16	£2.59
39 - STRAIGHT PIN BSD-1613100013.A88 1613100013	£2.16	£2.59
40 - HOLDING SPRING BSD-1614690001.A77 1614690001	£1.75	£2.10
41 - ROLLER-CAGE ASSEMBLY BSD-1610920003.A106 1610920003	£4.26	£5.11
44 - COMPRESSION SPRING BSD-1614633001.A56 1614633001	£2.52	£3.02
45 - COMPRESSION SPRING BSD-1614614001.A110 1614614001	£1.75	£2.10
54 - O-RING 24.0x2.5 MM BSD-1610210068.A3 1610210068	£1.75	£2.10
55 - SEAL RING BSD-1610206023.A167 1610206023	£2.80	£3.36
56 - O-RING 14.0x3.0 MM BSD-1610210070.A4 1610210070	£2.61	£3.13
58 - O-RING 18.0x3.0 MM BSD-1610210058.A91 1610210058	£2.61	£3.13
59 - O-RING 6.0x2.5 MM BSD-1610210069.A169 1610210069	£1.75	£2.10
60 - O-RING 10.0x3.5 MM BSD-1610210073.A144 1610210073	£2.16	£2.59
61 - ROTARY SHAFT LIP SEAL BSD-1610283017.A71 1610283017	£7.36	£8.83
62 - PLAIN BEARING BSD-1610202026.A122 1610202026	£5.30	£6.36
65 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A83 1900900228	£6.61	£7.93
66 - BUSHING dia30xdia37x15.7 MM BSD-1610301000.A74 1610301000	£3.34	£4.01
67 - NEEDLE BEARING BSD-1610910064.A292 1610910064	£2.52	£3.02
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A416 1903230013	£2.16	£2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A85 1610101011	£1.75	£2.10
72 - RETAINING RING DIN 7993-A32 BSD-2916540018.A48 2916540018	£3.72	£4.47
73 - RETAINING RING DIN 9045-24 BSD-1614601009.A112 1614601009	£1.95	£2.34
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-5.8 BSD-2910011132.A33 2910011132	£1.32	£1.58
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A52 1613435009	£1.75	£2.10
77 - TAPPING SCREW ST3.9x19-TORX.T20 BSD-1603435050.A137 1603435050	£2.33	£2.80
78 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A487 2910211019	£1.75	£2.10
79 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A416 2910211005	£1.75	£2.10
79 - TAPPING SCREW DIN 7971-B 2.9x13 BSD-2910211206.A60 2910211206	£1.32	£1.58
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A403 2603435015	£2.16	£2.59
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2705 2603410001	£1.75	£2.10
83 - BALL 5 MM V DIN 5401 BSD-1903230309.A130 1903230309	£1.75	£2.10
84 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A948 2916690003	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A379 2916540012	-
88 - CONNECTING CABLE L=145 MM BSD-1614431018.A7 1614431018	-
89 - CONNECTING CABLE L=80 MM BSD-1614431019.A18 1614431019	-
90 - CHANGE-OVER SWITCH BSD-2607200140.A24 2607200140	-
94 - DETENT PIN BSD-1613120017.A145 1613120017	£1.75	£2.10
120 - AUXILIARY HANDLE M8 BSD-1612025019.A356 1612025019	£6.52	£7.83
120 - AUXILIARY HANDLE BSD-160202507H.A53 160202507H	£11.30	£13.56
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A52 1618040048	£8.67	£10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A503 1613490002	£4.26	£5.11
123 - CLAMPING BAND dia43 MM BSD-1611316006.A236 1611316006	£2.61	£3.13
123 - CLAMPING BAND dia43 MM BSD-1611316003.A84 1611316003	£2.61	£3.13
124 - STRAIGHT PIN BSD-1613100012.A69 1613100012	£2.61	£3.13
700 - DRILL CHUCK SHANK BSD-1617000132.A71 1617000132	£16.84	£20.21
700/20 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A207 2603421226	£1.75	£2.10
701 - CHUCK BSD-1608571088.A70 1608571088	£27.23	£32.68
701/8 - CHUCK WRENCH SG2 BSD-2607950007.A466 2607950007	£6.52	£7.83
711 - PARTS SET BSD-1617000133.A131 1617000133	-
711/10/2 - RETAINING RING BSD-2604601004.A126 2604601004	£1.75	£2.10
711/20 - SCREWDRIVER BLADE NR.2.1/4 BSD-1608521004.A88 1608521004	-
711/30 - SCREWDRIVER BIT BSD-2607000248.A53 2607000248	-
711/40 - SCREWDRIVER BLADE GR.1.0x6. 1/4 BSD-1608511020.A40 1608511020	-
720 - AUXILIARY HANDLE dia43 MM BSD-2602025070.A23 2602025070	£14.91	£17.89
720/8 - PARTS SET BSD-1617000925.A73 1617000925	£16.41	£19.69
803 - ARMATURE WITH FAN 240V BSD-1614010042.A7 1614010042	-
808 - NAMEPLATE BSD-160111A3H3.A3149 160111A3H3	£2.61	£3.13
811 - CARBON BRUSH BSD-1617014114.A31 1617014114	£10.10	£12.12
816 - GEAR HOUSING BSD-1615806077.A28 1615806077	£45.67	£54.80
821 - RATCHET SLEEVE BSD-1617000931.A1 1617000931	£283.50	£340.20
827 - STRIKER BSD-1617000338.A97 1617000338	£27.23	£32.68
833 - PROTECTION SLEEVE BSD-1617000163.A80 1617000163	£7.36	£8.83
843 - BRUSH PLATE BSD-2601015047.A74 2601015047	-
863 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A342 1610905048	£8.67	£10.41
864 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A215 1610905025	£6.52	£7.83

Attribute Name	Value
Brand	Bosch
