Bosch GBH 8/65 DCE / 0611214632 / CH 230 Volt Spare Parts

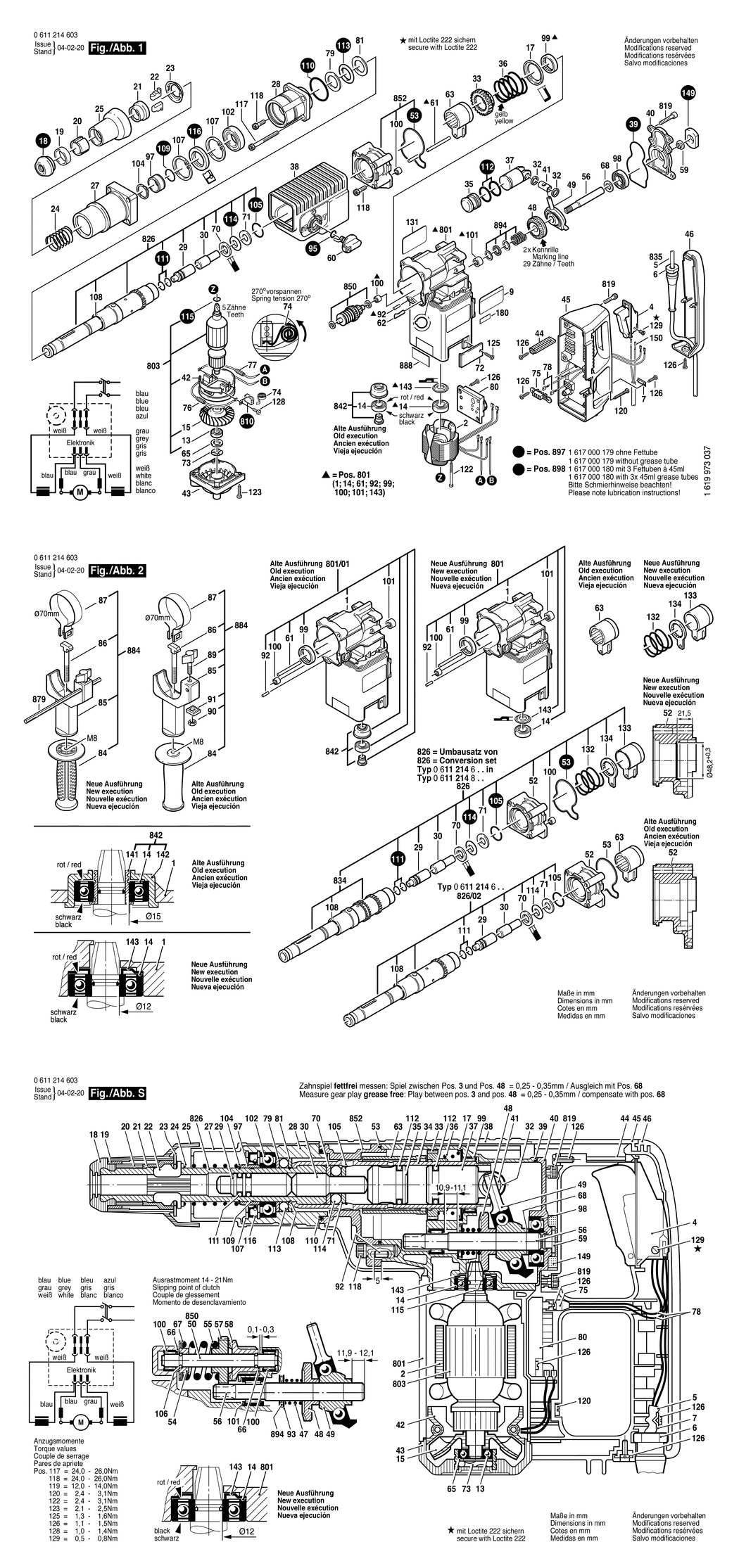

An exploded drawing and listing for the Bosch GBH 8/65 DCE / 0611214632 / CH 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230-240V BSD-1614220101.A12 1614220101	-
4 - ON-OFF SWITCH BSD-1617200040.A2 1617200040	-
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07 RN-F BSD-1614460006.A18 1614460006	£19.45	£23.34
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A56 1610703053	£2.61	£3.13
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A632 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1611034020.A20 1611034020	-
9 - MANUFACTURER'S NAMEPLATE BSD-1611110706.A6 1611110706	-
13 - GROOVE BALL BEARING 9x26x8 BSD-1610905009.A10 1610905009	£14.72	£17.67
14 - GROOVE BALL BEARING 15x32x9 BSD-1610905015.A9 1610905015	£14.75	£17.70
15 - FAN BSD-1616610067.A0 1616610067	-
17 - FRICTION WASHER BSD-1610500013.A1 1610500013	-
18 - PROTECTIVE CAP BSD-1610508017.A53 1610508017	£3.72	£4.47
19 - CYLINDER SLEEVE BSD-1610202016.A54 1610202016	-
20 - SPACER TUBE BSD-1610390015.A86 1610390015	-
21 - STOP SLEEVE BSD-1610520001.A105 1610520001	£12.04	£14.45
22 - STOPPING DEVICE BSD-1612300027.A141 1612300027	£11.30	£13.56
23 - INDEXING DISK BSD-1610290025.A84 1610290025	£6.52	£7.83
24 - COMPRESSION SPRING BSD-1614616009.A19 1614616009	-
25 - PROTECTION SLEEVE BSD-1610591009.A56 1610591009	-
27 - PROTECTIVE CAP BSD-1615190028.A0 1615190028	-
28 - BEARING FLANGE BSD-1615805062.A1 1615805062	-
29 - STRIKER PIN BSD-1613124037.A17 1613124037	-
30 - STRIKER PIN BSD-1613124038.A3 1613124038	-
32 - SUPPORTING DISC 1.5 MM BSD-1610101616.A29 1610101616	£1.75	£2.10
33 - CYLINDRICAL GEAR Z=32/57 BSD-1616317041.A19 1616317041	-
35 - STRIKER BSD-1618710055.A20 1618710055	-
36 - COMPRESSION SPRING BSD-1614621001.A19 1614621001	-
37 - HAMMER PISTON BSD-1618700060.A3 1618700060	-
38 - COVERING HOOD BSD-1615190027.A14 1615190027	-
39 - SEALING FRAME BSD-1611015030.A0 1611015030	-
40 - BEARING COVER BSD-1615808059.A1 1615808059	-
41 - PISTON PIN BSD-1613219001.A20 1613219001	-
42 - BRUSH HOLDER BSD-1614336005.A11 1614336005	£12.04	£14.45
43 - BEARING COVER BSD-1615808068.A9 1615808068	-
44 - FRAME BSD-1611015032.A0 1611015032	-
45 - HANDLE BSD-1615133027.A1 1615133027	-
46 - HANDLE COVER BSD-1615500269.A1 1615500269	-
48 - CROWN GEAR Z=29 BSD-1616333025.A12 1616333025	-
49 - DRIVE BEARING BSD-1615819011.A20 1615819011	-
53 - SEALING FRAME BSD-1611015031.A30 1611015031	-
56 - TOOTHED SHAFT Z=10 BSD-1613060012.A20 1613060012	-
59 - PLUG BSD-1610591010.A1 1610591010	-
60 - CLAMP HANDLE BSD-1612026033.A10 1612026033	£10.10	£12.12
61 - STRAIGHT PIN 5M6x70 RIKO DIN 6325 BSD-2917550138.A20 2917550138	-
62 - HOLDING SPRING BSD-1614680003.A10 1614680003	-
63 - TOOLHOLDER BSD-1617000957.A18 1617000957	-
65 - SUPPORTING DISC 2.5 MM BSD-1610101617.A1 1610101617	-
68 - SHIM 0.3 MM BSD-1610101618.A29 1610101618	£1.75	£2.10
68 - SHIM 0.1 MM BSD-1610101621.A1 1610101621	-
70 - STOP DISC BSD-1610103019.A3 1610103019	£6.61	£7.93
71 - STOP DISC BSD-1610101014.A55 1610101014	-
72 - SEALING CAP BSD-1615500284.A9 1615500284	-
73 - CLAMPING RING BSD-1610210082.A10 1610210082	£1.95	£2.34
74 - SPIRAL SPRING BSD-1614652000.A54 1614652000	-
75 - SOCKET HOUSING BSD-1615190011.A10 1615190011	-
76 - SUPPRESSION FILTER BSD-1617328016.A29 1617328016	-
77 - SUPPRESSION FILTER BSD-1617328017.A1 1617328017	£3.72	£4.47
78 - CONNECTING CABLE L=35 MM BSD-1614431022.A0 1614431022	-
79 - SUPPORTING DISC 3.0 MM BSD-1610102623.A19 1610102623	£2.52	£3.02
80 - CONTROL DEVICE 230-240V BSD-1617233016.A3 1617233016	-
81 - SUPPORTING DISC 3.0 MM BSD-1610102630.A17 1610102630	-
84 - AUXILIARY HANDLE BSD-160202507H.A75 160202507H	£11.30	£13.56
84 - AUXILIARY HANDLE M8 BSD-1612025019.A409 1612025019	£6.52	£7.83
85 - SUPPORT CLAMP dia70 MM BSD-1618040055.A50 1618040055	-
85 - SUPPORT CLAMP dia70 MM BSD-1618040055.A51 1618040055	-
86 - T-HEAD BOLT M8x80 MM BSD-1613490001.A0 1613490001	£8.67	£10.41
87 - CLAMPING BAND dia70 MM BSD-1611316008.A1 1611316008	-
89 - WING SCREW M6x30 MM BSD-1613480010.A25 1613480010	£2.80	£3.36
90 - HEX NUT M6 BSD-1613300006.A63 1613300006	£1.32	£1.58
91 - CLAMPING PLATE BSD-1611030010.A18 1611030010	£2.16	£2.59
92 - STRAIGHT PIN 5M6x12 RIKO DIN 6325 BSD-2917550118.A9 2917550118	-
95 - O-RING 15x3 MM BSD-1900210114.A15 1900210114	£2.61	£3.13
97 - INNER RING BSD-1610202014.A3 1610202014	-
98 - GROOVE BALL BEARING BSD-1610900023.A21 1610900023	£12.04	£14.45
99 - NEEDLE BEARING BSD-1610910068.A1 1610910068	-
100 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A10 2600910001	£4.26	£5.11
101 - NEEDLE BEARING BSD-2600910000.A52 2600910000	-
102 - GROOVE BALL BEARING 30x55x13 BSD-1900900276.A1 1900900276	-
104 - SPRING RETAINING RING DIN 471 30x1.5 MM BSD-2916650017.A3 2916650017	£1.75	£2.10
105 - SPRING RETAINING RING BSD-1610116004.A57 1610116004	£1.75	£2.10
107 - SPRING RETAINING RING 55x2MM. DIN 472 BSD-2916660024.A81 2916660024	£5.30	£6.36
108 - RETAINING RING 30x2 DIN7993-B30 BSD-2916550014.A6 2916550014	-
109 - O-RING 27.0x1.5 MM BSD-1610210100.A56 1610210100	£3.72	£4.47
110 - O-RING 54.0x3.0 MM BSD-1600210004.A250 1600210004	£2.80	£3.36
111 - O-RING 16.0x2.5 MM BSD-1610210098.A19 1610210098	-
112 - O-RING 26.0x4.0 MM BSD-1610210109.A39 1610210109	£4.26	£5.11
113 - O-RING 30.0x8.0 MM BSD-1610210099.A1 1610210099	-
114 - O-RING 17.0x8.0 MM BSD-1610210093.A87 1610210093	£1.75	£2.10
115 - O-RING 10.0x1.0 MM BSD-1610210118.A11 1610210118	-
116 - ROTARY SHAFT LIP SEAL BSD-1610283020.A17 1610283020	£6.52	£7.83
117 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x80-8.8 BSD-2910141262.A1 2910141262	£1.75	£2.10
118 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A115 2910141244	£1.75	£2.10
120 - TAPPING SCREW DIN 7971-ST4.8x38-F BSD-2910211038.A1 2910211038	£1.75	£2.10
122 - TAPPING SCREW BZ4.8x63 MM BSD-1603435008.A180 1603435008	£1.32	£1.58
123 - TAPPING SCREW DIN 7971-ST4.8x25-C BSD-2910211236.A46 2910211236	£1.75	£2.10
125 - TAPPING SCREW DIN 7972-B3.9x13 BSD-2910601118.A41 2910601118	£1.75	£2.10
126 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A596 2910211011	£1.75	£2.10
128 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A52 2910021118	£1.75	£2.10
129 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2710 2603410001	£1.75	£2.10
131 - MANUFACTURER'S NAMEPLATE BSD-1611110707.A3 1611110707	-
132 - COMPRESSION SPRING BSD-1614619009.A1 1614619009	-
133 - GUIDE BUSHING BSD-1610390028.A19 1610390028	-
134 - RETAINING SNAP RING BSD-1610200018.A17 1610200018	£5.87	£7.04
143 - SEALING DISK 14.4-6201 ZJV NILOS BSD-2916120023.A39 2916120023	£3.34	£4.01
149 - FELT DISC BSD-1610108014.A1 1610108014	£2.80	£3.36
801 - ASSEMBLY OF SERVICE PARTS BSD-1617000967.A3 1617000967	-
803 - ARMATURE 230-240V BSD-1614011054.A3 1614011054	-
810 - CARBON-BRUSH SET BSD-1617014110.A73 1617014110	£18.96	£22.75
819 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-10.9 BSD-1617000123.A9 1617000123	-
826 - TOOLHOLDER BSD-1617000957.A16 1617000957	-
842 - ASSEMBLY OF SERVICE PARTS BSD-1617000966.A9 1617000966	-
850 - SPUR WHEEL CLUTCH BSD-1617000934.A1 1617000934	-
852 - BEARING FLANGE BSD-1617000803.A21 1617000803	-
879 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A92 1613001008	£8.67	£10.41
888 - NAMEPLATE BSD-160111A3H3.A3161 160111A3H3	£2.61	£3.13
884 - AUXILIARY HANDLE dia70 MM BSD-1612025035.A24 1612025035	-
894 - NEEDLE-ROLLER ASSEMBLY BSD-1617000169.A1 1617000169	-
897 - WEAR AND TEAR PART SET BSD-1617000179.A5 1617000179	-
898 - WEAR AND TEAR PART SET BSD-1617000180.A4 1617000180	-
