Bosch GBH 7-46 DE / 0611263741 / GB 110 Volt Spare Parts

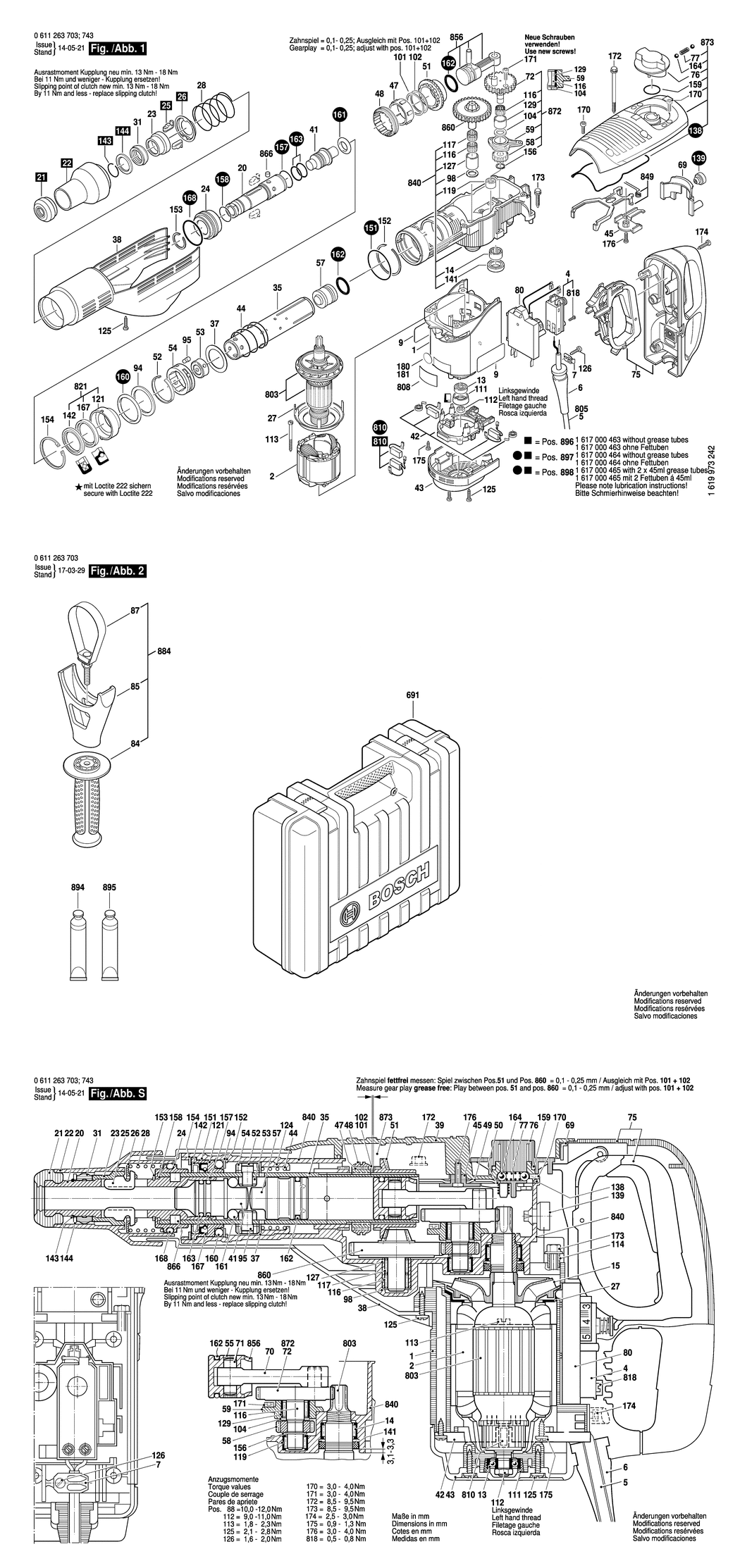

An exploded drawing and listing for the Bosch GBH 7-46 DE / 0611263741 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108131.A2 1615108131	£27.23	£32.68
2 - FIELD 110-120V BSD-1614220141.A0 1614220141	£33.74	£40.49
4 - SWITCH BSD-1617200048.A123 1617200048	£18.96	£22.75
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07 RN-F BSD-1604460201.A43 1604460201	£37.27	£44.72
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A221 1610703053	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A805 1601302018	£1.75	£2.10
9 - STICKER BSD-1611110D11.A2 1611110D11	£3.72	£4.47
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A19 1610900026	£12.04	£14.45
14 - NEEDLE-ROLLER BEARING BSD-1610910089.A41 1610910089	-
20 - TOOLHOLDER BSD-1618597072.A19 1618597072	£103.14	£123.77
21 - PROTECTIVE CAP BSD-1610508035.A18 1610508035	£5.30	£6.36
22 - PROTECTION SLEEVE BSD-1610591021.A16 1610591021	-
23 - STOP SLEEVE BSD-1610520001.A152 1610520001	£12.04	£14.45
24 - HEADED BUSH BSD-1610500021.A16 1610500021	£10.10	£12.12
25 - STOPPING DEVICE BSD-1612300027.A53 1612300027	£11.30	£13.56
26 - INDEXING DISK BSD-1610290025.A120 1610290025	£6.52	£7.83
27 - AIR-DEFLECTOR RING BSD-1610591023.A18 1610591023	£1.75	£2.10
28 - COMPRESSION SPRING BSD-1614621004.A0 1614621004	£2.61	£3.13
31 - DAMPING RING BSD-1610290049.A26 1610290049	£2.80	£3.36
35 - HAMMER PIPE BSD-1615806156.A20 1615806156	£88.07	£105.68
37 - SUPPORT DISC BSD-1610102047.A18 1610102047	£2.80	£3.36
38 - COVERING HOOD BSD-1615190142.A2 1615190142	£27.31	£32.77
41 - STRIKER PIN BSD-1613124080.A3 1613124080	£27.23	£32.68
42 - BRUSH HOLDER BSD-1614336026.A15 1614336026	£33.74	£40.49
43 - FAN COVER BSD-1615500305.A6 1615500305	£11.30	£13.56
44 - COMPRESSION SPRING BSD-1614621005.A20 1614621005	£2.61	£3.13
45 - SEALING PLATE BSD-1610591039.A3 1610591039	£2.80	£3.36
47 - SPACER RING BSD-1619990149.A19 1619990149	£33.74	£40.49
48 - CLUTCH SLEEVE BSD-1619990151.A1 1619990151	£27.23	£32.68
51 - CROWN GEAR Z=45 BSD-1616333035.A14 1616333035	£51.22	£61.47
52 - RETAINING RING BSD-1614601056.A0 1614601056	£1.66	£1.99
53 - GUIDE BUSHING BSD-1610231000.A18 1610231000	£11.30	£13.56
54 - SPACER TUBE BSD-1610190033.A18 1610190033	£6.52	£7.83
57 - STRIKER BSD-1618710083.A2 1618710083	£31.64	£37.97
58 - CYLINDRICAL GEAR Z=17 BSD-1616317056.A0 1616317056	£11.30	£13.56
59 - BEARING PEDESTAL BSD-1615805067.A0 1615805067	£8.49	£10.19
69 - RETAINING BRACKET BSD-1610099006.A5 1610099006	£5.01	£6.01
72 - ECCENTRIC COG WHEEL BSD-1616317067.A19 1616317067	£68.42	£82.10
75 - HANDLE BSD-1615132102.A11 1615132102	£41.62	£49.95
76 - SHIFT-LEVER KNOB BSD-1612026100.A2 1612026100	£9.49	£11.39
77 - COMPRESSION SPRING BSD-1614610010.A19 1614610010	£1.75	£2.10
80 - SPEED GOVERNOR 100-120V BSD-1617233043.A3 1617233043	£63.50	£76.20
84 - AUXILIARY HANDLE BSD-160202507H.A25 160202507H	£11.30	£13.56
85 - SUPPORT CLAMP BSD-1618040071.A2 1618040071	£5.58	£6.70
87 - CLAMPING BAND dia77 MM. M8 BSD-1617000834.A18 1617000834	£16.41	£19.69
94 - SUPPORT DISC BSD-1610290052.A2 1610290052	£2.61	£3.13
95 - DRIVING PIN BSD-1613120018.A17 1613120018	£2.61	£3.13
98 - SHIM RING 1.0 MM BSD-1610101015.A20 1610101015	£1.75	£2.10
101 - SHIM 0.45 MM BSD-1610102049.A19 1610102049	£2.61	£3.13
102 - SHIM 0.3 MM BSD-1610102048.A1 1610102048	£2.61	£3.13
104 - STOP DISC BSD-1610190027.A15 1610190027	£5.58	£6.70
111 - BUSHING BSD-1610290046.A19 1610290046	£2.80	£3.36
112 - HEX NUT BSD-1613300007.A34 1613300007	£1.75	£2.10
113 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A5 1613412001	£1.75	£2.10
116 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A34 1610913029	£4.26	£5.11
117 - NEEDLE-ROLLER ASSEMBLY dia10 MM BSD-1610913011.A68 1610913011	£6.52	£7.83
119 - NEEDLE-ROLLER BEARING BSD-1610910081.A47 1610910081	£14.91	£17.89
121 - BUSHING BSD-1610328016.A4 1610328016	£3.72	£4.47
125 - TORX OVAL-HEAD SCREW 4.8x19 BSD-1613435011.A19 1613435011	£1.75	£2.10
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A647 2910211019	£1.75	£2.10
127 - BUSHING BSD-1610300060.A18 1610300060	£7.36	£8.83
129 - BUSHING BSD-1610300067.A2 1610300067	£12.04	£14.45
138 - SEALING FRAME BSD-1611015047.A2 1611015047	£6.52	£7.83
139 - PLUG BSD-1610508050.A25 1610508050	£2.61	£3.13
141 - ROTARY SHAFT LIP SEAL BSD-1610290028.A25 1610290028	£3.72	£4.47
142 - ROTARY SHAFT LIP SEAL BSD-1610290050.A1 1610290050	£5.30	£6.36
143 - RETAINING RING DIN 7993-28x2 BSD-1614601021.A49 1614601021	£7.36	£8.83
144 - SUPPORTING DISC BSD-1610103021.A15 1610103021	£2.80	£3.36
151 - O-RING 60.0x2.0 MM BSD-1610210148.A5 1610210148	£2.61	£3.13
152 - RETAINING RING BSD-1614601029.A19 1614601029	£1.75	£2.10
153 - RETAINING RING BSD-1614601028.A1 1614601028	£1.75	£2.10
154 - SPRING RETAINING RING BSD-1610119011.A5 1610119011	£2.80	£3.36
156 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A72 2916650003	£1.75	£2.10
157 - O-RING 31.0x1.5 MM BSD-1610210142.A2 1610210142	£2.61	£3.13
158 - O-RING 30.0x2.5 MM BSD-1610210139.A27 1610210139	£2.61	£3.13
159 - O-RING 27.0x2.5 MM BSD-1610210141.A18 1610210141	£1.75	£2.10
160 - O-RING 46.0x7.0 MM BSD-1610210140.A2 1610210140	£2.16	£2.59
161 - O-RING 18.0x8.0 MM BSD-1610210145.A2 1610210145	£7.36	£8.83
162 - O-RING 26.0x4.0 MM BSD-1610210109.A45 1610210109	£4.26	£5.11
163 - O-RING 22.0x3.0 MM BSD-1610210144.A18 1610210144	£5.30	£6.36
164 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A798 1903230013	£2.16	£2.59
167 - ROTARY SHAFT LIP SEAL BSD-1610290051.A18 1610290051	£4.26	£5.11
168 - O-RING 46.0x5.0 MM BSD-1610210149.A17 1610210149	£2.61	£3.13
170 - MICROENCAPSULATED SCREW BSD-2914551164.A1 2914551164	£1.75	£2.10
171 - MICROENCAPSULATED SCREW BSD-1613414021.A3 1613414021	£2.16	£2.59
172 - SCREW AND WASHER ASSEMBLY BSD-1613435028.A3 1613435028	£2.16	£2.59
173 - SCREW AND WASHER ASSEMBLY 6.3x32 BSD-1613433001.A52 1613433001	£1.75	£2.10
174 - TORX OVAL-HEAD SCREW 5.5x25 BSD-1613435010.A45 1613435010	£2.16	£2.59
175 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A189 2912401018	£1.75	£2.10
176 - THREAD-FORMING TAP. SCREW BSD-1613435029.A3 1613435029	£1.75	£2.10
661 - GREASE TUBE 30 ML BSD-1615430010.A191 1615430010	£6.52	£7.83
691 - CARRYING CASE BSD-161543851A.A18 161543851A	£45.67	£54.80
803 - ARMATURE 110-120V BSD-1614010218.A0 1614010218	£195.26	£234.31
808 - NAMEPLATE BSD-160111A3H3.A3062 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1617014135.A18 1617014135	£18.96	£22.75
810 - CARBON-BRUSH SET 10 x 1 617 014 135 BSD-1607000487.A2 1607000487	£120.11	£144.13
818 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A161 2910011088	£1.75	£2.10
821 - BUSHING BSD-1617000824.A17 1617000824	£27.23	£32.68
840 - IMPACT MECHANISM HOUSING BSD-1617000872.A5 1617000872	£179.37	£215.24
849 - CONTROL FORK BSD-1617000826.A17 1617000826	£48.38	£58.06
856 - HAMMER PISTON BSD-1617000873.A2 1617000873	£33.74	£40.49
860 - SPUR WHEEL CLUTCH Z=13/47 BSD-1617000828.A4 1617000828	£179.37	£215.24
866 - ROLLER SET BSD-1617000406.A17 1617000406	£5.30	£6.36
872 - ECCENTRIC COG WHEEL BSD-1617000874.A18 1617000874	£102.57	£123.08
873 - HOUSING COVER BSD-1617000875.A0 1617000875	£46.82	£56.18
884 - AUXILIARY HANDLE dia77 MM. M8 BSD-1612025051.A2 1612025051	£40.80	£48.96
894 - GREASE TUBE 225 ML BSD-1615430015.A6 1615430015	£37.27	£44.72
895 - GREASE TUBE 225 ML BSD-1615430002.A54 1615430002	£45.67	£54.80
896 - SERVICE BOX BSD-1617000463.A4 1617000463	£45.67	£54.80
897 - WEAR AND TEAR PART SET BSD-1617000464.A3 1617000464	£63.50	£76.20
898 - WEAR AND TEAR PART SET BSD-1617000465.A4 1617000465	£81.81	£98.17
