Bosch GBH 5-40 D / 3611B69070 / GB 240 Volt Spare Parts

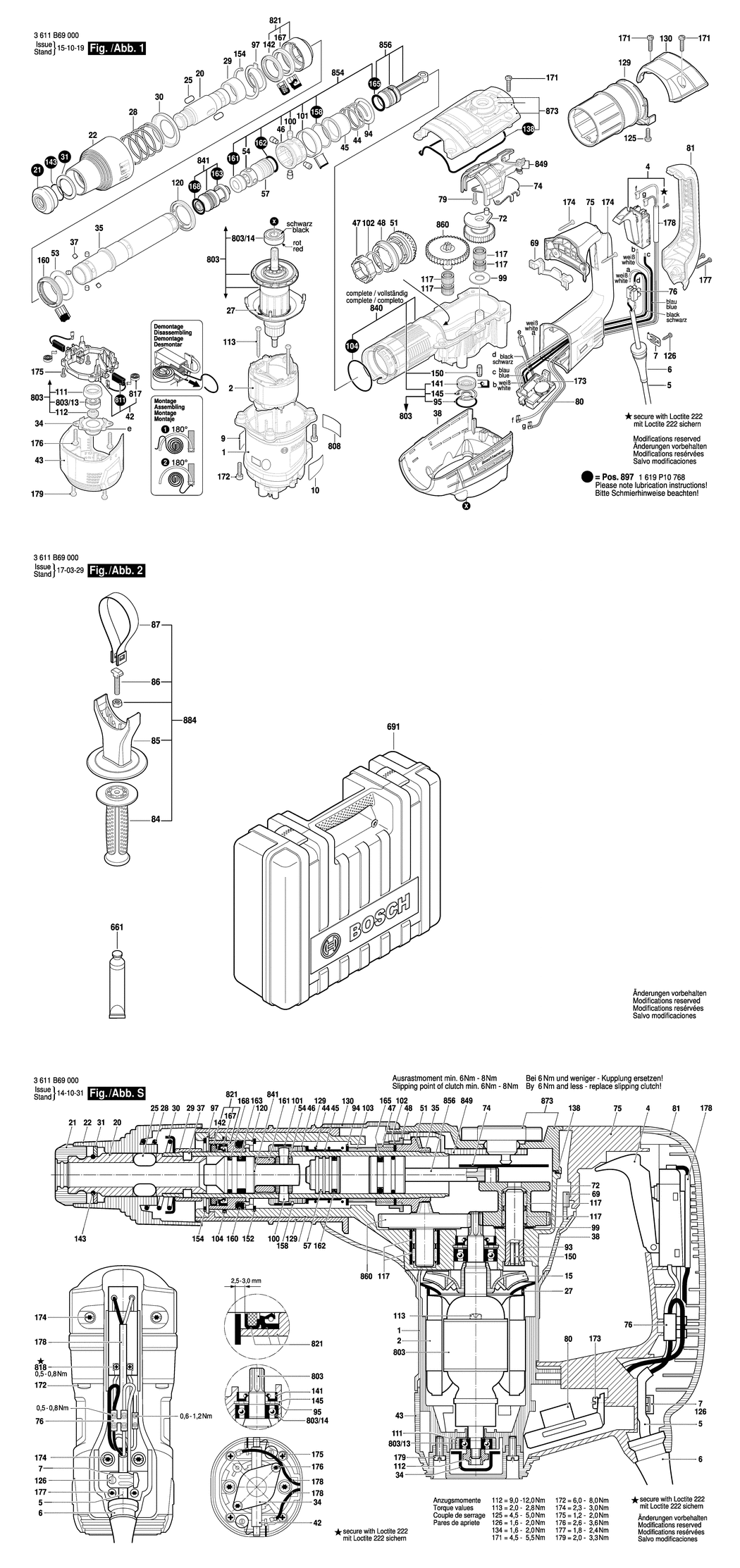

An exploded drawing and listing for the Bosch GBH 5-40 D / 3611B69070 / GB 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619P07704.A9 1619P07704	£21.52	£25.83
2 - FIELD 220-240V BSD-1619P08323.A1 1619P08323	£33.74	£40.49
4 - SWITCH BSD-1619P10396.A0 1619P10396	£23.86	£28.63
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-1604460144.A49 1604460144	£37.27	£44.72
6 - GROMMET BSD-1619P07722.A8 1619P07722	£2.16	£2.59
7 - FASTENING CLAMP BSD-1601302019.A59 1601302019	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1619P31089.A1 1619P31089	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE BSD-1619P31090.A1 1619P31090	£2.61	£3.13
20 - TOOLHOLDER BSD-1619P10164.A3 1619P10164	£48.38	£58.06
21 - PROTECTIVE CAP BSD-1619P07829.A8 1619P07829	£4.26	£5.11
22 - PROTECTION SLEEVE BSD-1619P10160.A2 1619P10160	£27.23	£32.68
25 - STOPPING DEVICE BSD-1619P07742.A9 1619P07742	£8.67	£10.41
27 - AIR-DEFLECTOR RING BSD-1619P07739.A8 1619P07739	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621000.A131 1614621000	£2.80	£3.36
29 - BUSHING BSD-1619P10163.A2 1619P10163	£10.10	£12.12
30 - SUPPORTING DISC BSD-1619P10162.A4 1619P10162	£5.30	£6.36
31 - SUPPORTING DISC BSD-1619P07743.A2 1619P07743	£7.36	£8.83
34 - FLANGE BSD-1619P10165.A2 1619P10165	£3.72	£4.47
35 - HAMMER PIPE BSD-1619P10167.A4 1619P10167	£103.14	£123.77
37 - CYLINDRICAL ROLLER BSD-1619P10377.A1 1619P10377	£2.61	£3.13
38 - COVERING HOOD BSD-1619P10168.A2 1619P10168	£16.41	£19.69
42 - BRUSH HOLDER BSD-1619P07754.A9 1619P07754	£21.68	£26.01
43 - FAN COVER BSD-1619P10171.A4 1619P10171	£13.12	£15.75
44 - COMPRESSION SPRING BSD-1619P10381.A5 1619P10381	£2.61	£3.13
45 - CONTROL BUSHING BSD-1610499070.A13 1610499070	£18.96	£22.75
46 - PERFORATED RING BSD-1619P10172.A2 1619P10172	£2.80	£3.36
47 - GEAR SLEEVE BSD-1610300064.A30 1610300064	£6.52	£7.83
48 - CLUTCH SLEEVE BSD-1616334012.A29 1616334012	£5.30	£6.36
51 - CROWN GEAR BSD-1616333041.A30 1616333041	£36.63	£43.96
53 - SUPPORT DISC BSD-1610290068.A2 1610290068	£3.72	£4.47
54 - GUIDE BUSHING BSD-1619P11329.A1 1619P11329	£13.12	£15.75
57 - STRIKER BSD-1618710091.A14 1618710091	£27.23	£32.68
69 - RETAINING BRACKET BSD-1610099004.A16 1610099004	£2.80	£3.36
72 - ECCENTRIC COG WHEEL BSD-1600A00ZZ3.A5 1600A00ZZ3	£70.24	£84.29
74 - GUIDE PLATE BSD-1611921001.A19 1611921001	£2.61	£3.13
75 - HANDLE BSD-1619P10176.A3 1619P10176	£37.27	£44.72
76 - TERMINAL BLOCK BSD-1619P11754.A8 1619P11754	£2.16	£2.59
79 - TORX OVAL-HEAD SCREW M5x12-TORX.T25 BSD-1613435015.A2 1613435015	£2.61	£3.13
80 - SPEED GOVERNOR BSD-1619P09589.A4 1619P09589	£59.53	£71.44
81 - HANDLE COVER BSD-1619P10177.A3 1619P10177	£27.23	£32.68
84 - AUXILIARY HANDLE BSD-160202507H.A361 160202507H	£11.30	£13.56
85 - SUPPORT CLAMP BSD-1619P07774.A4 1619P07774	£8.67	£10.41
86 - T-HEAD BOLT M8x40 MM BSD-1613490002.A130 1613490002	£4.26	£5.11
87 - CLAMPING BAND BSD-1619P07776.A3 1619P07776	£3.72	£4.47
94 - FRICTION WASHER BSD-1610102056.A4 1610102056	£2.80	£3.36
95 - O-RING 32.0x1.5 MM BSD-1610210173.A16 1610210173	£2.16	£2.59
97 - LOCKING WASHER BSD-1610031005.A32 1610031005	£3.72	£4.47
99 - SUPPORT DISC BSD-1610102059.A28 1610102059	£2.61	£3.13
100 - DRIVING PIN BSD-1613120022.A4 1613120022	£2.61	£3.13
101 - RETAINING SNAP RING BSD-1610499073.A2 1610499073	£6.52	£7.83
102 - SHIM 0.3 MM BSD-1610102057.A28 1610102057	£1.75	£2.10
102 - SHIM 0.2 MM BSD-1610102058.A5 1610102058	£1.75	£2.10
104 - O-RING 52.0x2.0 MM BSD-1610210160.A12 1610210160	£3.72	£4.47
111 - BUSHING BSD-1610290064.A59 1610290064	£1.75	£2.10
112 - RING MAGNET BSD-1619P10179.A2 1619P10179	£5.58	£6.70
113 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A256 1613435009	£1.75	£2.10
117 - NEEDLE-ROLLER ASSEMBLY dia13 MM BSD-1610913004.A12 1610913004	£3.80	£4.56
120 - STOP SLEEVE BSD-1610590019.A4 1610590019	£18.96	£22.75
125 - TORX OVAL-HEAD SCREW M5x16-TORX.T25 BSD-1613435014.A27 1613435014	£2.16	£2.59
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1491 2910211019	£1.75	£2.10
129 - HOLDING SLEEVE BSD-1619P10181.A4 1619P10181	£11.30	£13.56
130 - COVER BSD-1619P10182.A2 1619P10182	£6.52	£7.83
138 - SEALING FRAME BSD-1611015053.A13 1611015053	£12.04	£14.45
141 - ROTARY SHAFT LIP SEAL BSD-1610290066.A59 1610290066	£10.10	£12.12
142 - ROTARY SHAFT LIP SEAL BSD-1619P10106.A0 1619P10106	£8.67	£10.41
143 - RETAINING RING DIN 7993-28x2 BSD-1614601021.A91 1614601021	£7.36	£8.83
145 - SPRING RETAINING RING BSD-1610119012.A47 1610119012	£2.61	£3.13
150 - SLOTTED SPRING PIN BSD-2917790174.A0 2917790174	£1.75	£2.10
154 - SPRING RETAINING RING DIN 472 52x2MM BSD-2916660023.A6 2916660023	£5.30	£6.36
158 - RETAINING RING BSD-1614601070.A5 1614601070	£2.16	£2.59
160 - DAMPING RING BSD-1610290095.A4 1610290095	£11.30	£13.56
161 - DAMPING RING BSD-1610290094.A1 1610290094	£4.26	£5.11
162 - O-RING 22.5x3.5 MM BSD-1610210204.A12 1610210204	£5.58	£6.70
163 - SEAL RING BSD-1610290065.A2 1610290065	£8.13	£9.76
165 - O-RING 22.0x4.0 MM BSD-1610210079.A28 1610210079	£5.58	£6.70
167 - ROTARY SHAFT LIP SEAL BSD-1610283033.A30 1610283033	£6.52	£7.83
168 - O-RING 22.0x3.0 MM BSD-1610210144.A41 1610210144	£5.30	£6.36
171 - TORX OVAL-HEAD SCREW M5x16-TORX. T25 BSD-1619P07816.A4 1619P07816	£1.75	£2.10
172 - TORX OVAL-HEAD SCREW M6x30-TORX.T30 BSD-1613435013.A2 1613435013	£2.16	£2.59
173 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A380 2910611019	£2.80	£3.36
174 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A112 1613435012	£2.16	£2.59
175 - SCREW BSD-1619P00228.A3 1619P00228	£3.72	£4.47
176 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A113 1613435012	£2.16	£2.59
177 - SCREW ST3.9x32 BSD-1619P07821.A7 1619P07821	£1.75	£2.10
178 - CONNECTING CABLE BSD-1619P10286.A2 1619P10286	£6.52	£7.83
179 - SCREW BSD-1619P07815.A6 1619P07815	£1.75	£2.10
661 - GREASE TUBE 30 ML BSD-1615430010.A230 1615430010	£6.52	£7.83
691 - CARRYING CASE BSD-16054381D1.A6 16054381D1	£45.67	£54.80
803 - ARMATURE 220-240V BSD-1619P10769.A4 1619P10769	£81.81	£98.17
803/13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A90 1610900026	£12.04	£14.45
803/14 - GROOVE BALL BEARING 12x32x10 BSD-1610905041.A1 1610905041	£11.30	£13.56
808 - NAMEPLATE BSD-1619P10882.A0 1619P10882	-
811 - CARBON-BRUSH SET BSD-1617014138.A20 1617014138	£21.52	£25.83
817 - SPIRAL SPRING BSD-1614652004.A60 1614652004	£7.36	£8.83
821 - BUSHING BSD-1619P10749.A5 1619P10749	£21.68	£26.01
840 - IMPACT MECHANISM HOUSING BSD-1619P10770.A1 1619P10770	£93.88	£112.65
841 - STRIKER PIN BSD-1619P10752.A1 1619P10752	£40.80	£48.96
849 - CONTROL FORK BSD-1617000839.A18 1617000839	£23.86	£28.63
854 - GUIDE BUSHING BSD-1619P10847.A5 1619P10847	£54.42	£65.30
856 - HAMMER PISTON BSD-1619P10765.A5 1619P10765	£31.64	£37.97
860 - SPUR WHEEL CLUTCH BSD-1619P10766.A1 1619P10766	£72.18	£86.62
873 - HOUSING COVER BSD-1619P10767.A5 1619P10767	£37.27	£44.72
884 - AUXILIARY HANDLE BSD-1619P07778.A5 1619P07778	£16.41	£19.69
897 - WEAR AND TEAR PART SET BSD-1619P10768.A1 1619P10768	£48.38	£58.06
