Bosch GBH 5-38 D / 0611240042 / GB 230 Volt Spare Parts

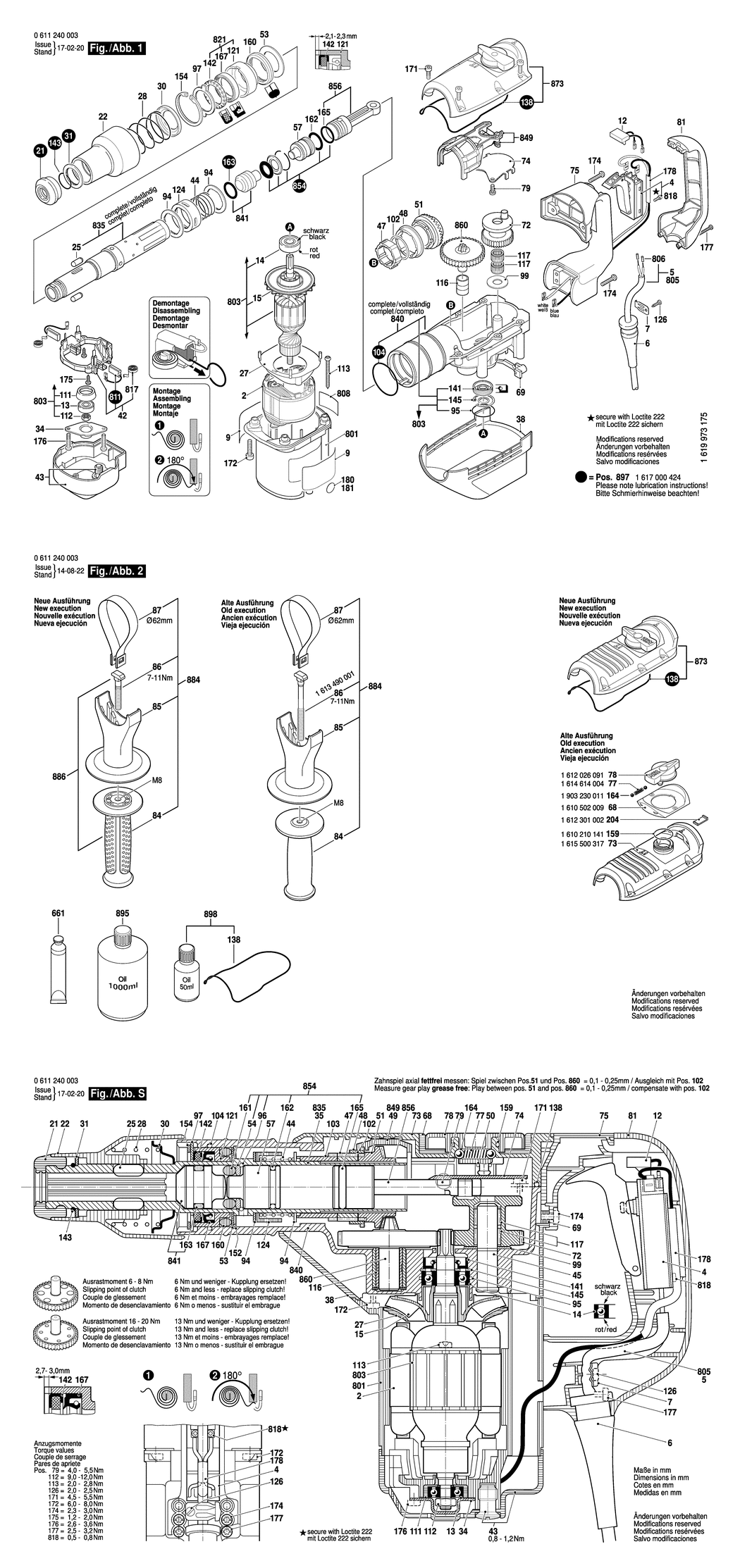

An exploded drawing and listing for the Bosch GBH 5-38 D / 0611240042 / GB 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1614220122.A2 1614220122	£33.74	£40.49
4 - SWITCH BSD-1617200109.A6 1617200109	£31.64	£37.97
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.5mm H07 RN-F BSD-1604460348.A29 1604460348	£27.23	£32.68
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A94 1610703053	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A726 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GBH 5-38 D BSD-1611110C18.A2 1611110C18	£4.26	£5.11
12 - SUPPRESSION FILTER BSD-1607328052.A5 1607328052	£4.26	£5.11
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A25 1610900026	£12.04	£14.45
14 - GROOVE BALL BEARING 12x32x10 BSD-1610905028.A29 1610905028	£16.41	£19.69
15 - FAN BSD-1616610085.A9 1616610085	£2.80	£3.36
21 - PROTECTIVE CAP BSD-1610508038.A5 1610508038	£8.13	£9.76
22 - PROTECTION SLEEVE BSD-1610591025.A3 1610591025	£21.52	£25.83
25 - STOPPING DEVICE BSD-1612300034.A0 1612300034	£3.72	£4.47
27 - AIR-DEFLECTOR RING BSD-1600591032.A9 1600591032	£2.80	£3.36
28 - COMPRESSION SPRING BSD-1614621000.A47 1614621000	£2.80	£3.36
30 - SUPPORTING DISC BSD-1610505002.A3 1610505002	£2.80	£3.36
31 - SUPPORTING DISC BSD-1610251006.A29 1610251006	£5.58	£6.70
34 - FLANGE BSD-1610516013.A8 1610516013	£1.75	£2.10
38 - COVERING HOOD BSD-1615190098.A3 1615190098	£14.72	£17.67
42 - BRUSH HOLDER BSD-1614336041.A13 1614336041	£27.23	£32.68
43 - FAN COVER BSD-1615500303.A3 1615500303	£10.10	£12.12
44 - COMPRESSION SPRING BSD-1614617003.A11 1614617003	£2.61	£3.13
47 - GEAR SLEEVE BSD-1610300064.A11 1610300064	£6.52	£7.83
48 - CLUTCH SLEEVE BSD-1616334012.A11 1616334012	£5.30	£6.36
51 - CROWN GEAR BSD-1616333041.A8 1616333041	£36.63	£43.96
53 - SUPPORT DISC BSD-1610290068.A23 1610290068	£3.72	£4.47
57 - STRIKER BSD-1618710074.A11 1618710074	£23.86	£28.63
69 - RETAINING BRACKET BSD-1610099004.A11 1610099004	£2.80	£3.36
72 - ECCENTRIC COG WHEEL BSD-1616317064.A13 1616317064	£63.50	£76.20
74 - GUIDE PLATE BSD-1611921001.A11 1611921001	£2.61	£3.13
75 - HANDLE BSD-1615132078.A13 1615132078	-
79 - TORX OVAL-HEAD SCREW M5x12-TORX.T25 BSD-1613435015.A44 1613435015	£2.61	£3.13
81 - HANDLE COVER BSD-1615132079.A1 1615132079	£11.30	£13.56
84 - AUXILIARY HANDLE BSD-160202507H.A109 160202507H	£11.30	£13.56
85 - SUPPORT CLAMP BSD-1618040074.A14 1618040074	£5.30	£6.36
86 - T-HEAD BOLT M8x40 MM BSD-1613490002.A277 1613490002	£4.26	£5.11
87 - CLAMPING BAND dia62 MM BSD-1611316019.A16 1611316019	£4.26	£5.11
94 - FRICTION WASHER BSD-1610102056.A26 1610102056	£2.80	£3.36
95 - O-RING 32.0x1.5 MM BSD-1610210173.A51 1610210173	£2.16	£2.59
97 - LOCKING WASHER BSD-1610031005.A12 1610031005	£3.72	£4.47
99 - SUPPORT DISC BSD-1610102059.A8 1610102059	£2.61	£3.13
102 - SHIM 0.3 MM BSD-1610102057.A7 1610102057	£1.75	£2.10
102 - SHIM 0.2 MM BSD-1610102058.A26 1610102058	£1.75	£2.10
104 - O-RING 52.0x2.0 MM BSD-1610210160.A27 1610210160	£3.72	£4.47
111 - BUSHING BSD-1610290064.A25 1610290064	£1.75	£2.10
112 - HEX NUT DIN 936-M8x1-8 BSD-1613300008.A29 1613300008	£2.61	£3.13
113 - TAPPING SCREW ST-4.8x57.5-TORX.T20 BSD-1613435009.A28 1613435009	£1.75	£2.10
116 - INNER RING BSD-1610311017.A4 1610311017	£6.52	£7.83
117 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A52 1610913029	£4.26	£5.11
121 - BUSHING BSD-1610328019.A12 1610328019	£16.41	£19.69
124 - COLLAR SLEEVE BSD-1610115001.A6 1610115001	£5.87	£7.04
126 - SCREW 4x16 BSD-2603490022.A3005 2603490022	£1.75	£2.10
138 - SEALING FRAME BSD-1611015053.A31 1611015053	£12.04	£14.45
141 - ROTARY SHAFT LIP SEAL BSD-1610290066.A26 1610290066	£10.10	£12.12
142 - ROTARY SHAFT LIP SEAL BSD-1610290069.A10 1610290069	£5.58	£6.70
143 - RETAINING RING DIN 7993-28x2 BSD-1614601021.A8 1614601021	£7.36	£8.83
145 - SPRING RETAINING RING BSD-1610119012.A11 1610119012	£2.61	£3.13
154 - SPRING RETAINING RING DIN 472 52x2MM BSD-2916660023.A27 2916660023	£5.30	£6.36
160 - DAMPING RING BSD-1610210161.A5 1610210161	£2.80	£3.36
162 - O-RING 22.0x3.5 MM BSD-1610210163.A11 1610210163	£5.58	£6.70
163 - SEAL RING BSD-1610290065.A35 1610290065	£8.13	£9.76
165 - O-RING 22.0x4.0 MM BSD-1610210079.A12 1610210079	£5.58	£6.70
167 - ROTARY SHAFT LIP SEAL BSD-1610283033.A8 1610283033	£6.52	£7.83
171 - TORX OVAL-HEAD SCREW M5x20-TORX.T25 BSD-1613435016.A3 1613435016	£2.16	£2.59
172 - TORX OVAL-HEAD SCREW M6x30-TORX.T30 BSD-1613435013.A32 1613435013	£2.16	£2.59
174 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A53 1613435012	£2.16	£2.59
175 - TAPPING SCREW DIN7981-ST3.9x13-C-Z BSD-2912401018.A28 2912401018	£1.75	£2.10
176 - TORX OVAL-HEAD SCREW M4.8x25-TORX.T25 BSD-1613435012.A50 1613435012	£2.16	£2.59
177 - TAPPING SCREW ST3.9x32 BSD-1603435051.A54 1603435051	£1.95	£2.34
178 - CONNECTING CABLE BSD-1604412069.A4 1604412069	£7.36	£8.83
661 - GREASE TUBE 30 ML BSD-1615430010.A74 1615430010	£6.52	£7.83
801 - MOTOR HOUSING BSD-1615102154.A0 1615102154	£21.42	£25.71
803 - ARMATURE 230V BSD-1614011083.A0 1614011083	£120.11	£144.13
808 - NAMEPLATE BSD-160111A3H5.A36 160111A3H5	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617014138.A8 1617014138	£21.52	£25.83
811 - CARBON-BRUSH SET 10 x 1 617 014 138 BSD-1607000493.A11 1607000493	£120.11	£144.13
817 - SPIRAL SPRING BSD-1614652004.A54 1614652004	£7.36	£8.83
818 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A24 2910011088	£1.75	£2.10
821 - BUSHING BSD-1617000842.A2 1617000842	£21.68	£26.01
835 - HAMMER PIPE BSD-1617000841.A5 1617000841	£102.57	£123.08
840 - IMPACT MECHANISM HOUSING BSD-1617000840.A8 1617000840	£68.42	£82.10
841 - STRIKER PIN BSD-1617000460.A10 1617000460	£23.86	£28.63
849 - CONTROL FORK BSD-1617000839.A8 1617000839	£23.86	£28.63
854 - STOP DISC BSD-1617000461.A6 1617000461	£18.96	£22.75
856 - HAMMER PISTON BSD-1617000843.A14 1617000843	£24.45	£29.34
860 - SPUR WHEEL CLUTCH BSD-1617000A37.A12 1617000A37	£103.14	£123.77
873 - HOUSING COVER BSD-1617000860.A1 1617000860	£48.38	£58.06
884 - AUXILIARY HANDLE dia62 MM BSD-1612025055.A8 1612025055	£40.80	£48.96
886 - AUXILIARY HANDLE M8 BSD-1617000459.A6 1617000459	£13.12	£15.75
895 - OIL RESERVOIR 1000 ML BSD-1615430019.A88 1615430019	£59.53	£71.44
897 - WEAR AND TEAR PART SET BSD-1617000A16.A5 1617000A16	£37.27	£44.72
898 - OIL RESERVOIR 50 ML BSD-1615437511.A11 1615437511	£14.91	£17.89
