Bosch 355 / 0611230770 / EU 230 Volt Spare Parts

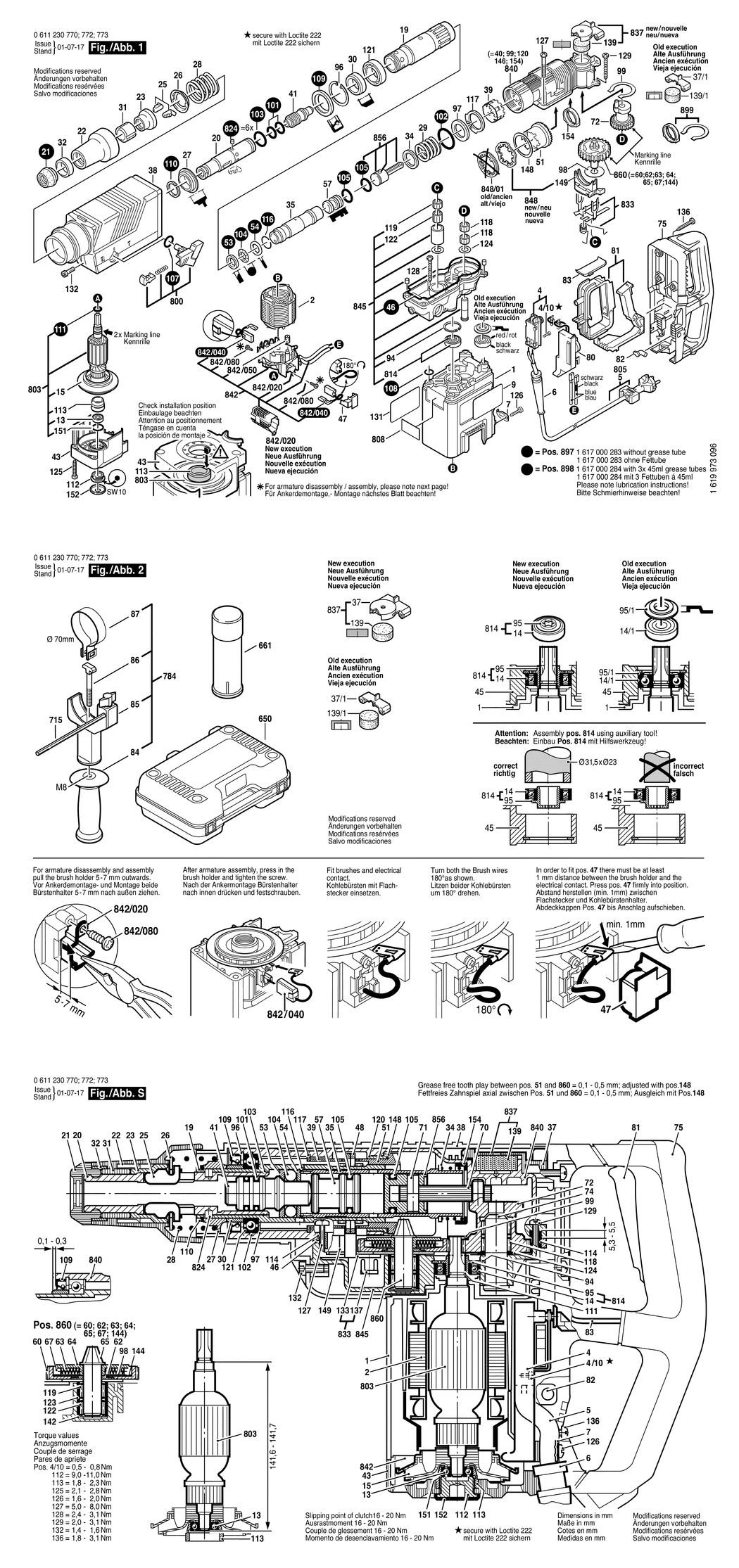

An exploded drawing and listing for the Bosch 355 / 0611230770 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102146.A5 1615102146	-
2 - FIELD 220-230V BSD-1604220343.A37 1604220343	£33.74	£40.49
4 - SWITCH BSD-1617200048.A5 1617200048	£18.96	£22.75
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A63 2910011088	£1.75	£2.10
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A80 1610703053	£2.61	£3.13
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A698 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302018.A686 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110711.A4 1611110711	-
13 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A100 1610900025	£16.41	£19.69
15 - FAN BSD-1616610071.A3 1616610071	£9.49	£11.39
19 - GUIDE TUBE BSD-1615806121.A13 1615806121	-
20 - TOOLHOLDER BSD-1618597071.A9 1618597071	-
21 - PROTECTIVE CAP BSD-1610508017.A47 1610508017	£3.72	£4.47
22 - PROTECTION SLEEVE BSD-1610591009.A48 1610591009	-
23 - STOP SLEEVE BSD-1610520001.A54 1610520001	£12.04	£14.45
25 - STOPPING DEVICE BSD-1612300027.A86 1612300027	£11.30	£13.56
26 - INDEXING DISK BSD-1610290025.A5 1610290025	£6.52	£7.83
27 - RETAINING SNAP RING BSD-1610222008.A12 1610222008	-
28 - COMPRESSION SPRING BSD-1614621000.A32 1614621000	£2.80	£3.36
29 - COMPRESSION SPRING BSD-1614616008.A28 1614616008	£2.61	£3.13
30 - BALL RACE BSD-1610250007.A12 1610250007	-
31 - SPACER TUBE BSD-1610390015.A72 1610390015	-
32 - CYLINDER SLEEVE BSD-1610202016.A48 1610202016	-
34 - SUPPORTING DISC 1.5 MM BSD-1610102622.A32 1610102622	£1.95	£2.34
35 - HAMMER PIPE BSD-1615806089.A5 1615806089	-
37 - RETAINING BRACKET BSD-1617000291.A10 1617000291	-
38 - COVERING HOOD BSD-1615190037.A2 1615190037	-
39 - CLUTCH RING BSD-1610290024.A35 1610290024	-
41 - STRIKER PIN BSD-1613124036.A5 1613124036	-
43 - BEARING COVER BSD-1615808080.A2 1615808080	£18.96	£22.75
46 - SEALING FRAME BSD-1611015036.A25 1611015036	-
47 - COVER BSD-1610591012.A5 1610591012	£1.75	£2.10
51 - CROWN GEAR Z=37 BSD-1616333023.A35 1616333023	-
53 - STOP DISC BSD-1610190023.A6 1610190023	£5.30	£6.36
54 - STOP DISC BSD-1610101014.A5 1610101014	-
57 - STRIKER BSD-1618710053.A34 1618710053	-
72 - ECCENTRIC COG WHEEL Z=35 BSD-1616337004.A9 1616337004	-
75 - HANDLE BSD-1615132048.A10 1615132048	-
80 - SPEED GOVERNOR 220-240V BSD-1617233026.A1 1617233026	£46.82	£56.18
81 - SWITCH-PAWL BSD-1612026044.A2 1612026044	-
82 - LIGHT CONDUCTOR BSD-1615510000.A53 1615510000	£2.16	£2.59
83 - WEB PLATE BSD-1610009006.A6 1610009006	-
84 - AUXILIARY HANDLE M8 BSD-1612025041.A28 1612025041	£21.42	£25.71
85 - SUPPORT CLAMP dia70 MM BSD-1618040055.A44 1618040055	-
86 - T-HEAD BOLT M8x80 MM BSD-1613490001.A44 1613490001	£8.67	£10.41
87 - CLAMPING BAND dia70 MM BSD-1611316008.A46 1611316008	-
94 - SPRING RETAINING RING BSD-1610119007.A6 1610119007	-
95 - SEALING DISK 14.4-6201 ZJV NILOS BSD-2916120023.A4 2916120023	£3.34	£4.01
96 - SPRING RETAINING RING 55x2MM. DIN 472 BSD-2916660024.A36 2916660024	£5.30	£6.36
97 - SHIM RING DIN 988-45x55 BSD-2916190284.A8 2916190284	-
98 - FRICTION WASHER 0.5 MM BSD-1610101622.A29 1610101622	-
99 - HOLDING PLATE BSD-1610190030.A7 1610190030	£3.72	£4.47
101 - O-RING 20.0x3.0 MM BSD-1610210094.A7 1610210094	£2.80	£3.36
102 - O-RING 55.0x2.0 MM BSD-1610210095.A30 1610210095	£2.61	£3.13
103 - O-RING 27.0x1.5 MM BSD-1610210100.A41 1610210100	£3.72	£4.47
104 - O-RING 17.0x8.0 MM BSD-1610210093.A78 1610210093	£1.75	£2.10
105 - O-RING 21.0x3.5 MM BSD-1610210096.A7 1610210096	£2.80	£3.36
107 - O-RING 14.0x2.0 MM BSD-1610210116.A15 1610210116	£2.80	£3.36
108 - O-RING 8.0x1.5 MM BSD-1900210103.A47 1900210103	£2.80	£3.36
109 - ROTARY SHAFT LIP SEAL DIN 3760-BS. dia40x55x7 MM BSD-1610283028.A1 1610283028	£5.58	£6.70
110 - SPRING RETAINING RING BSD-1610116003.A6 1610116003	-
111 - O-RING 10.0x1.0 MM BSD-1610210081.A29 1610210081	£3.72	£4.47
112 - THREADED RING M24x1.5MM. SW10 BSD-1613461001.A6 1613461001	-
113 - BUSHING BSD-1610501036.A1 1610501036	£8.67	£10.41
116 - SPRING RETAINING RING BSD-1610116004.A39 1610116004	£1.75	£2.10
117 - SPRING RETAINING RING BSD-1610119008.A31 1610119008	£2.33	£2.80
118 - NEEDLE-ROLLER ASSEMBLY BSD-1610913009.A36 1610913009	-
119 - NEEDLE-ROLLER ASSEMBLY dia10 MM BSD-1610913011.A50 1610913011	£6.52	£7.83
121 - GROOVE BALL BEARING BSD-1610905014.A1 1610905014	-
122 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A69 1610913029	£4.26	£5.11
124 - THRUST BEARING DISC 1.0 MM BSD-1610101008.A25 1610101008	-
125 - TAPPING SCREW DIN7981-ST4.8x25-C-Z BSD-2912401036.A33 2912401036	£1.32	£1.58
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A541 2910211019	£1.75	£2.10
127 - OVAL-HEAD SCREW DIN 7985-M5x30-8.8 BSD-2912311166.A2 2912311166	£1.75	£2.10
128 - TAPPING SCREW DIN 7971-BZ4.8x32 BSD-2910211037.A66 2910211037	£1.75	£2.10
129 - TAPPING SCREW DIN 7981-ST4.8x32C-Z BSD-2912401037.A4 2912401037	£1.75	£2.10
131 - MANUFACTURER'S NAMEPLATE BSD-1611110711.A5 1611110711	-
132 - MICROENCAPSULATED SCREW DIN 912-M 5x12-8.8 BSD-2914551117.A49 2914551117	£1.75	£2.10
136 - TAPPING SCREW DIN 7971-ST4.8x25-C BSD-2910211236.A106 2910211236	£1.75	£2.10
139 - FELT DISC dia39x15 MM BSD-1610005002.A12 1610005002	-
139 - RETAINING BRACKET BSD-1617000291.A8 1617000291	-
148 - SHIM 0.3 MM BSD-1610102633.A25 1610102633	-
148 - SHIM 0.2 MM BSD-1610102627.A29 1610102627	-
149 - ADAPTING PIECE BSD-1612388021.A29 1612388021	-
151 - O-RING 21.0x2.0 MM BSD-2600210028.A24 2600210028	£1.32	£1.58
152 - COVER BSD-1610508030.A19 1610508030	-
154 - RETAINING SNAP RING BSD-1610222010.A22 1610222010	£9.49	£11.39
650 - CARRYING CASE BSD-1615438268.A4 1615438268	-
661 - GREASE TUBE 30 ML BSD-1615430009.A43 1615430009	£13.12	£15.75
715 - DEPTH-GAUGE SW 6x330 MM BSD-1613001003.A34 1613001003	£4.25	£5.10
784 - AUXILIARY HANDLE dia70 MM BSD-1612025035.A23 1612025035	-
800 - CLAMP HANDLE BSD-1617000808.A10 1617000808	-
800 - CLAMP HANDLE BSD-1617000990.A3 1617000990	-
803 - ARMATURE 220-240V BSD-1614010186.A8 1614010186	£103.14	£123.77
805 - POWER SUPPLY CORD BSD-1617000723.A47 1617000723	£27.23	£32.68
808 - NAMEPLATE BSD-160111A3H3.A3230 160111A3H3	£2.61	£3.13
814 - GROOVE BALL BEARING BSD-1617000822.A14 1617000822	-
824 - CYLINDRICAL ROLLER BSD-1617000271.A4 1617000271	£4.26	£5.11
833 - CONTROL FORK BSD-1617000949.A7 1617000949	-
837 - RETAINING BRACKET BSD-1617000291.A7 1617000291	-
840 - IMPACT MECHANISM HOUSING BSD-1617000811.A1 1617000811	-
842 - BRUSH HOLDER BSD-1614336009.A30 1614336009	-
842/020 - BRUSH GUIDE BSD-1614336043.A7 1614336043	-
842/040 - CARBON-BRUSH SET BSD-1617014122.A3 1617014122	£18.96	£22.75
842/050 - RUBBER BUFFER BSD-1613212004.A10 1613212004	£3.72	£4.47
842/080 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A266 2912401005	£1.75	£2.10
845 - GEAR HOUSING BSD-1617000823.A5 1617000823	-
845 - GEAR HOUSING BSD-1617000962.A5 1617000962	-
848 - CLUTCH SLEEVE BSD-1617000415.A2 1617000415	-
856 - HAMMER PISTON BSD-1617000999.A5 1617000999	-
860 - SPUR WHEEL CLUTCH BSD-1617000817.A11 1617000817	-
897 - WEAR AND TEAR PART SET BSD-1617000283.A0 1617000283	-
898 - WEAR AND TEAR PART SET BSD-1617000284.A5 1617000284	-
899 - HOLDING PLATE BSD-1617000293.A19 1617000293	-
