Bosch ---- / 0612203040 / --- 115 Volt Spare Parts

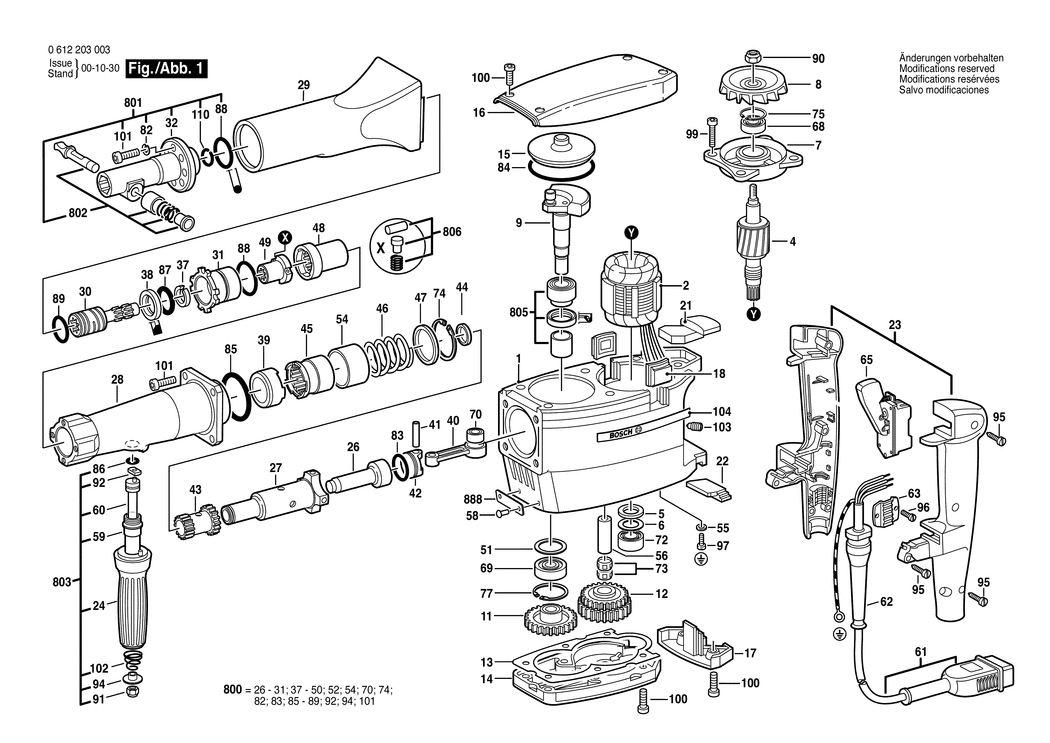

An exploded drawing and listing for the Bosch ---- / 0612203040 / --- 115 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615106016.A17 1615106016	£306.81	£368.17
2 - STATOR 115V/200HZ BSD-1614229156.A8 1614229156	£410.78	£492.94
4 - ROTOR WITHOUT WINDING BSD-1614080024.A21 1614080024	-
5 - SEALING DISK BSD-1610108012.A41 1610108012	£1.75	£2.10
6 - SHIM 1.0 MM BSD-1610102013.A22 1610102013	£1.75	£2.10
7 - BEARING FLANGE BSD-1615805048.A12 1615805048	-
8 - FAN BSD-1616610045.A17 1616610045	£37.27	£44.72
9 - ECCENTRIC SHAFT BSD-1616110016.A7 1616110016	-
11 - CYLINDRICAL GEAR Z=32 BSD-1616317019.A1 1616317019	-
12 - CYLINDRICAL GEAR Z=47/34 BSD-1616328030.A1 1616328030	-
13 - SEALING PLATE BSD-1611015012.A35 1611015012	£2.33	£2.80
14 - GEAR COVER BSD-1615808039.A30 1615808039	-
15 - SEALING CAP BSD-1615500168.A58 1615500168	£2.52	£3.02
16 - FAN COVER BSD-1615500276.A21 1615500276	£52.15	£62.58
17 - SWITCH COVER BSD-1615500261.A37 1615500261	£7.78	£9.33
18 - SEALING CAP BSD-1615500282.A23 1615500282	£2.33	£2.80
21 - RUBBER PLATE BSD-1612392001.A38 1612392001	£3.80	£4.56
22 - RUBBER PLATE BSD-1612392000.A28 1612392000	£3.80	£4.56
23 - HANDLE BSD-1615133025.A20 1615133025	£23.86	£28.63
24 - AUXILIARY HANDLE BSD-1612025011.A1 1612025011	-
26 - STRIKER BSD-1618710032.A0 1618710032	-
27 - HAMMER PISTON BSD-1618700026.A6 1618700026	-
28 - GUIDE TUBE BSD-1615806022.A0 1615806022	-
29 - HAMMER PIPE BSD-1615190002.A11 1615190002	-
30 - BIT HOLDER BSD-1618598058.A12 1618598058	-
31 - INTERMEDIATE FLANGE BSD-1615700012.A4 1615700012	-
37 - RETAINING SNAP RING BSD-1610224001.A18 1610224001	£1.75	£2.10
38 - SUPPORTING DISC BSD-1610114012.A0 1610114012	£11.30	£13.56
39 - CARRIER BSD-1616490002.A7 1616490002	-
40 - CONNECTING ROD BSD-1612001022.A4 1612001022	-
41 - PISTON PIN BSD-1610700016.A9 1610700016	-
42 - SEALING CAP BSD-1615500177.A4 1615500177	-
43 - CYLINDRICAL GEAR BSD-1616328029.A0 1616328029	-
44 - RETAINING SNAP RING BSD-1610209002.A17 1610209002	-
45 - CROWN GEAR Z=24 BSD-1616334005.A17 1616334005	-
46 - COMPRESSION SPRING BSD-1614624009.A4 1614624009	-
47 - PLAIN WASHER BSD-1610100002.A14 1610100002	-
48 - CROWN GEAR Z=16 BSD-1616334003.A0 1616334003	-
49 - CARRIER BSD-1616325000.A10 1616325000	-
51 - SHIM 1.0 MM BSD-1610102014.A31 1610102014	-
54 - BUSHING BSD-1610501028.A4 1610501028	-
55 - SPRING WASHER DIN 137-A4 BSD-1600150006.A860 1600150006	-
56 - BEARING BOLT BSD-1610300057.A28 1610300057	£4.75	£5.70
58 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A84 2917721034	£1.75	£2.10
59 - THREADED SLEEVE BSD-1613359000.A10 1613359000	-
60 - ECCENTRIC BOLT BSD-1613523005.A4 1613523005	-
61 - POWER SUPPLY CORD 4x0.75 MMÂ² BSD-1614422053.A0 1614422053	-
62 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A106 1600703009	£5.58	£6.70
63 - FASTENING CLAMP BSD-1611302007.A8 1611302007	-
65 - ON-OFF SWITCH BSD-1617200024.A9 1617200024	£33.45	£40.14
68 - GROOVE BALL BEARING 10x32x12 BSD-1610905001.A75 1610905001	£14.91	£17.89
69 - GROOVE BALL BEARING BSD-1610900013.A60 1610900013	£11.30	£13.56
70 - NEEDLE-ROLLER BEARING BSD-1610910049.A38 1610910049	£37.26	£44.71
72 - NEEDLE-ROLLER BEARING BSD-1610910007.A55 1610910007	£21.68	£26.01
73 - NEEDLE-ROLLER ASSEMBLY BSD-1610913001.A40 1610913001	£11.30	£13.56
74 - SPRING RETAINING RING 55x2MM. DIN 472 BSD-2916660024.A0 2916660024	£5.30	£6.36
75 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A761 2916660013	£2.16	£2.59
77 - SPRING RETAINING RING 40x1.75 MM. DIN 472 BSD-2916660018.A22 2916660018	£2.61	£3.13
82 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A118 2916680009	-
83 - O-RING 28x2.5 MM BSD-1900210128.A4 1900210128	£2.61	£3.13
84 - O-RING 70x3 MM BSD-1900210160.A28 1900210160	£5.58	£6.70
85 - O-RING 55x3 MM BSD-1900210152.A32 1900210152	£3.72	£4.47
86 - O-RING 12x2.5 MM BSD-1900210110.A33 1900210110	£2.61	£3.13
87 - O-RING 28.0x6.0 MM BSD-1610210015.A36 1610210015	-
88 - O-RING 35.0x3.0 MM BSD-3600210131.A55 3600210131	£3.72	£4.47
89 - O-RING 25x3 MM BSD-1900210126.A5 1900210126	-
90 - HEX NUT DIN 985-M8-8 BSD-2915061005.A61 2915061005	£2.61	£3.13
92 - SLIDER BSD-1610190000.A6 1610190000	-
94 - DISC SPRING BSD-1610550023.A6 1610550023	-
95 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A629 2910211019	£1.75	£2.10
96 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A102 2910021118	£1.75	£2.10
97 - PAN HEAD SCREW DIN 85 AM 4x6-MS BSD-2910110116.A314 2910110116	£1.75	£2.10
99 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x15-8.8 BSD-2910141196.A15 2910141196	-
100 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8 BSD-2910141199.A46 2910141199	£3.72	£4.47
101 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A36 2910141244	£1.75	£2.10
103 - SET SCREW DIN 417-M8x15-5.8 BSD-2912051237.A43 2912051237	-
104 - MANUFACTURER'S NAMEPLATE BSD-1601110004.A65 1601110004	-
110 - RETAINING RING 22 DIN 9045 BSD-2916603012.A13 2916603012	-
650 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A204 1907950007	£5.30	£6.36
651 - CARRYING CASE BSD-1615438018.A4 1615438018	-
652 - SEALING CAP dia15xdia27.5x36 MM BSD-1610508001.A17 1610508001	-
800 - EXCHANGE GROUP BSD-1617099000.A6 1617099000	-
801 - TOOL HOLDER SET BSD-1617000013.A17 1617000013	-
802 - LOCKING BOLT SET BSD-1617000014.A0 1617000014	£24.45	£29.34
803 - SET OF HANDLES BSD-1617000015.A17 1617000015	-
805 - SEAL KIT BSD-1617031004.A15 1617031004	-
806 - PARTS SET BSD-1617000025.A6 1617000025	-
888 - NAMEPLATE BSD-160111A3H3.A3013 160111A3H3	£2.61	£3.13
