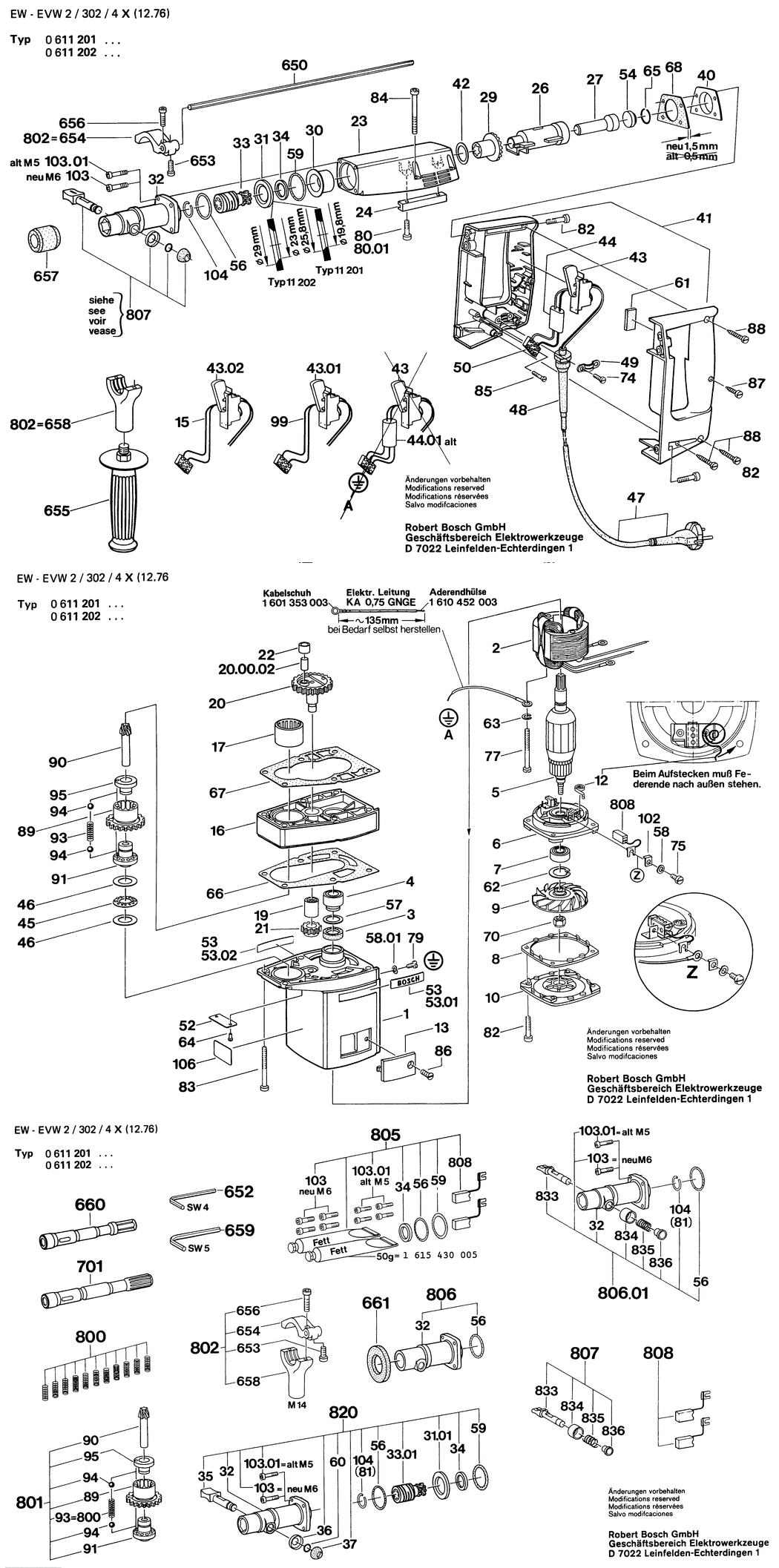

1 - MOTOR HOUSING
BSD-1615102052.A2
1615102052
|
-
|
|
|
|
3 - SEAL RING
BSD-1610205000.A9
1610205000
|
-
|
|
|
|
4 - NEEDLE-ROLLER BEARING
BSD-1610910052.A31
1610910052
|
£21.68
|
£26.01
|
|
|
6 - FLANGED BEARING
BSD-1615805045.A36
1615805045
|
-
|
|
|
|
7 - GROOVE BALL BEARING
BSD-1610905000.A23
1610905000
|
-
|
|
|
|
8 - INTERMEDIATE PLATE
BSD-1611038015.A23
1611038015
|
-
|
|
|
|
9 - FAN
BSD-1616610044.A31
1616610044
|
-
|
|
|
|
10 - HOUSING COVER
BSD-1615500123.A36
1615500123
|
-
|
|
|
|
12 - SPIRAL SPRING
BSD-1614652000.A31
1614652000
|
-
|
|
|
|
13 - SEALING CAP
BSD-3615500502.A37
3615500502
|
-
|
|
|
|
16 - BEARING HOUSING
BSD-1615820045.A14
1615820045
|
-
|
|
|
|
17 - NEEDLE BEARING
BSD-1610910044.A30
1610910044
|
-
|
|
|
|
19 - NEEDLE BEARING
BSD-1610910048.A2
1610910048
|
-
|
|
|
|
20 - ECCENTRIC SHAFT Z=46
BSD-1616110013.A30
1616110013
|
-
|
|
|
|
20/20 - BEARING BOLT
BSD-1613100007.A15
1613100007
|
£5.87
|
£7.04
|
|
|
21 - CYLINDRICAL GEAR Z=18
BSD-1616317013.A29
1616317013
|
-
|
|
|
|
22 - BUSHING
BSD-1610300043.A31
1610300043
|
£12.04
|
£14.45
|
|
|
23 - GEAR HOUSING
BSD-1615806017.A25
1615806017
|
-
|
|
|
|
24 - GUIDE RAIL
BSD-1612317003.A18
1612317003
|
-
|
|
|
|
26 - HAMMER PISTON
BSD-1618700033.A26
1618700033
|
-
|
|
|
|
27 - STRIKER
BSD-1618710030.A28
1618710030
|
-
|
|
|
|
29 - BEVEL GEAR Z=29
BSD-1616333001.A12
1616333001
|
-
|
|
|
|
30 - SPACER BUSHING
BSD-1610322004.A16
1610322004
|
-
|
|
|
|
31 - SUPPORTING DISC
BSD-1610120018.A1
1610120018
|
-
|
|
|
|
33 - BIT HOLDER
BSD-1618598037.A2
1618598037
|
-
|
|
|
|
34 - RETAINING SNAP RING
BSD-1610224001.A41
1610224001
|
£1.75
|
£2.10
|
|
|
40 - SEALING CAP
BSD-1615500194.A11
1615500194
|
-
|
|
|
|
41 - HANDLE
BSD-1615133019.A24
1615133019
|
-
|
|
|
|
42 - SHIM dia32xdia25x0.3 MM
BSD-2100102016.A19
2100102016
|
-
|
|
|
|
45 - THRUST NEEDLE RIM
BSD-1610913000.A63
1610913000
|
£2.80
|
£3.36
|
|
|
46 - THRUST BEARING DISC 1.0 MM
BSD-1610101008.A98
1610101008
|
-
|
|
|
|
47 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A563
1607000228
|
£23.86
|
£28.63
|
|
|
49 - FASTENING CLAMP
BSD-1601302013.A194
1601302013
|
£1.75
|
£2.10
|
|
|
50 - SOCKET-TERMINAL STRIP 3x6 MM
BSD-1901091013.A6
1901091013
|
-
|
|
|
|
52 - NAMEPLATE
BSD-160111A3H3.A355
160111A3H3
|
£2.61
|
£3.13
|
|
|
54 - SEALING CAP
BSD-1610501031.A24
1610501031
|
-
|
|
|
|
56 - O-RING 35.0x1.5 MM
BSD-1600210010.A147
1600210010
|
£2.80
|
£3.36
|
|
|
57 - PLAIN WASHER 1.0 MM
BSD-1600102623.A28
1600102623
|
£1.32
|
£1.58
|
|
|
59 - O-RING 28.0x6.0 MM
BSD-1610210015.A30
1610210015
|
-
|
|
|
|
61 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A432
1602381001
|
-
|
|
|
|
62 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A96
2916660011
|
£1.75
|
£2.10
|
|
|
64 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST
BSD-2917721034.A10
2917721034
|
£1.75
|
£2.10
|
|
|
65 - RETAINING RING 26 DIN 9045
BSD-2916601014.A17
2916601014
|
-
|
|
|
|
66 - SEALING PLATE
BSD-1611015006.A30
1611015006
|
-
|
|
|
|
67 - SEALING PLATE
BSD-1611015007.A10
1611015007
|
£3.34
|
£4.01
|
|
|
68 - SEALING PLATE 1.5 MM
BSD-1611015015.A37
1611015015
|
£1.95
|
£2.34
|
|
|
70 - HEX NUT DIN 985-M8-8
BSD-2915061005.A123
2915061005
|
£2.61
|
£3.13
|
|
|
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8
BSD-2910021120.A77
2910021120
|
£1.75
|
£2.10
|
|
|
77 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8
BSD-2910021176.A101
2910021176
|
-
|
|
|
|
80 - HEX SOCKET HEAD CAP SCREW
BSD-3603414028.A16
3603414028
|
£1.75
|
£2.10
|
|
|
80 - HEX SOCKET HEAD CAP SCREW M5x20 MM
BSD-1613414005.A46
1613414005
|
-
|
|
|
|
82 - HEX SOCKET HEAD CAP SCREW M5x25 DIN 912-10.9
BSD-2910151164.A59
2910151164
|
£1.75
|
£2.10
|
|
|
83 - PARTS SET
BSD-1617000120.A51
1617000120
|
-
|
|
|
|
83 - PARTS SET
BSD-1617000120.A52
1617000120
|
-
|
|
|
|
84 - HEX SOCKET HEAD CAP SCREW
BSD-1617000121.A3
1617000121
|
-
|
|
|
|
85 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A92
2910211007
|
£1.75
|
£2.10
|
|
|
86 - TAPPING SCREW DIN 7972-B3.9x13
BSD-2910601118.A72
2910601118
|
£1.75
|
£2.10
|
|
|
87 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A135
2910211011
|
£1.75
|
£2.10
|
|
|
88 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A829
2910211021
|
£1.75
|
£2.10
|
|
|
89 - CYLINDRICAL GEAR Z=43
BSD-1616309007.A14
1616309007
|
-
|
|
|
|
90 - TOOTHED SHAFT Z=8
BSD-1616333003.A27
1616333003
|
-
|
|
|
|
91 - CLUTCH ELEMENT
BSD-1610320008.A15
1610320008
|
-
|
|
|
|
94 - BALL DIN 5401-5 G28
BSD-1903230009.A303
1903230009
|
£1.75
|
£2.10
|
|
|
95 - CLUTCH ELEMENT
BSD-1610320009.A17
1610320009
|
-
|
|
|
|
103 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8
BSD-2910141199.A83
2910141199
|
£3.72
|
£4.47
|
|
|
103/10 - HEX SOCKET HEAD CAP SCREW M5x20 MM
BSD-1613414005.A45
1613414005
|
-
|
|
|
|
104 - RETAINING RING 22 DIN 9045
BSD-2916603012.A24
2916603012
|
-
|
|
|
|
650 - DEPTH-GAUGE SW 6x330 MM
BSD-1613001003.A88
1613001003
|
£4.25
|
£5.10
|
|
|
652 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A18
2607950004
|
£1.75
|
£2.10
|
|
|
653 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8
BSD-2910141154.A87
2910141154
|
£1.75
|
£2.10
|
|
|
656 - HEX SOCKET HEAD CAP SCREW
BSD-3603414028.A15
3603414028
|
£1.75
|
£2.10
|
|
|
657 - SEALING CAP
BSD-2600508018.A4
2600508018
|
£2.61
|
£3.13
|
|
|
660 - BIT HOLDER
BSD-1618598038.A13
1618598038
|
-
|
|
|
|
661 - SEALING DISK
BSD-1610109012.A0
1610109012
|
-
|
|
|
|
800 - PARTS SET
BSD-1617000022.A23
1617000022
|
-
|
|
|
|
801 - CYLINDRICAL GEAR Z=43/8
BSD-1616309009.A16
1616309009
|
-
|
|
|
|
802 - WEAR AND TEAR PART SET
BSD-1617000018.A30
1617000018
|
-
|
|
|
|
806 - TOOLHOLDER
BSD-1618597902.A1
1618597902
|
-
|
|
|
|
807 - LOCKING BOLT SET
BSD-1617000014.A147
1617000014
|
£24.45
|
£29.34
|
|
|
808 - CARBON-BRUSH SET
BSD-1617014110.A8
1617014110
|
£18.96
|
£22.75
|
|
|
820 - MODIFICATION SET
BSD-1617031000.A16
1617031000
|
-
|
|
|
