Dewalt D25405K Type 2 Rotary Hammer Spare Parts

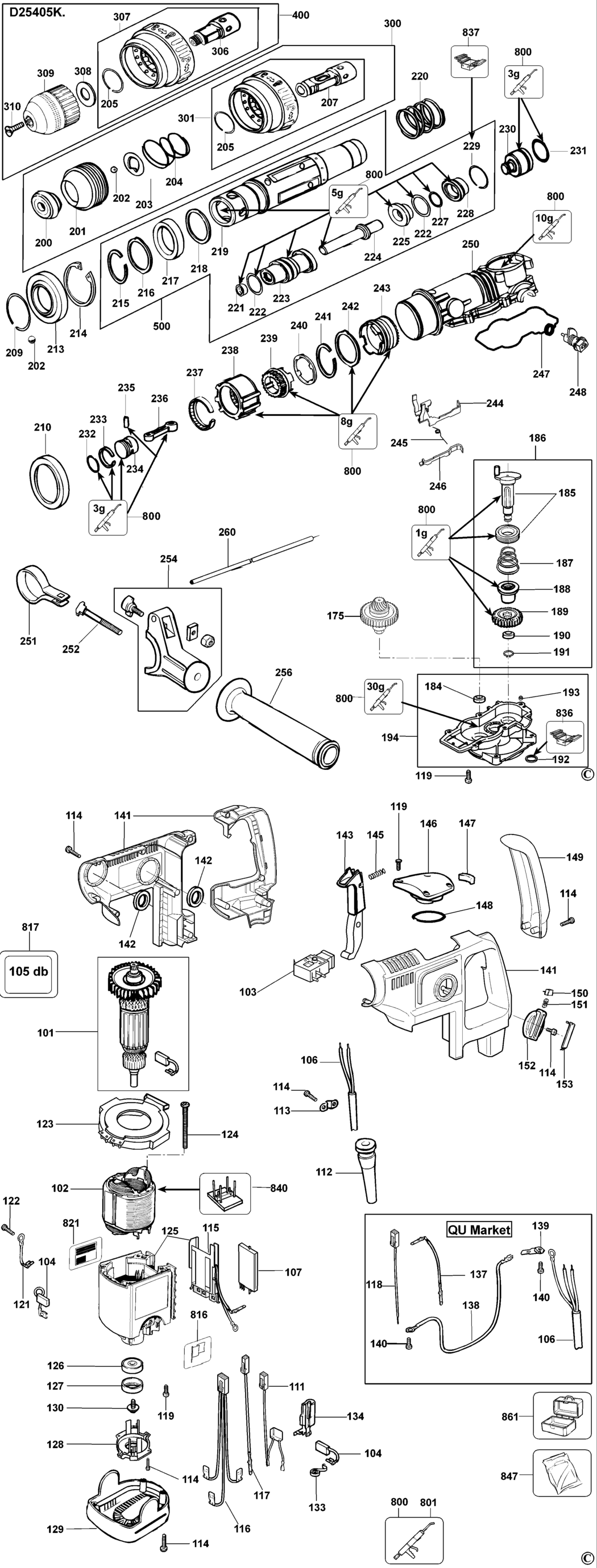

An exploded drawing and spare parts listing for the Dewalt D25405K Type 2 Rotary Hammer

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE LX BDE-000000-00.A125868 000000-00	-
101 - NO LONGER AVAILABLE GB BDE-000000-00.A125869 000000-00	-
102 - NO LONGER AVAILABLE LX BDE-000000-00.A125870 000000-00	-
102 - FIELD 230V GB BDE-377653-08.A3 377653-08	-
103 - SWITCH SA BDE-487175-49.A3 487175-49	-
104 - BRUSH KIT GB BDE-487131-00.A3 487131-00	£14.19	£17.03
104 - BRUSH KIT LX BDE-487131-02.A5 487131-02	-
106 - CORDSET GB BDE-582319-09.A0 582319-09	£23.75	£28.50
106 - CORDSET LX BDE-582319-10.A3 582319-10	£33.13	£39.76
107 - ELECTRONIC 115V LX BDE-328649-22.A2 328649-22	-
107 - ELECTRONIC 230V GB BDE-328649-20.A3 328649-20	-
111 - CAPACITOR SA BDE-487087-00.A7 487087-00	£5.72	£6.87
112 - CORD PROTECTOR BDE-323091-01.A3 323091-01	£1.50	£1.80
113 - CORD CLAMP BDE-821070.A65 821070	£1.50	£1.80
114 - SCREW BDE-330065-08.A408 330065-08	£1.50	£1.80
115 - HOLDER BDE-329845-00.A3 329845-00	£15.63	£18.76
116 - LEAD SA BDE-329777-00.A7 329777-00	£3.70	£4.44
117 - LEAD SA BDE-329776-00.A2 329776-00	£2.21	£2.65
119 - SCREW TORX BDE-324007-11.A177 324007-11	£1.50	£1.80
121 - LEAD BDE-328856-01.A6 328856-01	£1.42	£1.70
122 - SCREW BDE-330065-24.A4 330065-24	£1.42	£1.70
123 - GUIDE BDE-327486-00.A2 327486-00	-
124 - SCREW BDE-330065-21.A21 330065-21	£1.50	£1.80
125 - MOTOR HOUSING SA BDE-487073-01.A1 487073-01	£37.82	£45.38
126 - BEARING BDE-577745-00.A39 577745-00	£7.85	£9.42
127 - SLEEVE BDE-325279-00.A52 325279-00	-
128 - HOLDER BEARING BDE-327487-00.A7 327487-00	£1.42	£1.70
129 - END CAP BDE-327489-01.A1 327489-01	£3.70	£4.44
130 - SCREW BDE-324119-02.A93 324119-02	£1.50	£1.80
133 - BRUSH SPRING BDE-326667-00.A11 326667-00	£1.50	£1.80
134 - HOLDER BDE-326933-01.A61 326933-01	£3.30	£3.96
141 - CLAMSHELL BDE-327589-09.A4 327589-09	£18.42	£22.10
142 - RING BDE-327577-00.A5 327577-00	£1.42	£1.70
143 - TRIGGER BDE-487094-01.A4 487094-01	£3.70	£4.44
145 - SPRING BDE-326438-00.A13 326438-00	-
146 - COVER HOUSING BDE-327499-02.A7 327499-02	-
147 - FILTER BDE-327586-00.A4 327586-00	-
148 - O RING BDE-323711-15.A19 323711-15	£1.50	£1.80
149 - SWITCH COVER BDE-327500-00.A1 327500-00	-
150 - LOCK BUTTON BDE-327503-02.A5 327503-02	£1.42	£1.70
151 - SPRING BDE-323395-31.A6 323395-31	£1.42	£1.70
152 - LEVER BDE-327501-00.A7 327501-00	£1.78	£2.13
153 - CAP BDE-327509-00.A7 327509-00	£1.42	£1.70
175 - CLUTCH SA BDE-477168-00.A3 477168-00	-
184 - BEARING BDE-330003-39.A19 330003-39	£2.78	£3.34
185 - BEARING SA BDE-487074-49.A8 487074-49	£41.24	£49.49
186 - CRANKSHAFT BDE-477169-00.A0 477169-00	£116.32	£139.59
187 - SPRING BDE-328769-00.A7 328769-00	-
188 - SLEEVE BDE-327507-00.A1 327507-00	£11.87	£14.24
189 - CRANKSHAFT BDE-477169-00.A1 477169-00	£116.32	£139.59
190 - BEARING BDE-323872-05.A4 323872-05	£1.78	£2.13
191 - CIRCLIP BDE-324822-05.A4 324822-05	£1.42	£1.70
192 - SEAL BDE-327141-03.A14 327141-03	£12.17	£14.60
193 - SLEEVE BDE-327575-00.A4 327575-00	£1.50	£1.80
194 - CASTING SA BDE-327568-00.A4 327568-00	£25.05	£30.06
200 - CAP BDE-323489-00.A220 323489-00	£1.66	£1.99
201 - SLEEVE SA BDE-587291-00.A3 587291-00	£12.17	£14.60
202 - BALL 7MM BDE-583890-00.A81 583890-00	£1.66	£1.99
203 - WASHER SPECIAL BDE-588557-00.A2 588557-00	-
204 - SPRING BDE-588556-00.A1 588556-00	-
205 - CIRCLIP BDE-588571-00.A1 588571-00	-
207 - SPINDLE BDE-477178-00.A3 477178-00	£69.63	£83.56
209 - RING BDE-577795-00.A23 577795-00	£1.50	£1.80
210 - COVER GEARCASE BDE-583480-00.A1 583480-00	£1.50	£1.80
213 - SEAL BDE-586576-00.A1 586576-00	£2.21	£2.65
214 - CIRCLIP BDE-324821-02.A0 324821-02	£1.42	£1.70
215 - CIRCLIP BDE-586762-00.A0 586762-00	£1.50	£1.80
216 - WASHER BDE-583246-00.A3 583246-00	£3.22	£3.86
217 - SLEEVE BEARING BDE-477180-00.A0 477180-00	£11.87	£14.24
218 - BUSH BDE-586733-00.A3 586733-00	£11.87	£14.24
219 - SPINDLE BDE-477182-00.A3 477182-00	£112.86	£135.43
220 - SPRING BDE-323395-26.A6 323395-26	£1.42	£1.70
221 - SEAL BDE-577139-00.A55 577139-00	£1.50	£1.80
222 - O RING BDE-323711-30.A2 323711-30	£1.50	£1.80
223 - BEARING BDE-477188-00.A0 477188-00	£17.48	£20.97
224 - BEAT PIECE BDE-477189-00.A3 477189-00	£17.03	£20.44
225 - DAMPER BDE-477190-00.A0 477190-00	£15.63	£18.76
227 - O RING BDE-580990-00.A2 580990-00	£1.50	£1.80
228 - BUSH BDE-477191-00.A3 477191-00	£10.57	£12.68
229 - CLIP BDE-577793-00.A53 577793-00	£1.50	£1.80
230 - RAM BDE-477192-00.A0 477192-00	£25.05	£30.06
231 - O RING BDE-487037-00.A2 487037-00	£10.85	£13.02
232 - O RING BDE-323711-10.A5 323711-10	£1.50	£1.80
233 - PISTON RING BDE-325905-01.A11 325905-01	£1.50	£1.80
234 - PISTON BDE-327520-00.A5 327520-00	£12.17	£14.60
235 - PIN BDE-329818-00.A0 329818-00	£4.58	£5.49
236 - CON ROD BDE-327519-00.A3 327519-00	£1.78	£2.13
237 - RING BDE-327492-00.A7 327492-00	£1.42	£1.70
238 - BUSH BDE-327528-00.A4 327528-00	£1.78	£2.13
239 - SLEEVE BDE-327527-00.A3 327527-00	£9.17	£11.00
240 - WASHER BDE-329590-00.A4 329590-00	£1.42	£1.70
241 - RETAINER BDE-323763-07.A2 323763-07	£1.42	£1.70
242 - WASHER BDE-327553-00.A4 327553-00	£1.42	£1.70
243 - BEVEL GEAR BDE-492165-00.A2 492165-00	£44.00	£52.80
244 - FORK BDE-327504-00.A1 327504-00	£2.71	£3.25
245 - SPRING BDE-327574-00.A3 327574-00	£1.42	£1.70
246 - LEVER BDE-327505-00.A5 327505-00	£2.21	£2.65
247 - SEAL BDE-327518-00.A5 327518-00	£1.42	£1.70
248 - CAM BDE-327502-00.A1 327502-00	£1.42	£1.70
250 - HOUSING SA BDE-477193-00.A3 477193-00	£78.95	£94.74
251 - COLLAR BDE-327493-00.A1 327493-00	£7.18	£8.62
252 - BOLT BDE-327544-00.A4 327544-00	£3.70	£4.44
254 - CLAMP SA BDE-487103-49.A2 487103-49	-
256 - HANDLE BDE-327545-00.A4 327545-00	£10.57	£12.68
260 - DEPTH ROD BDE-326205-00.A6 326205-00	£3.70	£4.44
300 - HOLDER TOOL BDE-477194-00.A0 477194-00	-
301 - SPINDLE LOCK BDE-477195-00.A3 477195-00	£105.49	£126.59
306 - SPINDLE BDE-584676-00.A17 584676-00	£34.00	£40.80
307 - SPINDLE SA BDE-584556-00.A13 584556-00	£55.30	£66.36
308 - WASHER BDE-590339-00.A1 590339-00	£1.42	£1.70
309 - CHUCK BDE-584924-00.A1 584924-00	£50.60	£60.72
310 - SCREW BDE-605256-02.A151 605256-02	£1.50	£1.80
400 - CHUCK & SPINDLE SA BDE-589199-00.A0 589199-00	-
500 - SPINDLE SA BDE-575737-01.A3 575737-01	£195.70	£234.84
800 - GREASE 100 GMS BDE-586778-04.A3 586778-04	£40.21	£48.25
801 - BIT GREASE 50G BDE-328771-07.A46 328771-07	£7.18	£8.62
816 - BRAND LABEL BDE-578793-00.A15 578793-00	£1.42	£1.70
817 - LABEL GB BDE-487395-01.A43 487395-01	£1.50	£1.80
817 - LABEL LX BDE-487395-01.A44 487395-01	£1.50	£1.80
821 - RATING PLATE GB BDE-584253-21 584253-21	£1.50	£1.80
821 - RATING PLATE LX BDE-584253-22 584253-22	£1.42	£1.70
836 - SERVICE TOOL BDE-559613-99.A7 559613-99	£38.80	£46.56
837 - SERVICE TOOL BDE-559611-99.A3 559611-99	£34.00	£40.80
840 - S.T.FIELD ALLIGNMENT BDE-559670-99.A2 559670-99	£30.08	£36.10
847 - SERVICE KIT 230V GB BDE-477198-03.A0 477198-03	£85.60	£102.72
847 - SERVICE KIT 115V LX BDE-477198-04.A3 477198-04	£85.60	£102.72
861 - KITBOX BDE-381297-58.A2 381297-58	£94.12	£112.94
