Dewalt DW540 Type 2 Rotary Hammer Spare Parts

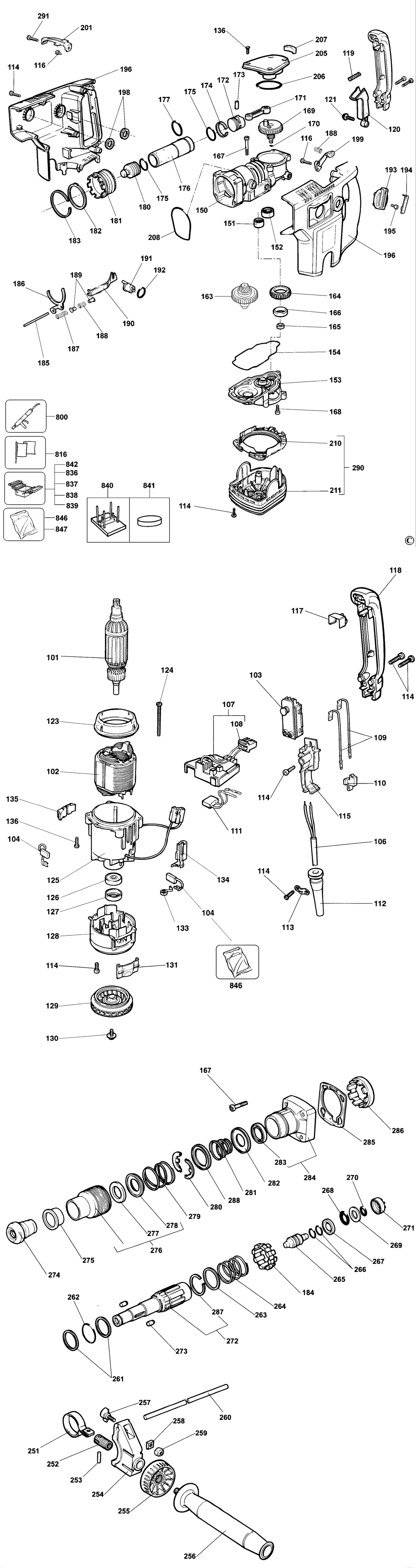

An exploded drawing and spare parts listing for the Dewalt DW540 Type 2 Rotary Hammer

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE XW BDE-000000-00.A46747 000000-00	-
101 - NO LONGER AVAILABLE GB BDE-000000-00.A46748 000000-00	-
102 - NO LONGER AVAILABLE IN (230) BDE-000000-00.A46749 000000-00	-
102 - NO LONGER AVAILABLE GB 240 BDE-000000-00.A46750 000000-00	-
102 - NO LONGER AVAILABLE GB 115 XW BDE-000000-00.A46751 000000-00	-
102 - NO LONGER AVAILABLE TW (115) BDE-000000-00.A46752 000000-00	-
103 - SWITCH BDE-326087-00.A28 326087-00	-
104 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A46753 000000-00	-
104 - SERVICE BRUSH IN (230) BDE-326961-00.A5 326961-00	£17.03	£20.44
104 - NO LONGER AVAILABLE TW (115) BDE-000000-00.A46754 000000-00	-
104 - SERVICE BRUSH GB 240 BDE-326961-00.A4 326961-00	£17.03	£20.44
106 - CORDSET IN (230) BDE-330061-20.A26 330061-20	£50.60	£60.72
106 - CORDSET GB 240 BDE-324438-73.A54 324438-73	-
106 - NO LONGER AVAILABLE TW (115) BDE-000000-00.A46760 000000-00	-
106 - CORDSET GB 115 BDE-330061-20.A27 330061-20	£50.60	£60.72
107 - NO LONGER AVAILABLE BDE-000000-00.A46755 000000-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A46756 000000-00	-
109 - NO LONGER AVAILABLE BDE-000000-00.A46757 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A46758 000000-00	-
111 - NO LONGER AVAILABLE BDE-000000-00.A46759 000000-00	-
112 - CORD PROTECTOR BDE-323091-01.A98 323091-01	£1.66	£1.99
113 - CORD CLAMP BDE-821070.A715 821070	£1.66	£1.99
114 - SCREW BDE-330065-08.A116 330065-08	£1.66	£1.99
115 - NO LONGER AVAILABLE BDE-000000-00.A46761 000000-00	-
116 - SCREW BDE-330065-05.A113 330065-05	£1.66	£1.99
117 - NO LONGER AVAILABLE BDE-000000-00.A46762 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A46763 000000-00	-
119 - SPRING BDE-326438-00.A21 326438-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A46764 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A46765 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A46766 000000-00	-
124 - SCREW BDE-330065-10.A25 330065-10	£1.66	£1.99
125 - NO LONGER AVAILABLE BDE-000000-00.A46767 000000-00	-
126 - BEARING BDE-577745-00.A74 577745-00	£7.85	£9.42
127 - SLEEVE BDE-325279-00.A8 325279-00	-
128 - COVER BDE-325411-02.A5 325411-02	£5.72	£6.87
129 - FAN BDE-577736-00.A39 577736-00	-
130 - SCREW BDE-324119-02.A7 324119-02	£1.66	£1.99
131 - SHUTTER BDE-326579-00.A33 326579-00	£2.26	£2.71
133 - BRUSH SPRING BDE-326667-00.A47 326667-00	£1.66	£1.99
134 - NO LONGER AVAILABLE BDE-000000-00.A46768 000000-00	-
135 - NO LONGER AVAILABLE BDE-000000-00.A46769 000000-00	-
136 - SCREW TORX BDE-324007-11.A4 324007-11	£1.66	£1.99
150 - NO LONGER AVAILABLE BDE-000000-00.A46770 000000-00	-
151 - BEARING FROM DATE CODE 97-16 BDE-330004-32.A9 330004-32	£7.85	£9.42
151 - NO LONGER AVAILABLE UPTO DATE CODE 96-12 BDE-000000-00.A46771 000000-00	-
151 - BEARING NEEDLE UPTO DATE CODE 97-15 BDE-918877-05.A5 918877-05	£18.42	£22.10
152 - BEARING FROM DATE CODE 97-16 BDE-330004-33.A27 330004-33	-
152 - BEARING NEEDLE UPTO DATE CODE 97-15 BDE-918877-06.A19 918877-06	£14.19	£17.03
153 - NO LONGER AVAILABLE BDE-000000-00.A46772 000000-00	-
154 - SEAL BDE-325936-00.A40 325936-00	£3.70	£4.44
163 - REPAIR KIT BDE-496440-00.A60 496440-00	£105.49	£126.59
164 - GEAR BDE-492618-00.A32 492618-00	-
165 - SEAL BDE-327141-02.A28 327141-02	£2.78	£3.34
166 - BUSH BDE-325616-00.A5 325616-00	-
167 - SCREW BDE-918825-02.A2 918825-02	£1.66	£1.99
168 - NO LONGER AVAILABLE BDE-000000-00.A46773 000000-00	-
169 - CRANKSHAFT BDE-581014-01.A9 581014-01	£85.60	£102.72
170 - O RING BDE-323711-26.A88 323711-26	£1.66	£1.99
171 - CON ROD BDE-325002-00.A44 325002-00	£3.30	£3.96
172 - NO LONGER AVAILABLE BDE-000000-00.A46774 000000-00	-
173 - PIN BDE-330041-22.A5 330041-22	£1.66	£1.99
174 - RETAINER BDE-325905-00.A61 325905-00	£1.66	£1.99
175 - O RING BDE-323711-11.A3 323711-11	£1.66	£1.99
176 - CYLINDER BDE-326098-02.A4 326098-02	£37.82	£45.38
177 - O RING BDE-323711-21.A7 323711-21	£1.66	£1.99
180 - NO LONGER AVAILABLE BDE-000000-00.A46775 000000-00	-
181 - REPAIR KIT BDE-496440-00.A61 496440-00	£105.49	£126.59
182 - WASHER LARGE BDE-326085-00.A3 326085-00	£5.72	£6.87
183 - CIRCLIP BDE-323763-03.A0 323763-03	£1.66	£1.99
184 - SPINDLE LOCK BDE-1005697-00.A11 1005697-00	-
185 - SHAFT BDE-325880-02.A43 325880-02	£3.80	£4.56
186 - SELECTOR FORK BDE-325160-00.A2 325160-00	-
187 - SPRING BDE-323395-08.A6 323395-08	£1.82	£2.19
188 - SPRING BDE-323395-09.A42 323395-09	-
189 - SPACER BDE-326093-00.A38 326093-00	£1.82	£2.19
190 - NO LONGER AVAILABLE BDE-000000-00.A46776 000000-00	-
191 - NO LONGER AVAILABLE BDE-000000-00.A46777 000000-00	-
192 - O RING BDE-323711-07.A13 323711-07	£1.82	£2.19
193 - NO LONGER AVAILABLE BDE-000000-00.A46778 000000-00	-
194 - NO LONGER AVAILABLE BDE-000000-00.A46779 000000-00	-
195 - NO LONGER AVAILABLE BDE-000000-00.A46780 000000-00	-
196 - NO LONGER AVAILABLE BDE-000000-00.A46781 000000-00	-
198 - NO LONGER AVAILABLE BDE-000000-00.A46782 000000-00	-
199 - NO LONGER AVAILABLE BDE-000000-00.A46783 000000-00	-
201 - NO LONGER AVAILABLE BDE-000000-00.A46784 000000-00	-
205 - COVER BDE-325371-04.A13 325371-04	£10.57	£12.68
206 - O RING BDE-323711-22.A32 323711-22	£1.66	£1.99
207 - FILTER BDE-326824-00.A4 326824-00	-
208 - O RING BDE-323711-17.A23 323711-17	£1.78	£2.13
210 - NO LONGER AVAILABLE BDE-000000-00.A46785 000000-00	-
211 - NO LONGER AVAILABLE BDE-000000-00.A46786 000000-00	-
251 - COLLAR BDE-326555-00.A38 326555-00	£5.88	£7.06
252 - BUSH BDE-326552-00.A14 326552-00	£7.18	£8.62
253 - PIN BDE-N079374.A24 N079374	£1.66	£1.99
254 - CLAMP BDE-N021108.A36 N021108	£9.41	£11.29
255 - LOCKING RING BDE-326553-00.A11 326553-00	£4.69	£5.63
256 - HANDLE BDE-N021120.A3 N021120	£14.57	£17.48
257 - SCREW WING BDE-326573-00.A25 326573-00	£5.88	£7.06
258 - NUT BDE-326556-00.A11 326556-00	£1.66	£1.99
259 - NUT BDE-330021-01.A22 330021-01	£1.66	£1.99
260 - DEPTH ROD BDE-326205-00.A34 326205-00	£3.70	£4.44
261 - WASHER BDE-323753-11.A30 323753-11	£3.80	£4.56
262 - O RING BDE-323711-14.A26 323711-14	£1.66	£1.99
263 - WASHER BDE-323753-14.A19 323753-14	£1.66	£1.99
264 - SPRING BDE-323395-07.A53 323395-07	£1.66	£1.99
265 - NO LONGER AVAILABLE BDE-000000-00.A46787 000000-00	-
266 - O RING BDE-323711-10.A50 323711-10	£1.66	£1.99
267 - WASHER BDE-582381-00.A10 582381-00	£5.88	£7.06
268 - O RING BDE-577744-02.A34 577744-02	£1.82	£2.19
269 - NO LONGER AVAILABLE BDE-000000-00.A46788 000000-00	-
270 - O RING BDE-N210233.A17 N210233	£1.66	£1.99
271 - CAP BDE-326044-00.A10 326044-00	£3.70	£4.44
272 - SPINDLE BDE-493133-00.A19 493133-00	£153.22	£183.86
273 - ROLLER BDE-325878-00.A3 325878-00	£1.66	£1.99
274 - LIP SEAL BDE-329816-00.A14 329816-00	£3.30	£3.96
275 - COLLAR BDE-326575-02.A20 326575-02	£1.66	£1.99
276 - SLEEVE SA BDE-479247-00.A11 479247-00	£7.18	£8.62
277 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A59 000000-03	-
278 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A60 000000-03	-
279 - SPRING BDE-323395-06.A4 323395-06	£1.66	£1.99
280 - HALF WASHER BDE-325929-00.A8 325929-00	£1.66	£1.99
281 - SPRING BDE-487118-00.A60 487118-00	£1.66	£1.99
282 - SPRING GUIDE BDE-325930-00.A28 325930-00	£1.66	£1.99
283 - SEAL BDE-327141-00.A1 327141-00	£1.82	£2.19
284 - CASTING SA BDE-326125-00.A9 326125-00	£65.52	£78.62
285 - GASKET BDE-325935-00.A7 325935-00	-
286 - SPINDLE LOCK BDE-588560-00.A44 588560-00	-
287 - RING BDE-323763-04.A47 323763-04	-
288 - GUIDE BDE-327208-00.A3 327208-00	£1.66	£1.99
290 - NO LONGER AVAILABLE BDE-000000-00.A46789 000000-00	-
291 - SCREW BDE-324007-10.A67 324007-10	£1.66	£1.99
800 - GREASE 100 GMS BDE-328771-02.A38 328771-02	£18.91	£22.69
816 - BRAND LABEL LARGE 70MM X 53MM BDE-578793-00.A1 578793-00	£1.66	£1.99
816 - NO LONGER AVAILABLE SMALL 44MM X 49MM BDE-000000-00.A46793 000000-00	-
836 - SERVICE TOOL FROM DATE CODE 97-16 BDE-559508-98.A16 559508-98	£71.44	£85.73
836 - NO LONGER AVAILABLE UPTO DATE CODE 97-15 BDE-000000-00.A46790 000000-00	-
837 - NO LONGER AVAILABLE FROM DATE CODE 97-16 BDE-000000-00.A46791 000000-00	-
837 - NO LONGER AVAILABLE UPTO DATE CODE 97-15 BDE-000000-00.A46792 000000-00	-
838 - S.T.PULLER BDE-559510-99.A6 559510-99	£87.82	£105.39
839 - S.T.SUPPORT JIG BDE-559656-99.A25 559656-99	£71.44	£85.73
840 - S.T.ASSEMBLY JIG BDE-559597-99.A40 559597-99	£38.80	£46.56
841 - S.T.BLOCK BDE-559598-99.A6 559598-99	-
842 - S.T.MANDREL FROM DATE CODE 97-16 BDE-559602-99.A19 559602-99	£47.08	£56.49
846 - BRUSH KIT GB 240 BDE-582621-00.A3 582621-00	£29.32	£35.18
846 - BRUSH PAIR 115V TW (115) BDE-327148-02.A2 327148-02	-
846 - BRUSH PAIR 115V GB 115 BDE-327148-02.A3 327148-02	-
846 - BRUSH KIT IN (230) BDE-582621-00.A4 582621-00	£29.32	£35.18
847 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A46794 000000-00	-
847 - NO LONGER AVAILABLE GB 240 BDE-000000-00.A46795 000000-00	-
847 - NO LONGER AVAILABLE IN (230) BDE-000000-00.A46796 000000-00	-
847 - NO LONGER AVAILABLE TW (115) BDE-000000-00.A46797 000000-00	-
