Dewalt D25871K Type 1 Rotary Hammer Spare Parts

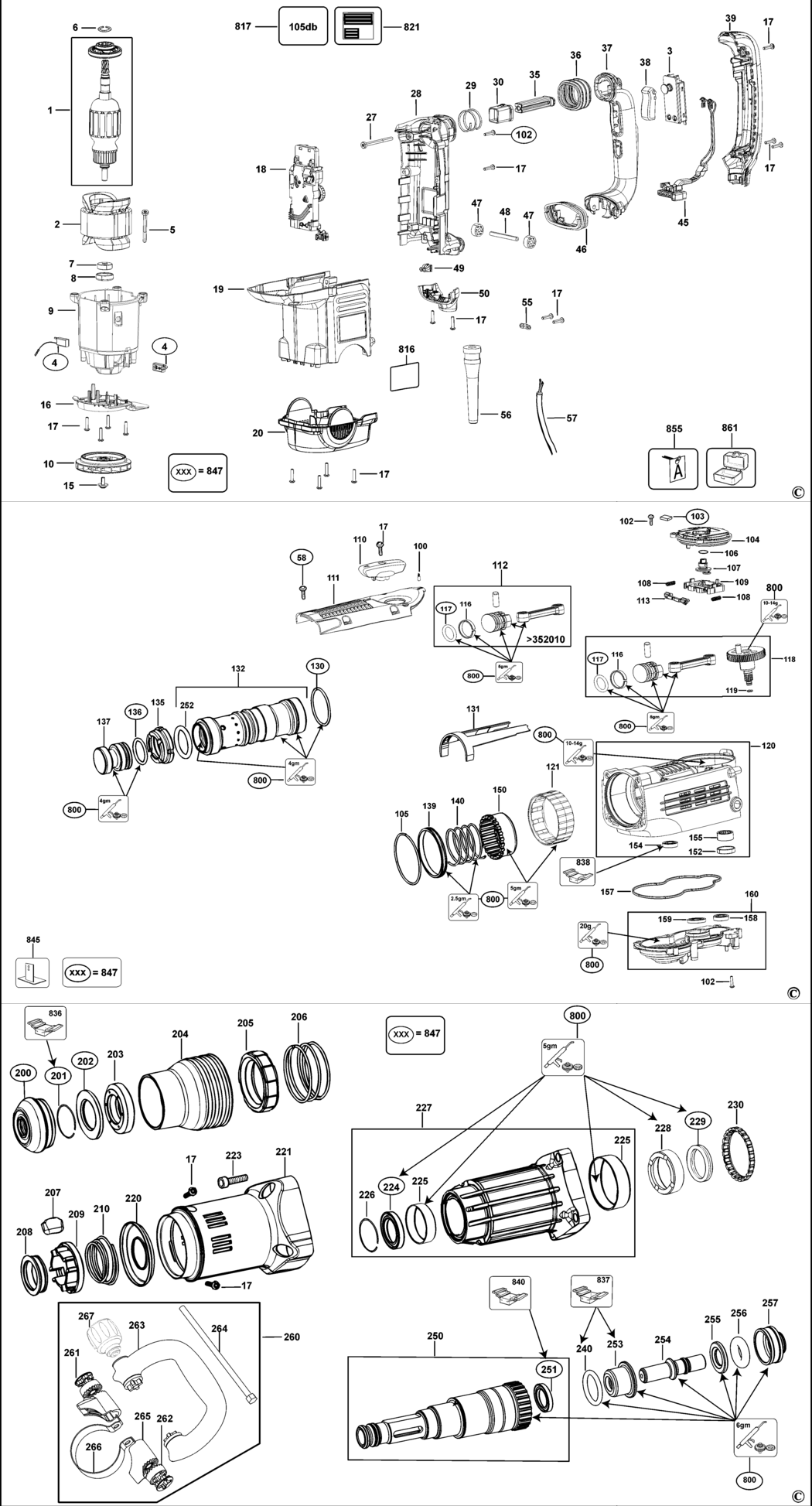

An exploded drawing and spare parts listing for the Dewalt D25871K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
3 - SWITCH BDE-587274-00.A2 587274-00	£34.00	£40.80
5 - SCREW BDE-330019-30.A25 330019-30	£1.50	£1.80
6 - RING BDE-577746-00.A34 577746-00	£1.50	£1.80
7 - BEARING BDE-577745-00.A27 577745-00	£7.85	£9.42
8 - SLEEVE INSULATING BDE-590191-00.A20 590191-00	£1.50	£1.80
9 - HOUSING MOTOR BDE-N053063-02.A7 N053063-02	£33.13	£39.76
10 - FAN SA BDE-N542569.A18 N542569	£12.17	£14.60
10 - FAN SA BDE-N542569.A2 N542569	£12.17	£14.60
15 - SCREW BDE-324119-02.A80 324119-02	£1.50	£1.80
16 - BAFFLE FAN BDE-N029959.A1 N029959	£5.88	£7.06
17 - SCREW BDE-330065-08.A306 330065-08	£1.50	£1.80
19 - MOTOR COVER BDE-N022762-01.A2 N022762-01	£16.03	£19.24
20 - END CAP BDE-N027971.A0 N027971	£14.57	£17.48
27 - SCREW BDE-1005672-00.A7 1005672-00	£1.50	£1.80
28 - SUPPORT PLATE BDE-N026163-01.A5 N026163-01	£18.91	£22.69
29 - SPRING BDE-1007569-00.A4 1007569-00	£1.50	£1.80
30 - BUSH BDE-1007567-00.A23 1007567-00	£1.50	£1.80
35 - STOP BDE-1007566-00.A4 1007566-00	£9.41	£11.29
36 - BELLOWS BDE-1007565-00.A23 1007565-00	£3.80	£4.56
37 - SWITCH HANDLE BDE-1006579-01.A3 1006579-01	£12.17	£14.60
38 - TRIGGER BDE-488065-01.A8 488065-01	£2.26	£2.71
39 - HANDLE COVER BDE-1006580-00.A16 1006580-00	£14.57	£17.48
46 - BELLOWS BDE-1008678-00.A26 1008678-00	£3.30	£3.96
47 - BUSH BDE-N038214.A11 N038214	£1.50	£1.80
48 - PIN BDE-N062047.A15 N062047	£1.50	£1.80
49 - LENS BDE-N030728.A2 N030728	£1.82	£2.19
50 - COVER BDE-1008391-00.A7 1008391-00	£1.82	£2.19
55 - CORD CLAMP BDE-821070.A242 821070	£1.50	£1.80
56 - CORD PROTECTOR BDE-323091-01.A55 323091-01	£1.50	£1.80
58 - SCREW TORX BDE-324007-11.A126 324007-11	£1.50	£1.80
100 - DETENT BDE-326467-00.A366 326467-00	£1.50	£1.80
102 - SCREW TORX BDE-324007-11.A127 324007-11	£1.50	£1.80
103 - FILTER BDE-488067-00.A0 488067-00	£1.50	£1.80
104 - COVER GEARCASE BDE-N027968.A14 N027968	£9.41	£11.29
105 - O RING BDE-323711-56.A20 323711-56	£1.50	£1.80
106 - O RING BDE-323711-48.A16 323711-48	£1.50	£1.80
107 - ECCENTRIC BDE-586032-00.A9 586032-00	£1.50	£1.80
108 - SPRING BDE-323395-32.A17 323395-32	£2.26	£2.71
109 - SLIDER BDE-N027969.A1 N027969	£3.80	£4.56
110 - SELECTOR BDE-586038-00.A8 586038-00	£1.50	£1.80
111 - COVER-TOP BDE-585168-01.A1 585168-01	£3.80	£4.56
112 - PISTON KIT BDE-N079389.A2 N079389	£30.08	£36.10
113 - RETAINER BDE-N027970.A15 N027970	£1.50	£1.80
116 - CLIP BDE-N029957.A14 N029957	£1.50	£1.80
117 - O RING BDE-584703-00.A0 584703-00	£4.69	£5.63
118 - CRANKSHAFT BDE-N091329.A2 N091329	£99.47	£119.36
119 - O RING BDE-323711-26.A64 323711-26	£1.50	£1.80
120 - HOUSING SA BDE-N079380.A1 N079380	£192.14	£230.57
121 - BUSH BDE-489244-00.A0 489244-00	£5.88	£7.06
130 - O RING BDE-577744-07.A17 577744-07	£1.50	£1.80
131 - SLIDER BDE-586034-00.A10 586034-00	£2.26	£2.71
132 - CYLINDER SA BDE-N079394.A2 N079394	£65.52	£78.62
135 - BUSH BDE-584715-00.A0 584715-00	£2.78	£3.34
136 - O RING BDE-584706-00.A20 584706-00	£3.30	£3.96
137 - RAM BDE-489180-00.A2 489180-00	£24.39	£29.27
139 - BUSH BDE-478650-00.A15 478650-00	£2.26	£2.71
140 - SPRING BDE-584726-00.A5 584726-00	£2.26	£2.71
150 - SLEEVE BDE-489181-01.A14 489181-01	£45.14	£54.17
152 - SPACER BDE-479974-00.A17 479974-00	£1.50	£1.80
154 - BEARING BALL BDE-577745-02.A5 577745-02	£7.18	£8.62
155 - BEARING NEEDLE BDE-586301-00.A4 586301-00	£9.41	£11.29
157 - SEAL BDE-586022-00.A19 586022-00	£1.82	£2.19
158 - BEARING BDE-330003-39.A35 330003-39	£2.78	£3.34
159 - SEAL BDE-327141-08.A17 327141-08	£5.88	£7.06
160 - GEARCASE COVER SA BDE-N079388.A2 N079388	£44.14	£52.97
200 - SEAL BDE-487238-01.A27 487238-01	£7.85	£9.42
201 - RING BDE-487205-00.A30 487205-00	£1.50	£1.80
202 - WASHER BDE-487241-00.A23 487241-00	£9.41	£11.29
203 - RUBBER BDE-487244-00.A7 487244-00	£3.80	£4.56
204 - SLEEVE BDE-487236-00.A4 487236-00	£7.85	£9.42
205 - LOCKING RING BDE-579784-00.A23 579784-00	£24.39	£29.27
206 - SPRING BDE-487218-00.A2 487218-00	£1.50	£1.80
207 - KEY BDE-489672-00.A23 489672-00	£7.18	£8.62
208 - BUSH BDE-487249-00.A23 487249-00	£9.41	£11.29
209 - GUIDE BUSH BDE-590377-00.A20 590377-00	£1.50	£1.80
210 - SPRING BDE-487216-00.A27 487216-00	£1.50	£1.80
220 - GUIDE BDE-584696-00.A22 584696-00	£3.30	£3.96
221 - COVER BDE-585167-01.A8 585167-01	£7.18	£8.62
223 - SCREW BDE-949886-32.A10 949886-32	£1.50	£1.80
224 - LIP SEAL BDE-327141-07.A5 327141-07	£2.78	£3.34
225 - BEARING SET BDE-488679-00.A20 488679-00	£24.39	£29.27
226 - RING BDE-488787-00.A11 488787-00	£1.50	£1.80
227 - HOUSING FRONT BDE-488678-00.A0 488678-00	£47.08	£56.49
228 - BUSH BDE-589096-00.A2 589096-00	£2.26	£2.71
229 - DAMPER BDE-589223-00.A11 589223-00	£1.50	£1.80
230 - BUSH BDE-584727-00.A18 584727-00	£2.26	£2.71
240 - O RING BDE-488546-00.A7 488546-00	£3.80	£4.56
250 - SPINDLE SA BDE-488676-00.A15 488676-00	£165.92	£199.11
251 - SEAL BDE-N014007.A27 N014007	£10.85	£13.02
252 - O RING BDE-1005597-00.A13 1005597-00	£3.30	£3.96
253 - BEARING BDE-488685-00.A0 488685-00	£24.39	£29.27
254 - BEAT PIECE BDE-488681-00.A17 488681-00	£37.35	£44.82
255 - WASHER BDE-488680-00.A0 488680-00	£9.41	£11.29
256 - O RING BDE-577744-06.A3 577744-06	£7.85	£9.42
257 - BUSH BDE-488686-00.A15 488686-00	£18.91	£22.69
260 - HANDLE SIDE SA BDE-479321-00.A1 479321-00	£41.24	£49.49
261 - CLAMPING INSERT BDE-479319-00.A4 479319-00	£1.50	£1.80
262 - WASHER LOCK BDE-479317-00.A2 479317-00	£1.50	£1.80
263 - HANDLE BDE-487277-00.A17 487277-00	£18.91	£22.69
264 - BOLT BDE-487343-00.A13 487343-00	£3.80	£4.56
265 - WASHER CLAMP BDE-479320-00.A2 479320-00	£2.78	£3.34
266 - CLAMP BDE-479318-00.A1 479318-00	£9.41	£11.29
267 - KNOB SA BDE-487291-00.A17 487291-00	£5.88	£7.06
800 - GREASE 80 GMS BDE-578970-06.A46 578970-06	£55.31	£66.37
800 - GREASE 150 GMS BDE-578970-06.A1 578970-06	£55.31	£66.37
816 - BRAND LABEL BDE-N061824.A1 N061824	£1.42	£1.70
817 - LABEL BDE-487395-01.A38 487395-01	£1.50	£1.80
821 - NO LONGER AVAILABLE LX BDE-000000-00.A96669 000000-00	-
821 - RATING PLATE GB BDE-N317615 N317615	£3.80	£4.56
836 - S.T.CIRCLIP REMOVER BDE-559651-99.A22 559651-99	£131.46	£157.75
836 - S.T.CIRCLIP REMOVER BDE-559652-99.A0 559652-99	£24.39	£29.27
837 - S.T.BEARING EXTRACTOR BDE-559653-99.A22 559653-99	£12.17	£14.60
838 - S.T.BEARING EXTRACTOR BDE-559657-99.A2 559657-99	£60.94	£73.13
840 - S.T.SEAL FITTING TOOL BDE-559659-99.A4 559659-99	£24.39	£29.27
845 - S.T.SUPPORT JIG BDE-559656-99.A68 559656-99	£71.44	£85.73
855 - BIT BDE-351086-02.A4 351086-02	£24.39	£29.27
861 - KITBOX BDE-N072214.A6 N072214	£115.77	£138.92

Attribute Name	Value
Brand	Dewalt
