Dewalt D25723K Type 1 Rotary Hammer Spare Parts

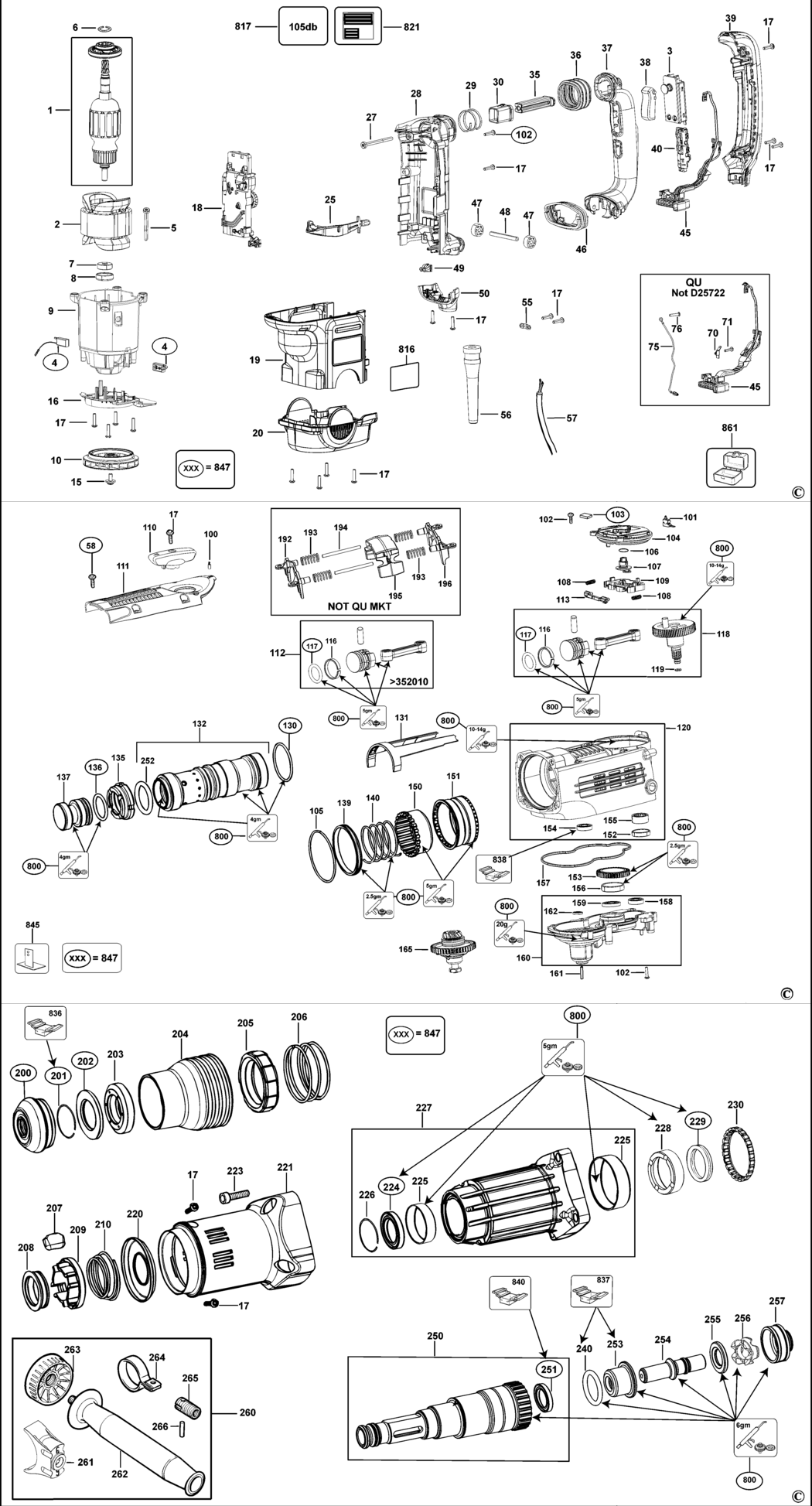

An exploded drawing and spare parts listing for the Dewalt D25723K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
3 - SWITCH BDE-587274-00.A3 587274-00	£34.00	£40.80
5 - SCREW BDE-330019-30.A24 330019-30	£1.66	£1.99
6 - RING BDE-577746-00.A33 577746-00	£1.66	£1.99
7 - BEARING BDE-577745-00.A26 577745-00	£7.85	£9.42
8 - SLEEVE INSULATING BDE-590191-00.A19 590191-00	£1.66	£1.99
10 - FAN SA BDE-N542569.A1 N542569	£12.17	£14.60
15 - SCREW BDE-324119-02.A79 324119-02	£1.66	£1.99
16 - BAFFLE FAN BDE-N029959.A3 N029959	£5.88	£7.06
17 - SCREW BDE-330065-08.A307 330065-08	£1.66	£1.99
19 - MOTOR COVER BDE-N022762-00.A2 N022762-00	£16.03	£19.24
20 - END CAP BDE-N027971.A2 N027971	£14.57	£17.48
25 - LEVER SA BDE-N081352.A1 N081352	£7.18	£8.62
27 - SCREW BDE-1005672-00.A8 1005672-00	£1.66	£1.99
28 - BACKPLATE BDE-N026163-04 N026163-04	£16.03	£19.24
29 - SPRING BDE-1007569-00.A6 1007569-00	£1.66	£1.99
30 - BUSH BDE-1007567-00.A22 1007567-00	£1.66	£1.99
35 - STOP BDE-1007566-00.A5 1007566-00	£9.41	£11.29
36 - BELLOWS BDE-1007565-00.A22 1007565-00	£3.80	£4.56
37 - SWITCH HANDLE BDE-1006579-00.A5 1006579-00	£9.41	£11.29
38 - TRIGGER BDE-587114-01.A12 587114-01	£1.66	£1.99
39 - HANDLE COVER BDE-1006580-00.A17 1006580-00	£14.57	£17.48
40 - TRIGGER LOCK-ON BDE-N019514.A0 N019514	£24.39	£29.27
46 - BELLOWS BDE-1008678-00.A25 1008678-00	£3.30	£3.96
47 - BUSH BDE-N038214.A10 N038214	£1.66	£1.99
48 - PIN BDE-N062047.A16 N062047	£1.66	£1.99
49 - LENS BDE-N030728.A3 N030728	£1.82	£2.19
50 - COVER BDE-1008391-00.A8 1008391-00	£1.82	£2.19
55 - CORD CLAMP BDE-821070.A241 821070	£1.66	£1.99
56 - CORD PROTECTOR BDE-323091-01.A56 323091-01	£1.66	£1.99
58 - SCREW TORX BDE-324007-11.A125 324007-11	£1.66	£1.99
100 - DETENT BDE-326467-00.A367 326467-00	£1.66	£1.99
101 - MICRO SWITCH BDE-N019533.A19 N019533	£16.03	£19.24
102 - SCREW TORX BDE-324007-11.A124 324007-11	£1.66	£1.99
103 - FILTER BDE-488067-00.A1 488067-00	£1.66	£1.99
104 - COVER GEARCASE BDE-N027968.A15 N027968	£9.41	£11.29
105 - O RING BDE-323711-56.A21 323711-56	£1.66	£1.99
106 - O RING BDE-323711-48.A15 323711-48	£1.66	£1.99
107 - ECCENTRIC BDE-586032-00.A8 586032-00	£1.66	£1.99
108 - SPRING BDE-323395-32.A16 323395-32	£2.26	£2.71
109 - SLIDER BDE-N027969.A0 N027969	£3.80	£4.56
110 - SELECTOR BDE-586038-00.A9 586038-00	£1.66	£1.99
111 - COVER-TOP BDE-585168-02.A4 585168-02	£3.80	£4.56
112 - PISTON KIT BDE-N079389.A1 N079389	-
113 - RETAINER BDE-N027970.A14 N027970	£1.66	£1.99
116 - CLIP BDE-N029957.A13 N029957	£1.66	£1.99
117 - O RING BDE-584703-00.A1 584703-00	£4.69	£5.63
118 - CRANKSHAFT BDE-N091329.A1 N091329	£99.47	£119.36
119 - O RING BDE-323711-26.A66 323711-26	£1.66	£1.99
120 - HOUSING SA BDE-N079379.A1 N079379	£200.77	£240.92
130 - O RING BDE-577744-07.A18 577744-07	£1.66	£1.99
131 - SLIDER BDE-586034-00.A9 586034-00	£2.26	£2.71
132 - CYLINDER SA BDE-N079394.A1 N079394	£65.52	£78.62
135 - BUSH BDE-584715-00.A1 584715-00	£2.78	£3.34
136 - O RING BDE-584706-00.A19 584706-00	£3.30	£3.96
137 - RAM BDE-489180-00.A1 489180-00	£24.39	£29.27
139 - BUSH BDE-478650-00.A17 478650-00	£2.26	£2.71
140 - SPRING BDE-584726-00.A4 584726-00	£2.26	£2.71
150 - SLEEVE BDE-489181-01.A15 489181-01	£45.14	£54.17
151 - BEVEL GEAR BDE-N079396.A11 N079396	£87.82	£105.39
152 - SPACER BDE-479974-00.A16 479974-00	£1.66	£1.99
153 - GEAR BDE-488688-00.A1 488688-00	£10.85	£13.02
154 - BEARING BALL BDE-577745-02.A3 577745-02	£7.18	£8.62
155 - BEARING NEEDLE BDE-586301-00.A3 586301-00	£9.41	£11.29
156 - BEARING BRASS BUSH BDE-489239-00.A1 489239-00	£3.80	£4.56
157 - SEAL BDE-586022-00.A18 586022-00	£1.82	£2.19
158 - BEARING BDE-330003-39.A36 330003-39	£2.78	£3.34
159 - SEAL BDE-327141-08.A16 327141-08	£5.88	£7.06
160 - COVER GEARCASE BDE-N079386.A1 N079386	£44.00	£52.80
161 - PIN BDE-586392-00.A10 586392-00	£1.82	£2.19
162 - SEAL BDE-586403-00.A9 586403-00	£1.66	£1.99
165 - CLUTCH SA BDE-N079392.A5 N079392	£192.14	£230.57
200 - SEAL BDE-487238-01.A28 487238-01	£7.85	£9.42
201 - RING BDE-487205-00.A28 487205-00	£1.66	£1.99
202 - WASHER BDE-487241-00.A22 487241-00	£9.41	£11.29
203 - RUBBER BDE-487244-00.A8 487244-00	£3.80	£4.56
204 - SLEEVE BDE-487236-00.A3 487236-00	£7.85	£9.42
205 - LOCKING RING BDE-579784-00.A22 579784-00	£24.39	£29.27
206 - SPRING BDE-487218-00.A3 487218-00	£1.66	£1.99
207 - KEY BDE-489672-00.A21 489672-00	£7.18	£8.62
208 - BUSH BDE-487249-00.A22 487249-00	£9.41	£11.29
209 - GUIDE BUSH BDE-590377-00.A18 590377-00	£1.66	£1.99
210 - SPRING BDE-487216-00.A26 487216-00	£1.66	£1.99
220 - GUIDE BDE-584696-00.A21 584696-00	£3.30	£3.96
221 - COVER BDE-585167-02.A1 585167-02	£12.17	£14.60
223 - SCREW BDE-949886-32.A11 949886-32	£1.66	£1.99
224 - LIP SEAL BDE-327141-07.A6 327141-07	£2.78	£3.34
225 - BEARING SET BDE-488679-00.A18 488679-00	£24.39	£29.27
226 - RING BDE-488787-00.A9 488787-00	£1.66	£1.99
227 - HOUSING FRONT BDE-488678-00.A2 488678-00	£47.08	£56.49
228 - BUSH BDE-589096-00.A4 589096-00	£2.26	£2.71
229 - DAMPER BDE-589223-00.A9 589223-00	£1.66	£1.99
230 - BUSH BDE-584727-00.A19 584727-00	£2.26	£2.71
240 - O RING BDE-488546-00.A9 488546-00	£3.80	£4.56
250 - SPINDLE SA BDE-488676-00.A13 488676-00	£165.92	£199.11
251 - SEAL BDE-N014007.A26 N014007	£10.85	£13.02
252 - O RING BDE-1005597-00.A15 1005597-00	£3.30	£3.96
253 - BEARING BDE-488685-00.A2 488685-00	£24.39	£29.27
254 - BEAT PIECE BDE-488681-00.A15 488681-00	£37.35	£44.82
255 - WASHER BDE-488680-00.A2 488680-00	£9.41	£11.29
256 - O RING BDE-577744-06.A2 577744-06	£7.85	£9.42
257 - BUSH BDE-488686-00.A13 488686-00	£18.91	£22.69
261 - CLAMPING INSERT BDE-N021312.A6 N021312	£5.88	£7.06
262 - HANDLE BDE-N114828.A9 N114828	£38.80	£46.56
263 - LOCKING RING BDE-326553-00.A58 326553-00	£4.69	£5.63
264 - CLAMP BDE-479333-00.A7 479333-00	£10.85	£13.02
265 - BUSH BDE-326552-00.A55 326552-00	£7.18	£8.62
266 - PIN BDE-N079374.A46 N079374	£1.66	£1.99
800 - GREASE 80 GMS BDE-578970-06.A45 578970-06	£55.32	£66.38
816 - BRAND LABEL BDE-N061824.A3 N061824	£1.66	£1.99
817 - LABEL BDE-487395-01.A36 487395-01	£1.66	£1.99
836 - S.T.CIRCLIP REMOVER BDE-559651-99.A21 559651-99	£131.46	£157.75
836 - S.T.CIRCLIP REMOVER BDE-559652-99.A1 559652-99	£24.39	£29.27
837 - S.T.BEARING EXTRACTOR BDE-559653-99.A21 559653-99	£12.17	£14.60
838 - S.T.BEARING EXTRACTOR BDE-559657-99.A1 559657-99	£60.94	£73.13
840 - S.T.SEAL FITTING TOOL BDE-559659-99.A5 559659-99	£24.39	£29.27
845 - S.T.SUPPORT JIG BDE-559656-99.A69 559656-99	£71.44	£85.73
861 - KITBOX BDE-N072214.A10 N072214	£115.77	£138.92

Attribute Name	Value
Brand	Dewalt
