Dewalt D25711K Type 1 Rotary Hammer Spare Parts

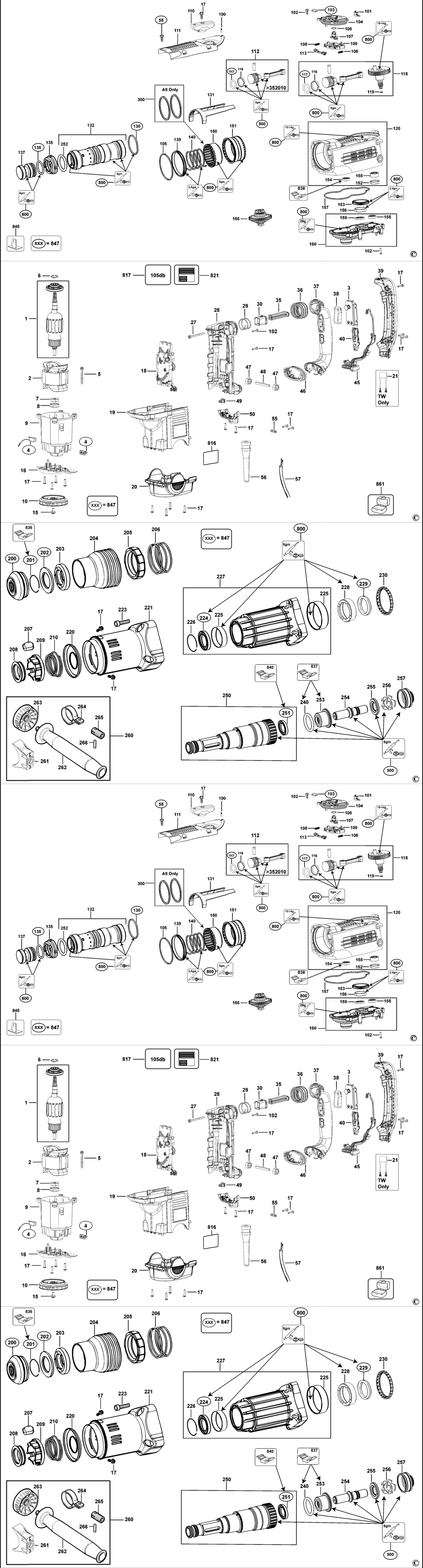

An exploded drawing and spare parts listing for the Dewalt D25711K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 120V LX BDE-489252-00.A6 489252-00	£113.07	£135.68
1 - ARMATURE 230V GB BDE-489251-00.A2 489251-00	£113.07	£135.68
2 - FIELD 230V GB BDE-489254-00.A2 489254-00	£37.35	£44.82
2 - FIELD 115V LX BDE-489255-00.A6 489255-00	£38.80	£46.56
3 - SWITCH LX BDE-581070-00.A22 581070-00	£19.90	£23.88
3 - SWITCH GB BDE-581070-00.A23 581070-00	£19.90	£23.88
4 - BRUSH PAIR 230V GB BDE-489256-00.A10 489256-00	£16.03	£19.24
4 - BRUSH PAIR 115V LX BDE-489257-00.A1 489257-00	£18.91	£22.69
5 - SCREW BDE-330019-30.A41 330019-30	£1.50	£1.80
6 - RING BDE-577746-00.A4 577746-00	£1.50	£1.80
7 - BEARING BDE-577745-00.A78 577745-00	£7.85	£9.42
8 - SLEEVE INSULATING BDE-590191-00.A12 590191-00	£1.50	£1.80
9 - HOUSING MOTOR GB BDE-N053063-02.A5 N053063-02	£33.13	£39.76
9 - HOUSING MOTOR LX BDE-N053063-02.A6 N053063-02	£33.13	£39.76
10 - FAN SA BDE-N542569.A23 N542569	£12.17	£14.60
10 - FAN SA BDE-N542569.A8 N542569	£12.17	£14.60
15 - SCREW BDE-324119-02.A46 324119-02	£1.50	£1.80
16 - BAFFLE FAN BDE-N029959.A6 N029959	£5.88	£7.06
17 - SCREW BDE-330065-08.A60 330065-08	£1.50	£1.80
18 - GACC MODULE 115V LX BDE-N053976.A1 N053976	£157.18	£188.61
18 - GACC MODULE 230V GB BDE-N053975.A0 N053975	£144.10	£172.92
19 - MOTOR COVER BDE-N022762-00.A9 N022762-00	£16.03	£19.24
20 - END CAP BDE-N027971.A4 N027971	£14.57	£17.48
27 - SCREW BDE-1005672-00.A23 1005672-00	£1.50	£1.80
28 - SUPPORT PLATE BDE-N026163-01.A1 N026163-01	£18.91	£22.69
29 - SPRING BDE-1007569-00.A25 1007569-00	£1.50	£1.80
30 - BUSH BDE-1007567-00.A2 1007567-00	£1.50	£1.80
35 - STOP BDE-1007566-00.A25 1007566-00	£9.41	£11.29
36 - BELLOWS BDE-1007565-00.A2 1007565-00	£3.80	£4.56
37 - SWITCH HANDLE BDE-1006579-00.A14 1006579-00	£9.41	£11.29
38 - TRIGGER BDE-587114-01.A26 587114-01	£1.50	£1.80
39 - HANDLE COVER BDE-1006580-00.A10 1006580-00	£14.57	£17.48
40 - TRIGGER LOCK-ON BDE-N019514.A17 N019514	£24.39	£29.27
45 - SET OF LEAD WIRES GB BDE-N037180.A0 N037180	£24.39	£29.27
45 - SET OF LEAD WIRES LX BDE-N037180.A1 N037180	£24.39	£29.27
46 - BELLOWS BDE-1008678-00.A5 1008678-00	£3.30	£3.96
47 - BUSH BDE-N038214.A23 N038214	£1.50	£1.80
48 - PIN BDE-N062047.A3 N062047	£1.50	£1.80
49 - LENS BDE-N030728.A8 N030728	£1.82	£2.19
50 - COVER BDE-1008391-00.A22 1008391-00	£1.82	£2.19
55 - CORD CLAMP BDE-821070.A553 821070	£1.50	£1.80
56 - CORD PROTECTOR BDE-323091-01.A60 323091-01	£1.50	£1.80
57 - CORDSET GB BDE-582319-42.A15 582319-42	£34.00	£40.80
57 - CORDSET LX BDE-324438-90.A4 324438-90	£47.08	£56.49
58 - SCREW TORX BDE-324007-11.A60 324007-11	£1.50	£1.80
100 - DETENT BDE-326467-00.A21 326467-00	£1.50	£1.80
101 - MICRO SWITCH BDE-N019533.A0 N019533	£16.03	£19.24
102 - SCREW TORX BDE-324007-11.A61 324007-11	£1.50	£1.80
103 - FILTER BDE-488067-00.A18 488067-00	£1.50	£1.80
104 - COVER GEARCASE BDE-N027968.A9 N027968	£9.41	£11.29
105 - O RING BDE-323711-56.A7 323711-56	£1.50	£1.80
106 - O RING BDE-323711-48.A0 323711-48	£1.50	£1.80
107 - ECCENTRIC BDE-586032-00.A15 586032-00	£1.50	£1.80
108 - SPRING BDE-323395-32.A19 323395-32	£2.26	£2.71
109 - SLIDER BDE-N027969.A6 N027969	£3.80	£4.56
110 - SELECTOR BDE-586038-00.A15 586038-00	£1.50	£1.80
111 - COVER-TOP BDE-585168-00.A2 585168-00	£3.80	£4.56
112 - PISTON KIT >352010 BDE-N079389.A5 N079389	-
112 - NO LONGER AVAILABLE <352010 BDE-000000-00.A30204 000000-00	-
113 - RETAINER BDE-N027970.A9 N027970	£1.50	£1.80
116 - CLIP BDE-N029957.A7 N029957	£1.50	£1.80
117 - O RING BDE-584703-00.A12 584703-00	£4.69	£5.63
118 - CRANKSHAFT <352010 BDE-N513280.A1 N513280	£112.86	£135.43
118 - CRANKSHAFT >352010 BDE-N090947.A6 N090947	£104.31	£125.17
119 - O RING BDE-323711-26.A78 323711-26	£1.50	£1.80
120 - HOUSING SA BDE-N079379.A4 N079379	£200.77	£240.92
130 - O RING BDE-577744-07.A3 577744-07	£1.50	£1.80
131 - SLIDER BDE-586034-00.A16 586034-00	£2.26	£2.71
132 - CYLINDER SA BDE-N079394.A4 N079394	£65.52	£78.62
135 - BUSH BDE-584715-00.A14 584715-00	£2.78	£3.34
136 - O RING BDE-584706-00.A3 584706-00	£3.30	£3.96
137 - RAM BDE-489180-00.A12 489180-00	£24.39	£29.27
139 - BUSH BDE-478650-00.A4 478650-00	£2.26	£2.71
140 - SPRING BDE-584726-00.A15 584726-00	£2.26	£2.71
150 - SLEEVE BDE-489181-01.A4 489181-01	£45.14	£54.17
151 - BEVEL GEAR BDE-N079396.A5 N079396	£87.82	£105.39
152 - SPACER BDE-479974-00.A9 479974-00	£1.50	£1.80
153 - GEAR BDE-488688-00.A13 488688-00	£10.85	£13.02
154 - BEARING BALL BDE-577745-02.A16 577745-02	£7.18	£8.62
155 - BEARING NEEDLE BDE-586301-00.A27 586301-00	£9.41	£11.29
156 - BEARING BRASS BUSH BDE-489239-00.A14 489239-00	£3.80	£4.56
157 - SEAL BDE-586022-00.A5 586022-00	£1.82	£2.19
158 - BEARING BDE-330003-39.A103 330003-39	£2.78	£3.34
159 - SEAL BDE-327141-08.A7 327141-08	£5.88	£7.06
160 - COVER GEARCASE BDE-N079387.A0 N079387	£45.14	£54.17
165 - CLUTCH SA BDE-N079393.A2 N079393	£131.46	£157.75
200 - SEAL BDE-487238-01.A10 487238-01	£7.85	£9.42
201 - RING BDE-487205-00.A13 487205-00	£1.50	£1.80
202 - WASHER BDE-487241-00.A4 487241-00	£9.41	£11.29
203 - RUBBER BDE-487244-00.A26 487244-00	£3.80	£4.56
204 - SLEEVE BDE-487236-00.A15 487236-00	£7.85	£9.42
205 - LOCKING RING BDE-579784-00.A7 579784-00	£24.39	£29.27
206 - SPRING BDE-487218-00.A18 487218-00	£1.50	£1.80
207 - KEY BDE-489672-00.A11 489672-00	£7.18	£8.62
208 - BUSH BDE-487249-00.A13 487249-00	£9.41	£11.29
209 - GUIDE BUSH BDE-590377-00.A4 590377-00	£1.50	£1.80
210 - SPRING BDE-487216-00.A12 487216-00	£1.50	£1.80
220 - GUIDE BDE-584696-00.A8 584696-00	£3.30	£3.96
221 - COVER BDE-585167-01.A3 585167-01	£7.18	£8.62
223 - SCREW BDE-949886-32.A31 949886-32	£1.50	£1.80
224 - LIP SEAL BDE-327141-07.A9 327141-07	£2.78	£3.34
225 - BEARING SET BDE-488679-00.A0 488679-00	£24.39	£29.27
226 - RING BDE-488787-00.A13 488787-00	£1.50	£1.80
227 - HOUSING FRONT BDE-488678-00.A15 488678-00	£47.08	£56.49
228 - BUSH BDE-589096-00.A14 589096-00	£2.26	£2.71
229 - DAMPER BDE-589223-00.A19 589223-00	£1.50	£1.80
230 - BUSH BDE-584727-00.A6 584727-00	£2.26	£2.71
240 - O RING BDE-488546-00.A4 488546-00	£3.80	£4.56
250 - SPINDLE SA BDE-488676-00.A0 488676-00	£165.92	£199.11
251 - SEAL BDE-N014007.A7 N014007	£10.85	£13.02
252 - O RING BDE-1005597-00.A1 1005597-00	£3.30	£3.96
253 - BEARING BDE-488685-00.A14 488685-00	£24.39	£29.27
254 - BEAT PIECE BDE-488681-00.A1 488681-00	£37.35	£44.82
255 - WASHER BDE-488680-00.A14 488680-00	£9.41	£11.29
256 - DAMPER BDE-496678-00.A6 496678-00	£16.03	£19.24
257 - BUSH BDE-488686-00.A1 488686-00	£18.91	£22.69
260 - HANDLE SA BDE-N083965.A4 N083965	£71.44	£85.73
261 - CLAMPING INSERT BDE-N021312.A0 N021312	£5.88	£7.06
262 - HANDLE BDE-N114828.A5 N114828	£38.80	£46.56
263 - LOCKING RING BDE-326553-00.A21 326553-00	£4.69	£5.63
264 - CLAMP LX BDE-479333-00.A0 479333-00	£10.85	£13.02
264 - CLAMP GB BDE-479333-00.A1 479333-00	£10.85	£13.02
264 - CLAMP BDE-N097712 N097712	£17.48	£20.97
265 - BUSH BDE-326552-00.A24 326552-00	£7.18	£8.62
266 - PIN BDE-N079374.A0 N079374	£1.50	£1.80
800 - GREASE 80 GMS BDE-578970-06.A36 578970-06	£55.32	£66.38
800 - GREASE 150 GMS BDE-578970-06.A26 578970-06	£55.32	£66.38
816 - BRAND LABEL BDE-N061824.A8 N061824	£1.42	£1.70
817 - LABEL BDE-487395-01.A18 487395-01	£1.50	£1.80
821 - RATING PLATE LX BDE-N049495 N049495	£3.70	£4.44
821 - RATING PLATE GB BDE-N049494 N049494	£11.87	£14.24
836 - S.T.CIRCLIP REMOVER BDE-559651-99.A2 559651-99	£131.46	£157.75
836 - S.T.CIRCLIP REMOVER BDE-559652-99.A20 559652-99	£24.39	£29.27
837 - S.T.BEARING EXTRACTOR BDE-559653-99.A2 559653-99	£12.17	£14.60
838 - S.T.BEARING EXTRACTOR BDE-559657-99.A18 559657-99	£60.94	£73.13
840 - S.T.SEAL FITTING TOOL BDE-559659-99.A16 559659-99	£24.39	£29.27
845 - S.T.SUPPORT JIG BDE-559656-99.A3 559656-99	£71.44	£85.73
847 - SERVICE KIT 230V GB BDE-N082644.A4 N082644	£126.63	£151.96
847 - SERVICE KIT 120V LX BDE-N082645.A0 N082645	£126.63	£151.96
861 - KITBOX BDE-N072214.A3 N072214	£115.77	£138.92
