Dewalt D25501K Type 2 Rotary Hammer Spare Parts

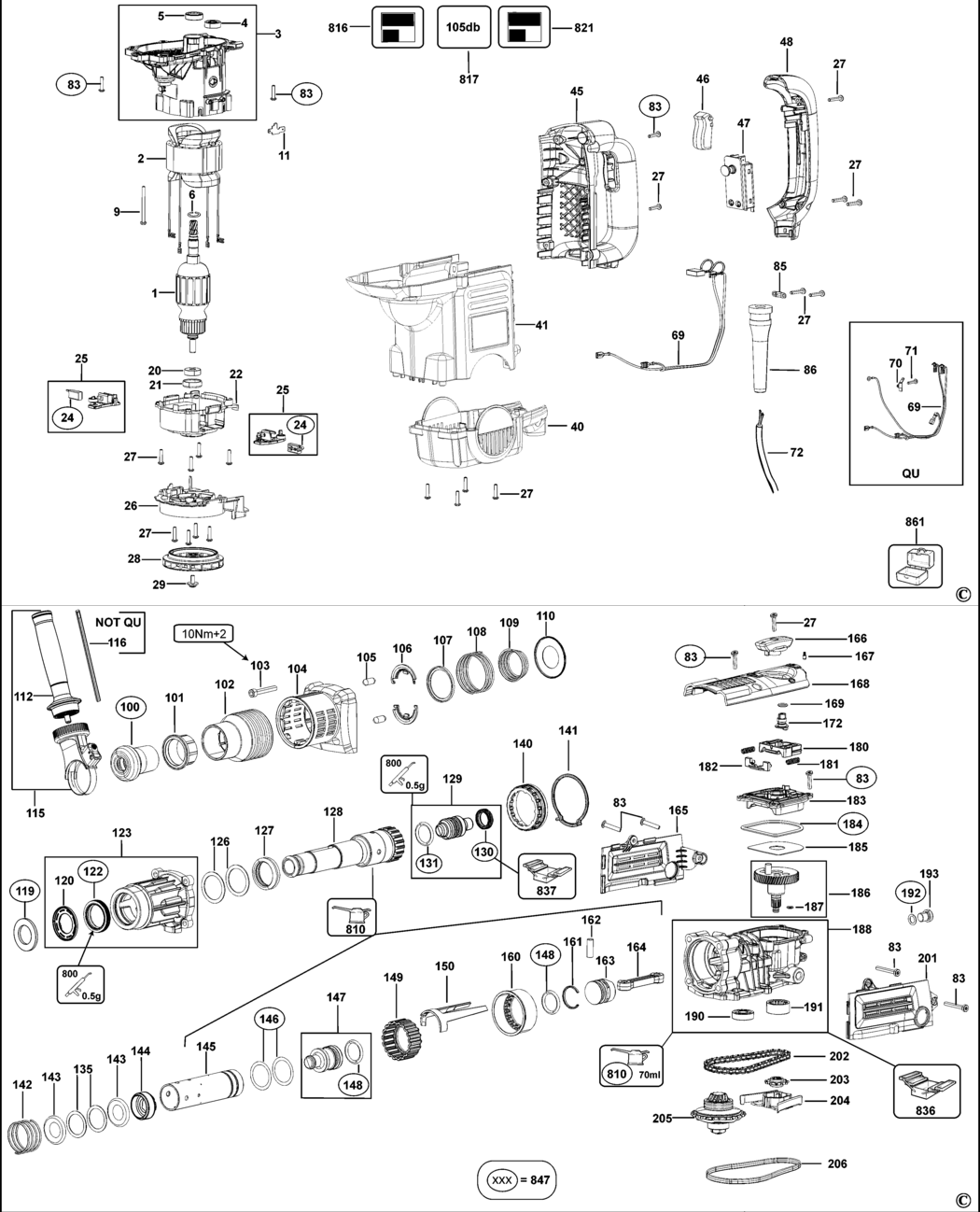

An exploded drawing and spare parts listing for the Dewalt D25501K Type 2 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 120V LX BDE-N046419.A8 N046419	£144.10	£172.92
1 - ARMATURE 230V GB BDE-N046420.A2 N046420	£144.10	£172.92
2 - FIELD 120V LX BDE-N046422.A0 N046422	£78.12	£93.74
2 - FIELD 230V GB BDE-N046421.A6 N046421	£80.98	£97.18
3 - HOUSING SA BDE-N047284.A2 N047284	£38.80	£46.56
4 - BEARING BDE-330003-39.A30 330003-39	£2.78	£3.34
5 - SEAL BDE-327141-03.A11 327141-03	£12.17	£14.60
6 - RING BDE-577746-00.A40 577746-00	£1.66	£1.99
9 - SCREW BDE-330065-21.A14 330065-21	£1.66	£1.99
11 - CONNECTOR BDE-1007970-00.A4 1007970-00	£1.66	£1.99
20 - BEARING BDE-330003-60.A140 330003-60	£2.78	£3.34
21 - SLEEVE BDE-1007732-00.A4 1007732-00	£1.66	£1.99
22 - BRIDGE BDE-1007798-00.A2 1007798-00	£7.18	£8.62
24 - BRUSH PAIR 230V GB BDE-N047426.A2 N047426	£14.57	£17.48
24 - BRUSH PAIR 120V LX BDE-N047425.A0 N047425	£14.57	£17.48
25 - BRUSH & HOLDER 115V LX BDE-N047445.A5 N047445	£16.03	£19.24
25 - BRUSH & HOLDER 230V GB BDE-N047446.A2 N047446	£14.57	£17.48
26 - BAFFLE FAN BDE-N016922.A1 N016922	£5.88	£7.06
27 - SCREW BDE-330065-08.A297 330065-08	£1.66	£1.99
28 - FAN BDE-1006592-00.A0 1006592-00	£12.17	£14.60
29 - SCREW BDE-324119-02.A86 324119-02	£1.66	£1.99
40 - END CAP BDE-N021935.A1 N021935	£10.85	£13.02
41 - MOTOR COVER BDE-1006576-02.A3 1006576-02	£14.57	£17.48
45 - HOUSING HANDLE BDE-1008798-00.A3 1008798-00	£14.19	£17.03
46 - TRIGGER BDE-587114-01.A10 587114-01	£1.66	£1.99
47 - SWITCH BDE-587274-00.A5 587274-00	£34.00	£40.80
48 - HANDLE COVER BDE-1008682-00.A7 1008682-00	£16.03	£19.24
69 - SET OF LEAD WIRES GB BDE-N047305.A0 N047305	£9.41	£11.29
69 - SET OF LEAD WIRES LX BDE-N047305.A1 N047305	£9.41	£11.29
72 - CORDSET GB BDE-582319-42.A6 582319-42	£34.00	£40.80
72 - CORDSET LX BDE-324438-90.A13 324438-90	£47.08	£56.49
83 - SCREW TORX BDE-324007-11.A138 324007-11	£1.66	£1.99
85 - CORD CLAMP BDE-821070.A262 821070	£1.66	£1.99
86 - CORD PROTECTOR BDE-323091-01.A48 323091-01	£1.66	£1.99
100 - LIP SEAL BDE-329816-00.A44 329816-00	£3.30	£3.96
101 - COLLAR BDE-326575-01.A22 326575-01	£5.88	£7.06
102 - SLEEVE SA BDE-479247-00.A47 479247-00	£7.18	£8.62
103 - SCREW BDE-918825-02.A59 918825-02	£1.66	£1.99
104 - COVER BDE-1006572-00.A11 1006572-00	£5.88	£7.06
105 - ROLLER BDE-325878-00.A55 325878-00	£1.66	£1.99
106 - HALF WASHER BDE-325929-00.A44 325929-00	£1.66	£1.99
107 - GUIDE BDE-327208-00.A44 327208-00	£1.66	£1.99
108 - SPRING BDE-323395-06.A51 323395-06	£1.66	£1.99
109 - SPRING BDE-487118-00.A19 487118-00	£1.66	£1.99
110 - SPRING GUIDE BDE-325930-00.A4 325930-00	£1.66	£1.99
112 - SIDE HANDLE BDE-N437292.A0 N437292	£25.70	£30.84
115 - SIDE HANDLE LX BDE-N501145.A0 N501145	£34.00	£40.80
115 - SIDE HANDLE GB BDE-N501145.A1 N501145	£34.00	£40.80
116 - DEPTH ROD GB BDE-N040996.A4 N040996	£7.18	£8.62
116 - DEPTH ROD LX BDE-N040996.A5 N040996	£7.18	£8.62
119 - FELT BDE-N038151.A19 N038151	£1.66	£1.99
120 - BUSH BDE-N045793.A2 N045793	£1.66	£1.99
122 - SEAL BDE-1007828-00.A7 1007828-00	£16.03	£19.24
123 - HOUSING BDE-N041835.A4 N041835	£71.44	£85.73
126 - WASHER BDE-1005982-00.A20 1005982-00	£1.66	£1.99
127 - DAMPER BDE-496191-00.A7 496191-00	£2.26	£2.71
128 - SPINDLE BDE-N041834.A8 N041834	£165.92	£199.11
129 - BEAT PIECE BDE-N041847.A15 N041847	£71.44	£85.73
130 - SEAL BDE-577484-00.A39 577484-00	£16.03	£19.24
131 - O RING BDE-323711-10.A29 323711-10	£1.66	£1.99
135 - WASHER BDE-N064329.A5 N064329	£1.66	£1.99
140 - BUSH BDE-494857-00.A8 494857-00	£2.78	£3.34
141 - GASKET BDE-1006283-00.A2 1006283-00	£2.78	£3.34
142 - SPRING BDE-1005748-00.A7 1005748-00	£1.66	£1.99
143 - O RING BDE-N210233.A29 N210233	£1.66	£1.99
144 - BUSH BDE-1006778-00.A10 1006778-00	£1.66	£1.99
145 - CYLINDER BDE-N041846.A0 N041846	£41.24	£49.49
146 - O RING BDE-577744-00.A100 577744-00	£1.82	£2.19
147 - RAM BDE-N041845.A16 N041845	£38.80	£46.56
148 - O RING BDE-576232-01.A29 576232-01	£5.88	£7.06
149 - SLEEVE BDE-N041844.A0 N041844	£19.90	£23.88
150 - SELECTOR FORK BDE-1005749-00.A9 1005749-00	£1.66	£1.99
160 - BEVEL GEAR BDE-N041842.A0 N041842	£63.87	£76.64
161 - RETAINER BDE-325905-00.A28 325905-00	£1.66	£1.99
162 - PIN BDE-330041-22.A27 330041-22	£1.66	£1.99
163 - PISTON BDE-N041843.A16 N041843	£12.17	£14.60
164 - CON ROD BDE-494724-00.A5 494724-00	£5.88	£7.06
165 - COVER RH BDE-N511772.A1 N511772	£5.88	£7.06
166 - SELECTOR BDE-1006786-00.A10 1006786-00	£2.26	£2.71
167 - DETENT BDE-326467-00.A380 326467-00	£1.66	£1.99
168 - COVER-TOP BDE-1006575-00.A2 1006575-00	£7.18	£8.62
169 - O RING BDE-323711-57.A13 323711-57	£1.66	£1.99
172 - ECCENTRIC BDE-496856-00.A11 496856-00	£1.66	£1.99
180 - SLIDER BDE-1006784-00.A10 1006784-00	£1.66	£1.99
181 - SPRING BDE-323395-32.A10 323395-32	£2.26	£2.71
182 - CONNECTOR BDE-1006783-00.A6 1006783-00	£1.66	£1.99
183 - COVER BDE-496857-00.A5 496857-00	£4.69	£5.63
184 - O RING BDE-323711-59.A13 323711-59	£1.66	£1.99
185 - PLATE BDE-1006785-00.A6 1006785-00	£3.30	£3.96
186 - CRANKSHAFT BDE-N041841.A16 N041841	£84.42	£101.30
187 - O RING BDE-323711-26.A59 323711-26	£1.66	£1.99
188 - HOUSING SA BDE-N527066.A0 N527066	£126.63	£151.96
190 - BEARING BALL BDE-577745-01.A22 577745-01	£7.85	£9.42
191 - BEARING NEEDLE BDE-586301-00.A5 586301-00	£9.41	£11.29
192 - O RING BDE-323711-57.A12 323711-57	£1.66	£1.99
193 - SCREW.SPECIAL BDE-1008427-00.A14 1008427-00	£1.66	£1.99
201 - COVER LH BDE-N511771.A1 N511771	£5.88	£7.06
202 - CHAIN BDE-N041839.A4 N041839	£12.17	£14.60
203 - GEAR BDE-N041837.A7 N041837	£5.88	£7.06
204 - GUIDE BDE-1006280-00.A2 1006280-00	£2.26	£2.71
206 - GASKET BDE-1006282-00.A14 1006282-00	£3.80	£4.56
800 - GREASE BDE-870889-03.A93 870889-03	£7.85	£9.42
810 - TUBE OIL BDE-N040237.A2 N040237	£30.08	£36.10
816 - BRAND LABEL BDE-N064908.A2 N064908	£1.66	£1.99
817 - LABEL BDE-487395-01.A42 487395-01	£1.66	£1.99
821 - RATING LABEL GB BDE-N486414 N486414	£2.26	£2.71
821 - RATING LABEL LX BDE-N486419 N486419	£4.69	£5.63
836 - SERVICE TOOL BDE-1003938-99.A10 1003938-99	£112.86	£135.43
837 - S.T.SEAL FITTING TOOL BDE-559645-99.A27 559645-99	£25.70	£30.84
847 - SERVICE KIT 120V LX BDE-N095944.A1 N095944	£113.07	£135.68
847 - SERVICE KIT 230V GB BDE-N081427.A8 N081427	£74.15	£88.98
847 - SERVICE KIT 230V GB BDE-N095941.A0 N095941	£110.62	£132.74
861 - KITBOX BDE-574931-22.A2 574931-22	£87.82	£105.39

Attribute Name	Value
Brand	Dewalt
