Dewalt D25500K Type 3 Hammer Spare Parts

Home Details Reviews Delivery

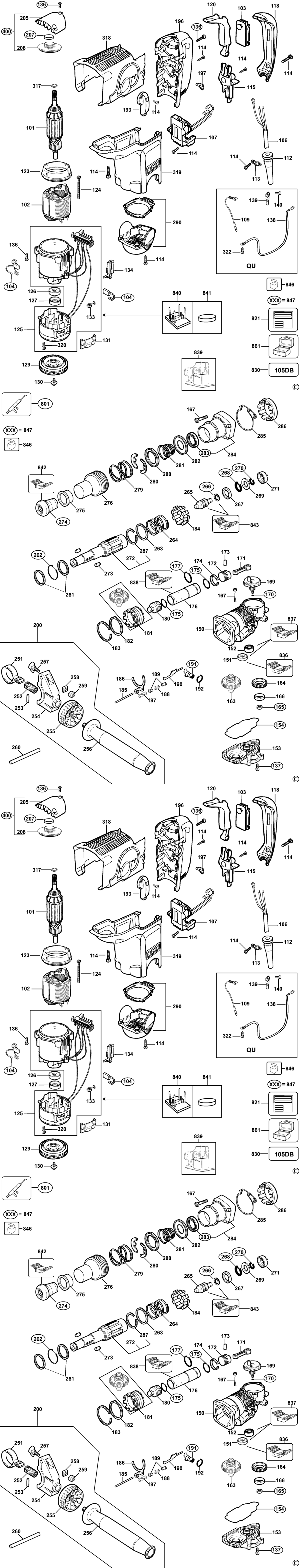

An exploded drawing and spare parts listing for the Dewalt D25500K Type 3 Hammer

	Ex VAT	Inc VAT
101 - ARMATURE 120V LX BDE-N030721.A3 N030721	-
102 - FIELD 120V LX BDE-N030719.A2 N030719	£44.00	£52.80
103 - SWITCH BDE-581070-00.A6 581070-00	£20.50	£24.60
103 - SWITCH BDE-581070-00.A7 581070-00	£20.50	£24.60
104 - BRUSH KIT LX BDE-582621-01.A1 582621-01	£25.05	£30.06
106 - CORDSET LX BDE-324438-72.A7 324438-72	£20.50	£24.60
107 - ELECTRONIC 120V LX BDE-582574-03.A1 582574-03	-
112 - CORD PROTECTOR BDE-323091-01.A42 323091-01	£1.66	£1.99
112 - CORD PROTECTOR BDE-323091-01.A43 323091-01	£1.66	£1.99
113 - CORD CLAMP BDE-821070.A439 821070	£1.66	£1.99
113 - CORD CLAMP BDE-821070.A440 821070	£1.66	£1.99
114 - SCREW BDE-330065-08.A271 330065-08	£1.66	£1.99
114 - SCREW BDE-330065-08.A272 330065-08	£1.66	£1.99
115 - NO LONGER AVAILABLE BDE-000000-00.A96329 000000-00	-
115 - CABLE GUIDE BDE-577716-00.A2 577716-00	-
118 - HANDLE COVER BDE-577712-00.A0 577712-00	-
118 - HANDLE COVER BDE-577712-00.A1 577712-00	-
120 - TRIGGER BDE-325919-00.A0 325919-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A96330 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A96331 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A96332 000000-00	-
124 - SCREW BDE-330065-11.A12 330065-11	£1.66	£1.99
124 - SCREW BDE-330065-11.A13 330065-11	£1.66	£1.99
125 - FIELDCASE SA BDE-582577-02.A3 582577-02	£63.87	£76.64
125 - FIELDCASE SA BDE-582577-02.A4 582577-02	£63.87	£76.64
126 - BEARING BDE-577745-00.A13 577745-00	£8.08	£9.70
126 - BEARING BDE-577745-00.A14 577745-00	£8.08	£9.70
127 - SLEEVE BDE-325279-00.A36 325279-00	-
127 - SLEEVE BDE-325279-00.A37 325279-00	-
129 - FAN BDE-577736-00.A0 577736-00	-
129 - FAN BDE-577736-00.A1 577736-00	-
130 - SCREW BDE-324119-02.A72 324119-02	£1.66	£1.99
130 - SCREW BDE-324119-02.A73 324119-02	£1.66	£1.99
131 - SHUTTER BDE-326579-00.A17 326579-00	£2.26	£2.71
131 - SHUTTER BDE-326579-00.A18 326579-00	£2.26	£2.71
133 - BRUSH SPRING BDE-326667-00.A19 326667-00	£1.66	£1.99
133 - BRUSH SPRING BDE-326667-00.A20 326667-00	£1.66	£1.99
134 - HOLDER BDE-326933-01.A40 326933-01	£3.30	£3.96
134 - HOLDER BDE-326933-01.A41 326933-01	£3.30	£3.96
136 - SCREW TORX BDE-324007-11.A115 324007-11	£1.66	£1.99
136 - SCREW TORX BDE-324007-11.A116 324007-11	£1.66	£1.99
137 - SCREW TORX BDE-324007-11.A117 324007-11	£1.66	£1.99
137 - SCREW TORX BDE-324007-11.A118 324007-11	£1.66	£1.99
150 - GEARCASE SA BDE-578487-02.A6 578487-02	£116.32	£139.59
150 - GEARCASE SA BDE-578487-02.A7 578487-02	£116.32	£139.59
151 - BEARING BALL BDE-577745-01.A32 577745-01	£8.08	£9.70
151 - BEARING BALL BDE-577745-01.A33 577745-01	£8.08	£9.70
152 - BEARING BDE-330004-33.A6 330004-33	-
152 - NO LONGER AVAILABLE BDE-000000-00.A96333 000000-00	-
153 - GEARCASE COVER SA BDE-578486-01.A7 578486-01	£29.32	£35.18
153 - GEARCASE COVER SA BDE-578486-01.A8 578486-01	£29.32	£35.18
154 - SEAL BDE-325936-00.A21 325936-00	£3.70	£4.44
154 - SEAL BDE-325936-00.A22 325936-00	£3.70	£4.44
163 - CLUTCH SA BDE-496367-00.A4 496367-00	£101.69	£122.03
163 - CLUTCH SA BDE-496367-00.A5 496367-00	£101.69	£122.03
164 - GEAR BDE-492618-00.A6 492618-00	-
164 - GEAR BDE-492618-00.A7 492618-00	-
165 - SEAL BDE-327141-05.A10 327141-05	£7.40	£8.88
165 - SEAL BDE-327141-05.A11 327141-05	£7.40	£8.88
166 - BUSH BDE-325616-00.A36 325616-00	-
166 - BUSH BDE-325616-00.A37 325616-00	-
167 - SCREW BDE-918825-02.A41 918825-02	£1.66	£1.99
167 - SCREW BDE-918825-02.A42 918825-02	£1.66	£1.99
169 - CRANKSHAFT BDE-582431-00.A9 582431-00	£60.94	£73.13
169 - CRANKSHAFT BDE-582431-00.A10 582431-00	£60.94	£73.13
170 - O RING BDE-323711-26.A40 323711-26	£1.66	£1.99
170 - O RING BDE-323711-26.A41 323711-26	£1.66	£1.99
171 - CON ROD BDE-325002-00.A19 325002-00	£3.39	£4.07
171 - CON ROD BDE-325002-00.A20 325002-00	£3.39	£4.07
172 - PISTON BDE-N041843.A17 N041843	£12.53	£15.04
172 - PISTON BDE-N041843.A18 N041843	£12.53	£15.04
173 - PIN BDE-330041-22.A53 330041-22	£1.66	£1.99
173 - PIN BDE-330041-22.A54 330041-22	£1.66	£1.99
174 - RETAINER BDE-325905-00.A2 325905-00	£1.66	£1.99
174 - RETAINER BDE-325905-00.A3 325905-00	£1.66	£1.99
175 - O RING BDE-576232-01.A20 576232-01	£6.06	£7.27
175 - O RING BDE-576232-01.A21 576232-01	£6.06	£7.27
176 - CYLINDER BDE-582576-00.A9 582576-00	£45.88	£55.06
176 - CYLINDER BDE-582576-00.A10 582576-00	£45.88	£55.06
177 - O RING BDE-577744-00.A88 577744-00	£1.88	£2.26
177 - O RING BDE-577744-00.A89 577744-00	£1.88	£2.26
180 - RAM BDE-582575-00.A9 582575-00	£29.32	£35.18
180 - RAM BDE-582575-00.A10 582575-00	£29.32	£35.18
181 - REPAIR KIT BDE-496440-00.A24 496440-00	£105.49	£126.59
181 - REPAIR KIT BDE-496440-00.A25 496440-00	£105.49	£126.59
182 - WASHER LARGE BDE-326085-00.A24 326085-00	£5.72	£6.87
182 - WASHER LARGE BDE-326085-00.A25 326085-00	£5.72	£6.87
183 - CIRCLIP BDE-323763-03.A48 323763-03	£1.66	£1.99
183 - CIRCLIP BDE-323763-03.A49 323763-03	£1.66	£1.99
184 - SPINDLE LOCK BDE-1005697-00.A31 1005697-00	-
184 - SPINDLE LOCK BDE-1005697-00.A32 1005697-00	-
185 - SHAFT BDE-325880-02.A17 325880-02	£3.80	£4.56
185 - SHAFT BDE-325880-02.A18 325880-02	£3.80	£4.56
186 - SELECTOR FORK BDE-325160-00.A34 325160-00	-
186 - SELECTOR FORK BDE-325160-00.A35 325160-00	-
187 - SPRING BDE-323395-08.A42 323395-08	£1.82	£2.19
187 - SPRING BDE-323395-08.A43 323395-08	£1.82	£2.19
188 - SPRING BDE-323395-09.A5 323395-09	-
188 - SPRING BDE-323395-09.A6 323395-09	-
189 - SPACER BDE-326093-00.A13 326093-00	£1.82	£2.19
189 - SPACER BDE-326093-00.A14 326093-00	£1.82	£2.19
190 - LINK BDE-577731-00.A0 577731-00	£1.66	£1.99
190 - LINK BDE-577731-00.A1 577731-00	£1.66	£1.99
191 - ECCENTRIC SA BDE-577718-00.A0 577718-00	£1.66	£1.99
191 - ECCENTRIC SA BDE-577718-00.A1 577718-00	£1.66	£1.99
192 - O RING BDE-323711-07.A42 323711-07	£1.88	£2.26
192 - O RING BDE-323711-07.A43 323711-07	£1.88	£2.26
193 - LEVER SA BDE-N542443.A0 N542443	-
193 - LEVER SA BDE-578494-00.A0 578494-00	-
196 - NO LONGER AVAILABLE BDE-000000-00.A96334 000000-00	-
196 - HANDLE BDE-577711-01 577711-01	-
197 - LENS BDE-577735-00.A9 577735-00	£1.66	£1.99
197 - LENS BDE-577735-00.A10 577735-00	£1.66	£1.99
200 - HANDLE SA BDE-N021271.A0 N021271	£56.97	£68.36
200 - HANDLE SA BDE-N021271.A1 N021271	£56.97	£68.36
205 - COVER-TOP BDE-585379-00.A1 585379-00	-
205 - COVER-TOP BDE-585379-00.A2 585379-00	-
207 - FILTER BDE-487229-00.A2 487229-00	£1.66	£1.99
207 - FILTER BDE-487229-00.A3 487229-00	£1.66	£1.99
208 - COVER & SEAL BDE-491348-01.A6 491348-01	£3.22	£3.86
208 - COVER & SEAL BDE-491348-01.A7 491348-01	£3.22	£3.86
251 - COLLAR BDE-326555-00.A16 326555-00	£6.06	£7.27
251 - COLLAR BDE-326555-00.A17 326555-00	£6.06	£7.27
252 - BUSH BDE-326552-01.A2 326552-01	£6.06	£7.27
252 - BUSH BDE-326552-01.A3 326552-01	£6.06	£7.27
253 - PIN BDE-N079374.A53 N079374	£1.66	£1.99
253 - PIN BDE-N079374.A54 N079374	£1.66	£1.99
254 - CLAMP BDE-N021108.A0 N021108	£9.41	£11.29
254 - CLAMP BDE-N021108.A1 N021108	£9.41	£11.29
255 - LOCKING RING BDE-326553-00.A43 326553-00	£4.83	£5.80
255 - LOCKING RING BDE-326553-00.A44 326553-00	£4.83	£5.80
256 - NO LONGER AVAILABLE BDE-000000-00.A96335 000000-00	-
256 - HANDLE BDE-N021121.A0 N021121	-
257 - SCREW WING BDE-326573-00.A11 326573-00	£6.06	£7.27
257 - SCREW WING BDE-326573-00.A12 326573-00	£6.06	£7.27
258 - NUT BDE-326556-00.A27 326556-00	£1.66	£1.99
258 - NUT BDE-326556-00.A28 326556-00	£1.66	£1.99
259 - NUT BDE-330021-01.A70 330021-01	£1.66	£1.99
259 - NUT BDE-330021-01.A71 330021-01	£1.66	£1.99
260 - DEPTH ROD BDE-326205-00.A15 326205-00	£3.70	£4.44
260 - DEPTH ROD BDE-326205-00.A16 326205-00	£3.70	£4.44
261 - WASHER BDE-323753-11.A17 323753-11	£3.92	£4.70
261 - WASHER BDE-323753-11.A18 323753-11	£3.92	£4.70
262 - O RING BDE-577744-05.A18 577744-05	-
262 - O RING BDE-577744-05.A19 577744-05	-
263 - WASHER BDE-323753-14.A31 323753-14	£1.66	£1.99
263 - WASHER BDE-323753-14.A32 323753-14	£1.66	£1.99
264 - SPRING BDE-323395-07.A14 323395-07	£1.66	£1.99
264 - SPRING BDE-323395-07.A15 323395-07	£1.66	£1.99
265 - BEAT PIECE BDE-582432-01.A8 582432-01	£44.00	£52.80
265 - BEAT PIECE BDE-582432-01.A9 582432-01	£44.00	£52.80
266 - SEAL BDE-577484-00.A31 577484-00	£16.52	£19.82
266 - SEAL BDE-N244259.A2 N244259	£8.08	£9.70
267 - WASHER BDE-582381-00.A28 582381-00	£5.88	£7.06
267 - WASHER BDE-582381-00.A29 582381-00	£5.88	£7.06
268 - O RING BDE-577744-02.A0 577744-02	£1.88	£2.26
268 - O RING BDE-577744-02.A1 577744-02	£1.88	£2.26
269 - WASHER BDE-323753-16.A10 323753-16	£3.80	£4.56
269 - WASHER BDE-323753-16.A11 323753-16	£3.80	£4.56
270 - O RING BDE-N210233.A42 N210233	£1.66	£1.99
270 - O RING BDE-N210233.A43 N210233	£1.66	£1.99
271 - CAP BDE-326044-01.A8 326044-01	£1.66	£1.99
271 - CAP BDE-326044-01.A9 326044-01	£1.66	£1.99
272 - SPINDLE BDE-493133-00.A28 493133-00	£153.22	£183.86
272 - SPINDLE BDE-493133-00.A29 493133-00	£153.22	£183.86
273 - ROLLER BDE-325878-00.A39 325878-00	£1.66	£1.99
273 - ROLLER BDE-325878-00.A40 325878-00	£1.66	£1.99
274 - LIP SEAL BDE-329816-00.A30 329816-00	£3.39	£4.07
274 - LIP SEAL BDE-329816-00.A31 329816-00	£3.39	£4.07
275 - COLLAR BDE-326575-02.A1 326575-02	£1.66	£1.99
275 - COLLAR BDE-326575-02.A2 326575-02	£1.66	£1.99
276 - SLEEVE SA BDE-479247-00.A29 479247-00	£7.40	£8.88
276 - SLEEVE SA BDE-479247-00.A30 479247-00	£7.40	£8.88
277 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A2 000000-03	-
277 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A3 000000-03	-
278 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A4 000000-03	-
278 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A5 000000-03	-
279 - SPRING BDE-323395-06.A42 323395-06	£1.66	£1.99
279 - SPRING BDE-323395-06.A43 323395-06	£1.66	£1.99
280 - HALF WASHER BDE-325929-00.A26 325929-00	£1.66	£1.99
280 - HALF WASHER BDE-325929-00.A27 325929-00	£1.66	£1.99
281 - SPRING BDE-487118-00.A14 487118-00	£1.66	£1.99
281 - SPRING BDE-487118-00.A15 487118-00	£1.66	£1.99
282 - GUIDE BDE-N313860.A21 N313860	£4.83	£5.80
282 - SPRING GUIDE BDE-325930-00.A15 325930-00	£1.66	£1.99
283 - SEAL BDE-327141-00.A30 327141-00	£1.88	£2.26
283 - SEAL BDE-327141-00.A31 327141-00	£1.88	£2.26
284 - HOUSING SA BDE-578489-00.A5 578489-00	£84.42	£101.30
284 - HOUSING SA BDE-578489-00.A6 578489-00	£84.42	£101.30
285 - GASKET BDE-577727-01.A14 577727-01	£2.87	£3.44
285 - GASKET BDE-577727-01.A15 577727-01	£2.87	£3.44
286 - SPINDLE LOCK BDE-588560-00.A5 588560-00	-
286 - SPINDLE LOCK BDE-588560-00.A6 588560-00	-
287 - RING BDE-323763-04.A0 323763-04	-
287 - RING BDE-323763-04.A1 323763-04	-
288 - GUIDE BDE-327208-00.A41 327208-00	£1.66	£1.99
288 - GUIDE BDE-327208-00.A42 327208-00	£1.66	£1.99
290 - END CAP BDE-578493-00.A8 578493-00	£16.03	£19.24
290 - END CAP BDE-578493-00.A9 578493-00	£16.03	£19.24
317 - RING BDE-577746-00.A49 577746-00	£1.66	£1.99
317 - RING BDE-577746-00.A50 577746-00	£1.66	£1.99
318 - COVER-TOP BDE-577708-00.A4 577708-00	£7.85	£9.42
318 - COVER-TOP BDE-577708-00.A5 577708-00	£7.85	£9.42
319 - HOUSING LOWER BDE-577709-00.A6 577709-00	-
319 - HOUSING LOWER BDE-577709-00.A7 577709-00	-
320 - SCREW BDE-323924-08.A31 323924-08	£1.66	£1.99
320 - SCREW BDE-323924-08.A32 323924-08	£1.66	£1.99
322 - SCREW BDE-326619-00.A12 326619-00	£1.66	£1.99
322 - SCREW BDE-326619-00.A13 326619-00	£1.66	£1.99
400 - COVER SA BDE-493136-00.A2 493136-00	£10.57	£12.68
400 - COVER SA BDE-493136-00.A3 493136-00	£10.57	£12.68
800 - GREASE 100 GMS BDE-328771-02.A25 328771-02	£19.48	£23.37
800 - GREASE 100 GMS BDE-328771-02.A26 328771-02	£19.48	£23.37
801 - BIT GREASE 50G BDE-328771-07.A22 328771-07	£7.40	£8.88
801 - BIT GREASE 50G BDE-328771-07.A23 328771-07	£7.40	£8.88
821 - NO LONGER AVAILABLE LX BDE-000000-00.A96336 000000-00	-
830 - LABEL BDE-487395-01.A33 487395-01	£1.66	£1.99
830 - LABEL BDE-487395-01.A34 487395-01	£1.66	£1.99
836 - S.T.PULLER BDE-559632-99.A13 559632-99	£34.00	£40.80
836 - NO LONGER AVAILABLE BDE-000000-00.A96337 000000-00	-
837 - S.T.MANDREL BDE-559633-99.A4 559633-99	£24.39	£29.27
837 - S.T.MANDREL BDE-559633-99.A5 559633-99	£24.39	£29.27
838 - S.T.PULLER BDE-559631-99.A4 559631-99	£80.98	£97.18
838 - S.T.PULLER BDE-559631-99.A5 559631-99	£80.98	£97.18
839 - S.T.SUPPORT JIG BDE-559656-99.A51 559656-99	£71.44	£85.73
839 - S.T.SUPPORT JIG BDE-559656-99.A52 559656-99	£71.44	£85.73
840 - NO LONGER AVAILABLE BDE-000000-00.A96338 000000-00	-
840 - S.T.ASSEMBLY JIG BDE-559597-99.A24 559597-99	£38.80	£46.56
841 - S.T.BLOCK BDE-559598-99.A22 559598-99	-
841 - NO LONGER AVAILABLE BDE-000000-00.A96339 000000-00	-
842 - S.T.LIP SEAL REMOVER BDE-559644-99.A4 559644-99	£24.39	£29.27
842 - S.T.LIP SEAL REMOVER BDE-559644-99.A5 559644-99	£24.39	£29.27
843 - S.T.SEAL FITTING TOOL BDE-559645-99.A19 559645-99	£73.58	£88.30
843 - S.T.SEAL FITTING TOOL BDE-559645-99.A20 559645-99	£73.58	£88.30
847 - NO LONGER AVAILABLE LX BDE-000000-00.A96340 000000-00	-

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D25500K Type 3 Hammer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt D25500K Type 3 Hammer Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt D25500K Type 3 Hammer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
