Dewalt DW728KN Type 2 Radial Arm Saw Spare Parts

Home Details Reviews Delivery

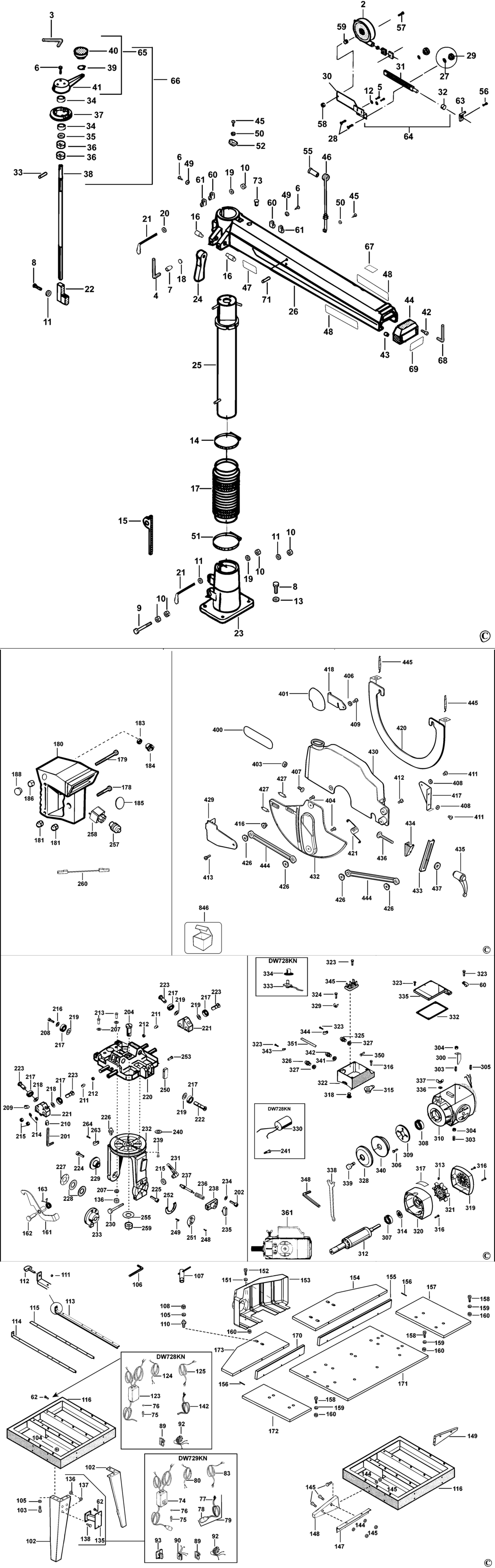

An exploded drawing and spare parts listing for the Dewalt DW728KN Type 2 Radial Arm Saw

	Ex VAT	Inc VAT
2 - AUTO SAFETY RETURN BDE-863929-00.A14 863929-00	£139.42	£167.30
3 - WRENCH 6 MM BDE-860098-04.A192 860098-04	£1.66	£1.99
4 - HEX KEY 8 MM BDE-860098-05.A0 860098-05	£3.39	£4.07
5 - SCREW BDE-860093-14.A69 860093-14	£1.66	£1.99
6 - SCREW BDE-860093-02.A21 860093-02	£1.66	£1.99
7 - SCREW BDE-860088-07.A4 860088-07	£1.66	£1.99
8 - SCREW BDE-949702-05.A13 949702-05	£1.66	£1.99
9 - BOLT BDE-949702-09.A1 949702-09	£1.66	£1.99
10 - NUT BDE-860083-06.A19 860083-06	£1.66	£1.99
11 - WASHER BDE-860073-05.A33 860073-05	£1.66	£1.99
12 - WASHER BDE-860074-03.A221 860074-03	£1.66	£1.99
13 - WASHER BDE-860074-05.A19 860074-05	£1.66	£1.99
14 - CLIP BDE-949700-06.A31 949700-06	£7.40	£8.88
15 - PROTECTOR BDE-33024.A4 33024	£2.26	£2.71
16 - SCREW BDE-863900-00.A12 863900-00	£9.69	£11.63
17 - PROTECTOR BDE-863901-00.A1 863901-00	£48.48	£58.17
18 - INSERT BDE-863909-00.A12 863909-00	£1.66	£1.99
19 - WASHER BDE-860073-05.A32 860073-05	£1.66	£1.99
20 - WASHER BDE-860074-05.A18 860074-05	£1.66	£1.99
21 - HANDLE BDE-862069-00.A11 862069-00	£25.12	£30.15
22 - NUT BDE-862047-00.A2 862047-00	£76.38	£91.65
23 - COLUMN BDE-862237-02.A1 862237-02	£135.41	£162.49
24 - LATCH BDE-862241-00.A8 862241-00	£35.02	£42.02
25 - COLUMN BDE-N045687.A3 N045687	£539.69	£647.63
26 - ARM BDE-N045686.A0 N045686	£1201.31	£1441.57
27 - WASHER BDE-720959-00.A321 720959-00	£1.66	£1.99
28 - SCREW BDE-860301-00.A153 860301-00	£1.66	£1.99
29 - KNOB BDE-946469-00.A108 946469-00	£1.66	£1.99
30 - BRACKET BDE-863724-00.A8 863724-00	£16.52	£19.82
31 - NUT BDE-860083-04.A487 860083-04	£1.66	£1.99
32 - STOP RUBBER BDE-860786-00.A74 860786-00	£1.66	£1.99
33 - PIN BDE-330036-08.A40 330036-08	£1.66	£1.99
34 - BEARING BDE-949755-03.A13 949755-03	£19.48	£23.37
35 - WASHER BDE-863928-00.A2 863928-00	£2.32	£2.78
36 - NUT BDE-863930-00.A2 863930-00	£2.87	£3.44
37 - CAP BDE-862015-00.A5 862015-00	£11.18	£13.41
38 - SCREW BDE-865647-00.A11 865647-00	£38.48	£46.17
39 - CIRCLIP BDE-860079-02.A15 860079-02	£1.66	£1.99
40 - KNOB BDE-860018-00.A4 860018-00	£18.00	£21.60
41 - HANDLE BDE-173251.A10 173251	£25.12	£30.15
42 - SCREW BDE-860093-21.A24 860093-21	£1.66	£1.99
43 - BUMPER BDE-860429-00.A64 860429-00	£1.66	£1.99
44 - END CAP GB BDE-861112-00.A1 861112-00	£12.53	£15.04
45 - SCREW BDE-860238-00.A27 860238-00	£1.66	£1.99
46 - SUPPORT BDE-863912-00.A1 863912-00	£7.40	£8.88
47 - RATING LABEL GB BDE-N395375 N395375	£6.06	£7.27
48 - WARNING LABEL BDE-861738-02.A1 861738-02	£12.53	£15.04
49 - WASHER BDE-860073-00.A90 860073-00	£1.66	£1.99
50 - WASHER BDE-860074-01.A89 860074-01	£1.66	£1.99
51 - CLAMP BDE-949700-05.A2 949700-05	£9.69	£11.63
52 - POINTER BDE-860237-00.A36 860237-00	£3.92	£4.70
55 - PROTECTOR BDE-863259-00.A29 863259-00	£3.92	£4.70
56 - SCREW.TEMP BDE-860093-05.A62 860093-05	£1.66	£1.99
57 - SCREW BDE-860085-20.A28 860085-20	£1.66	£1.99
58 - NUT BDE-860083-04.A488 860083-04	£1.66	£1.99
59 - SPACER BDE-867190-01.A1 867190-01	£3.39	£4.07
60 - CLAMP BDE-860843-01.A48 860843-01	£1.66	£1.99
61 - BRACKET BDE-860843-02.A18 860843-02	£1.66	£1.99
63 - LOCK BDE-33612.A3 33612	£7.40	£8.88
64 - STOP BDE-869356-09.A7 869356-09	£197.90	£237.48
65 - HANDLE SA BDE-864655-01.A10 864655-01	£26.47	£31.76
66 - ELEVATING SA BDE-864462-03.A12 864462-03	£139.42	£167.30
67 - WARNING LABEL BDE-N034454.A7 N034454	£6.06	£7.27
68 - WRENCH 6 MM BDE-860098-04.A195 860098-04	£1.66	£1.99
69 - LABEL BDE-862598-02.A1 862598-02	£1.66	£1.99
71 - PIN BDE-330036-08.A41 330036-08	£1.66	£1.99
73 - PLUG BDE-865856-00.A15 865856-00	£1.66	£1.99
75 - INLET BDE-947322-01.A14 947322-01	£3.39	£4.07
76 - NUT BDE-947321-01.A1 947321-01	£1.66	£1.99
89 - BRAKE GB BDE-N045582.A1 N045582	£179.88	£215.85
92 - CONTACT SA GB BDE-868538-00.A5 868538-00	£73.58	£88.30
102 - LEG BDE-863866-05.A5 863866-05	£46.49	£55.79
103 - SCREW BDE-942831-00.A8 942831-00	£1.66	£1.99
104 - NUT RH BDE-860083-05.A2 860083-05	£1.66	£1.99
105 - WASHER BDE-860074-04.A84 860074-04	£1.66	£1.99
106 - WRENCH 4 MM BDE-949882-01.A51 949882-01	£1.66	£1.99
107 - SPANNER BDE-949752-01.A0 949752-01	£3.92	£4.70
108 - NUT BDE-949726-07.A18 949726-07	£1.66	£1.99
110 - STUD BDE-863880-00.A12 863880-00	£18.00	£21.60
111 - SPACER BDE-863882-00.A1 863882-00	£1.66	£1.99
112 - KNOB BDE-866974-02.A5 866974-02	£1.66	£1.99
113 - BRACKET RH BDE-863682-03.A6 863682-03	£18.00	£21.60
114 - BRACKET LH BDE-863683-03.A0 863683-03	£18.00	£21.60
115 - BRACKET BDE-863684-03.A6 863684-03	£16.52	£19.82
116 - BASE BDE-N038256.A3 N038256	£450.25	£540.30
123 - SWITCHBOX & CABLE GB BDE-N036520.A1 N036520	£539.69	£647.63
124 - CABLE 1 PH BDE-N045584.A1 N045584	£73.58	£88.30
125 - CABLE 1 PH BDE-N045583.A0 N045583	£102.45	£122.94
135 - BRACKET BDE-863426-04.A1 863426-04	£30.98	£37.18
136 - NUT BDE-860083-03.A3 860083-03	£1.66	£1.99
137 - WASHER BDE-860074-02.A115 860074-02	£1.66	£1.99
138 - SCREW.TEMP BDE-760992-00.A18 760992-00	£1.66	£1.99
142 - CABLE GB BDE-861271-00.A2 861271-00	£42.48	£50.98
144 - WASHER M8 BDE-860073-03.A291 860073-03	£1.66	£1.99
145 - BOLT BDE-860085-03.A28 860085-03	£1.66	£1.99
147 - BRACKET BDE-863867-03.A5 863867-03	£8.08	£9.70
148 - BRACKET LH BDE-861238-02.A10 861238-02	£16.52	£19.82
149 - BRACKET RH BDE-861237-02.A2 861237-02	£16.52	£19.82
151 - WASHER BDE-941602-00.A3 941602-00	£1.66	£1.99
152 - SCREW BDE-860085-04.A95 860085-04	£1.66	£1.99
153 - DUST COLLECTOR BDE-N034822.A3 N034822	£161.89	£194.27
154 - ELEMENT BDE-N034815.A3 N034815	£102.45	£122.94
155 - GUIDE BDE-N034816.A0 N034816	£46.49	£55.79
156 - PIN BDE-N032917.A5 N032917	£1.66	£1.99
157 - TABLE BDE-N034814.A0 N034814	£53.46	£64.15
158 - SCREW BDE-949703-09.A11 949703-09	-
159 - WASHER M8 BDE-860073-03.A292 860073-03	£1.66	£1.99
160 - NUT BDE-860083-04.A486 860083-04	£1.66	£1.99
161 - LEVER BDE-N034823.A0 N034823	£25.12	£30.15
162 - BOLT BDE-N034670.A7 N034670	£7.40	£8.88
163 - SPRING BDE-N032405.A5 N032405	£2.87	£3.44
170 - GUIDE BDE-N037575.A1 N037575	£38.48	£46.17
171 - TABLE CENTRE BDE-N034817.A3 N034817	£179.88	£215.85
172 - TABLE BDE-N034811.A3 N034811	£56.97	£68.36
173 - ELEMENT BDE-N037576.A2 N037576	£80.46	£96.55
178 - SCREW BDE-949701-12.A62 949701-12	£1.66	£1.99
179 - SCREW BDE-860089-39.A16 860089-39	£1.66	£1.99
180 - HANDLE BDE-N031178.A3 N031178	£15.01	£18.01
181 - NUT BDE-860083-02.A308 860083-02	£1.66	£1.99
183 - NUT BDE-944590-00.A52 944590-00	£1.66	£1.99
184 - GLAND BDE-949747-07.A0 949747-07	£1.66	£1.99
185 - LABEL BDE-N032401.A1 N032401	£3.39	£4.07
186 - CAP BDE-949747-18.A32 949747-18	£1.66	£1.99
188 - CAP BDE-949747-18.A33 949747-18	£1.66	£1.99
201 - KEY BDE-938539-00.A1 938539-00	£1.66	£1.99
202 - SCREW BDE-860093-02.A22 860093-02	£1.66	£1.99
204 - PIN BDE-N045688.A0 N045688	£19.48	£23.37
207 - WASHER BDE-860075-00.A50 860075-00	£1.66	£1.99
208 - SCREW BDE-760219-00.A87 760219-00	£1.66	£1.99
209 - SCREW BDE-860088-27.A18 860088-27	£1.66	£1.99
210 - SCREW BDE-949853-03.A4 949853-03	£1.88	£2.26
211 - PIN BDE-860088-10.A39 860088-10	£1.66	£1.99
212 - NUT BDE-860083-03.A4 860083-03	£1.66	£1.99
213 - BOLT BDE-941959-00.A14 941959-00	£1.66	£1.99
214 - WASHER BDE-860074-04.A83 860074-04	£1.66	£1.99
215 - NUT RH BDE-860083-05.A3 860083-05	£1.66	£1.99
216 - WASHER BDE-860073-14.A35 860073-14	£1.66	£1.99
217 - BEARING BDE-861721-07.A3 861721-07	£7.40	£8.88
218 - WASHER BDE-863971-00.A0 863971-00	£1.66	£1.99
219 - WASHER BDE-860226-02.A49 860226-02	£1.66	£1.99
220 - YOKE BDE-N402330.A1 N402330	£310.60	£372.72
221 - BRACKET BDE-862259-90.A4 862259-90	£39.97	£47.96
222 - SHAFT BDE-862380-00.A9 862380-00	£12.53	£15.04
223 - SHAFT BDE-863969-00.A13 863969-00	£6.06	£7.27
224 - SCREW BDE-949886-06.A12 949886-06	£1.88	£2.26
225 - SCREW BDE-949886-07.A1 949886-07	£2.87	£3.44
226 - NIPPLE BDE-860650-01.A3 860650-01	£1.66	£1.99
227 - WASHER BDE-863989-00.A2 863989-00	£1.66	£1.99
228 - WASHER BDE-863991-00.A11 863991-00	£1.66	£1.99
229 - TRUNNION BDE-862261-90.A4 862261-90	£18.00	£21.60
230 - SCREW BDE-949702-04.A1 949702-04	£1.66	£1.99
231 - LOCK HANDLE BDE-942518-00.A4 942518-00	£8.08	£9.70
232 - ROLLER HEAD SA BDE-N402329.A0 N402329	£265.84	£319.01
233 - TRUNNION BDE-862260-90.A10 862260-90	£45.47	£54.56
234 - WASHER M8 BDE-860073-03.A293 860073-03	£1.66	£1.99
235 - KNOB BDE-946469-00.A107 946469-00	£1.66	£1.99
236 - SPRING BDE-860112-11.A89 860112-11	£1.66	£1.99
237 - PIN BDE-863977-00.A72 863977-00	£15.01	£18.01
238 - SUPPORT BDE-860835-01.A1 860835-01	£25.12	£30.15
239 - SCREW.SPECIAL BDE-868883-00.A2 868883-00	£1.66	£1.99
240 - WASHER BDE-860074-03.A219 860074-03	£1.66	£1.99
241 - CONNECTOR BDE-861233-01.A2 861233-01	£1.66	£1.99
248 - SCREW BDE-860238-04.A51 860238-04	£1.66	£1.99
249 - SCREW BDE-860205-06.A59 860205-06	£1.66	£1.99
250 - CLAMP BDE-N037691.A0 N037691	£11.18	£13.41
251 - POINTER BDE-862721-01.A13 862721-01	£6.06	£7.27
252 - POINTER BDE-860829-00.A34 860829-00	£6.06	£7.27
253 - SCREW BDE-98104-16.A17 98104-16	£1.66	£1.99
255 - WASHER BDE-N039458.A0 N039458	£1.88	£2.26
257 - BUTTON START BDE-N031511.A7 N031511	£53.46	£64.15
258 - CONTACT BDE-N395840.A2 N395840	£53.46	£64.15
259 - NUT BDE-N034810.A0 N034810	£6.06	£7.27
260 - LEAD BDE-N402336.A1 N402336	£1.66	£1.99
263 - CLAMP BDE-860843-01.A46 860843-01	£1.66	£1.99
264 - SCREW BDE-860094-03.A66 860094-03	£1.66	£1.99
300 - STOP BDE-N034825.A3 N034825	£7.40	£8.88
303 - PIN BDE-860088-10.A37 860088-10	£1.66	£1.99
304 - NUT BDE-860083-03.A2 860083-03	£1.66	£1.99
305 - SCREW BDE-941880-00.A27 941880-00	£1.66	£1.99
306 - SCREW BDE-949889-02.A26 949889-02	£1.66	£1.99
307 - BEARING BDE-868768-07.A144 868768-07	£8.08	£9.70
308 - BEARING BDE-868768-11.A10 868768-11	£35.02	£42.02
309 - FLANGE BDE-862003-00.A11 862003-00	£7.40	£8.88
310 - STATOR 1 PH GB BDE-868423-04.A2 868423-04	£1201.31	£1441.57
312 - ROTOR 1 PH GB BDE-868420-02.A1 868420-02	£265.84	£319.01
313 - SCREW BDE-860088-27.A20 860088-27	£1.66	£1.99
314 - RING BDE-860080-02.A176 860080-02	£1.66	£1.99
315 - GASKET BDE-863410-01.A3 863410-01	£1.66	£1.99
316 - SCREW BDE-949870-04.A12 949870-04	£1.66	£1.99
317 - LABEL BDE-863503-00.A0 863503-00	£2.32	£2.78
318 - GROMMET BDE-944653-00.A29 944653-00	£3.39	£4.07
319 - END CAP BDE-862124-01.A1 862124-01	£18.00	£21.60
320 - COVER BDE-862165-00.A10 862165-00	£25.12	£30.15
321 - FAN BDE-862126-00.A10 862126-00	£35.02	£42.02
322 - HOUSING BDE-862217-92.A1 862217-92	£16.52	£19.82
323 - SCREW BDE-860094-03.A65 860094-03	£1.66	£1.99
326 - CAP BDE-949747-18.A30 949747-18	£1.66	£1.99
327 - NUT BDE-944590-00.A48 944590-00	£1.66	£1.99
328 - OUTER FLANGE >182011 BDE-N071379.A0 N071379	£46.49	£55.79
328 - FLANGE SET SA BDE-N413359.A0 N413359	£86.95	£104.34
329 - WASHER SPRING BDE-944650-00.A42 944650-00	£1.66	£1.99
330 - CONDENSOR BDE-944455-01.A6 944455-01	£25.12	£30.15
332 - GASKET BDE-863716-00.A0 863716-00	£3.92	£4.70
333 - PROTECTOR BDE-860692-03.A10 860692-03	£148.42	£178.11
334 - CAP BDE-863112-00.A17 863112-00	£1.66	£1.99
335 - COVER BDE-862219-00.A13 862219-00	£25.12	£30.15
336 - WASHER BDE-860074-04.A85 860074-04	£1.66	£1.99
337 - NUT BDE-949758-02.A0 949758-02	£1.66	£1.99
338 - WRENCH PIN BDE-938733.A170 938733	£7.40	£8.88
339 - BOLT BDE-N034818.A0 N034818	£53.46	£64.15
340 - FLANGE SET SA BDE-N413359.A1 N413359	£86.95	£104.34
340 - INNER FLANGE BDE-N071378.A2 N071378	£42.48	£50.98
341 - NUT BDE-944590-00.A49 944590-00	£1.66	£1.99
342 - RETAINER BDE-944654-00.A33 944654-00	£1.66	£1.99
343 - STRAP BDE-123106-00.A33 123106-00	£1.66	£1.99
344 - STRAP BDE-860843-03.A20 860843-03	£1.66	£1.99
345 - CONNECTOR BDE-946085-00.A18 946085-00	£1.88	£2.26
348 - HEX. KEY 10 MM BDE-N039459.A2 N039459	£20.50	£24.60
350 - PROTECTOR BDE-863259-00.A30 863259-00	£3.92	£4.70
351 - CABLE BDE-949863-57.A13 949863-57	£15.01	£18.01
361 - MOTOR 1 PH GB BDE-868394-04.A1 868394-04	£987.43	£1184.92
401 - TUBE EXTRACTION BDE-864095-00.A37 864095-00	£8.08	£9.70
403 - NUT BDE-860083-04.A490 860083-04	£1.66	£1.99
404 - SCREW BDE-249412-20.A3 249412-20	£1.66	£1.99
406 - WASHER BDE-860074-01.A88 860074-01	£1.66	£1.99
407 - WASHER BDE-860074-02.A116 860074-02	£1.66	£1.99
408 - WASHER BDE-860074-03.A218 860074-03	£1.66	£1.99
409 - SCREW BDE-943023-00.A0 943023-00	£1.66	£1.99
411 - SCREW BDE-760273-00.A39 760273-00	£1.66	£1.99
412 - SCREW BDE-760998-00.A62 760998-00	£1.66	£1.99
413 - SCREW BDE-860094-12.A3 860094-12	£1.66	£1.99
416 - BUSH BDE-863705-00.A72 863705-00	£1.88	£2.26
417 - BRACKET BDE-863707-01.A71 863707-01	£9.69	£11.63
418 - SQUARE BDE-863708-00.A0 863708-00	£11.18	£13.41
420 - PROTECTOR BDE-863711-02.A10 863711-02	£16.52	£19.82
421 - SPRING BDE-861222-00.A2 861222-00	£2.87	£3.44
426 - WASHER BDE-864053-00.A35 864053-00	£3.92	£4.70
427 - ROLLER BDE-864054-00.A39 864054-00	£1.88	£2.26
429 - SQUARE BDE-863793-01.A2 863793-01	£3.92	£4.70
430 - GUARD BDE-N036977.A11 N036977	£67.48	£80.98
432 - GUARD LOWER BDE-N408881.A1 N408881	£80.98	£97.18
433 - GUARD BDE-863621-00.A8 863621-00	£6.06	£7.27
434 - BRACKET BDE-863620-00.A5 863620-00	£6.06	£7.27
435 - HANDLE BDE-861840-00.A29 861840-00	£8.08	£9.70
436 - SCREW BDE-860301-16.A19 860301-16	£1.66	£1.99
437 - WASHER BDE-941602-00.A1 941602-00	£1.66	£1.99
444 - LEVER BDE-862089-01.A10 862089-01	£18.00	£21.60
445 - SPRING BDE-861221-00.A25 861221-00	£2.87	£3.44
846 - GUARD BDE-N396077.A0 N396077	£539.69	£647.63

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW728KN Type 2 Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW728KN Type 2 Radial Arm Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW728KN Type 2 Radial Arm Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
