Dewalt DW721 Type 3 Radial Arm Saw Spare Parts

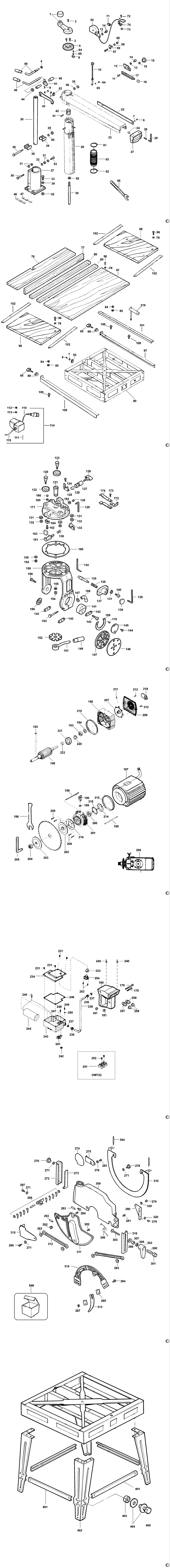

An exploded drawing and spare parts listing for the Dewalt DW721 Type 3 Radial Arm Saw

	Ex VAT	Inc VAT
1 - KNOB SA BDE-860792-00.A17 860792-00	£3.80	£4.56
2 - SCREW BDE-934401-00.A24 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A14 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A48 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A30 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A66 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A26 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A16 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-11.A19 860085-11	£1.50	£1.80
10 - SUPPORT BDE-863912-00.A33 863912-00	£7.18	£8.62
11 - SCREW BDE-860301-00.A197 860301-00	£1.50	£1.80
12 - SUPPORT BDE-860787-90.A29 860787-90	£5.72	£6.87
13 - WASHER BDE-860074-03.A4 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-14.A33 860093-14	£1.50	£1.80
15 - KNOB BDE-946469-00.A113 946469-00	£1.50	£1.80
16 - WASHER BDE-720959-00.A181 720959-00	£1.50	£1.80
17 - BAR BDE-863710-00.A20 863710-00	£7.18	£8.62
18 - STOP RUBBER BDE-860786-00.A39 860786-00	£1.50	£1.80
20 - FSO REPAIR KIT BDE-N152003.A24 N152003	£84.42	£101.30
22 - BAR GB BDE-863272-00.A13 863272-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A89995 000000-00	-
24 - BUMPER BDE-860429-00.A46 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A115 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A64 860093-05	£1.50	£1.80
27 - CAP BDE-861111-01.A4 861111-01	£17.48	£20.97
29 - NO LONGER AVAILABLE BDE-000000-00.A89996 000000-00	-
30 - TUBE ELEVATING SA BDE-860791-00.A26 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A269 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A89 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A32 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A107 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A81 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A42 860085-02	£1.82	£2.19
37 - BASE SA BDE-860909-03.A4 860909-03	£104.31	£125.17
38 - SCREW BDE-860086-00.A17 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A14 860065-00	£1.82	£2.19
40 - SPACER LH BDE-860273-00.A9 860273-00	£10.85	£13.02
41 - PIN BDE-860096-06.A40 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A14 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A40 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A44 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A16 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A1 864723-01	£34.00	£40.80
47 - SPACER RH BDE-860273-02.A29 860273-02	£10.85	£13.02
49 - LEVER BDE-860795-00.A50 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A121 860074-04	£1.50	£1.80
51 - LATCH BDE-861240-00.A6 861240-00	£71.44	£85.73
52 - CLAMP BDE-860843-01.A42 860843-01	£1.50	£1.80
53 - SCREW BDE-949853-11.A58 949853-11	£37.35	£44.82
55 - WASHER BDE-860226-01.A17 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A25 860802-90	£1.50	£1.80
57 - SCREW BDE-860301-00.A99 860301-00	£1.50	£1.80
58 - WASHER BDE-720959-00.A255 720959-00	£1.50	£1.80
59 - CATCH BDE-860858-00.A23 860858-00	-
60 - NUT BDE-860083-03.A114 860083-03	£1.50	£1.80
61 - CLIP BDE-949700-06.A41 949700-06	£7.18	£8.62
62 - STRAP BDE-949700-07.A2 949700-07	£9.41	£11.29
63 - PROTECTOR BDE-863324-00.A9 863324-00	£25.70	£30.84
64 - SCREW BDE-860238-03.A11 860238-03	£1.50	£1.80
65 - WASHER BDE-860074-01.A51 860074-01	£1.50	£1.80
66 - WRENCH BDE-949751-01.A7 949751-01	-
71 - CLAMP BDE-860521-00.A8 860521-00	-
72 - SCREW BDE-860090-02.A3 860090-02	-
73 - NUT BDE-860083-01.A24 860083-01	£1.50	£1.80
74 - NO LONGER AVAILABLE BDE-000000-00.A123550 000000-00	-
76 - ELEMENT BDE-868451-00.A0 868451-00	£33.13	£39.76
77 - GUIDE BDE-868453-00.A0 868453-00	£25.05	£30.06
78 - WASHER M8 BDE-860073-03.A143 860073-03	£1.50	£1.80
80 - ELEMENT BDE-868452-00.A1 868452-00	£17.03	£20.44
81 - TABLE BDE-868450-00.A1 868450-00	-
84 - NUT BDE-860083-04.A360 860083-04	£1.50	£1.80
85 - WASHER BDE-860074-03.A121 860074-03	£1.50	£1.80
89 - NUT BDE-864078-00.A5 864078-00	£3.80	£4.56
90 - BASE BDE-869320-00.A6 869320-00	£958.68	£1150.41
95 - KNOB BDE-860581-01.A1 860581-01	£1.42	£1.70
96 - SCREW BDE-949703-09.A9 949703-09	£1.50	£1.80
97 - SUPPORT BDE-868455-00.A1 868455-00	-
98 - NO LONGER AVAILABLE BDE-000000-00.A123551 000000-00	-
100 - SCREW.SPECIAL BDE-868459-00.A1 868459-00	£3.30	£3.96
101 - SUPPORT BDE-868457-00.A0 868457-00	£33.13	£39.76
102 - SUPPORT BDE-868458-00.A0 868458-00	£25.05	£30.06
109 - NO LONGER AVAILABLE BDE-000000-00.A123552 000000-00	-
110 - CABLE SA GB BDE-949863-23.A18 949863-23	£74.15	£88.98
111 - SCREW BDE-949701-03.A18 949701-03	£1.50	£1.80
112 - NUT BDE-860083-02.A230 860083-02	£1.50	£1.80
113 - WASHER BDE-860073-01.A245 860073-01	£1.50	£1.80
114 - NO LONGER AVAILABLE GB BDE-000000-00.A123553 000000-00	-
115 - CABLE BDE-861896-00.A4 861896-00	£113.07	£135.68
120 - SHAFT BDE-760421-00.A34 760421-00	£7.85	£9.42
121 - PIVOT SHAFT BDE-860123-00.A52 860123-00	-
122 - BEARING BDE-860154-00.A62 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A29 760417-00	£10.85	£13.02
124 - SCREW BDE-949894-06.A50 949894-06	£1.50	£1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A123554 000000-00	-
126 - KNOB BDE-862427-00.A50 862427-00	£1.50	£1.80
127 - CLAMP BDE-860121-00.A3 860121-00	-
128 - NO LONGER AVAILABLE BDE-000000-00.A123555 000000-00	-
129 - KEY BDE-938539-00.A7 938539-00	£1.50	£1.80
130 - SCREW BDE-941880-00.A3 941880-00	£1.50	£1.80
131 - WASHER BDE-860074-03.A122 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A16 860083-08	£1.50	£1.80
133 - COVER BDE-860817-01.A29 860817-01	£1.42	£1.70
134 - WRENCH 4 MM BDE-949882-01.A45 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A56 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A79 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A39 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A173 860098-04	£1.50	£1.80
139 - KNOB BDE-942453-00.A15 942453-00	£3.80	£4.56
140 - SCREW BDE-860093-00.A123 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A4 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A56 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-00.A124 860093-00	£1.50	£1.80
144 - SCREW BDE-860531-00.A73 860531-00	£1.50	£1.80
145 - POINTER BDE-862721-01.A23 862721-01	£5.88	£7.06
146 - PLATE BDE-860830-00.A29 860830-00	-
147 - SHIELD BDE-860827-00.A28 860827-00	£14.57	£17.48
149 - KNOB BDE-860796-01.A0 860796-01	-
151 - NO LONGER AVAILABLE BDE-000000-00.A123556 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A123557 000000-00	-
153 - SCREW BDE-860086-11.A28 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A44 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A256 720959-00	£1.50	£1.80
156 - DISC BDE-864160-00.A10 864160-00	£1.50	£1.80
158 - SCREW BDE-864058-00.A15 864058-00	£5.88	£7.06
159 - YOKE BDE-N045684.A1 N045684	£96.55	£115.86
160 - RING SA BDE-860824-00.A25 860824-00	£55.30	£66.36
161 - NO LONGER AVAILABLE BDE-000000-00.A123558 000000-00	-
162 - SCREW BDE-860085-11.A24 860085-11	£1.50	£1.80
163 - CAP BDE-760427-00.A17 760427-00	£1.78	£2.13
164 - CATCH BDE-860816-00.A25 860816-00	£1.42	£1.70
165 - WASHER BDE-860073-01.A244 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A91 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A130 860074-03	£1.50	£1.80
168 - CLAMP BDE-860825-00.A33 860825-00	-
169 - POINTER BDE-860829-00.A32 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A78 860205-06	£1.50	£1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A123559 000000-00	-
172 - BRACKET BDE-863726-00.A15 863726-00	£2.26	£2.71
173 - SCREW BDE-860094-03.A143 860094-03	£1.50	£1.80
174 - SPRING BDE-860820-00.A15 860820-00	£1.82	£2.19
178 - SCREW BDE-949701-12.A48 949701-12	£1.50	£1.80
179 - SCREW BDE-860089-39.A11 860089-39	£1.50	£1.80
180 - HANDLE BDE-862424-00.A18 862424-00	-
181 - NUT BDE-860083-02.A229 860083-02	£1.50	£1.80
182 - NUT M6 BDE-860083-12.A250 860083-12	£1.50	£1.80
186 - WRENCH GB BDE-949751-02.A11 949751-02	-
189 - WASHER M8 BDE-860073-03.A141 860073-03	£1.50	£1.80
190 - NUT WING BDE-860143-00.A1 860143-00	-
192 - KEY BDE-860318-00.A45 860318-00	-
193 - BEARING BDE-868768-07.A137 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A140 860080-02	£1.50	£1.80
195 - BOLT BDE-860446-01.A31 860446-01	£1.50	£1.80
196 - END CAP SA BDE-861863-00.A3 861863-00	£55.30	£66.36
197 - STATOR SA 230V BDE-868401-01.A5 868401-01	£301.55	£361.86
198 - ROTOR 1 PH BDE-868511-00.A4 868511-00	£140.47	£168.56
200 - BEARING BDE-868768-10.A39 868768-10	£14.57	£17.48
201 - HOUSING BDE-862162-00.A14 862162-00	£24.39	£29.27
202 - FLANGE BDE-945842-00.A31 945842-00	-
203 - FLANGE BDE-945843-00.A2 945843-00	£7.18	£8.62
204 - NUT BDE-944460-00.A27 944460-00	£24.39	£29.27
205 - HEX KEY 8 MM BDE-860098-05.A8 860098-05	£3.30	£3.96
206 - MOTOR SA 1PH BDE-868390-00.A1 868390-00	£454.04	£544.85
207 - FAN BDE-945841-00.A0 945841-00	£2.78	£3.34
208 - END CAP BDE-860687-04.A13 860687-04	£7.18	£8.62
209 - SCREW BDE-860538-00.A11 860538-00	£1.50	£1.80
210 - SEAL BDE-860718-00.A1 860718-00	£7.18	£8.62
211 - SCREW BDE-860088-25.A19 860088-25	£1.50	£1.80
212 - SCREW BDE-860094-01.A44 860094-01	£1.50	£1.80
214 - CAP BDE-123302-01.A21 123302-01	£3.80	£4.56
215 - GASKET BDE-863878-00.A10 863878-00	£3.30	£3.96
216 - PLATE BDE-864085-01.A7 864085-01	£5.88	£7.06
219 - CAP BDE-863112-00.A13 863112-00	£1.50	£1.80
220 - CIRCLIP BDE-949727-06.A5 949727-06	£1.50	£1.80
221 - BRAKE ADAPTER BDE-861336-05.A6 861336-05	£10.85	£13.02
222 - SPRING BDE-861338-05.A5 861338-05	£1.50	£1.80
231 - SCREW BDE-860094-03.A145 860094-03	£1.50	£1.80
233 - CAP BDE-860133-00.A45 860133-00	£1.42	£1.70
234 - COVER BDE-944454-00.A21 944454-00	£10.57	£12.68
236 - RETAINER BDE-944654-00.A14 944654-00	£1.50	£1.80
237 - NUT BDE-944590-00.A22 944590-00	£1.50	£1.80
238 - LEAD BDE-949863-44.A1 949863-44	£7.64	£9.17
240 - CONNECTOR BDE-861233-01.A1 861233-01	£1.50	£1.80
241 - GROMMET BDE-944652-00.A19 944652-00	£4.69	£5.63
242 - GROMMET BDE-944653-00.A50 944653-00	£3.30	£3.96
243 - HOUSING BDE-860702-00.A47 860702-00	-
244 - CONDENSOR GB BDE-944455-00.A19 944455-00	-
245 - CONNECTOR BDE-861257-00.A19 861257-00	£1.50	£1.80
246 - GASKET BDE-860708-00.A67 860708-00	-
247 - WASHER BDE-860073-01.A248 860073-01	£1.50	£1.80
248 - SCREW.TEMP BDE-860094-00.A93 860094-00	£1.50	£1.80
249 - SCREW BDE-860094-05.A47 860094-05	£1.50	£1.80
250 - WASHER SPRING BDE-944650-00.A64 944650-00	£1.50	£1.80
253 - SCREW BDE-860094-03.A144 860094-03	£1.50	£1.80
254 - KLIXON BDE-860692-00.A21 860692-00	-
256 - BUTTON STOP BDE-863124-16.A5 863124-16	-
257 - BUTTON START BDE-863124-17.A22 863124-17	-
258 - COVER BDE-942415-00.A11 942415-00	£4.58	£5.49
270 - KNOB BDE-946469-00.A66 946469-00	£1.50	£1.80
271 - WASHER BDE-860075-00.A100 860075-00	£1.50	£1.80
272 - SUPPORT BDE-863709-00.A63 863709-00	-
273 - PROTECTOR BDE-863703-00.A1 863703-00	-
274 - TUBE EXTRACTION BDE-864095-00.A17 864095-00	£7.85	£9.42
275 - SQUARE BDE-863708-00.A3 863708-00	£10.85	£13.02
276 - WASHER BDE-860074-01.A47 860074-01	£1.50	£1.80
278 - KNOB BDE-861842-00.A11 861842-00	£1.50	£1.80
279 - SCREW BDE-760273-00.A42 760273-00	£1.50	£1.80
280 - BRACKET BDE-863707-01.A68 863707-01	£9.41	£11.29
281 - SCREW BDE-760998-00.A35 760998-00	£1.50	£1.80
282 - SCREW BDE-249412-20.A38 249412-20	£1.50	£1.80
283 - WASHER BDE-864053-00.A30 864053-00	£3.80	£4.56
284 - SCREW BDE-860301-00.A104 860301-00	£1.50	£1.80
285 - SHIM BDE-864086-00.A42 864086-00	£3.70	£4.44
287 - NUT BDE-860083-03.A115 860083-03	£1.50	£1.80
290 - SCREW BDE-860094-12.A7 860094-12	£1.50	£1.80
292 - BUSH BDE-863705-00.A68 863705-00	£1.82	£2.19
293 - ROLLER BDE-864054-00.A44 864054-00	£1.82	£2.19
296 - ELEMENT BDE-864538-02.A28 864538-02	-
297 - SCREW BDE-760219-00.A64 760219-00	£1.50	£1.80
299 - SPACER BDE-863599-02.A35 863599-02	£1.50	£1.80
300 - SPRING BDE-760483-00.A34 760483-00	£1.50	£1.80
301 - CAP BDE-863073-00.A45 863073-00	£4.69	£5.63
302 - LEVER BDE-863320-00.A43 863320-00	£5.88	£7.06
303 - SCREW BDE-949891-03.A45 949891-03	£1.50	£1.80
304 - SPRING BDE-861221-00.A33 861221-00	£2.78	£3.34
305 - NUT BDE-860083-15.A10 860083-15	£1.50	£1.80
306 - SPRING BDE-861239-00.A12 861239-00	£5.88	£7.06
307 - WASHER BDE-860076-04.A16 860076-04	£1.50	£1.80
309 - NO LONGER AVAILABLE BDE-000000-00.A123560 000000-00	-
310 - PROTECTOR BDE-863773-02.A4 863773-02	£14.57	£17.48
311 - GUARD BDE-862426-00.A6 862426-00	£16.03	£19.24
312 - LEVER BDE-862082-01.A13 862082-01	£10.85	£13.02
313 - RIVING KNIFE BDE-863271-00.A21 863271-00	-
314 - NO LONGER AVAILABLE BDE-000000-00.A123561 000000-00	-
315 - BRACKET BDE-863205-02.A2 863205-02	£3.80	£4.56
316 - BRACKET BDE-863437-00.A17 863437-00	£19.90	£23.88
319 - SPANNER BOX BDE-869235-00.A0 869235-00	£17.48	£20.97
320 - WASHER BDE-860073-01.A247 860073-01	£1.50	£1.80
401 - CROSSBAR LONG BDE-860009-09.A16 860009-09	£25.70	£30.84
402 - LEG BDE-860008-00.A13 860008-00	£58.69	£70.43
403 - NUT BDE-860083-04.A359 860083-04	£1.50	£1.80
404 - WASHER M8 BDE-860073-03.A142 860073-03	£1.50	£1.80
405 - SCREW BDE-860085-04.A138 860085-04	£1.50	£1.80
846 - GUARD 12" BDE-869322-01.A2 869322-01	-

Attribute Name	Value
Brand	Dewalt

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW721 Type 3 Radial Arm Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW721 Type 3 Radial Arm Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
