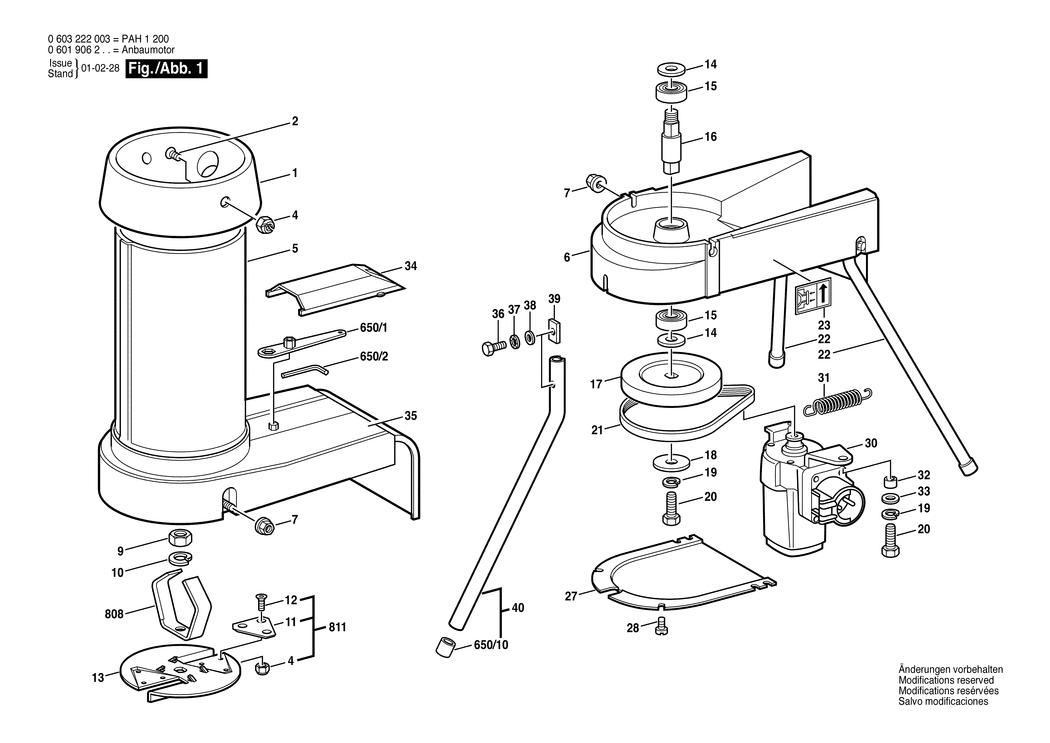

1 - FILTER FUNNEL
BSD-1609201531.A0
1609201531
|
-
|
|
|
|
2 - RAISED COUNTERS HEAD SCRE DIN 964-M6x20-5.8
BSD-2910821201.A0
2910821201
|
-
|
|
|
|
4 - HEX NUT DIN 985-M6-8
BSD-2915061004.A63
2915061004
|
£1.84
|
£2.21
|
|
|
5 - UPPER HOUSING
BSD-1609201532.A4
1609201532
|
-
|
|
|
|
6 - HOUSING BASE
BSD-1609201533.A0
1609201533
|
-
|
|
|
|
7 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A225
2915011009
|
£2.74
|
£3.29
|
|
|
9 - HEX NUT M 16
BSD-1609201544.A3
1609201544
|
-
|
|
|
|
10 - SPRING LOCK WASHER
BSD-2916680013.A3
2916680013
|
-
|
|
|
|
12 - COUNTERSUNK-HEAD SCREW M 6x12 MM
BSD-1609201549.A2
1609201549
|
-
|
|
|
|
13 - CUTTER PLATE
BSD-1609201534.A3
1609201534
|
-
|
|
|
|
14 - SHIM RING
BSD-1609201546.A4
1609201546
|
-
|
|
|
|
15 - GROOVE BALL BEARING 20x42x12
BSD-1900905124.A6
1900905124
|
£62.51
|
£75.01
|
|
|
16 - DRIVE SHAFT
BSD-1609201535.A3
1609201535
|
-
|
|
|
|
17 - PULLEY
BSD-1609201536.A1
1609201536
|
-
|
|
|
|
18 - PLAIN WASHER dia 28 x dia 9x3 MM
BSD-1609201545.A3
1609201545
|
-
|
|
|
|
19 - SPRING LOCK WASHER B 8 DIN 127
BSD-2916680009.A65
2916680009
|
-
|
|
|
|
20 - HEX SCREW DIN 933-M8x20-8.8
BSD-2911061242.A2
2911061242
|
-
|
|
|
|
21 - V-BELT
BSD-1609201537.A2
1609201537
|
-
|
|
|
|
22 - SUPPORT TUBE
BSD-1609201538.A2
1609201538
|
-
|
|
|
|
23 - REFERENCE PLATE
BSD-1601110352.A0
1601110352
|
-
|
|
|
|
27 - COVER PLATE
BSD-1609201539.A2
1609201539
|
-
|
|
|
|
28 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A116
2910011120
|
£1.75
|
£2.10
|
|
|
30 - UN. FLANGE-MTD. MOTOR
BSD-0601906232.A0
0601906232
|
-
|
|
|
|
31 - EXTENSION SPRING
BSD-1609201540.A2
1609201540
|
-
|
|
|
|
32 - SPACER SLEEVE
BSD-1609201541.A2
1609201541
|
-
|
|
|
|
33 - PLAIN WASHER DIN 125-A 8.4-ST
BSD-2916011016.A74
2916011016
|
£1.84
|
£2.21
|
|
|
34 - SEALING CAP
BSD-1609201542.A2
1609201542
|
-
|
|
|
|
35 - OUTER RIM
BSD-1609201543.A2
1609201543
|
-
|
|
|
|
36 - HEX SCREW M 6x20 DIN 933-8.8
BSD-2911061201.A12
2911061201
|
-
|
|
|
|
37 - SERRATED LOCK-WASHER A 6.4 DIN 6798
BSD-2916070009.A3
2916070009
|
-
|
|
|
|
38 - PLAIN WASHER DIN 433-6.4-ST 50
BSD-2916011013.A23
2916011013
|
£1.75
|
£2.10
|
|
|
39 - CLAMPING PIECE M 6
BSD-1609201548.A2
1609201548
|
-
|
|
|
|
40 - SUPPORT TUBE
BSD-1609201547.A2
1609201547
|
-
|
|
|
|
101 - MOTOR HOUSING
BSD-1605108129.A14
1605108129
|
-
|
|
|
|
102 - FIELD 220-230V
BSD-1604220354.A54
1604220354
|
£33.74
|
£40.49
|
|
|
103 - ARMATURE 220V
BSD-1604010293.A2
1604010293
|
-
|
|
|
|
108 - NAMEPLATE
BSD-3601106003.A2
3601106003
|
-
|
|
|
|
109 - STICKER
BSD-1601110046.A156
1601110046
|
£1.75
|
£2.10
|
|
|
111 - SPIRAL SPRING
BSD-1604652006.A262
1604652006
|
£1.84
|
£2.21
|
|
|
112 - SUPPRESSION CAPACITOR
BSD-3607328001.A3
3607328001
|
-
|
|
|
|
113 - BALL BEARING 7x19x6
BSD-2600905032.A1482
2600905032
|
£5.57
|
£6.68
|
|
|
114 - BALL BEARING 9x26x8
BSD-1900905025.A43
1900905025
|
£21.52
|
£25.83
|
|
|
116 - BRUSH HOLDER
BSD-3604336012.A131
3604336012
|
£5.58
|
£6.70
|
|
|
120 - WIRE GUIDE
BSD-1601025001.A89
1601025001
|
£1.75
|
£2.10
|
|
|
121 - BLADE TERMINAL
BSD-1604477001.A56
1604477001
|
£1.75
|
£2.10
|
|
|
122 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A390
2910021118
|
£1.84
|
£2.21
|
|
|
123 - HOUSING COVER
BSD-3605700068.A3
3605700068
|
-
|
|
|
|
124 - PULLEY
BSD-3600420005.A1
3600420005
|
-
|
|
|
|
125 - SWITCH HOUSING
BSD-3605130005.A0
3605130005
|
-
|
|
|
|
127 - INTERMEDIATE RING
BSD-1600206026.A101
1600206026
|
£1.84
|
£2.21
|
|
|
128 - RETAINING RING DIN 9045 - dia 30MM
BSD-2916600016.A27
2916600016
|
£1.75
|
£2.10
|
|
|
129 - AIR-DEFLECTOR RING
BSD-1600502014.A15
1600502014
|
-
|
|
|
|
130 - COMPRESSION SPRING
BSD-1604613006.A43
1604613006
|
£1.75
|
£2.10
|
|
|
131 - SEALING CAP
BSD-1605500109.A31
1605500109
|
-
|
|
|
|
132 - INTERMEDIATE RING
BSD-1600502011.A394
1600502011
|
£2.74
|
£3.29
|
|
|
133 - HOUSING COVER
BSD-1605500112.A13
1605500112
|
-
|
|
|
|
134 - CABLE 1x0.81 MM/2
BSD-3604445001.A2
3604445001
|
-
|
|
|
|
136 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A397
2910211019
|
£1.84
|
£2.21
|
|
|
137 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A509
2910211018
|
£1.75
|
£2.10
|
|
|
138 - TAPPING SCREW ST-4.8x57.5-TORX.T20
BSD-1613435009.A199
1613435009
|
£1.75
|
£2.10
|
|
|
139 - TAPPING SCREW DIN 7971-B4.8x19
BSD-2910211234.A12
2910211234
|
£1.75
|
£2.10
|
|
|
140 - RECEPTACLE
BSD-3604478001.A2
3604478001
|
-
|
|
|
|
141 - RAISED COUNTERS HEAD SCRE DIN 964-M5x30-4.8
BSD-2910811166.A2
2910811166
|
-
|
|
|
|
142 - GROMMET
BSD-3600312005.A10
3600312005
|
-
|
|
|
|
650 - PARTS SET
BSD-1609201530.A2
1609201530
|
-
|
|
|
|
650/1 - HEXAGON SOCKET WRENCH
BSD-1609201629.A2
1609201629
|
-
|
|
|
|
650/2 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A441
2607950004
|
£1.84
|
£2.21
|
|
|
650/10 - COVER
BSD-1607000190.A3
1607000190
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-3607014012.A88
3607014012
|
£25.05
|
£30.06
|
|
|
808 - CROWN KNIFE
BSD-1609201510.A2
1609201510
|
-
|
|
|
|
811 - SHEARING BLADE
BSD-1609201511.A2
1609201511
|
-
|
|
|
