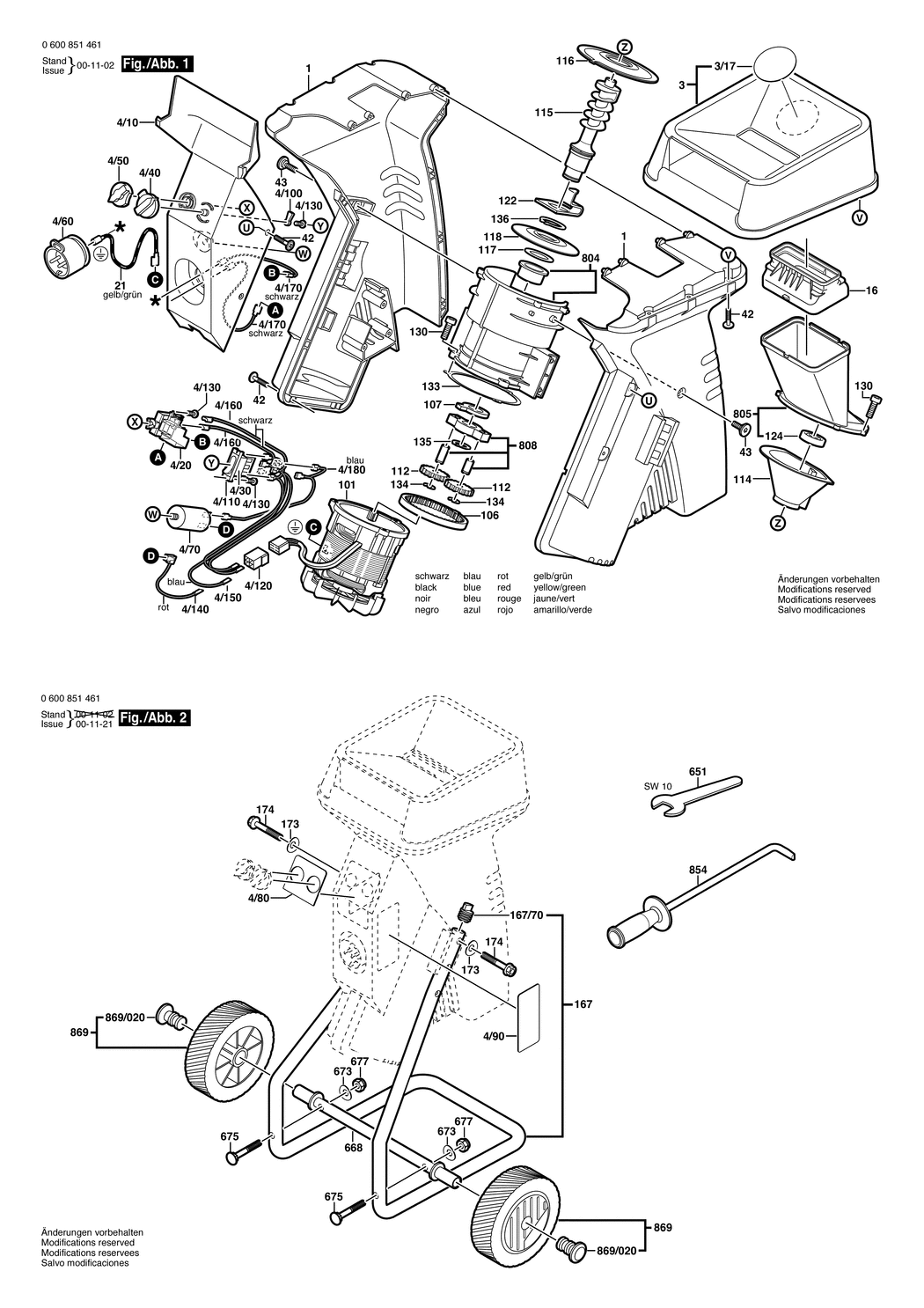

1 - HOUSING SECTION
BSD-1605190206.A0
1605190206
|
-
|
|
|
|
3 - HOUSING COVER
BSD-1605190207.A0
1605190207
|
-
|
|
|
|
3/17 - STICKER
BSD-1601118916.A10
1601118916
|
£3.34
|
£4.01
|
|
|
4/10 - SWITCH PLATE
BSD-1605190109.A20
1605190109
|
-
|
|
|
|
4/20 - ON-OFF SWITCH
BSD-1607200216.A20
1607200216
|
-
|
|
|
|
4/30 - SWITCH
BSD-1607200143.A17
1607200143
|
-
|
|
|
|
4/40 - SWITCH BUTTON
BSD-1602026069.A17
1602026069
|
-
|
|
|
|
4/50 - SWITCH BUTTON
BSD-1602026070.A3
1602026070
|
-
|
|
|
|
4/60 - CONNECTION PART
BSD-1605190060.A2
1605190060
|
-
|
|
|
|
4/70 - SUPPRESSION FILTER
BSD-1607328069.A31
1607328069
|
-
|
|
|
|
4/80 - REFERENCE PLATE
BSD-1601118A46.A0
1601118A46
|
-
|
|
|
|
4/90 - REFERENCE PLATE
BSD-1601118A80.A0
1601118A80
|
£3.99
|
£4.79
|
|
|
4/100 - CONTROL LEVER
BSD-1602026071.A17
1602026071
|
£2.45
|
£2.94
|
|
|
4/110 - FRAME
BSD-1605190125.A3
1605190125
|
£2.33
|
£2.80
|
|
|
4/120 - CONNECTOR HOUSING
BSD-1605190124.A17
1605190124
|
£2.52
|
£3.02
|
|
|
4/130 - OVAL-HEAD SCREW
BSD-2914211463.A2
2914211463
|
£1.84
|
£2.21
|
|
|
4/140 - CONNECTING CABLE L=100 MM
BSD-1604438019.A20
1604438019
|
£1.95
|
£2.34
|
|
|
4/150 - CONNECTING CABLE L=200/L=100 MM
BSD-1604438020.A0
1604438020
|
£2.52
|
£3.02
|
|
|
4/160 - CONNECTING CABLE L=200/L=130 MM
BSD-1604438021.A20
1604438021
|
-
|
|
|
|
4/170 - CONNECTING CABLE L=180 MM
BSD-1604438022.A0
1604438022
|
£1.95
|
£2.34
|
|
|
4/180 - CONNECTING CABLE L=160/L=100 MM
BSD-1604438023.A20
1604438023
|
£2.33
|
£2.80
|
|
|
16 - INSERT
BSD-1605190055.A55
1605190055
|
-
|
|
|
|
21 - CONNECTING CABLE L=250 MM
BSD-1604438024.A0
1604438024
|
£2.45
|
£2.94
|
|
|
42 - THREAD-FORMING TAP. SCREW TORX-T20
BSD-1603435054.A51
1603435054
|
£1.84
|
£2.21
|
|
|
43 - THREAD-FORMING TAP. SCREW
BSD-1603435055.A3
1603435055
|
£1.84
|
£2.21
|
|
|
101 - MOTOR 230V
BSD-1607220041.A17
1607220041
|
£216.12
|
£259.35
|
|
|
106 - RING GEAR
BSD-1606334007.A0
1606334007
|
£11.78
|
£14.13
|
|
|
107 - CARRIER
BSD-1606490037.A3
1606490037
|
£4.75
|
£5.70
|
|
|
112 - TOOTHED GEAR Z=34
BSD-1606318010.A3
1606318010
|
£8.17
|
£9.80
|
|
|
114 - FUNNEL
BSD-1600590007.A3
1600590007
|
-
|
|
|
|
115 - HELIX
BSD-1606122008.A17
1606122008
|
-
|
|
|
|
116 - FERRULE
BSD-1600590008.A17
1600590008
|
-
|
|
|
|
117 - FRICTION WASHER
BSD-1600102021.A3
1600102021
|
£3.34
|
£4.01
|
|
|
118 - EJECTOR
BSD-1600590009.A3
1600590009
|
-
|
|
|
|
122 - SCRAPER
BSD-1601329030.A17
1601329030
|
-
|
|
|
|
124 - GROOVE BALL BEARING 6203-2 Z DIN 625
BSD-1900905227.A208
1900905227
|
-
|
|
|
|
130 - THREAD-FORMING TAP. SCREW M6x25 MM
BSD-1603414010.A102
1603414010
|
£1.84
|
£2.21
|
|
|
133 - SEAL
BSD-1600290035.A55
1600290035
|
-
|
|
|
|
134 - LOCKING WASHER DIN 6799-10-FSt
BSD-2916080013.A3
2916080013
|
£4.99
|
£5.99
|
|
|
135 - SPRING RETAINING RING 28x1.5 DIN 471
BSD-2916650016.A18
2916650016
|
£2.33
|
£2.80
|
|
|
136 - SPRING RETAINING RING DIN 471-42x1.75-FST-ZNC-B
BSD-2916651021.A19
2916651021
|
-
|
|
|
|
167 - SUPPORTING FRAME
BSD-1600795014.A0
1600795014
|
-
|
|
|
|
167/70 - PLUG
BSD-1600591030.A17
1600591030
|
-
|
|
|
|
173 - PLAIN WASHER
BSD-1600190030.A24
1600190030
|
£1.84
|
£2.21
|
|
|
174 - THREAD-FORMING TAP. SCREW
BSD-1603435056.A17
1603435056
|
£1.84
|
£2.21
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW10
BSD-1607950527.A9
1607950527
|
-
|
|
|
|
668 - AXLE
BSD-1607000957.A49
1607000957
|
£14.91
|
£17.89
|
|
|
673 - PLAIN WASHER
BSD-1600190030.A25
1600190030
|
£1.84
|
£2.21
|
|
|
675 - ROUND-HEAD BOLT DIN 603 M6x50
BSD-2910281213.A43
2910281213
|
£1.38
|
£1.66
|
|
|
677 - HEX NUT DIN 985-M6-8
BSD-2915061004.A46
2915061004
|
£1.84
|
£2.21
|
|
|
804 - GEAR HOUSING
BSD-1607000836.A17
1607000836
|
£61.70
|
£74.04
|
|
|
805 - BEARING FLANGE
BSD-1607000837.A3
1607000837
|
-
|
|
|
|
808 - PLANETARY-GEAR CARRIER
BSD-1607000838.A17
1607000838
|
£15.65
|
£18.78
|
|
|
854 - HOOK
BSD-1607959008.A19
1607959008
|
-
|
|
|
|
869 - WHEEL
BSD-1606621008.A0
1606621008
|
-
|
|
|
|
869/020 - PLUG
BSD-1609351099.A0
1609351099
|
-
|
|
|
