Bosch AXT 2200 / 0600850132 / CH 230 Volt Spare Parts

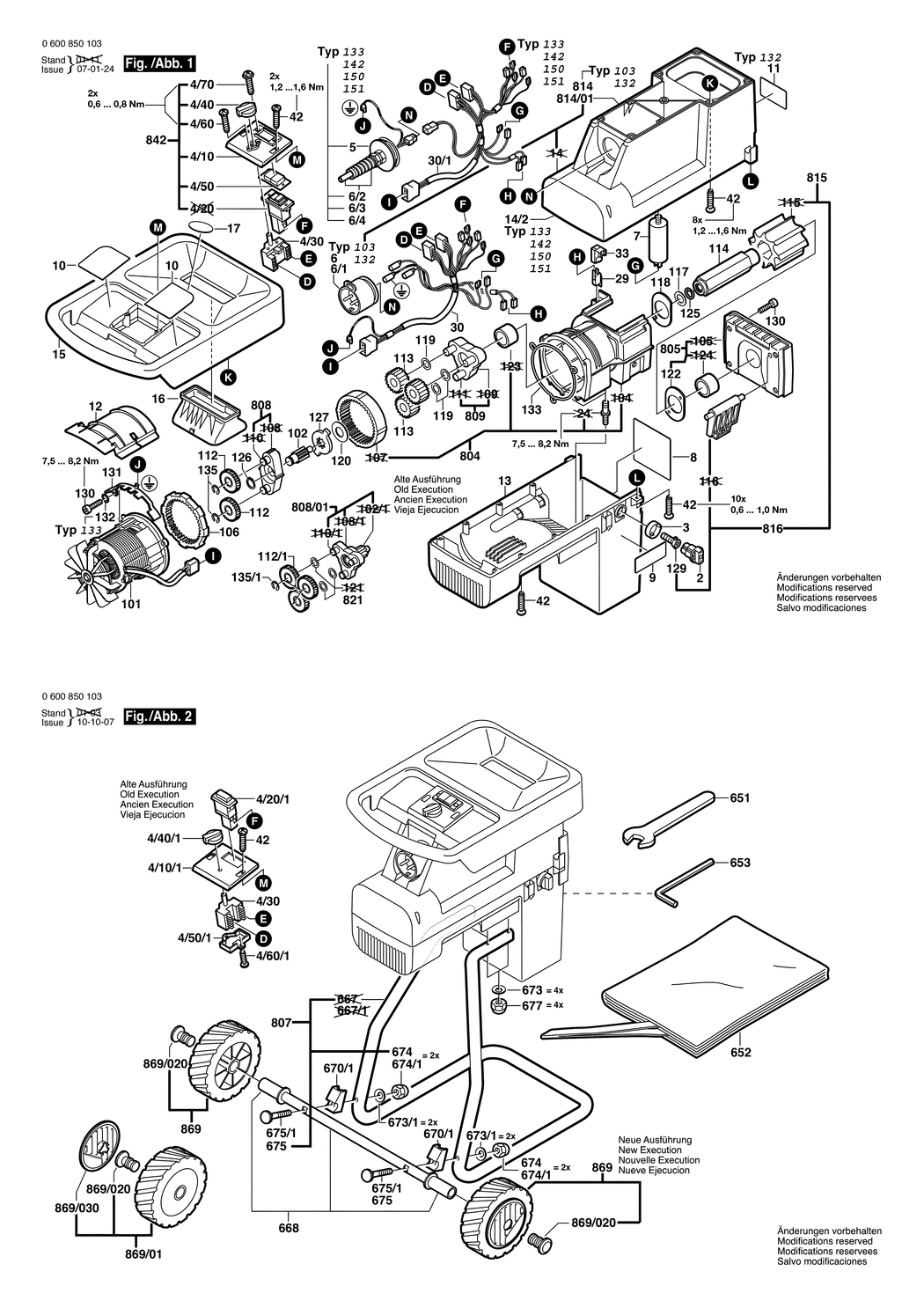

An exploded drawing and listing for the Bosch AXT 2200 / 0600850132 / CH 230 Volt

	Ex VAT	Inc VAT
2 - ADJUSTMENT KNOB BSD-1600591021.A11 1600591021	-
3 - SPRING CLIP BSD-1600290034.A30 1600290034	-
4/10 - SWITCH PLATE BSD-1605190132.A23 1605190132	£3.80	£4.56
4/10/1 - SWITCH PLATE BSD-1605190056.A17 1605190056	-
4/20/1 - SWITCH KIT BSD-1607000863.A34 1607000863	-
4/30 - SWITCH BSD-1607200131.A28 1607200131	-
4/40 - SWITCH BUTTON BSD-1602025029.A2 1602025029	£2.61	£3.13
4/40/1 - SWITCH BUTTON BSD-1602025028.A21 1602025028	-
4/50 - PROTECTIVE CAP BSD-1605500207.A14 1605500207	-
4/50/1 - FRAME BSD-1601015028.A2 1601015028	-
4/60 - OVAL-HEAD SCREW KT 4.0x14 BSD-1603425001.A20 1603425001	£2.52	£3.02
4/60/1 - THREAD-FORMING TAP. SCREW KT 4.0x14 MM BSD-1603435039.A17 1603435039	-
4/70 - OVAL-HEAD SCREW 4x12 MM BSD-2914211503.A18 2914211503	£2.52	£3.02
6/1 - CONNECTION PART BSD-1605190065.A2 1605190065	£13.41	£16.09
7 - SUPPRESSION FILTER BSD-1607328069.A10 1607328069	-
8 - NAMEPLATE BSD-1601118924.A0 1601118924	-
9 - REFERENCE PLATE BSD-1601118928.A10 1601118928	£3.80	£4.56
10 - REFERENCE PLATE BSD-1601118A81.A19 1601118A81	£3.34	£4.01
11 - REFERENCE PLATE BSD-1601118917.A3 1601118917	-
12 - COVER PLATE BSD-1605500190.A25 1605500190	£2.52	£3.02
13 - HOUSING BASE BSD-1605190057.A9 1605190057	£37.72	£45.27
15 - HOUSING COVER BSD-1605190053.A4 1605190053	-
16 - INSERT BSD-1605190055.A18 1605190055	-
17 - STICKER BSD-1601118916.A16 1601118916	£3.34	£4.01
29 - SWITCH BSD-1607200134.A10 1607200134	£6.61	£7.93
30 - WIRING HARNESS BSD-1604449010.A11 1604449010	£24.45	£29.34
33 - SWITCH SUPPORT BSD-1605190059.A6 1605190059	£1.95	£2.34
42 - THREAD-FORMING TAP. SCREW TORX-T20 BSD-1603435054.A18 1603435054	£1.75	£2.10
101 - MOTOR 230V BSD-1607220034.A10 1607220034	£263.33	£316.00
102 - TOOTHED GEAR Z=8 BSD-1606318011.A23 1606318011	£13.41	£16.09
106 - RING GEAR Z=112 BSD-1606334006.A3 1606334006	-
112 - TOOTHED GEAR Z=49 BSD-1606317088.A49 1606317088	-
112/1 - TOOTHED GEAR Z=49 BSD-1606317088.A50 1606317088	-
113 - TOOTHED GEAR Z=23 BSD-1606318008.A11 1606318008	-
114 - DRIVE SHAFT BSD-1603124130.A2 1603124130	-
117 - FRICTION WASHER BSD-1600100032.A7 1600100032	£1.66	£1.99
118 - SCRAPER BSD-1600100031.A3 1600100031	-
119 - FRICTION WASHER BSD-1600100030.A7 1600100030	-
120 - FRICTION WASHER BSD-1600100027.A17 1600100027	£2.33	£2.80
122 - SCRAPER BSD-1601034040.A36 1601034040	£7.78	£9.33
125 - RETAINING RING 10 DIN 9045 BSD-2916600006.A11 2916600006	£1.75	£2.10
126 - SPRING RETAINING RING DIN 471 18x1.2MM BSD-2916650009.A23 2916650009	£1.75	£2.10
127 - CARRIER BSD-1606490040.A25 1606490040	£5.87	£7.04
129 - ADJUSTING SCREW BSD-1603490004.A33 1603490004	£2.80	£3.36
130 - THREAD-FORMING TAP. SCREW M6x25 MM BSD-1603414010.A67 1603414010	£1.75	£2.10
131 - HOLDING PLATE BSD-1601329028.A22 1601329028	£1.75	£2.10
133 - SEAL BSD-1600290035.A3 1600290035	-
135 - LOCKING WASHER DIN 6799-12-FST BSD-2916080014.A37 2916080014	£1.75	£2.10
135/1 - LOCKING WASHER DIN 6799-12-FST BSD-2916080014.A38 2916080014	£1.75	£2.10
651 - SINGLE-HEAD ENG. WRENCH SW10 BSD-1607950527.A25 1607950527	-
652 - CATCHER CONTAINER BSD-1605411031.A29 1605411031	£11.30	£13.56
653 - OFFSET SCREWDRIVER SW5 BSD-1607950057.A23 1607950057	£3.34	£4.01
668 - AXLE BSD-1607000957.A19 1607000957	£14.91	£17.89
670/1 - CONNECTOR BSD-1606491001.A2 1606491001	-
673 - PLAIN WASHER BSD-1600190030.A35 1600190030	£1.75	£2.10
673/1 - PLAIN WASHER BSD-1600190030.A36 1600190030	£1.75	£2.10
674 - HEX NUT DIN 985-M6-8 BSD-2915061004.A14 2915061004	£1.75	£2.10
674/1 - CAP NUT DIN 1587-M6-M-6 BSD-2915151001.A39 2915151001	£4.75	£5.70
675 - ROUND-HEAD BOLT DIN 603 M6x50 BSD-2910281213.A36 2910281213	£1.32	£1.58
675/1 - ROUND-HEAD BOLT DIN 603 M6x55 BSD-2910281215.A20 2910281215	-
677 - CAP NUT DIN 1587-M6-M-6 BSD-2915151001.A40 2915151001	£4.75	£5.70
804 - GEAR HOUSING BSD-1607000817.A7 1607000817	-
805 - BEARING FLANGE BSD-1607000813.A4 1607000813	-
807 - SUPPORTING FRAME BSD-1607000829.A18 1607000829	£37.72	£45.27
808 - PLANETARY-GEAR CARRIER BSD-1607000874.A14 1607000874	£19.45	£23.34
808/01 - PLANETARY-GEAR CARRIER BSD-1607000814.A17 1607000814	-
809 - PLANETARY-GEAR CARRIER BSD-1607000815.A3 1607000815	-
814/01 - UPPER HOUSING BSD-1605190079.A2 1605190079	£37.72	£45.27
815 - CUTTING HEAD BSD-1601000002.A8 1601000002	-
816 - COUNTER BAR BSD-1601000001.A9 1601000001	£23.86	£28.63
821 - FRICTION WASHER BSD-1600100029.A12 1600100029	-
842 - SWITCH KIT BSD-1607000863.A36 1607000863	-
869 - WHEEL dia200 MM BSD-1609351088.A127 1609351088	£12.04	£14.45
869/020 - PLUG BSD-1609351075.A1 1609351075	-
869/030 - DECORATIVE COVER BSD-1609351074.A3 1609351074	-
