Bosch AXT 22 D / 3600H03000 / EU 230 Volt Spare Parts

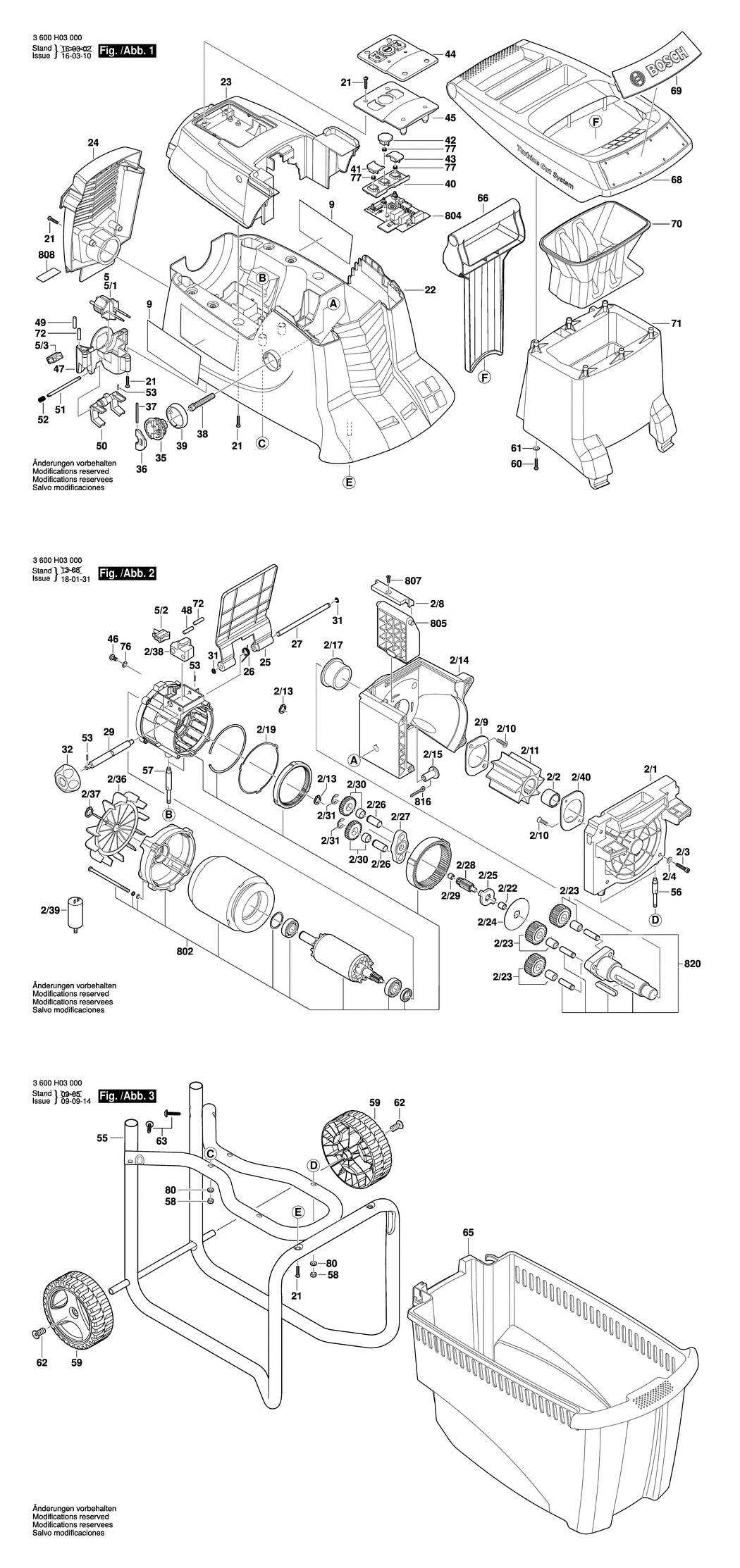

An exploded drawing and listing for the Bosch AXT 22 D / 3600H03000 / EU 230 Volt

	Ex VAT	Inc VAT
2/1 - PIVOT PLATE BSD-2609003822.A1 2609003822	£37.27	£44.72
2/2 - BEARING BSD-2609003823.A8 2609003823	£7.36	£8.83
2/3 - SCREW BSD-2609003824.A1 2609003824	£1.75	£2.10
2/4 - SPRING WASHER BSD-2609003825.A17 2609003825	£1.75	£2.10
2/8 - CONNECTING PLATE BSD-2609003828.A18 2609003828	£12.04	£14.45
2/9 - PLATE BSD-2609003829.A0 2609003829	£6.52	£7.83
2/10 - SCREW BSD-2609003830.A18 2609003830	£1.75	£2.10
2/11 - CUTTING HEAD BSD-2609003831.A0 2609003831	£63.50	£76.20
2/13 - SPRING RETAINING RING BSD-2609004198.A5 2609004198	£1.75	£2.10
2/14 - HOUSING BSD-2609003833.A11 2609003833	£81.81	£98.17
2/15 - INSERT BSD-2609003834.A7 2609003834	£5.58	£6.70
2/17 - FLANGED BEARING BSD-2609003836.A11 2609003836	£14.91	£17.89
2/19 - SEAL RING BSD-2609003838.A7 2609003838	£1.75	£2.10
2/22 - POROUS BEARING BSD-2609003841.A11 2609003841	£1.75	£2.10
2/23 - PLANET GEAR BSD-2609003842.A7 2609003842	£23.86	£28.63
2/24 - WASHER BSD-2609003843.A11 2609003843	£2.61	£3.13
2/25 - DRIVE PLATE BSD-2609003844.A3 2609003844	£1.95	£2.34
2/26 - BOLT BSD-2609003845.A5 2609003845	£1.75	£2.10
2/27 - PLANETARY-GEAR CARRIER BSD-2609003846.A3 2609003846	£12.04	£14.45
2/28 - PINION BSD-2609003847.A5 2609003847	£8.67	£10.41
2/29 - NEEDLE-ROLLER BEARING BSD-2609003848.A3 2609003848	£2.16	£2.59
2/30 - PLANET GEAR BSD-2609003849.A5 2609003849	£14.91	£17.89
2/31 - SPRING RETAINING RING BSD-2609003850.A3 2609003850	£1.75	£2.10
2/36 - FAN BSD-2609003854.A10 2609003854	£8.67	£10.41
2/37 - SPRING RETAINING RING BSD-2609003855.A8 2609003855	£1.75	£2.10
2/38 - CLAMPING PIECE BSD-2609002792.A6 2609002792	-
2/39 - MOTOR CAPACITOR BSD-2609007667.A4 2609007667	£21.68	£26.01
2/40 - PLATE BSD-2609004396.A4 2609004396	£7.36	£8.83
5 - APPLIANCE INLET SET EU BSD-2609003149.A5 2609003149	£31.64	£37.97
5/2 - SWITCH BSD-2609003145.A12 2609003145	£7.36	£8.83
5/3 - SWITCH ROCKER BSD-2609003517.A12 2609003517	£7.36	£8.83
9 - MANUFACTURER'S NAMEPLATE AXT 22 D BSD-2609003150.A1 2609003150	£2.61	£3.13
21 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A1013 2603490024	£1.75	£2.10
22 - HOUSING BSD-2609002554.A8 2609002554	£36.63	£43.96
23 - UPPER HOUSING BSD-2609002555.A0 2609002555	£14.75	£17.70
24 - REAR HOUSING SECTION BSD-2609004513.A7 2609004513	£21.52	£25.83
25 - FLAP BSD-2609002557.A8 2609002557	-
26 - SPRING BSD-2609003144.A8 2609003144	£1.75	£2.10
27 - BOLT BSD-2609002795.A14 2609002795	£2.16	£2.59
29 - BOLT BSD-2609002791.A2 2609002791	£7.78	£9.33
31 - SPRING RETAINING RING DIN 471-8x0.8 FSt BSD-2916640005.A88 2916640005	£1.75	£2.10
32 - KNOB BSD-2609004515.A7 2609004515	£2.16	£2.59
35 - KNOB BSD-2609002804.A6 2609002804	-
36 - TERMINAL LUG BSD-2609002805.A2 2609002805	-
37 - BOLT BSD-2609002806.A6 2609002806	£1.75	£2.10
38 - ADJUSTING SCREW BSD-2609003539.A8 2609003539	£7.78	£9.33
39 - RING BSD-2609002754.A3 2609002754	-
40 - HOLDER BSD-2609003140.A5 2609003140	£3.34	£4.01
41 - CAP BSD-2609003399.A14 2609003399	£1.75	£2.10
42 - CAP BSD-2609003400.A4 2609003400	£1.75	£2.10
43 - CAP BSD-2609003401.A14 2609003401	£1.75	£2.10
44 - RUBBER PAD BSD-2609002755.A11 2609002755	£12.04	£14.45
45 - COVER PLATE BSD-2609002683.A2 2609002683	£4.75	£5.70
46 - OVAL-HEAD SCREW M4x8 BSD-2603413035.A22 2603413035	£1.75	£2.10
47 - SOCKET HOUSING BSD-2609004519.A4 2609004519	£3.72	£4.47
48 - RELAY BSD-2609005130.A11 2609005130	£12.04	£14.45
49 - REED SWITCH BSD-2609003540.A0 2609003540	£21.52	£25.83
50 - ROCKER ROD BSD-2609004603.A4 2609004603	£2.61	£3.13
51 - BOLT BSD-2609002846.A4 2609002846	£5.30	£6.36
52 - SPRING BSD-2609002847.A14 2609002847	£1.75	£2.10
53 - SLOTTED SPRING PIN BSD-2609002793.A4 2609002793	£1.75	£2.10
55 - SUPPORTING FRAME BSD-2609004244.A5 2609004244	£102.57	£123.08
56 - HOLDING PIN BSD-2609003267.A14 2609003267	£5.30	£6.36
57 - HOLDING PIN BSD-2609003268.A4 2609003268	£5.58	£6.70
58 - NUT BSD-2609003551.A11 2609003551	£1.75	£2.10
59 - WHEEL BSD-2609002790.A5 2609002790	£7.78	£9.33
60 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A37 2603490027	£1.75	£2.10
61 - PLAIN WASHER DIN 9021-B 4.3-ST BSD-2916011892.A57 2916011892	£1.75	£2.10
62 - RETAINING PIN BSD-F016L64669.A23 F016L64669	£1.75	£2.10
63 - THREAD-FORMING TAP. SCREW 4.8x22 BSD-2609003552.A8 2609003552	£1.75	£2.10
65 - CATCHER CONTAINER BSD-2609006904.A3 2609006904	£40.80	£48.96
66 - PUSHER BSD-2609002752.A11 2609002752	£6.52	£7.83
68 - HANDLE BSD-2609002560.A0 2609002560	£16.74	£20.09
69 - COMPANY LOGO AXT 25 D BSD-2609002685.A7 2609002685	£6.52	£7.83
70 - HOPPER BSD-2609002561.A4 2609002561	-
71 - CHUTE BSD-2609002564.A7 2609002564	-
72 - MAGNET BSD-2609002799.A3 2609002799	£4.26	£5.11
76 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST BSD-2916030006.A26 2916030006	£1.75	£2.10
77 - COMPRESSION SPRING BSD-2609003683.A18 2609003683	£1.75	£2.10
80 - WASHER DIN 9021-6.4x18x1.6 BSD-2610386712.A21 2610386712	£2.61	£3.13
802 - MOTOR BSD-2609004911.A4 2609004911	-
804 - ELECTRONIC ASSEMBLY BSD-1600A00H67.A6 1600A00H67	£81.81	£98.17
805 - GUIDE-PLATE BSD-2609004912.A6 2609004912	£31.64	£37.97
807 - SCREW BSD-2609003827.A0 2609003827	£1.75	£2.10
808 - NAMEPLATE BSD-2609003154.A0 2609003154	£2.33	£2.80
816 - SPLIT PIN BSD-2609004989.A10 2609004989	£2.16	£2.59
820 - SHAFT BSD-2609006273.A0 2609006273	£37.27	£44.72
