Festool KF 5 EBQ-PLUS 230V / 494101 Spare Parts

Home Details Reviews Delivery

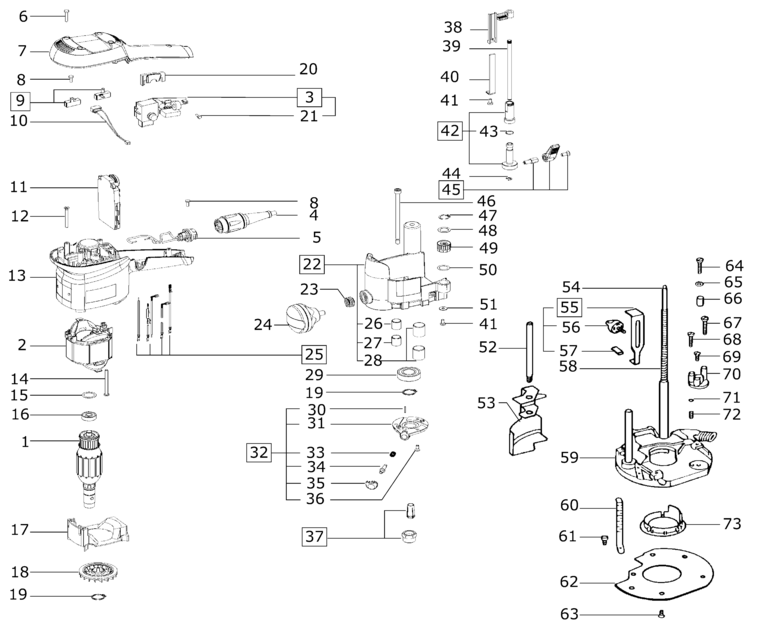

An exploded diagram and spare parts listing for the Festool KF 5 EBQ-PLUS 230V / 494101

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-492040.A10 492040	£115.32	£138.39
2 - FIELD ASSEMBLY 230 V FSP-491885.A12 491885	£48.87	£58.64
3 - SWITCH ATTACHMENT FSP-486317.A58 486317	£15.47	£18.56
3 - SWITCH MODUL FSP-490136.A4 490136	£29.49	£35.39
4 - DESCRIPTION UNAVAILABLE FSP-000000.A15 000000	-
4 - PLUG IT-CABLE FSP-203924.A71 203924	£25.82	£30.99
4 - PLUG IT-CABLE FSP-203914.A23 203914	-
5 - SOCKET HOUSING 120-230V FSP-489926.A5 489926	£7.80	£9.36
6 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-400584.A38 400584	£2.00	£2.40
7 - HOUSING COVER FSP-463090.A0 463090	£7.86	£9.43
8 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A225 219031	£2.00	£2.40
9 - BRUSH HOLDER (PAIR) 230V FSP-488579.A13 488579	£10.17	£12.20
10 - TACHOMETER COIL FSP-457920.A5 457920	£7.37	£8.84
11 - ELECTRONIC 230-240V FSP-490144.A4 490144	£86.22	£103.46
12 - FLAT HEAD SCREW M4 X 40 FSP-400866.A4 400866	£2.00	£2.40
13 - MOTOR HOUSING FSP-463087.A0 463087	£25.23	£30.28
14 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A72 228707	£2.00	£2.40
15 - COMPENSATING WASHER 14 X 21.8 X 0.3 MM FSP-203777.A43 203777	£2.00	£2.40
16 - BALL BEARING FSP-10775821.A57 10775821	£4.82	£5.79
17 - AIR GUIDE WASHER FSP-434430.A36 434430	£2.00	£2.40
18 - FAN FSP-440171.A11 440171	£2.00	£2.40
19 - SNAP RING FSP-401191.A29 401191	£2.00	£2.40
20 - BRIDGE FSP-463095.A17 463095	£2.00	£2.40
21 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A6 228718	£2.00	£2.40
22 - BEARING COVER FSP-490564.A6 490564	£71.82	£86.19
23 - PRESSURE SPRING FSP-440729.A27 440729	£2.00	£2.40
24 - GRIP FSP-487554.A4 487554	£4.88	£5.85
25 - SET OF FLEXIBLE LEADS FSP-491194.A0 491194	£30.94	£37.13
26 - RING FSP-436301.A16 436301	£2.00	£2.40
27 - DU BUSHING FSP-210031.A18 210031	£2.00	£2.40
28 - BUSH FSP-400994.A21 400994	£2.00	£2.40
29 - BALL BEARING FSP-462795.A21 462795	£9.72	£11.67
30 - SLEEVE FSP-200747.A2 200747	£2.00	£2.40
31 - COVER FSP-473550.A17 473550	£7.58	£9.09
32 - COVER FSP-494788.A6 494788	£15.10	£18.12
33 - PRESSURE SPRING FSP-444754.A23 444754	£2.00	£2.40
34 - BOLT FSP-436305.A0 436305	£9.32	£11.19
35 - CAP FSP-450206.A8 450206	£2.00	£2.40
36 - FLAT HEAD SCREW M4 X 10 FSP-228581.A26 228581	£2.00	£2.40
37 - COLLET FSP-488755.A18 488755	£38.86	£46.63
37 - COLLET FSP-488761.A8 488761	£38.86	£46.63
38 - INDICATOR FSP-492173.A0 492173	£15.98	£19.17
39 - DEPTH STOP FSP-450677.A10 450677	£3.07	£3.68
40 - STOP FSP-450678.A6 450678	£5.99	£7.19
41 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A7 228570	£2.00	£2.40
42 - FINE ADJUSTMENT FSP-490143.A0 490143	£22.71	£27.25
43 - O-RING FSP-200926.A2 200926	£1.75	£2.10
44 - WASHER FSP-400106.A14 400106	£2.00	£2.40
45 - LEVER FSP-490429.A10 490429	£18.09	£21.71
46 - SCREW FSP-400492.A9 400492	£5.79	£6.95
47 - SNAP RING FSP-216770.A13 216770	£2.00	£2.40
48 - SHIM RING 13 X 19 X 0.5 MM FSP-228503.A0 228503	£2.00	£2.40
49 - ADJUSTING KNOB FSP-457351.A9 457351	£3.20	£3.84
50 - COMPENSATING WASHER 13.2 X 18.8 X 0.2 MM FSP-436828.A13 436828	£2.00	£2.40
51 - WASHER FSP-403100.A7 403100	£2.00	£2.40
52 - SCREW FSP-436479.A0 436479	£10.06	£12.07
53 - SPLINTER GUARD FSP-436513.A2 436513	£24.34	£29.21
54 - BOLT FSP-455791.A9 455791	£2.00	£2.40
55 - SUPPORT FSP-483193.A0 483193	£14.85	£17.82
56 - ROTARY KNOB FSP-436195.A57 436195	£2.00	£2.40
57 - NO LONGER AVAILABLE FSP-00000.A3584 00000	-
58 - PRESSURE SPRING FSP-436377.A25 436377	£2.00	£2.40
59 - PLATE FSP-497763.A0 497763	£76.16	£91.39
60 - STOP FSP-437197.A4 437197	£17.98	£21.57
61 - CHEESE HEAD SCREW M6 X 8 FSP-437999.A4 437999	£2.00	£2.40
62 - PLATE FSP-436296.A2 436296	£17.51	£21.01
63 - FLAT HEAD SCREW M4 X 8 FSP-228737.A16 228737	£2.00	£2.40
64 - CHEESE HEAD SCREW M6 X 25 FSP-400859.A28 400859	£2.00	£2.40
65 - WASHER 6.4 MM FSP-200578.A69 200578	£2.00	£2.40
66 - BUSH FSP-436300.A0 436300	£2.00	£2.40
67 - FLAT HEAD SCREW M5 FSP-436813.A6 436813	£2.00	£2.40
68 - FLAT HEAD SCREW M5 FSP-436812.A10 436812	£2.00	£2.40
69 - FLAT HEAD SCREW M5 X 20 FSP-436811.A6 436811	£2.00	£2.40
70 - STOP FSP-436520.A11 436520	£15.25	£18.30
71 - BALL FSP-783305.A12 783305	£2.00	£2.40
72 - PRESSURE SPRING FSP-436528.A28 436528	£2.00	£2.40
73 - BUSH FSP-437380.A1 437380	£2.00	£2.40

Attribute Name	Value
Brand	Festool
