Bosch GTM 12 JL / 3601M15001 / EU 230 Volt Spare Parts

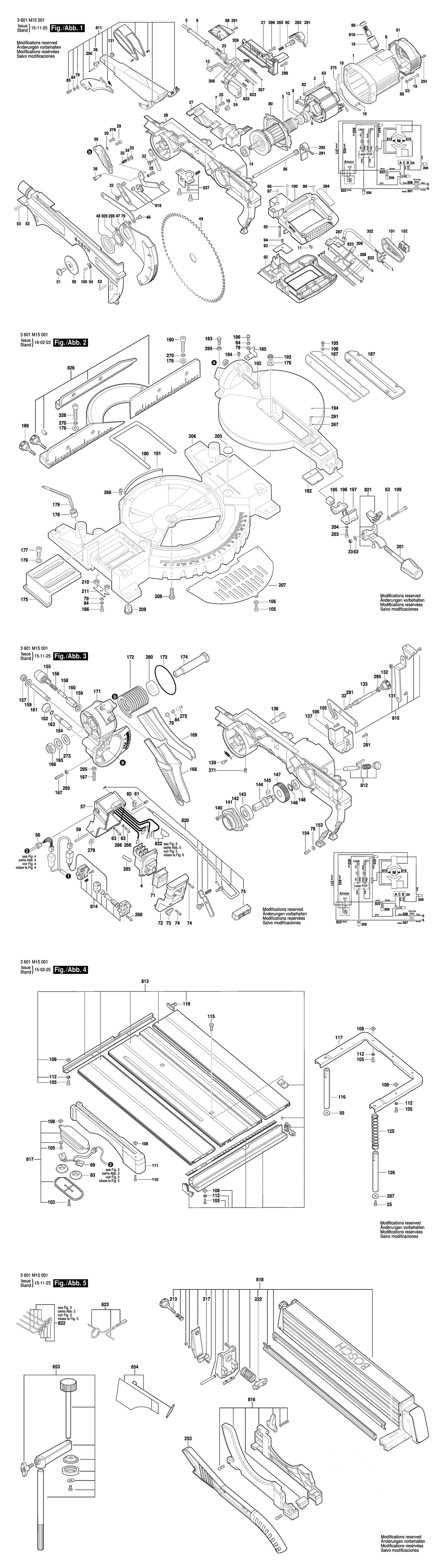

An exploded drawing and listing for the Bosch GTM 12 JL / 3601M15001 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619PA4304.A1 1619PA4304	£23.86	£28.63
2 - FIELD 230V BSD-1619PA4305.A1 1619PA4305	£68.42	£82.10
3 - ARMATURE 230V BSD-1619PA4307.A1 1619PA4307	£81.81	£98.17
4 - SWITCH BSD-1619PA4309.A1 1619PA4309	£27.23	£32.68
5 - POWER SUPPLY CORD BSD-1619PA3779.A0 1619PA3779	£21.68	£26.01
6 - GROMMET BSD-1619PA4314.A2 1619PA4314	£1.75	£2.10
7 - FASTENING CLAMP BSD-1619PA4315.A0 1619PA4315	£1.75	£2.10
8 - NAMEPLATE BSD-1619PA4316.A0 1619PA4316	£2.61	£3.13
9 - ADAPTER RING BSD-1619PA8129.A2 1619PA8129	£1.75	£2.10
11 - INDUCTOR BSD-1619PA4319.A1 1619PA4319	£2.16	£2.59
12 - CONDENSER BSD-1619PA4320.A1 1619PA4320	£2.33	£2.80
13 - BALL BEARING BSD-1619PA4321.A1 1619PA4321	£6.52	£7.83
14 - BALL BEARING BSD-1619PA4322.A1 1619PA4322	£7.36	£8.83
15 - COVER BSD-1619PA6339.A2 1619PA6339	£1.75	£2.10
16 - BRUSH HOLDER BSD-1619PA4323.A2 1619PA4323	£11.30	£13.56
18 - SCREW BSD-1619PA8128.A1 1619PA8128	£1.75	£2.10
19 - THREAD-FORMING TAP. SCREW BSD-1619PA4324.A0 1619PA4324	£1.75	£2.10
20 - ADJUSTMENT WASHER BSD-1619PA8126.A1 1619PA8126	£1.75	£2.10
21 - COVER BSD-1619PA4325.A1 1619PA4325	£7.36	£8.83
23 - CONNECTION BSD-1619PA4327.A1 1619PA4327	£2.61	£3.13
24 - SOFT START-UP MODULE BSD-1619PA3393.A0 1619PA3393	£48.38	£58.06
25 - THREAD-FORMING TAP. SCREW BSD-1619PA4328.A2 1619PA4328	£1.75	£2.10
26 - THREAD-FORMING TAP. SCREW BSD-1619PA4329.A0 1619PA4329	£1.75	£2.10
27 - BOX BSD-1619PA4330.A2 1619PA4330	£13.12	£15.75
28 - GEAR HOUSING BSD-1619PA4331.A0 1619PA4331	£98.11	£117.73
29 - THREAD-FORMING TAP. SCREW BSD-1619PA4332.A2 1619PA4332	£1.75	£2.10
30 - PLATE BSD-1619PA4333.A0 1619PA4333	£2.61	£3.13
32 - THREAD-FORMING TAP. SCREW BSD-1619PA4335.A2 1619PA4335	£1.75	£2.10
33 - NUT BSD-1619PA4336.A0 1619PA4336	£1.75	£2.10
34 - WASHER BSD-1619PA4337.A2 1619PA4337	£1.75	£2.10
35 - SPRING BSD-1619PA4338.A0 1619PA4338	£1.75	£2.10
36 - THREAD-FORMING TAP. SCREW BSD-1619PA4339.A2 1619PA4339	£1.75	£2.10
46 - THREAD-FORMING TAP. SCREW BSD-1619PA4349.A0 1619PA4349	£1.75	£2.10
47 - LOWER GUARD BSD-1619PA4350.A2 1619PA4350	£11.30	£13.56
48 - FLANGE BSD-1619PA4351.A0 1619PA4351	£8.67	£10.41
49 - BLADE BSD-1619PA4352.A2 1619PA4352	£93.88	£112.65
50 - FLANGE BSD-1619PA4353.A0 1619PA4353	£7.36	£8.83
51 - THREAD-FORMING TAP. SCREW BSD-1619PA4354.A2 1619PA4354	£1.75	£2.10
52 - COVER BSD-1619PA4355.A0 1619PA4355	£27.23	£32.68
53 - THREAD-FORMING TAP. SCREW BSD-1619PA4356.A2 1619PA4356	£1.75	£2.10
54 - CABLE CLIP BSD-1619PA4357.A0 1619PA4357	£1.75	£2.10
55 - ADJUSTMENT WASHER BSD-1619PA8127.A2 1619PA8127	£1.75	£2.10
57 - BOX BSD-1619PA4360.A2 1619PA4360	£14.91	£17.89
58 - CORD GUARD BSD-1619PA4361.A0 1619PA4361	£1.75	£2.10
59 - SHAFT BSD-1619PA4362.A2 1619PA4362	£1.75	£2.10
60 - SEAL BSD-1619PA4363.A0 1619PA4363	£1.75	£2.10
61 - THREAD-FORMING TAP. SCREW BSD-1619PA4364.A2 1619PA4364	£1.75	£2.10
63 - WASHER BSD-1619PA4366.A0 1619PA4366	£1.75	£2.10
69 - LAMP BSD-1619PA8121.A0 1619PA8121	£5.58	£6.70
71 - COVER BSD-1619PA4373.A1 1619PA4373	£1.75	£2.10
72 - COVER BSD-1619PA4374.A1 1619PA4374	£7.36	£8.83
73 - RUBBER DAMPER BSD-1619PA4375.A1 1619PA4375	£1.75	£2.10
74 - THREAD-FORMING TAP. SCREW BSD-1619PA4376.A1 1619PA4376	£1.75	£2.10
75 - KNOB BSD-1619PA4377.A1 1619PA4377	£1.75	£2.10
79 - WASHER BSD-1619PA4381.A1 1619PA4381	£1.75	£2.10
80 - AIR-DEFLECTOR RING BSD-1619PA4382.A1 1619PA4382	£3.72	£4.47
82 - THREAD-FORMING TAP. SCREW BSD-1619PA4384.A1 1619PA4384	£1.75	£2.10
83 - LENS BSD-1619PA8122.A1 1619PA8122	£1.75	£2.10
84 - WASHER BSD-1619PA4385.A0 1619PA4385	£1.75	£2.10
85 - THREAD-FORMING TAP. SCREW BSD-1619PA4386.A2 1619PA4386	£1.75	£2.10
86 - BRUSH-COVER BSD-1619PA4387.A0 1619PA4387	£1.75	£2.10
88 - HOUSING BSD-1619PA4389.A2 1619PA4389	£3.72	£4.47
89 - THREAD-FORMING TAP. SCREW BSD-1619PA4390.A0 1619PA4390	£1.75	£2.10
90 - THREAD-FORMING TAP. SCREW BSD-1619PA4391.A2 1619PA4391	£2.16	£2.59
91 - COVER BSD-1619PA4392.A0 1619PA4392	£12.04	£14.45
92 - HANDLE BSD-1619PA4393.A2 1619PA4393	£54.42	£65.30
93 - PLATE BSD-1619PA4394.A0 1619PA4394	£1.75	£2.10
94 - THREAD-FORMING TAP. SCREW BSD-1619PA4395.A2 1619PA4395	£1.75	£2.10
95 - THREAD-FORMING TAP. SCREW BSD-1619PA4396.A0 1619PA4396	£1.75	£2.10
96 - THREAD-FORMING TAP. SCREW BSD-1619PA4397.A2 1619PA4397	£3.72	£4.47
97 - THREAD-FORMING TAP. SCREW BSD-1619PA4398.A0 1619PA4398	£1.75	£2.10
98 - THREAD-FORMING TAP. SCREW BSD-1619PA4399.A2 1619PA4399	£1.75	£2.10
99 - THREAD-FORMING TAP. SCREW BSD-1619PA4400.A0 1619PA4400	£1.75	£2.10
100 - HANDLE BSD-1619PA4401.A2 1619PA4401	£21.68	£26.01
101 - COVER BSD-1619PA4402.A0 1619PA4402	£1.75	£2.10
102 - MAINS SWITCH BSD-1619P04129.A4 1619P04129	£11.78	£14.13
103 - THREAD-FORMING TAP. SCREW BSD-1619PA4403.A1 1619PA4403	£1.75	£2.10
105 - THREAD-FORMING TAP. SCREW BSD-1619PA4405.A1 1619PA4405	£1.75	£2.10
106 - WASHER BSD-1619PA4406.A1 1619PA4406	£1.75	£2.10
108 - NUT BSD-1619PA4408.A1 1619PA4408	£1.75	£2.10
110 - THREAD-FORMING TAP. SCREW BSD-1619PA4410.A1 1619PA4410	£1.75	£2.10
111 - PLATE BSD-1619PA4411.A1 1619PA4411	£12.04	£14.45
112 - WASHER BSD-1619PA4412.A1 1619PA4412	£1.75	£2.10
115 - THREAD-FORMING TAP. SCREW BSD-1619PA4415.A1 1619PA4415	£1.75	£2.10
116 - SHAFT BSD-1619PA4416.A1 1619PA4416	£5.30	£6.36
117 - PLATE BSD-1619PA4417.A1 1619PA4417	£18.96	£22.75
119 - PIN BSD-1619PA4419.A1 1619PA4419	£1.75	£2.10
125 - SPRING BSD-1619PA4425.A1 1619PA4425	£2.16	£2.59
126 - SHAFT BSD-1619PA4426.A1 1619PA4426	£5.30	£6.36
131 - NUT BSD-1619PA4431.A1 1619PA4431	£1.75	£2.10
132 - LEVER BSD-1619PA4432.A1 1619PA4432	£1.75	£2.10
133 - BOLT BSD-1619PA4433.A1 1619PA4433	£3.72	£4.47
136 - THREAD-FORMING TAP. SCREW BSD-1619PA4436.A1 1619PA4436	£1.75	£2.10
137 - COVER BSD-1619PA4437.A1 1619PA4437	£1.75	£2.10
139 - THREAD-FORMING TAP. SCREW BSD-1619PA4439.A1 1619PA4439	£1.75	£2.10
140 - THREAD-FORMING TAP. SCREW BSD-1619PA4440.A1 1619PA4440	£1.75	£2.10
141 - COVER BSD-1619PA4441.A1 1619PA4441	£8.67	£10.41
142 - THREAD-FORMING TAP. SCREW BSD-1619PA4442.A1 1619PA4442	£1.75	£2.10
143 - BALL BEARING BSD-1619PA4443.A1 1619PA4443	£5.30	£6.36
144 - SHAFT BSD-1619PA4444.A1 1619PA4444	£16.41	£19.69
145 - FLAT KEY BSD-1619PA4445.A1 1619PA4445	£1.75	£2.10
146 - RETAINING RING BSD-1619PA4446.A1 1619PA4446	£1.75	£2.10
147 - GEAR BSD-1619PA4447.A1 1619PA4447	£37.27	£44.72
148 - BALL BEARING BSD-1619PA4448.A1 1619PA4448	£6.52	£7.83
153 - COVER BSD-1619PA4453.A1 1619PA4453	£1.75	£2.10
154 - THREAD-FORMING TAP. SCREW BSD-1619PA4454.A1 1619PA4454	£1.75	£2.10
155 - KNOB BSD-1619PA4455.A1 1619PA4455	£1.75	£2.10
156 - SPRING BSD-1619PA4456.A1 1619PA4456	£1.75	£2.10
157 - NUT BSD-1619PA4457.A1 1619PA4457	£1.75	£2.10
158 - BOLT BSD-1619PA4458.A1 1619PA4458	£2.16	£2.59
159 - WASHER BSD-1619PA4459.A1 1619PA4459	£1.75	£2.10
160 - NUT BSD-1619PA4460.A1 1619PA4460	£1.75	£2.10
161 - SHAFT BSD-1619PA4461.A1 1619PA4461	£2.16	£2.59
162 - KNOB BSD-1619PA4462.A1 1619PA4462	£1.75	£2.10
163 - O-RING BSD-1619PA4463.A1 1619PA4463	£1.75	£2.10
164 - PIN BSD-1619PA4464.A1 1619PA4464	£3.72	£4.47
165 - WASHER BSD-1619PA4465.A1 1619PA4465	£1.75	£2.10
166 - NUT BSD-1619PA4466.A1 1619PA4466	£1.75	£2.10
167 - BOLT BSD-1619PA4467.A1 1619PA4467	£1.75	£2.10
168 - PLATE BSD-1619PA4468.A1 1619PA4468	£6.52	£7.83
169 - GUARD BSD-1619PA4469.A1 1619PA4469	£11.30	£13.56
171 - BRACKET BSD-1619PA4470.A1 1619PA4470	£59.53	£71.44
172 - SPRING BSD-1619PA4471.A1 1619PA4471	£27.23	£32.68
173 - BUSHING BSD-1619PA4472.A1 1619PA4472	£4.26	£5.11
174 - SHAFT BSD-1619PA4473.A1 1619PA4473	£8.67	£10.41
175 - SLIDER BSD-1619PA4474.A1 1619PA4474	£31.64	£37.97
176 - WASHER BSD-1619PA4475.A1 1619PA4475	£1.75	£2.10
177 - BOLT BSD-1619PA4476.A1 1619PA4476	£1.75	£2.10
178 - SET OF KEYS BSD-1619PA4477.A1 1619PA4477	£1.75	£2.10
179 - DISH BSD-1619PA4478.A1 1619PA4478	£2.16	£2.59
180 - CARRIER BSD-1619PA4479.A1 1619PA4479	£8.67	£10.41
181 - WASHER BSD-1619PA4480.A1 1619PA4480	£2.61	£3.13
182 - POINTER BSD-1619PA4481.A1 1619PA4481	£1.75	£2.10
183 - BOLT BSD-1619PA4482.A1 1619PA4482	£1.75	£2.10
184 - SET SCREW BSD-1619PA4483.A1 1619PA4483	£1.75	£2.10
NULL BSD-1619PA4484.A1 1619PA4484	£1.75	£2.10
186 - THREAD-FORMING TAP. SCREW BSD-1619PA4485.A1 1619PA4485	£1.75	£2.10
187 - INSET PLATE BSD-1619PA4167.A1 1619PA4167	£3.72	£4.47
189 - KNOB BSD-1619PA4486.A1 1619PA4486	£2.16	£2.59
190 - THREAD-FORMING TAP. SCREW BSD-1619PA4487.A1 1619PA4487	£1.75	£2.10
192 - BOLT BSD-1619PA4489.A1 1619PA4489	£1.75	£2.10
193 - NUT BSD-1619PA4490.A1 1619PA4490	£1.75	£2.10
194 - TABLE BSD-1619PA4491.A1 1619PA4491	£81.81	£98.17
195 - NUT BSD-1619PA4492.A1 1619PA4492	£1.75	£2.10
196 - HOLDER BSD-1619PA4493.A1 1619PA4493	£2.16	£2.59
197 - PLATE BSD-1619PA4494.A1 1619PA4494	£1.75	£2.10
199 - THREAD-FORMING TAP. SCREW BSD-1619PA4496.A1 1619PA4496	£1.75	£2.10
201 - KNOB BSD-1619PA4498.A1 1619PA4498	£5.58	£6.70
203 - THREAD-FORMING TAP. SCREW BSD-1619PA4500.A1 1619PA4500	£1.75	£2.10
204 - WASHER BSD-1619PA4501.A1 1619PA4501	£1.75	£2.10
205 - WARNING LABEL BSD-1619PA4502.A1 1619PA4502	£1.75	£2.10
206 - BASE PLATE BSD-1619PA4503.A1 1619PA4503	£135.25	£162.30
207 - PLATE BSD-1619PA4504.A1 1619PA4504	£2.61	£3.13
208 - BOLT BSD-1619PA4505.A1 1619PA4505	£1.75	£2.10
209 - CUSHION BSD-1619PA4506.A1 1619PA4506	£2.16	£2.59
210 - NUT BSD-1619PA4507.A1 1619PA4507	£1.75	£2.10
211 - PLATE BSD-1619PA4508.A1 1619PA4508	£1.75	£2.10
213 - KNOB BSD-1619PA4510.A1 1619PA4510	£1.75	£2.10
217 - CLAMPING PIECE BSD-1619PA4514.A1 1619PA4514	£1.75	£2.10
222 - STOP PLATE BSD-1619PA4519.A1 1619PA4519	£2.61	£3.13
253 - WORKPIECE PUSHER BSD-1619PA4549.A1 1619PA4549	£10.10	£12.12
265 - SPRING BSD-1619PA4561.A1 1619PA4561	£1.75	£2.10
266 - ROD GB/T823-1988 BSD-1619PA4562.A1 1619PA4562	£1.75	£2.10
267 - WASHER BSD-1619PA4563.A1 1619PA4563	£1.75	£2.10
268 - THREAD-FORMING TAP. SCREW BSD-1619PA4564.A1 1619PA4564	£1.75	£2.10
270 - WASHER BSD-1619PA4566.A1 1619PA4566	£1.75	£2.10
271 - THREAD-FORMING TAP. SCREW BSD-1619PA4567.A1 1619PA4567	£1.75	£2.10
272 - THREAD-FORMING TAP. SCREW BSD-1619PA4568.A1 1619PA4568	£1.75	£2.10
273 - WASHER BSD-1619PA4569.A1 1619PA4569	£1.75	£2.10
275 - COVER BSD-1619PA4571.A1 1619PA4571	£1.75	£2.10
276 - THREAD-FORMING TAP. SCREW BSD-1619PA4572.A1 1619PA4572	£1.75	£2.10
279 - COVER BSD-1619PA4575.A1 1619PA4575	£1.75	£2.10
280 - BUSHING BSD-1619PA4576.A1 1619PA4576	£27.23	£32.68
281 - O-RING BSD-1619PA4577.A1 1619PA4577	£1.75	£2.10
285 - PLUG BSD-1619PA4581.A1 1619PA4581	£1.75	£2.10
287 - PRINTED-BOARD ASSEMBLY BSD-1619PA3508.A1 1619PA3508	£37.27	£44.72
290 - PIN BSD-1619PA4585.A1 1619PA4585	£1.75	£2.10
291 - THREAD-FORMING TAP. SCREW BSD-1619PA4586.A1 1619PA4586	£1.75	£2.10
292 - KNOB BSD-1619PA4587.A1 1619PA4587	£2.80	£3.36
295 - NUT BSD-1619PA4590.A1 1619PA4590	£1.75	£2.10
296 - THREAD-FORMING TAP. SCREW BSD-1619PA4591.A1 1619PA4591	£1.75	£2.10
297 - WASHER BSD-1619PA4592.A1 1619PA4592	£1.75	£2.10
298 - SCREW BSD-1619PA8157.A0 1619PA8157	£1.75	£2.10
302 - CABLE BSD-1619PA4765.A0 1619PA4765	£7.36	£8.83
303 - CABLE BSD-1619PA4766.A2 1619PA4766	£1.75	£2.10
304 - WARNING LABEL BSD-1619PA4763.A2 1619PA4763	£1.75	£2.10
305 - O-RING BSD-1619PA4916.A0 1619PA4916	£1.75	£2.10
306 - CABLE BSD-1619PA6340.A0 1619PA6340	-
307 - CABLE BSD-1619PA6341.A2 1619PA6341	-
308 - CONNECTOR BSD-2610911933.A14 2610911933	£1.75	£2.10
309 - FASTENING CLAMP BSD-1609902275.A5 1609902275	£1.75	£2.10
310 - CABLE BSD-1619PA6342.A0 1619PA6342	-
311 - CABLE BSD-1619PA6343.A2 1619PA6343	-
328 - BOLT BSD-1619PA9304.A1 1619PA9304	£1.75	£2.10
653 - CLAMP BSD-1619PA4166.A0 1619PA4166	£18.96	£22.75
654 - DUST BAG BSD-1619PA4560.A0 1619PA4560	£7.36	£8.83
810 - CARBON BRUSH BSD-1619PA4631.A1 1619PA4631	£16.41	£19.69
811 - LOWER GUARD BSD-1619PA4632.A1 1619PA4632	£40.80	£48.96
812 - LOCKING PIN BSD-1619PA4633.A1 1619PA4633	£12.04	£14.45
813 - TABLE BSD-1619PA4634.A1 1619PA4634	£120.11	£144.13
814 - LASER BSD-1619PA4635.A1 1619PA4635	£13.12	£15.75
815 - LINKAGE BSD-1619PA4636.A1 1619PA4636	£18.96	£22.75
816 - LOWER GUARD BSD-1619PA4637.A1 1619PA4637	£16.41	£19.69
817 - LIGHT UNIT BSD-1619PA4638.A1 1619PA4638	£18.96	£22.75
818 - GUIDE BSD-1619PA4639.A1 1619PA4639	£93.88	£112.65
819 - LINKAGE BSD-1619PA4640.A1 1619PA4640	£7.36	£8.83
820 - LINKAGE BSD-1619PA4762.A0 1619PA4762	£7.36	£8.83
821 - BUTTON BSD-1619PA5029.A1 1619PA5029	£3.72	£4.47
822 - CABLE BSD-1619PA8131.A0 1619PA8131	£4.75	£5.70
823 - CABLE BSD-1619PA8132.A2 1619PA8132	£3.80	£4.56
826 - GUIDE BSD-1619PA9308.A1 1619PA9308	£48.38	£58.06
837 - PLATE BSD-1619PA5970.A1 1619PA5970	£5.58	£6.70

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GTM 12 JL / 3601M15001 / EU 230 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Bosch GTM 12 JL / 3601M15001 / EU 230 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GTM 12 JL / 3601M15001 / EU 230 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
