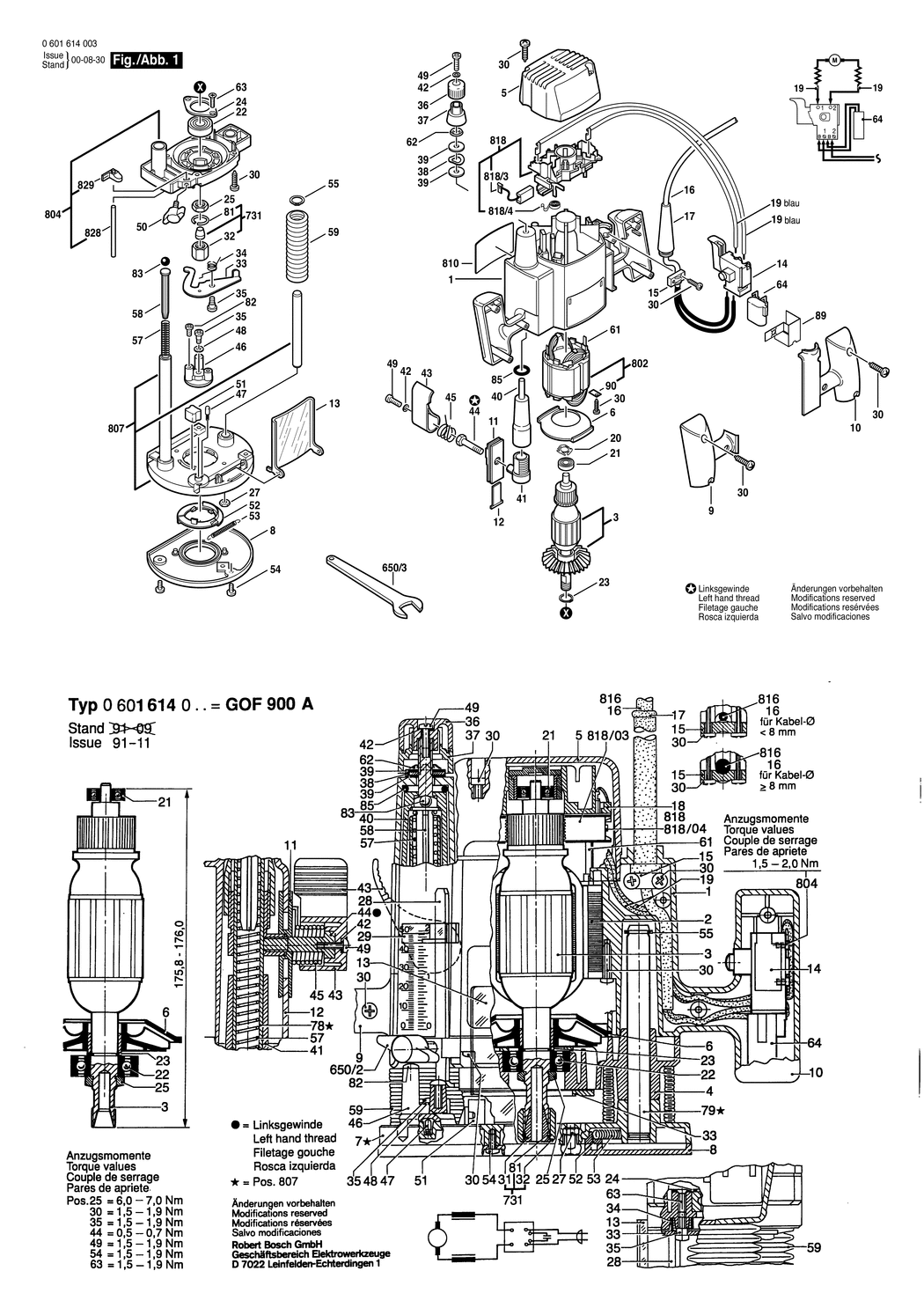

1 - MOTOR HOUSING
BSD-3605108580.A2
3605108580
|
£24.45
|
£29.34
|
|
|
3 - ARMATURE 110-115V
BSD-3604010500.A0
3604010500
|
£88.07
|
£105.68
|
|
|
5 - HOUSING COVER
BSD-3605500593.A2
3605500593
|
-
|
|
|
|
6 - AIR-DEFLECTOR RING
BSD-3600590507.A13
3600590507
|
-
|
|
|
|
8 - INTERMEDIATE PLATE
BSD-3600190520.A2
3600190520
|
-
|
|
|
|
9 - HANDLE COVER LT
BSD-3605133526.A15
3605133526
|
£8.49
|
£10.19
|
|
|
10 - HANDLE COVER RT
BSD-3605133528.A0
3605133528
|
£10.61
|
£12.73
|
|
|
11 - INSERT
BSD-3601010519.A0
3601010519
|
£2.64
|
£3.17
|
|
|
12 - INSERT
BSD-3601010517.A15
3601010517
|
£2.64
|
£3.17
|
|
|
13 - CHIP DEFLECTOR
BSD-2610912599.A35
2610912599
|
-
|
|
|
|
14 - ON-OFF SWITCH
BSD-1607000231.A55
1607000231
|
£19.91
|
£23.89
|
|
|
15 - CABLE CLIP
BSD-2601035001.A1353
2601035001
|
£1.84
|
£2.21
|
|
|
16 - POWER SUPPLY CORD GB 4.25m 2 x 1.5mm H05RR-F
BSD-2610992448.A6
2610992448
|
£23.86
|
£28.63
|
|
|
17 - GROMMET dia 8.4 MM
BSD-3600703512.A3
3600703512
|
-
|
|
|
|
19 - CONNECTING CABLE
BSD-3604445718.A2
3604445718
|
-
|
|
|
|
20 - SPRING WASHER
BSD-2610992432.A15
2610992432
|
£2.45
|
£2.94
|
|
|
21 - GROOVE BALL BEARING
BSD-2610913173.A4
2610913173
|
£15.46
|
£18.55
|
|
|
22 - BALL BEARING
BSD-3600905510.A4
3600905510
|
£6.94
|
£8.33
|
|
|
23 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A428
2916650006
|
£1.75
|
£2.10
|
|
|
24 - RETAINING PLATE
BSD-3600034505.A1
3600034505
|
£3.72
|
£4.47
|
|
|
25 - HEX NUT M15
BSD-3603300501.A18
3603300501
|
£4.26
|
£5.11
|
|
|
27 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A394
2915011005
|
£1.84
|
£2.21
|
|
|
30 - TAPPING SCREW
BSD-2610910566.A13
2610910566
|
£1.38
|
£1.66
|
|
|
32 - UNION NUT
BSD-3603301524.A9
3603301524
|
£7.78
|
£9.33
|
|
|
33 - SWING-PLATE
BSD-3601021509.A19
3601021509
|
£8.67
|
£10.41
|
|
|
34 - TORSION SPRING
BSD-3604651502.A14
3604651502
|
£2.33
|
£2.80
|
|
|
35 - SHOULDER SCREW M4
BSD-3603415556.A52
3603415556
|
£2.45
|
£2.94
|
|
|
36 - KNOB
BSD-3603231539.A19
3603231539
|
£2.45
|
£2.94
|
|
|
37 - INDICATOR RING
BSD-3600209500.A42
3600209500
|
£3.99
|
£4.79
|
|
|
38 - SPRING WASHER
BSD-3600100528.A18
3600100528
|
£1.95
|
£2.34
|
|
|
39 - WASHER
BSD-3600100527.A21
3600100527
|
£2.52
|
£3.02
|
|
|
40 - ADJUSTING SLEEVE
BSD-3600360507.A24
3600360507
|
-
|
|
|
|
41 - LOCKING PIECE
BSD-3600400507.A25
3600400507
|
£2.94
|
£3.53
|
|
|
42 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A579
2916690003
|
£1.75
|
£2.10
|
|
|
43 - LOCKING LEVER
BSD-3602000510.A45
3602000510
|
£2.74
|
£3.29
|
|
|
44 - LOCK BOLT
BSD-3603450503.A19
3603450503
|
£5.01
|
£6.01
|
|
|
45 - LOCK SPRING
BSD-3604651503.A2
3604651503
|
£2.45
|
£2.94
|
|
|
46 - DEPTH-GAUGE
BSD-2610997191.A47
2610997191
|
£13.41
|
£16.09
|
|
|
47 - RATCHET CAP
BSD-2600590006.A547
2600590006
|
£1.84
|
£2.21
|
|
|
48 - SPRING WASHER
BSD-3916060500.A25
3916060500
|
£1.84
|
£2.21
|
|
|
49 - OVAL-HEAD SCREW DIN 7985-M4X12-4.8-H
BSD-2910641122.A59
2910641122
|
£2.27
|
£2.72
|
|
|
50 - WING SCREW M6x20 MM
BSD-1613480008.A414
1613480008
|
£1.84
|
£2.21
|
|
|
51 - KNOB
BSD-3603211501.A2
3603211501
|
£2.61
|
£3.13
|
|
|
52 - LOCKING RING
BSD-3600240500.A2
3600240500
|
£5.58
|
£6.70
|
|
|
53 - EXTENSION SPRING
BSD-3604648504.A21
3604648504
|
-
|
|
|
|
54 - SCREW
BSD-2610915161.A24
2610915161
|
-
|
|
|
|
55 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A17
2916650003
|
£1.75
|
£2.10
|
|
|
57 - COMPRESSION SPRING
BSD-3604613508.A13
3604613508
|
£2.45
|
£2.94
|
|
|
58 - GUIDE PIECE
BSD-3603120502.A38
3603120502
|
£2.64
|
£3.17
|
|
|
59 - BELLOWS
BSD-2610990698.A13
2610990698
|
£11.37
|
£13.64
|
|
|
61 - BLADE TERMINAL
BSD-1604477005.A40
1604477005
|
£2.74
|
£3.29
|
|
|
62 - RETAINING SNAP RING
BSD-3604680502.A0
3604680502
|
£2.45
|
£2.94
|
|
|
63 - COUNTERSUNK-HEAD SCREW DIN 965-M4x12-8.8
BSD-2910871122.A85
2910871122
|
-
|
|
|
|
64 - SUPPRESSION FILTER
BSD-1617328025.A53
1617328025
|
-
|
|
|
|
81 - RETAINING RING
BSD-2916540007.A1
2916540007
|
£1.84
|
£2.21
|
|
|
82 - SOCKET HEAD CAP SCREW
BSD-3603410504.A30
3603410504
|
£2.64
|
£3.17
|
|
|
83 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A491
1903230007
|
£1.84
|
£2.21
|
|
|
85 - O-RING
BSD-3600210507.A12
3600210507
|
£2.33
|
£2.80
|
|
|
89 - SET RING
BSD-2610996090.A38
2610996090
|
-
|
|
|
|
650/3 - SINGLE-HEAD ENG. WRENCH SW19
BSD-1907950511.A73
1907950511
|
£11.78
|
£14.13
|
|
|
731 - COLLET 1/4
BSD-2608570101.A15
2608570101
|
£23.32
|
£27.99
|
|
|
731 - COLLET 8 MM
BSD-2608570102.A0
2608570102
|
£26.24
|
£31.49
|
|
|
731 - COLLET 6 MM
BSD-2608570100.A0
2608570100
|
£24.99
|
£29.99
|
|
|
802 - FIELD 110-115V
BSD-2610907796.A1
2610907796
|
-
|
|
|
|
804 - FAN HOUSING
BSD-2610907867.A12
2610907867
|
-
|
|
|
|
807 - BASE PLATE
BSD-3605702581.A13
3605702581
|
£51.22
|
£61.47
|
|
|
810 - NAMEPLATE
BSD-3601119779.A6
3601119779
|
-
|
|
|
|
818 - BRUSH HOLDER
BSD-3604336510.A3
3604336510
|
-
|
|
|
|
818/3 - CARBON-BRUSH SET
BSD-3604321513.A1
3604321513
|
£13.12
|
£15.75
|
|
|
818/4 - SPRING
BSD-3604652501.A48
3604652501
|
£3.91
|
£4.69
|
|
|
828 - ROD
BSD-2610907864.A22
2610907864
|
£11.87
|
£14.24
|
|
|
829 - POINTER
BSD-2610907865.A1
2610907865
|
£10.61
|
£12.73
|
|
