Bosch GOF 1600 / 0601611003 / EU 220 Volt Spare Parts

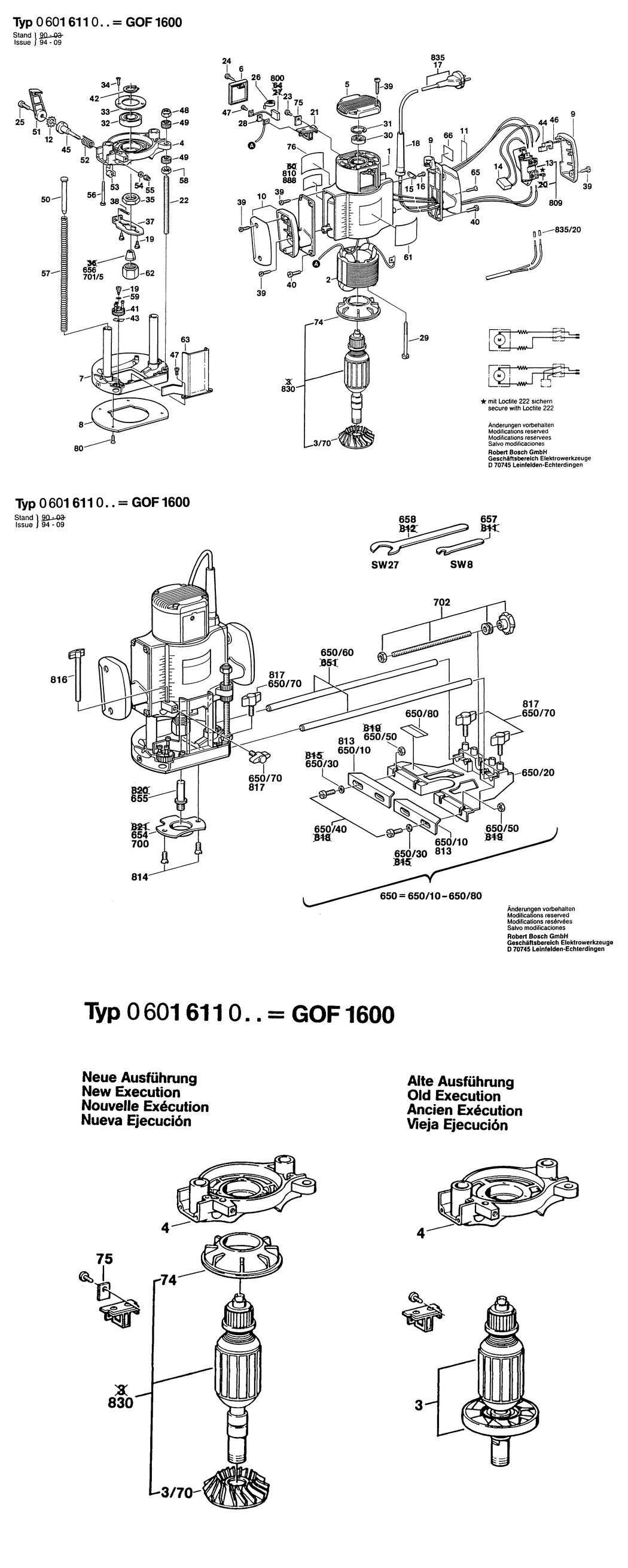

An exploded drawing and listing for the Bosch GOF 1600 / 0601611003 / EU 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108589.A0 3605108589	-
2 - FIELD 220V BSD-3604220531.A2 3604220531	£57.02	£68.42
3/70 - FAN BSD-3606610517.A0 3606610517	-
4 - FAN HOUSING BSD-3605702592.A15 3605702592	£81.81	£98.17
5 - HOUSING COVER BSD-3605500575.A8 3605500575	£7.78	£9.33
6 - SEALING CAP BSD-3605500596.A15 3605500596	£2.52	£3.02
7 - BASE PLATE BSD-3605702595.A7 3605702595	£120.11	£144.13
8 - INTERMEDIATE PLATE BSD-3600190515.A0 3600190515	-
9 - HANDLE BSD-3605133519.A7 3605133519	-
10 - HANDLE BSD-3605133520.A15 3605133520	-
12 - TOOTHED LOCK WASHER BSD-3600190516.A22 3600190516	£2.61	£3.13
13 - ON-OFF SWITCH BSD-3607200510.A12 3607200510	-
14 - SUPPRESSION FILTER BSD-1607328034.A304 1607328034	£4.26	£5.11
15 - FASTENING CLAMP BSD-3601032500.A1 3601032500	£7.36	£8.83
16 - TAPPING SCREW DIN 7981-ST3.5x13-C-H BSD-2910611011.A7 2910611011	-
18 - GROMMET dia 9.4 MM BSD-3600707503.A68 3600707503	£3.72	£4.47
19 - SHOULDER SCREW M4 BSD-3603415556.A60 3603415556	£2.33	£2.80
21 - BRUSH HOLDER BSD-1604336008.A32 1604336008	£21.52	£25.83
22 - THREADED SPINDLE BSD-3603500500.A3 3603500500	-
23 - TAPPING SCREW DIN 7981-ST3.9x13-C-H BSD-2910611018.A228 2910611018	-
24 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A9 2910611019	£2.80	£3.36
25 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A150 2910141197	£1.75	£2.10
26 - SPIRAL SPRING BSD-1614652001.A42 1614652001	£3.72	£4.47
28 - TAB WASHER BSD-1611331007.A31 1611331007	£1.32	£1.58
29 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A176 1613412001	£1.75	£2.10
30 - GROOVE BALL BEARING 6200-2 RS/C 3 BSD-1900905276.A3 1900905276	-
31 - SPRING RETAINING RING BSD-3600119507.A3 3600119507	-
32 - GROOVE BALL BEARING BSD-3600900526.A13 3600900526	£31.64	£37.97
33 - FIXING PLATE BSD-3600034503.A3 3600034503	-
34 - REC CT-SUNK TAPPING SCREW BSD-3603415559.A12 3603415559	£1.95	£2.34
35 - HEX NUT BSD-3603301522.A7 3603301522	-
37 - RETAINING BRACKET BSD-3601961500.A4 3601961500	-
38 - COMPRESSION SPRING BSD-3604613502.A19 3604613502	-
39 - SCREW DIN 7982-ST4.8x19 BSD-2910611034.A28 2910611034	-
40 - SCREW 4x13 MM BSD-3603415540.A3 3603415540	£2.61	£3.13
41 - DEPTH-GAUGE BSD-3600232503.A3 3600232503	£10.82	£12.99
42 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A145 2916650014	£1.75	£2.10
43 - LEAF SPRING BSD-3601254501.A15 3601254501	£8.49	£10.19
44 - LOCKING LEVER BSD-3602033500.A13 3602033500	£1.75	£2.10
45 - AXLE BSD-3603053503.A15 3603053503	-
46 - COMPRESSION SPRING BSD-3604613503.A3 3604613503	£2.61	£3.13
47 - OVAL-HEAD SCREW DIN 7985-M4x8-8.8-H BSD-2910951118.A61 2910951118	£1.75	£2.10
48 - HEX NUT DIN 985-M10-10 BSD-2915065007.A19 2915065007	-
49 - ADJUSTING NUT BSD-2603345015.A38 2603345015	-
50 - GUIDE PIECE BSD-3603120501.A16 3603120501	-
51 - ADJUSTING LEVER BSD-3602000509.A9 3602000509	-
52 - CLAMPING SPRING BSD-3604651501.A15 3604651501	-
53 - ADJUSTING ECCENTRIC BSD-3602202500.A9 3602202500	-
54 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A47 2916011010	£1.75	£2.10
55 - HEX NUT DIN 985-M4-8 BSD-2915061002.A1 2915061002	£1.75	£2.10
56 - SCREW B 4.8x45 MM BSD-3603415560.A13 3603415560	£1.75	£2.10
57 - COMPRESSION SPRING BSD-3604619502.A22 3604619502	£2.61	£3.13
58 - HEX NUT DIN 439-BM10-04 BSD-2915055108.A22 2915055108	-
59 - SPRING WASHER BSD-3916060500.A61 3916060500	£1.75	£2.10
61 - MANUFACTURER'S NAMEPLATE BSD-3601119653.A3 3601119653	-
62 - UNION NUT SW27 BSD-3603313507.A1 3603313507	-
63 - PROTECTIVE SHIELD BSD-3605510526.A21 3605510526	-
65 - REC CT-SUNK TAPPING SCREW DIN 7982-ST4.8x18-F-H BSD-2910601433.A1 2910601433	-
67 - INSULATING TUBE BSD-3601007502.A1 3601007502	-
74 - AIR-DEFLECTOR RING BSD-3600590504.A19 3600590504	-
75 - TAB WASHER BSD-1601030022.A65 1601030022	£1.75	£2.10
80 - THREAD-FORMING TAP. SCREW DIN 7500-CM 4x8-ST BSD-2914411045.A11 2914411045	-
650/10 - GUIDE PLATE BSD-3602386501.A1 3602386501	-
650/20 - RIM BSD-2610996063.A0 2610996063	-
650/30 - PLAIN WASHER DIN 433-5.3-ST BSD-2916011011.A184 2916011011	£1.75	£2.10
650/40 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8 BSD-2910021154.A117 2910021154	£1.75	£2.10
650/50 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A46 2915011006	-
650/60 - GUIDE ROD 10 MM BSD-3603001518.A17 3603001518	-
650/70 - WING SCREW M 6x16 MM BSD-2603480003.A166 2603480003	£2.61	£3.13
650/80 - MANUFACTURER'S NAMEPLATE BSD-3601119612.A1 3601119612	£2.52	£3.02
654 - TOOL GUIDE dia 30 MM BSD-3605703528.A7 3605703528	-
655 - THREADED SPINDLE M 12x1 MM BSD-3603523501.A5 3603523501	-
656 - COLLET dia 12 MM BSD-3608570505.A1 3608570505	-
657 - SINGLE-HEAD ENG. WRENCH BSD-2607950504.A0 2607950504	£2.52	£3.02
658 - SINGLE-HEAD ENG. WRENCH DIN 894 SW27 BSD-1907950514.A1 1907950514	-
700 - TOOL GUIDE dia 27 MM BSD-3605703527.A4 3605703527	-
700 - TOOL GUIDE dia 40 MM BSD-3605703529.A4 3605703529	-
701/5 - COLLET dia 6 MM BSD-3608570500.A9 3608570500	-
701/5 - COLLET 1/4 BSD-3600499503.A0 3600499503	-
701/5 - COLLET dia 8 MM BSD-3608570502.A1 3608570502	-
701/5 - COLLET 3/8 BSD-3600499502.A10 3600499502	-
701/5 - COLLET dia 10 MM BSD-3608570504.A9 3608570504	-
800 - CARBON-BRUSH SET BSD-1607014103.A235 1607014103	£14.91	£17.89
809 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A726 2603410001	£1.75	£2.10
810 - NAMEPLATE BSD-3601119779.A8 3601119779	-
816 - DEPTH-GAUGE BSD-3603029500.A18 3603029500	-
824 - VACUUM ADAPTER BSD-3608939626.A6 3608939626	-
825 - VACUUM ADAPTER BSD-3608939611.A4 3608939611	-
826 - BRUSH-COVER BSD-3607929500.A0 3607929500	-
827 - COUNTERSUNK-HEAD SCREW DIN 963-M5x25-4.8 BSD-2910761164.A4 2910761164	-
830 - ARMATURE 220V BSD-3604011593.A0 3604011593	-
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A447 1607000228	£23.86	£28.63
888 - NAMEPLATE BSD-160111A3H3.A1634 160111A3H3	£2.61	£3.13
