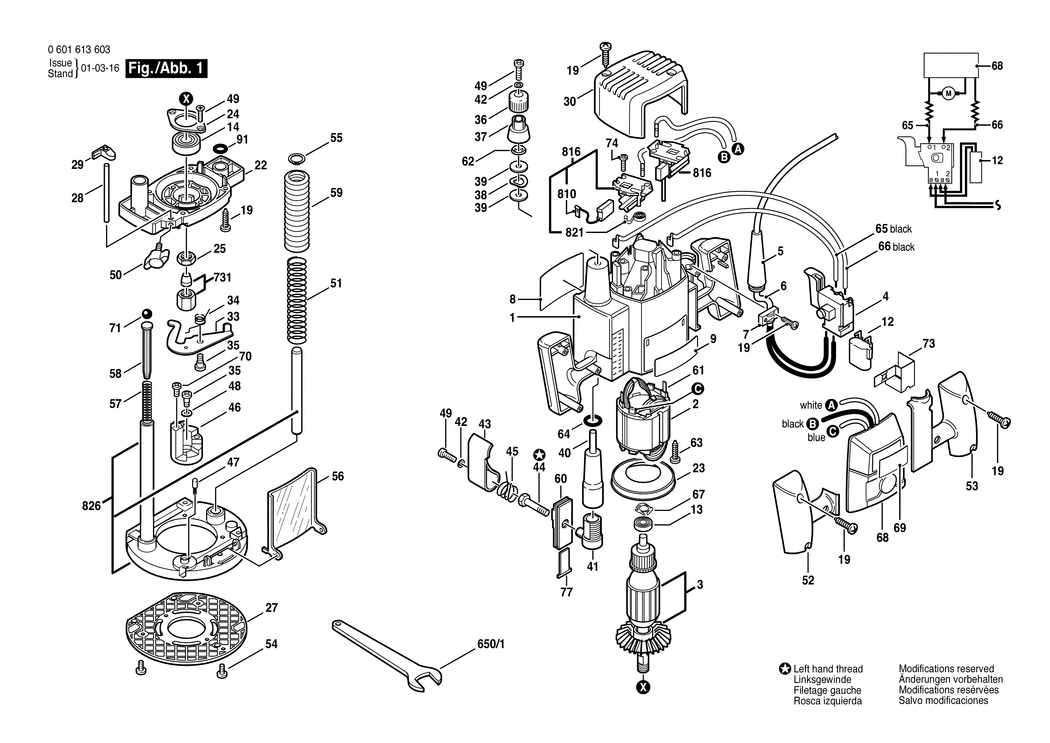

1 - MOTOR HOUSING
BSD-3605108584.A2
3605108584
|
£38.47
|
£46.16
|
|
|
2 - FIELD 230V
BSD-2610941203.A8
2610941203
|
£62.51
|
£75.01
|
|
|
3 - ARMATURE 230V
BSD-2610941202.A5
2610941202
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1607000231.A50
1607000231
|
£19.91
|
£23.89
|
|
|
5 - POWER SUPPLY CORD GB 4.25m 2 x 1.5mm H05RR-F
BSD-2610993632.A6
2610993632
|
£65.08
|
£78.10
|
|
|
6 - GROMMET dia 9.4 MM
BSD-3600703508.A14
3600703508
|
£3.51
|
£4.21
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1369
2601035001
|
£1.84
|
£2.21
|
|
|
8 - NAMEPLATE
BSD-2610907707.A0
2610907707
|
£3.91
|
£4.69
|
|
|
9 - REFERENCE PLATE
BSD-2610998943.A3
2610998943
|
£3.91
|
£4.69
|
|
|
12 - SUPPRESSION FILTER
BSD-1617328025.A68
1617328025
|
-
|
|
|
|
13 - BALL GUIDE
BSD-3600905513.A16
3600905513
|
£12.64
|
£15.17
|
|
|
14 - BALL BEARING
BSD-1600900088.A30
1600900088
|
-
|
|
|
|
19 - TAPPING SCREW
BSD-2610910566.A32
2610910566
|
£1.38
|
£1.66
|
|
|
22 - HOUSING
BSD-2610997096.A3
2610997096
|
£57.02
|
£68.42
|
|
|
23 - AIR-DEFLECTOR RING
BSD-3600590508.A16
3600590508
|
£3.51
|
£4.21
|
|
|
24 - PLAIN WASHER DIN 9021-B 4.3-ST
BSD-2916011892.A14
2916011892
|
£1.84
|
£2.21
|
|
|
25 - HEX NUT
BSD-3603300502.A9
3603300502
|
£4.75
|
£5.70
|
|
|
27 - COVER PLATE
BSD-2610997099.A6
2610997099
|
£22.60
|
£27.12
|
|
|
28 - ROD
BSD-2610997093.A9
2610997093
|
£6.94
|
£8.33
|
|
|
29 - POINTER
BSD-2610997094.A6
2610997094
|
£6.16
|
£7.39
|
|
|
30 - HOUSING COVER
BSD-3605500598.A3
3605500598
|
-
|
|
|
|
33 - SWING-PLATE
BSD-3601021510.A13
3601021510
|
£6.94
|
£8.33
|
|
|
34 - TORSION SPRING
BSD-3604651502.A7
3604651502
|
£2.33
|
£2.80
|
|
|
35 - SHOULDER SCREW M4
BSD-3603415556.A30
3603415556
|
£2.45
|
£2.94
|
|
|
36 - KNOB
BSD-3603231539.A17
3603231539
|
£2.45
|
£2.94
|
|
|
37 - INDICATOR RING
BSD-3600209500.A26
3600209500
|
£3.99
|
£4.79
|
|
|
38 - SPRING WASHER
BSD-3600100528.A35
3600100528
|
£1.95
|
£2.34
|
|
|
39 - WASHER
BSD-3600100527.A4
3600100527
|
£2.52
|
£3.02
|
|
|
40 - ADJUSTING SLEEVE
BSD-3600360507.A21
3600360507
|
-
|
|
|
|
41 - LOCKING PIECE
BSD-3600400507.A8
3600400507
|
£2.94
|
£3.53
|
|
|
42 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A568
2916690003
|
£1.75
|
£2.10
|
|
|
43 - LOCKING LEVER
BSD-3602000510.A9
3602000510
|
£2.74
|
£3.29
|
|
|
44 - LOCK BOLT
BSD-3603450504.A21
3603450504
|
£5.30
|
£6.36
|
|
|
45 - LOCK SPRING
BSD-3604651503.A38
3604651503
|
£2.45
|
£2.94
|
|
|
46 - DEPTH-GAUGE
BSD-2610997191.A4
2610997191
|
£13.41
|
£16.09
|
|
|
47 - RATCHET CAP
BSD-2600590006.A1410
2600590006
|
£1.84
|
£2.21
|
|
|
48 - SPRING WASHER
BSD-3916060500.A45
3916060500
|
£1.84
|
£2.21
|
|
|
49 - OVAL-HEAD SCREW DIN 7985-M4X12-4.8-H
BSD-2910641122.A3
2910641122
|
£2.27
|
£2.72
|
|
|
50 - WING SCREW M6x20 MM
BSD-1613480008.A81
1613480008
|
£1.84
|
£2.21
|
|
|
51 - COMPRESSION SPRING
BSD-2610997100.A12
2610997100
|
£2.33
|
£2.80
|
|
|
52 - HANDLE COVER LT
BSD-3605133531.A7
3605133531
|
£10.10
|
£12.12
|
|
|
53 - HANDLE COVER RT
BSD-3605133530.A9
3605133530
|
£10.61
|
£12.73
|
|
|
54 - SCREW
BSD-2610915161.A84
2610915161
|
-
|
|
|
|
55 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A285
2916650003
|
£1.75
|
£2.10
|
|
|
56 - CHIP DEFLECTOR
BSD-2610912599.A36
2610912599
|
-
|
|
|
|
57 - COMPRESSION SPRING
BSD-3604613508.A19
3604613508
|
£2.45
|
£2.94
|
|
|
58 - GUIDE PIECE
BSD-3603120502.A3
3603120502
|
£2.64
|
£3.17
|
|
|
59 - BELLOWS
BSD-3605510548.A0
3605510548
|
£5.58
|
£6.70
|
|
|
60 - INSERT
BSD-3601010519.A17
3601010519
|
£2.64
|
£3.17
|
|
|
61 - BLADE TERMINAL
BSD-1604477005.A128
1604477005
|
£2.74
|
£3.29
|
|
|
62 - RETAINING SNAP RING
BSD-3604680502.A20
3604680502
|
£2.45
|
£2.94
|
|
|
63 - TAPPING SCREW
BSD-2610991306.A25
2610991306
|
£1.75
|
£2.10
|
|
|
64 - O-RING
BSD-3600210507.A29
3600210507
|
£2.33
|
£2.80
|
|
|
65 - CABLE
BSD-2610945855.A7
2610945855
|
£2.74
|
£3.29
|
|
|
66 - CABLE
BSD-2610945856.A1
2610945856
|
£3.72
|
£4.47
|
|
|
67 - SPRING LOCK WASHER
BSD-3600150501.A12
3600150501
|
£2.45
|
£2.94
|
|
|
68 - CONTROL UNIT 230V
BSD-1607233153.A8
1607233153
|
£72.18
|
£86.62
|
|
|
69 - NAMEPLATE
BSD-2610912471.A3
2610912471
|
£3.51
|
£4.21
|
|
|
70 - SOCKET HEAD CAP SCREW
BSD-3603410504.A38
3603410504
|
£2.64
|
£3.17
|
|
|
71 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A44
1903230007
|
£1.84
|
£2.21
|
|
|
73 - SET RING
BSD-2610996090.A19
2610996090
|
-
|
|
|
|
74 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1388
2603490017
|
£2.27
|
£2.72
|
|
|
77 - INSERT
BSD-3601010521.A5
3601010521
|
£3.51
|
£4.21
|
|
|
91 - O-RING 12.0x2.0 MM
BSD-1610210233.A17
1610210233
|
£2.94
|
£3.53
|
|
|
650/1 - SINGLE-HEAD ENG. WRENCH
BSD-2610992417.A20
2610992417
|
£16.41
|
£19.69
|
|
|
731 - COLLET 1/2
BSD-2608570108.A7
2608570108
|
£28.32
|
£33.99
|
|
|
731 - COLLET 12 MM
BSD-2608570107.A14
2608570107
|
£27.12
|
£32.54
|
|
|
731 - COLLET 3/8
BSD-2608570106.A22
2608570106
|
£27.99
|
£33.59
|
|
|
731 - COLLET 8 MM
BSD-2608570105.A10
2608570105
|
£28.48
|
£34.17
|
|
|
731 - COLLET 1/4
BSD-2608570104.A22
2608570104
|
£25.72
|
£30.86
|
|
|
731 - COLLET 6 MM
BSD-2608570103.A14
2608570103
|
£25.82
|
£30.99
|
|
|
731 - COLLET 10 MM
BSD-2608570125.A22
2608570125
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2610007957.A13
2610007957
|
£11.87
|
£14.24
|
|
|
816 - BRUSH HOLDER
BSD-2610013632.A10
2610013632
|
£31.79
|
£38.15
|
|
|
821 - SPRING
BSD-3604652501.A6
3604652501
|
£3.91
|
£4.69
|
|
|
826 - BASE
BSD-2610997115.A10
2610997115
|
£61.98
|
£74.38
|
|
