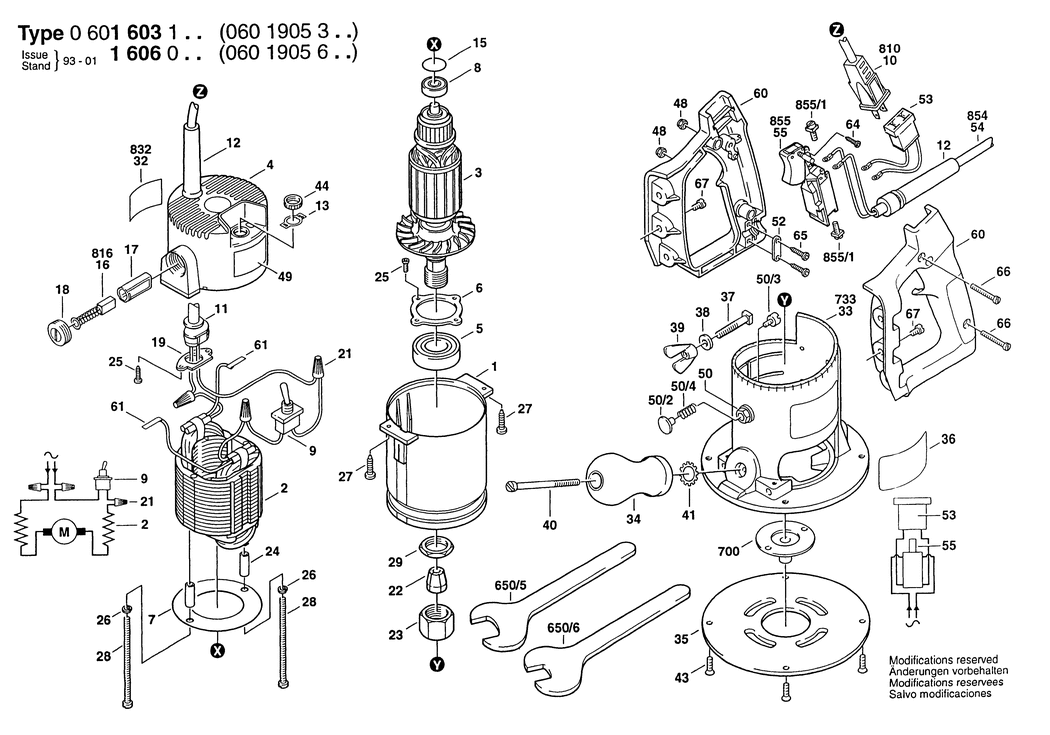

1 - MOTOR HOUSING
BSD-3605108552.A1
3605108552
|
£35.42
|
£42.51
|
|
|
2 - FIELD 115V
BSD-3604220528.A0
3604220528
|
-
|
|
|
|
3 - ARMATURE 115V
BSD-3604011512.A0
3604011512
|
-
|
|
|
|
4 - SEALING CAP
BSD-3605500583.A0
3605500583
|
-
|
|
|
|
5 - GROOVE BALL BEARING
BSD-3600900516.A1
3600900516
|
-
|
|
|
|
6 - FRONT PANEL
BSD-3600034500.A1
3600034500
|
-
|
|
|
|
7 - PROTECTIVE WASHER
BSD-3600133500.A0
3600133500
|
-
|
|
|
|
8 - GROOVE BALL BEARING
BSD-3600900515.A0
3600900515
|
£25.68
|
£30.81
|
|
|
9 - TOGGLE SWITCH
BSD-3607200505.A2
3607200505
|
£18.96
|
£22.75
|
|
|
11 - COMPRESSION-GLAND FITTING
BSD-3600390501.A1
3600390501
|
-
|
|
|
|
12 - GROMMET
BSD-3600703500.A2
3600703500
|
£4.48
|
£5.37
|
|
|
13 - SWITCH PLATE
BSD-3601023500.A2
3601023500
|
-
|
|
|
|
15 - O-RING
BSD-3600210502.A0
3600210502
|
-
|
|
|
|
17 - BRUSH HOLDER
BSD-3600492500.A2
3600492500
|
-
|
|
|
|
18 - DEVICE CAP
BSD-1619X01268.A3
1619X01268
|
£1.75
|
£2.10
|
|
|
19 - FIXING PLATE
BSD-3601023501.A0
3601023501
|
-
|
|
|
|
21 - CABLE PLUG
BSD-3608099501.A0
3608099501
|
-
|
|
|
|
22 - COLLET 1/4
BSD-3600499508.A0
3600499508
|
-
|
|
|
|
22 - COLLET 3/8
BSD-3600499507.A1
3600499507
|
-
|
|
|
|
23 - UNION NUT
BSD-3603313502.A1
3603313502
|
-
|
|
|
|
24 - SPACER
BSD-3600410502.A1
3600410502
|
-
|
|
|
|
25 - CYL HEAD TAPPING SCREW
BSD-3603429508.A0
3603429508
|
-
|
|
|
|
26 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A446
2916680006
|
-
|
|
|
|
27 - SOCKET HEAD CAP SCREW
BSD-3603410501.A0
3603410501
|
-
|
|
|
|
28 - SOCKET HEAD CAP SCREW
BSD-3603415537.A0
3603415537
|
-
|
|
|
|
29 - HEX NUT
BSD-3603301514.A0
3603301514
|
-
|
|
|
|
31 - REFERENCE PLATE
BSD-3601119635.A0
3601119635
|
-
|
|
|
|
33 - BASE PLATE
BSD-3605702571.A0
3605702571
|
-
|
|
|
|
34 - HANDLE
BSD-3603231500.A2
3603231500
|
-
|
|
|
|
35 - BASE PLATE
BSD-3600190500.A4
3600190500
|
-
|
|
|
|
37 - HEADLESS SCREW
BSD-3603440500.A2
3603440500
|
-
|
|
|
|
38 - PLAIN WASHER
BSD-3600100500.A2
3600100500
|
-
|
|
|
|
39 - WING NUT
BSD-3603339500.A2
3603339500
|
-
|
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-BM6x70-5.8
BSD-2910011219.A8
2910011219
|
£1.84
|
£2.21
|
|
|
41 - TOOTHED LOCK WASHER DIN 6797-A16.5-FST
BSD-2916030013.A2
2916030013
|
-
|
|
|
|
43 - SCREW
BSD-2610915162.A4
2610915162
|
£1.75
|
£2.10
|
|
|
44 - THREADED RING
BSD-3603340500.A6
3603340500
|
-
|
|
|
|
48 - HEX NUT DIN 985-M4-8
BSD-2915061002.A9
2915061002
|
£1.84
|
£2.21
|
|
|
50 - HANDLE
BSD-3603344504.A0
3603344504
|
-
|
|
|
|
50/2 - LATCH
BSD-3603231509.A2
3603231509
|
-
|
|
|
|
50/3 - SOCKET HEAD CAP SCREW
BSD-3603410500.A4
3603410500
|
-
|
|
|
|
50/4 - COMPRESSION SPRING
BSD-3604612500.A2
3604612500
|
-
|
|
|
|
52 - FASTENING CLAMP
BSD-3601032500.A8
3601032500
|
£7.72
|
£9.27
|
|
|
53 - SOCKET
BSD-3604484501.A0
3604484501
|
-
|
|
|
|
54 - POWER SUPPLY CORD 4.25m 2 x 1.0mm H07RN-F
BSD-3604460613.A0
3604460613
|
-
|
|
|
|
58 - CONDENSER
BSD-3607328513.A0
3607328513
|
-
|
|
|
|
60 - HANDLE
BSD-3605133523.A0
3605133523
|
-
|
|
|
|
61 - CONNECTING TERMINAL
BSD-3601355500.A0
3601355500
|
-
|
|
|
|
64 - TAPPING SCREW DIN 7981-ST4.2x9.5-F-H
BSD-2910611424.A25
2910611424
|
-
|
|
|
|
65 - TAPPING SCREW DIN 7981-ST3.5x13-C-H
BSD-2910611011.A8
2910611011
|
-
|
|
|
|
66 - OVAL-HEAD SCREW DIN 7985-M4x30-4.8H
BSD-2910641134.A0
2910641134
|
-
|
|
|
|
67 - SOCKET HEAD CAP SCREW DIN 84-AM5x8-5.8
BSD-2910011150.A0
2910011150
|
-
|
|
|
|
650/5 - KEY SW 13/19
BSD-9601497902.A0
9601497902
|
-
|
|
|
|
651 - PARALLEL-GUIDE
BSD-2610906282.A0
2610906282
|
£65.08
|
£78.10
|
|
|
651 - GUIDE PLATE
BSD-3602386501.A8
3602386501
|
-
|
|
|
|
651 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A91
2916011012
|
£1.84
|
£2.21
|
|
|
651 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-5.8
BSD-2910011154.A0
2910011154
|
£1.84
|
£2.21
|
|
|
651 - HEX NUT M 7 DIN 934-M-8
BSD-2915011008.A1
2915011008
|
-
|
|
|
|
651 - GUIDE ROD
BSD-3603001519.A0
3603001519
|
-
|
|
|
|
651 - WING SCREW M 6x16 MM
BSD-2603480003.A162
2603480003
|
£2.74
|
£3.29
|
|
|
651 - REFERENCE PLATE
BSD-3601119730.A0
3601119730
|
-
|
|
|
|
651 - SOCKET HEAD CAP SCREW DIN 84-AM5x10-5.8
BSD-2910011152.A6
2910011152
|
£1.84
|
£2.21
|
|
|
733 - BASE PLATE
BSD-3605702604.A0
3605702604
|
-
|
|
|
|
800 - HEX NUT
BSD-3603301516.A0
3603301516
|
-
|
|
|
|
803 - SOCKET HEAD CAP SCREW DIN 84-AM5x10-5.8
BSD-2910011152.A7
2910011152
|
£1.84
|
£2.21
|
|
|
808 - SOCKET HEAD CAP SCREW
BSD-3603433506.A24
3603433506
|
-
|
|
|
|
810 - POWER SUPPLY CORD
BSD-3604460528.A0
3604460528
|
-
|
|
|
|
816 - CARBON-BRUSH SET
BSD-3607014501.A0
3607014501
|
-
|
|
|
|
832 - NAMEPLATE
BSD-3601119600.A2
3601119600
|
-
|
|
|
|
855 - TOGGLE SWITCH
BSD-3607000677.A0
3607000677
|
-
|
|
|
