Bosch UBH 4/26 / 0611205042 / GB 240 Volt Spare Parts

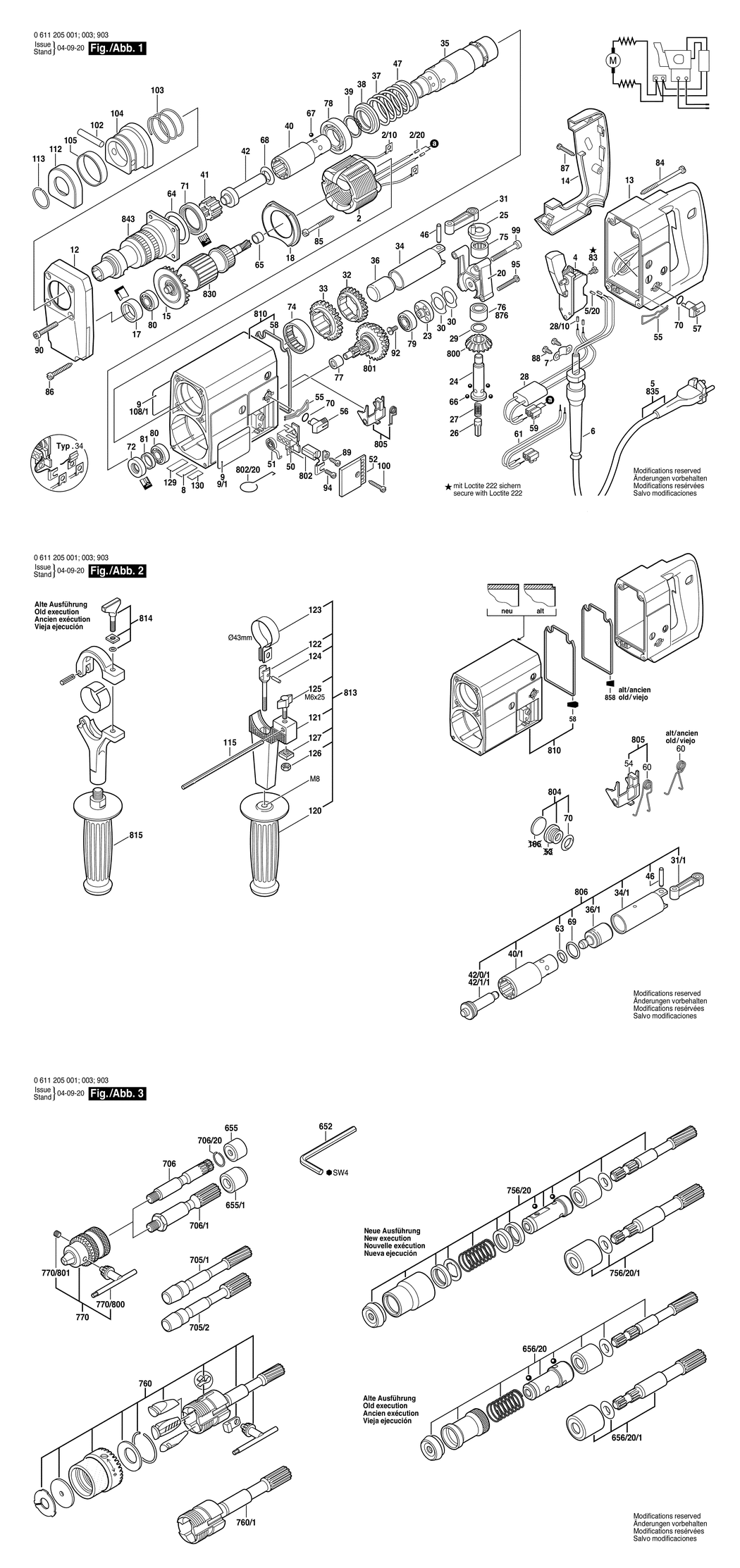

An exploded drawing and listing for the Bosch UBH 4/26 / 0611205042 / GB 240 Volt

	Ex VAT	Inc VAT
2 - POLE SHOE 240V BSD-1614220052.A0 1614220052	-
2/10 - TERMINAL LUG dia 4.3 MM BSD-1671353005.A4 1671353005	-
2/20 - END SPLICE dia1.3xdia1.6x10 MM BSD-1610452003.A18 1610452003	-
4 - ON-OFF SWITCH BSD-1617200017.A43 1617200017	-
5 - POWER SUPPLY CORD GB 240V 4.15m 2 x 1.0mm H07RN-F BSD-1614460058.A10 1614460058	£24.45	£29.34
5/20 - END SPLICE BSD-3604477008.A338 3604477008	£1.75	£2.10
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A284 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302014.A389 1601302014	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302013.A466 1601302013	£1.75	£2.10
8 - NAMEPLATE BSD-1611104001.A12 1611104001	-
9 - MANUFACTURER'S NAMEPLATE BSD-1611110156.A10 1611110156	-
9/1 - MANUFACTURER'S NAMEPLATE BSD-1611110163.A0 1611110163	-
12 - HOUSING COVER BSD-1615500280.A31 1615500280	-
13 - GEAR HOUSING BSD-1615806024.A8 1615806024	-
14 - HANDLE COVER BSD-1615132016.A7 1615132016	-
15 - FAN BSD-1616610052.A24 1616610052	-
17 - RUBBER RING BSD-1610206017.A25 1610206017	-
18 - AIR-DEFLECTOR RING BSD-1610522005.A35 1610522005	-
20 - BEARING PEDESTAL BSD-1615820087.A36 1615820087	-
23 - BEARING FLANGE BSD-1615700024.A7 1615700024	-
24 - CRANKSHAFT BSD-1613124019.A22 1613124019	-
25 - ECCENTRIC BOLT BSD-1613180002.A16 1613180002	-
26 - PRESSURE SPINDLE BSD-1613105010.A32 1613105010	-
27 - COMPRESSION SPRING BSD-1604612002.A32 1604612002	-
28 - SUPPRESSION FILTER BSD-1617328002.A44 1617328002	-
28 - SUPPRESSION FILTER BSD-1617328020.A13 1617328020	-
28/10 - END SPLICE BSD-3604477008.A339 3604477008	£1.75	£2.10
29 - SHIM WASHER 1.8 MM BSD-1610101610.A27 1610101610	-
30 - SHIM 0.2 MM BSD-1610132004.A28 1610132004	-
31 - CONNECTING ROD BSD-1612001030.A27 1612001030	-
32 - CYLINDRICAL GEAR Z=46/6 BSD-1616317023.A20 1616317023	-
33 - CYLINDRICAL GEAR Z=46/6 BSD-1616317024.A5 1616317024	-
34 - HAMMER PISTON BSD-1618700035.A6 1618700035	-
34/1 - HAMMER PISTON BSD-1618700051.A19 1618700051	-
35 - HOLLOW SHAFT Z=6 BSD-1616130005.A28 1616130005	-
36 - STRIKER BSD-1613200005.A8 1613200005	-
36/1 - STRIKER BSD-1618710046.A34 1618710046	-
37 - COMPRESSION SPRING BSD-1614618001.A40 1614618001	-
38 - BACKUP RING BSD-1610328010.A29 1610328010	-
39 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A14 2916650014	£1.75	£2.10
40 - BEARING SLEEVE BSD-1616334007.A7 1616334007	-
40/1 - BEARING SLEEVE BSD-1616334010.A5 1616334010	-
41 - CARRIER Z=8/9 BSD-1616490009.A16 1616490009	-
41 - CARRIER Z=12/9 BSD-1616490011.A1 1616490011	-
42 - STRIKER PIN BSD-1613124021.A3 1613124021	-
42/0/1 - STRIKER PIN 15 MM BSD-1613124027.A6 1613124027	-
42/1/1 - STRIKER PIN BSD-1613124022.A1 1613124022	-
42/1/1 - STRIKER PIN dia12.5xdia25x74 MM BSD-1613124028.A6 1613124028	-
46 - STRAIGHT PIN BSD-1613101004.A23 1613101004	-
47 - SUPPORTING DISC 3.0 MM BSD-1610102016.A35 1610102016	-
50 - BRUSH HOLDER BSD-1604336017.A17 1604336017	£7.36	£8.83
51 - SPIRAL SPRING BSD-1604652006.A398 1604652006	£1.75	£2.10
52 - HOUSING COVER BSD-1615500281.A4 1615500281	-
55 - HOLDING SPRING BSD-1614680000.A23 1614680000	-
56 - CONTROL LEVER BSD-1612026026.A14 1612026026	-
58 - SEALING FRAME BSD-1611015025.A25 1611015025	-
59 - CONNECTING TERMINAL BSD-1611091002.A41 1611091002	£1.75	£2.10
63 - O-RING 62.0x4.0 MM BSD-1610210089.A36 1610210089	-
64 - O-RING 45x2.5MM BSD-1900210145.A8 1900210145	£1.75	£2.10
65 - INTERMEDIATE RING BSD-1610300051.A34 1610300051	-
66 - BALL DIN 5401-5 G28 BSD-1903230009.A976 1903230009	£1.75	£2.10
67 - BALL DIN 5401-6 G28 BSD-1903230011.A481 1903230011	£2.61	£3.13
68 - DAMPING RING BSD-1610210034.A7 1610210034	£1.75	£2.10
69 - O-RING 18.0x3.0 MM BSD-1610210058.A194 1610210058	£2.61	£3.13
70 - O-RING 14.0x2.3 MM BSD-1610210026.A18 1610210026	£1.75	£2.10
71 - SEAL RING dia 31.5x42x7 MM BSD-1610283012.A9 1610283012	£8.49	£10.19
72 - ROTARY SHAFT LIP SEAL dia13.8xdia26x7.5 MM BSD-1610283014.A47 1610283014	-
74 - NEEDLE BEARING dia35xdia42x12 MM BSD-1610910051.A17 1610910051	-
75 - NEEDLE BEARING dia14xdia22x13 MM BSD-1610910056.A85 1610910056	-
76 - NEEDLE BEARING BSD-1610910069.A53 1610910069	-
77 - NEEDLE BEARING dia8xdia12x10 MM BSD-1610910057.A4 1610910057	£2.80	£3.36
78 - GROOVE BALL BEARING 25x47x12 BSD-1900900275.A20 1900900275	-
79 - GROOVE BALL BEARING DIN 625 6000J C5 BSD-1900900278.A12 1900900278	-
80 - GROOVE BALL BEARING 10x26x8 BSD-1610905002.A23 1610905002	-
81 - LUBRICATING FELT BSD-1610205003.A57 1610205003	-
83 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1384 2603410001	£1.75	£2.10
84 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A92 1613412001	£1.75	£2.10
85 - SCREW B 4.8x45 MM BSD-3603415560.A273 3603415560	£1.75	£2.10
86 - TAPPING SCREW DIN 7971-BZ4.8x32 BSD-2910211037.A47 2910211037	£1.75	£2.10
87 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A579 2910211021	£1.75	£2.10
88 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A304 2910211018	£1.75	£2.10
89 - TAPPING SCREW DIN 7971-BZ3.9x9.5 BSD-2910211017.A204 2910211017	-
90 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A57 2910141166	£1.75	£2.10
92 - COUNTERSUNK-HEAD SCREW BSD-1613421000.A5 1613421000	-
94 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A991 2910021118	£1.75	£2.10
95 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8 BSD-2910021134.A270 2910021134	£1.75	£2.10
99 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x40-8.8 BSD-2910141170.A45 2910141170	£2.61	£3.13
100 - TAPPING SCREW BZ 3.9x19 DIN 7972 BSD-2910601120.A19 2910601120	-
102 - STRAIGHT PIN RIKO 6325-8m6x40 BSD-2917550184.A12 2917550184	-
103 - COMPRESSION SPRING BSD-1614616004.A13 1614616004	-
104 - PROTECTION SLEEVE BSD-1610499004.A10 1610499004	-
105 - RUBBER RING dia42xdia4.5x10 MM BSD-1610206016.A19 1610206016	£1.75	£2.10
108/1 - MANUFACTURER'S NAMEPLATE BSD-1611110468.A3 1611110468	-
112 - PROTECTIVE CAP BSD-1610590000.A5 1610590000	-
113 - RETAINING RING 26 DIN 9045 BSD-2916601014.A36 2916601014	-
115 - DEPTH-GAUGE SW 6x330 MM BSD-1613001003.A61 1613001003	£4.25	£5.10
120 - AUXILIARY HANDLE M8 BSD-1612025019.A76 1612025019	£6.52	£7.83
121 - SUPPORT CLAMP BSD-1618040077.A82 1618040077	-
122 - STUD BOLT M8 BSD-1613521001.A72 1613521001	£5.58	£6.70
123 - CLAMPING BAND dia43 MM BSD-1611316003.A102 1611316003	£2.61	£3.13
124 - STRAIGHT PIN BSD-1613100012.A152 1613100012	£2.61	£3.13
125 - WING SCREW M6x25 MM BSD-1613480009.A91 1613480009	£1.88	£2.25
126 - HEX NUT M6 BSD-1613300006.A81 1613300006	£1.32	£1.58
127 - CLAMPING PLATE BSD-1611030009.A67 1611030009	-
652 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A397 2607950004	£1.75	£2.10
655 - PROTECTIVE CAP BSD-2600508019.A31 2600508019	£1.75	£2.10
656/20 - BIT HOLDER BSD-1618598086.A0 1618598086	-
656/20/1 - BIT HOLDER BSD-1618598087.A9 1618598087	-
705/1 - TOOLHOLDER BSD-1618598085.A1 1618598085	-
706/1 - BIT HOLDER 1/2 - 20 UNF-2 A BSD-1618598094.A8 1618598094	-
706/20 - RETAINING RING 12 DIN 9045 BSD-2916600007.A44 2916600007	£2.80	£3.36
756/20 - BIT HOLDER BSD-1618598123.A2 1618598123	-
756/20/1 - BIT HOLDER BSD-1618598124.A0 1618598124	£69.15	£82.98
760 - CHUCK BSD-1618571008.A7 1618571008	-
760/1 - CHUCK dia5-dia13 MM BSD-1618571009.A9 1618571009	-
770 - KEY CHUCK dia 1-10 MM. 1/2 BSD-1608571045.A4 1608571045	£29.74	£35.69
770 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A229 1608571069	£23.86	£28.63
770/800 - CHUCK WRENCH SG2 BSD-2607950007.A370 2607950007	£6.52	£7.83
770/801 - SET SCREW BSD-1603400001.A6 1603400001	-
800 - BEVEL GEAR Z=33 BSD-1616333005.A42 1616333005	-
801 - PARTS SET Z=9/16/48 BSD-1617000930.A21 1617000930	-
802 - CARBON-BRUSH SET BSD-1617014106.A14 1617014106	£21.52	£25.83
802/20 - EXTRACTOR HOOK BSD-1604682006.A26 1604682006	£1.75	£2.10
804 - PARTS SET BSD-1617000062.A4 1617000062	-
805 - PARTS SET BSD-1617000064.A5 1617000064	-
806 - PARTS SET BSD-1617000085.A3 1617000085	-
808 - NAMEPLATE BSD-160111A3H3.A4398 160111A3H3	£2.61	£3.13
810 - PARTS SET BSD-1617000060.A7 1617000060	-
813 - AUXILIARY HANDLE BSD-1612025020.A59 1612025020	£26.12	£31.35
814 - PARTS SET BSD-1617000038.A25 1617000038	-
815 - AUXILIARY HANDLE M14 BSD-1602025022.A1301 1602025022	£13.41	£16.09
830 - ARMATURE 240V BSD-1614010029.A5 1614010029	-
843 - TOOLHOLDER BSD-1618597031.A6 1618597031	-
858 - SEALING FRAME BSD-1611015017.A5 1611015017	-
876 - NEEDLE BEARING dia14xdia22x13 MM BSD-1610910056.A84 1610910056	-
