Bosch GBH 2-22 E / 0611250641 / GB 110 Volt Spare Parts

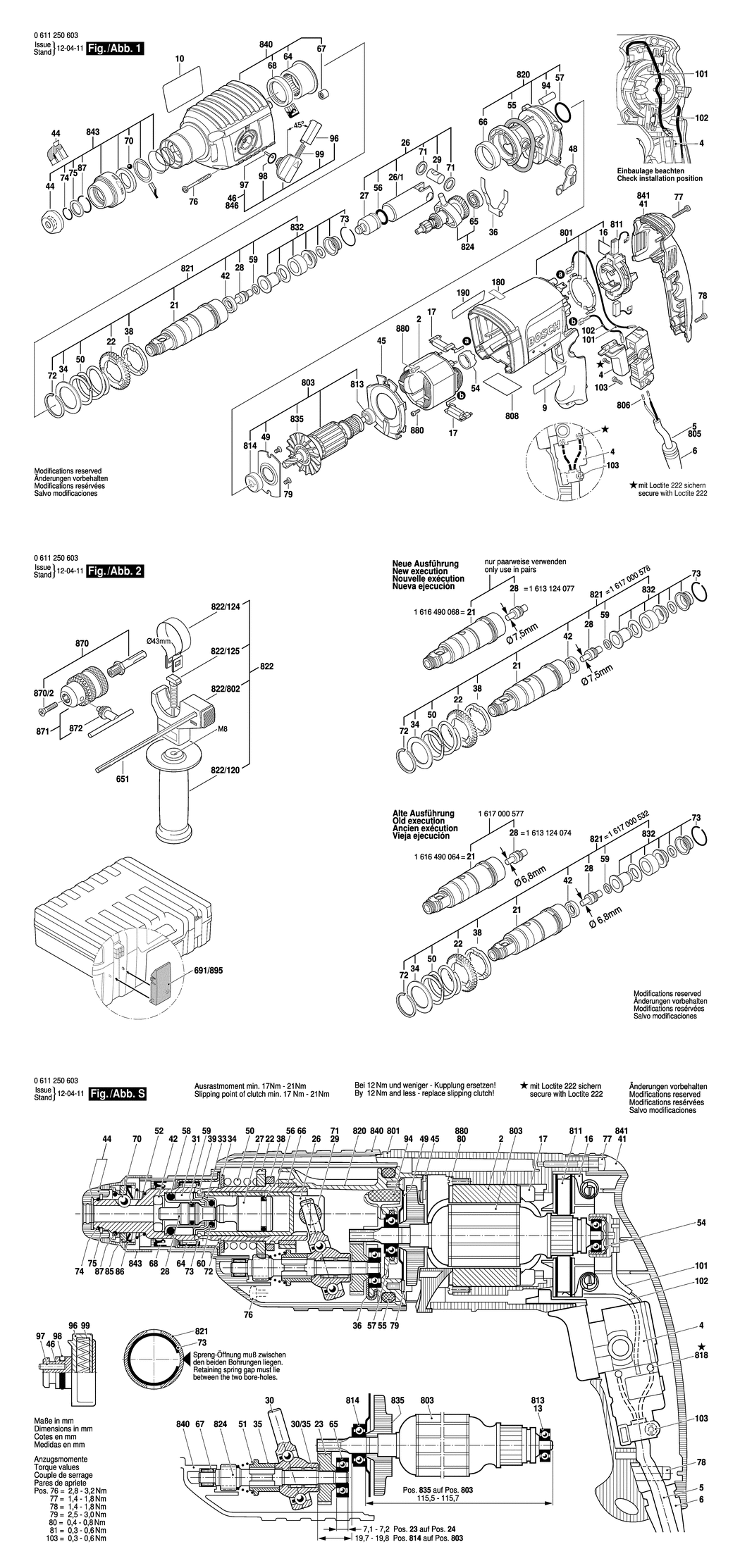

An exploded drawing and listing for the Bosch GBH 2-22 E / 0611250641 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 110-120V BSD-2604220684.A1 2604220684	£23.86	£28.63
4 - SWITCH BSD-1617200559.A4 1617200559	£27.23	£32.68
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.0mm H07 RN-F BSD-1614460061.A16 1614460061	£21.68	£26.01
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A244 2600703018	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1611110A82.A3 1611110A82	-
10 - REFERENCE PLATE BSD-1611110A79.A5 1611110A79	£2.33	£2.80
16 - BRUSH PLATE BSD-1614336058.A9 1614336058	£18.96	£22.75
17 - SUPPRESSION FILTER BSD-1614465011.A13 1614465011	£6.52	£7.83
21 - RATCHET SLEEVE BSD-2608670730.A4 2608670730	-
22 - CYLINDRICAL GEAR BSD-1616312003.A7 1616312003	£7.36	£8.83
26 - HAMMER PISTON BSD-1617000534.A19 1617000534	£21.68	£26.01
26/1 - HAMMER PISTON BSD-1618700075.A3 1618700075	£12.04	£14.45
27 - STRIKER BSD-1618710080.A14 1618710080	£7.36	£8.83
28 - STRIKER PIN dia7.5 MM BSD-1613124077.A4 1613124077	£7.36	£8.83
29 - PISTON PIN BSD-1613105012.A353 1613105012	£3.72	£4.47
34 - SUPPORTING DISC BSD-1610190067.A164 1610190067	£2.16	£2.59
36 - TENSIONING BRACKET BSD-1601329040.A30 1601329040	£1.75	£2.10
38 - CATCH DISK BSD-1610190045.A10 1610190045	£5.30	£6.36
41 - HOUSING COVER BSD-1615500333.A5 1615500333	£7.78	£9.33
42 - BACKUP RING BSD-1610422017.A25 1610422017	£4.26	£5.11
44 - PROTECTIVE CAP BSD-1610508047.A41 1610508047	£2.29	£2.75
45 - AIR-DEFLECTOR RING BSD-1610522012.A5 1610522012	£1.75	£2.10
46 - CLAMP HANDLE BSD-1612026097.A13 1612026097	£3.72	£4.47
48 - SHIFT PLATE BSD-1601021005.A11 1601021005	£2.16	£2.59
49 - END SHIELD BSD-1615700044.A56 1615700044	£2.16	£2.59
50 - COMPRESSION SPRING BSD-1604611037.A21 1604611037	£2.80	£3.36
54 - RUBBER BUSHING BSD-1610502012.A10 1610502012	£1.75	£2.10
55 - SEAL RING 53.0x7.0 MM BSD-1610290226.A42 1610290226	£3.72	£4.47
56 - O-RING BSD-1610210187.A116 1610210187	£2.16	£2.59
57 - O-RING 24.0x2.5 MM BSD-1610210068.A278 1610210068	£1.75	£2.10
59 - O-RING 9.0x2.0 MM BSD-1610210177.A26 1610210177	£2.16	£2.59
64 - PLAIN BEARING BSD-1610202026.A46 1610202026	£5.30	£6.36
65 - GROOVE BALL BEARING BSD-1600900037.A5 1600900037	£7.36	£8.83
66 - PLAIN BEARING BSD-1610202020.A4 1610202020	£2.16	£2.59
67 - NEEDLE BEARING BSD-1610910098.A31 1610910098	£3.72	£4.47
68 - ROTARY SHAFT LIP SEAL BSD-1610283017.A152 1610283017	£7.36	£8.83
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A625 1903230013	£2.16	£2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A308 1610101011	£1.75	£2.10
72 - RETAINING RING BSD-1604601027.A220 1604601027	£1.75	£2.10
73 - RETAINING RING BSD-1614601057.A9 1614601057	£1.75	£2.10
74 - RETAINING RING BSD-1614601027.A113 1614601027	£1.75	£2.10
75 - RETAINING WASHER BSD-1610101629.A5 1610101629	£1.75	£2.10
76 - THREAD-FORMING TAP. SCREW BSD-160343000A.A38 160343000A	£1.75	£2.10
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A1083 2603490024	£1.75	£2.10
78 - SCREW 4x16 BSD-2603490022.A2996 2603490022	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A204 1613435023	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A247 2916540012	-
94 - FELT SEAL BSD-1610205010.A5 1610205010	£1.75	£2.10
96 - SWITCH BUTTON BSD-1612026035.A120 1612026035	£1.75	£2.10
97 - NEEDLE ROLLER BSD-1903201118.A20 1903201118	£1.75	£2.10
98 - O-RING 10.5x2.7 MM BSD-1610210046.A128 1610210046	£2.16	£2.59
99 - COMPRESSION SPRING BSD-1614611006.A255 1614611006	£3.72	£4.47
101 - CONNECTING CABLE BSD-1614449014.A25 1614449014	£2.16	£2.59
102 - CONNECTING CABLE BSD-1614449015.A125 1614449015	£1.75	£2.10
103 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A485 2603490017	£2.16	£2.59
190 - MANUFACTURER'S NAMEPLATE BSD-1611110X80.A3 1611110X80	-
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A51 1613001009	£3.72	£4.47
691/895 - LOCK BSD-1615438409.A84 1615438409	£6.52	£7.83
691/895 - LOCK BSD-1615438431.A53 1615438431	£6.52	£7.83
801 - MOTOR HOUSING BSD-1617000536.A5 1617000536	£37.27	£44.72
803 - ARMATURE WITH FAN 110-120V BSD-1617000543.A3 1617000543	£68.42	£82.10
808 - NAMEPLATE BSD-160111A3H5.A68 160111A3H5	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617000525.A11 1617000525	£11.30	£13.56
811 - CARBON-BRUSH SET 10 x 1 617 000 525 BSD-1607000485.A104 1607000485	£72.18	£86.62
813 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A91 1610905025	£6.52	£7.83
814 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A187 1610905048	£8.67	£10.41
820 - INTERMEDIATE FLANGE BSD-1617000526.A20 1617000526	£27.23	£32.68
821 - RATCHET SLEEVE BSD-1617000V81.A10 1617000V81	£72.18	£86.62
822 - AUXILIARY HANDLE dia43 MM BSD-2602025118.A10 2602025118	£14.91	£17.89
822/120 - AUXILIARY HANDLE M8 BSD-1612025019.A301 1612025019	£6.52	£7.83
822/124 - CLAMPING BAND dia43 MM BSD-1611316006.A47 1611316006	£2.61	£3.13
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A308 1613490002	£4.26	£5.11
822/802 - SUPPORT CLAMP dia43 MM BSD-2608040176.A12 2608040176	£6.52	£7.83
824 - TOOTHED SHAFT BSD-1617000892.A9 1617000892	£58.76	£70.51
832 - GUIDE SLEEVE BSD-1617000529.A10 1617000529	£12.04	£14.45
835 - FAN BSD-1616610093.A11 1616610093	£2.16	£2.59
840 - GEAR HOUSING BSD-1617000530.A8 1617000530	£45.67	£54.80
843 - PROTECTION SLEEVE BSD-1617000531.A10 1617000531	£11.30	£13.56
870 - DRILL CHUCK SHANK 1/2 BSD-1617000154.A106 1617000154	£31.64	£37.97
870/2 - COUNTERSUNK-HEAD SCREW M6x27-Kdia11 BSD-2603421207.A5 2603421207	£1.75	£2.10
871 - CHUCK BSD-1608571088.A155 1608571088	£27.23	£32.68
872 - CHUCK WRENCH SG2 BSD-2607950007.A628 2607950007	£6.52	£7.83
880 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A427 2603435015	£2.16	£2.59

Attribute Name	Value
Brand	Bosch
