Bosch 325 A / 0611215770 / EU 220 Volt Spare Parts

Home Details Reviews Delivery

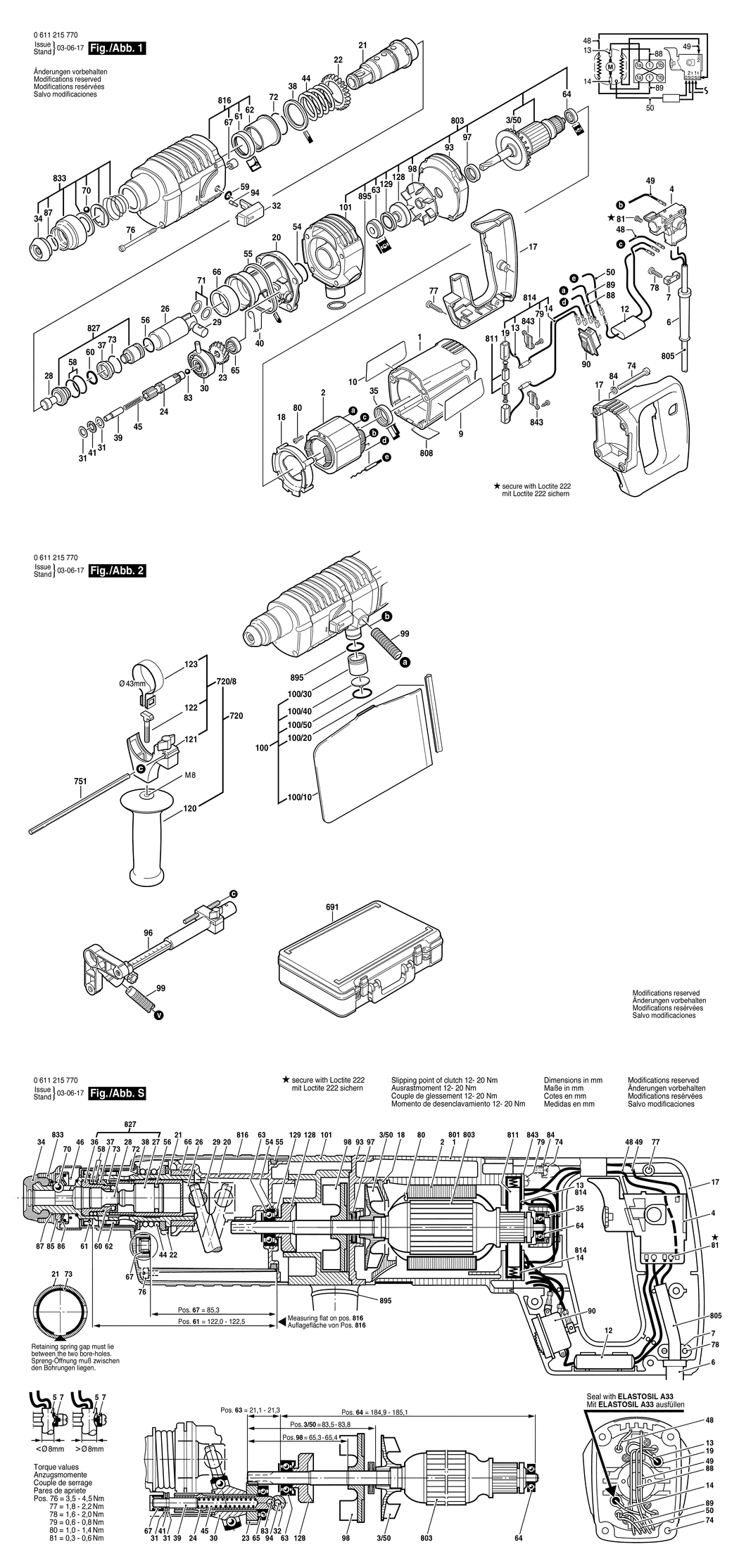

An exploded drawing and listing for the Bosch 325 A / 0611215770 / EU 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108019.A5 1615108019	-
2 - FIELD 220-230V BSD-2604220429.A60 2604220429	£23.86	£28.63
3/50 - FAN BSD-2606610049.A236 2606610049	£2.27	£2.72
4 - SWITCH BSD-2607200179.A0 2607200179	-
6 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A709 2600703011	£2.94	£3.53
7 - CABLE CLIP BSD-1611035005.A119 1611035005	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-1611110547.A0 1611110547	-
10 - MANUFACTURER'S NAMEPLATE BSD-1611110548.A0 1611110548	-
12 - SUPPRESSION CAPACITOR BSD-1617328022.A5 1617328022	-
13 - SUPPRESSOR BOX L=198 MM BSD-1614465007.A0 1614465007	-
14 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A159 2604465086	£5.58	£6.70
17 - HANDLE BSD-1615133022.A25 1615133022	-
18 - AIR-DEFLECTOR RING BSD-1610522008.A71 1610522008	£1.84	£2.21
19 - BRUSH HOLDER BSD-2604337003.A119 2604337003	£2.16	£2.59
20 - INTERMEDIATE FLANGE BSD-1615700037.A0 1615700037	£40.80	£48.96
21 - RATCHET SLEEVE S2S BSD-1616490035.A12 1616490035	£61.70	£74.04
22 - CYLINDRICAL GEAR Z=46 BSD-1616320007.A27 1616320007	£7.36	£8.83
23 - CYLINDRICAL GEAR Z=6/21 BSD-1616320002.A6 1616320002	£24.45	£29.34
24 - TOOTHED SHAFT Z=6/10 BSD-1613060010.A118 1613060010	£54.42	£65.30
26 - HAMMER PISTON BSD-1618700052.A138 1618700052	£13.78	£16.54
28 - STRIKER PIN BSD-1613124026.A118 1613124026	£2.80	£3.36
29 - PISTON PIN BSD-1613105012.A283 1613105012	£3.91	£4.69
30 - DRIVE BEARING BSD-1615819005.A145 1615819005	£31.64	£37.97
31 - SUPPORT DISC 0.8 MM BSD-1610100003.A33 1610100003	£1.84	£2.21
32 - CLAMP HANDLE BSD-1612026023.A3 1612026023	£2.74	£3.29
34 - PROTECTIVE CAP L=24 MM BSD-1610508016.A23 1610508016	-
35 - RUBBER RING BSD-1610206021.A191 1610206021	£1.84	£2.21
37 - DAMPING BUSHING BSD-1610390011.A137 1610390011	£3.72	£4.47
38 - SUPPORTING DISC BSD-1610102022.A137 1610102022	£2.16	£2.59
39 - STRAIGHT PIN BSD-1613100013.A27 1613100013	£2.16	£2.59
40 - HOLDING SPRING BSD-1614690001.A37 1614690001	£1.84	£2.21
41 - ROLLER-CAGE ASSEMBLY BSD-1610920003.A30 1610920003	£4.26	£5.11
44 - COMPRESSION SPRING BSD-1614633001.A149 1614633001	£2.64	£3.17
45 - COMPRESSION SPRING BSD-1614614001.A36 1614614001	£1.84	£2.21
48 - CONNECTING CABLE L=193 MM BSD-2604448043.A54 2604448043	£1.75	£2.10
49 - CONNECTING CABLE L=193 MM BSD-2604448043.A55 2604448043	£1.75	£2.10
50 - EARTH CONDUCTOR dia0.35 MM BSD-2604448010.A75 2604448010	-
54 - O-RING 24.0x2.5 MM BSD-1610210068.A130 1610210068	£1.75	£2.10
55 - SEAL RING BSD-1610206023.A24 1610206023	£2.94	£3.53
56 - O-RING 14.0x3.0 MM BSD-1610210070.A104 1610210070	£2.74	£3.29
58 - O-RING 18.0x3.0 MM BSD-1610210058.A163 1610210058	£2.74	£3.29
59 - O-RING 6.0x2.5 MM BSD-1610210069.A58 1610210069	£1.84	£2.21
60 - O-RING 10.0x3.5 MM BSD-1610210073.A33 1610210073	£2.16	£2.59
61 - ROTARY SHAFT LIP SEAL BSD-1610283017.A137 1610283017	£7.36	£8.83
62 - PLAIN BEARING BSD-1610202026.A74 1610202026	£5.57	£6.68
63 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A292 1610905048	£8.67	£10.41
65 - GROOVE BALL BEARING 8x22x7 BSD-1900900228.A185 1900900228	£6.61	£7.93
66 - BUSHING dia30xdia37x15.7 MM BSD-1610301000.A34 1610301000	£3.34	£4.01
67 - NEEDLE BEARING BSD-1610910064.A182 1610910064	£2.64	£3.17
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A756 1903230013	£2.27	£2.72
71 - SHIM WASHER 1.2 MM BSD-1610101011.A169 1610101011	£1.75	£2.10
72 - RETAINING RING DIN 7993-A32 BSD-2916540018.A146 2916540018	£3.91	£4.69
73 - RETAINING RING DIN 9045-24 BSD-1614601009.A37 1614601009	£2.05	£2.46
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-5.8 BSD-2910011132.A14 2910011132	£1.32	£1.58
76 - TAPPING SCREW B 4.8x112.5 MM BSD-1613435003.A4 1613435003	-
77 - TAPPING SCREW ST3.9x19-TORX.T20 BSD-1603435050.A43 1603435050	£2.33	£2.80
78 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A606 2910211011	£1.84	£2.21
79 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A438 2910211005	£1.84	£2.21
79 - TAPPING SCREW DIN 7971-B 2.9x13 BSD-2910211206.A93 2910211206	£1.38	£1.66
80 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A511 2603435015	£2.27	£2.72
81 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2778 2603410001	£1.84	£2.21
83 - BALL 5 MM V DIN 5401 BSD-1903230309.A162 1903230309	£1.84	£2.21
84 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A970 2916690003	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A194 2916540012	-
88 - CONNECTING CABLE L=145 MM BSD-1614431018.A25 1614431018	-
89 - CONNECTING CABLE L=80 MM BSD-1614431019.A0 1614431019	-
90 - CHANGE-OVER SWITCH BSD-2607200140.A25 2607200140	-
93 - HOUSING COVER BSD-1615500270.A4 1615500270	-
94 - DETENT PIN BSD-1613120017.A29 1613120017	£1.84	£2.21
96 - SUCTION DEVICE BSD-1618190011.A0 1618190011	-
97 - ROTARY SHAFT LIP SEAL BSD-1610290008.A7 1610290008	-
98 - FAN BSD-1616610069.A6 1616610069	-
99 - SUCTION PIPE BSD-1610712038.A2 1610712038	-
100 - DUST BAG BSD-1615411007.A0 1615411007	-
100/10 - DUST BAG BSD-1615411006.A0 1615411006	-
100/20 - SUPPORT CLAMP BSD-1612386001.A1 1612386001	£2.94	£3.53
100/30 - FITTING BSD-1610499011.A3 1610499011	-
100/40 - SEALING DISK BSD-1610121001.A14 1610121001	-
100/50 - O-RING 26.0x4.0 MM BSD-1610210109.A8 1610210109	£4.48	£5.37
101 - INTERMEDIATE HOUSING BSD-1615190012.A2 1615190012	-
120 - AUXILIARY HANDLE M8 BSD-1612025019.A279 1612025019	£6.85	£8.22
120 - AUXILIARY HANDLE BSD-160202507H.A200 160202507H	£11.87	£14.24
121 - SUPPORT CLAMP dia43 MM BSD-1618040048.A137 1618040048	£8.67	£10.41
122 - T-HEAD BOLT M8x40 MM BSD-1613490002.A411 1613490002	£4.48	£5.37
123 - CLAMPING BAND dia43 MM BSD-1611316006.A110 1611316006	£2.61	£3.13
128 - SEALING DISK BSD-1610290009.A0 1610290009	-
129 - SEALING DISK 609 AV NILOS-RING BSD-2916130027.A2 2916130027	£5.26	£6.31
691 - CARRYING CASE BSD-1615438206.A0 1615438206	-
720 - AUXILIARY HANDLE dia43 MM BSD-2602025070.A131 2602025070	£14.91	£17.89
720/8 - PARTS SET BSD-1617000925.A98 1617000925	£16.41	£19.69
751 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A233 1613001005	-
751 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A213 1613001009	£3.91	£4.69
803 - ARMATURE 220-230V BSD-1614010060.A0 1614010060	-
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A579 1607000227	£23.86	£28.63
808 - NAMEPLATE BSD-160111A3HC.A99 160111A3HC	£2.74	£3.29
811 - CARBON BRUSH BSD-1617014114.A53 1617014114	£10.61	£12.73
814 - PARTS SET BSD-1617000131.A18 1617000131	-
816 - GEAR HOUSING BSD-1615806079.A0 1615806079	-
827 - STRIKER BSD-1617000338.A0 1617000338	£28.59	£34.31
833 - PROTECTION SLEEVE S2S BSD-1617000168.A0 1617000168	£5.87	£7.04
843 - BRUSH PLATE BSD-2601015047.A150 2601015047	-
864 - GROOVE BALL BEARING 7x19x6 BSD-1610905025.A178 1610905025	£6.85	£8.22
895 - O-RING 3x20 MM BSD-1617000167.A6 1617000167	-
