Bosch GBH 11 DE / 0611245732 / CH 230 Volt Spare Parts

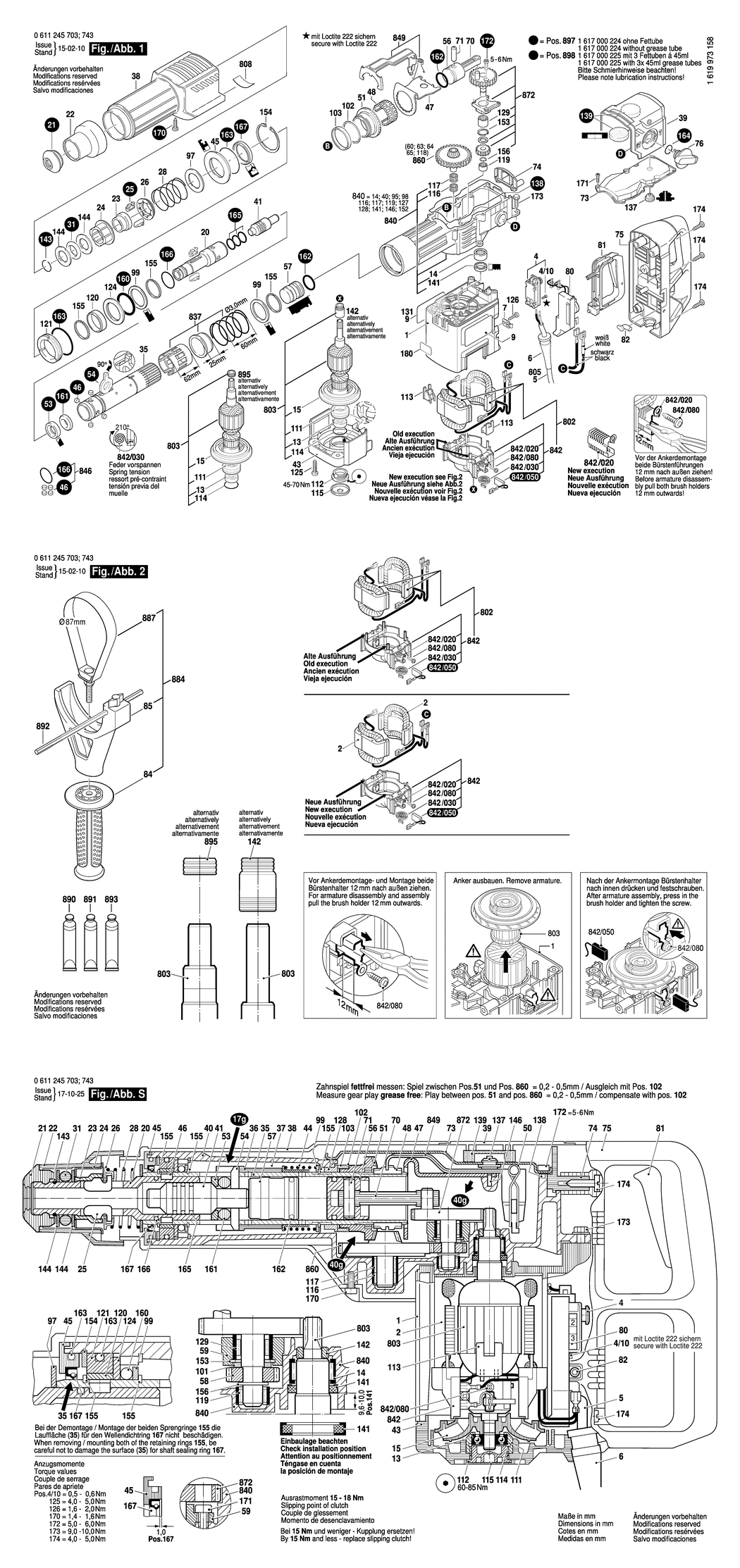

An exploded drawing and listing for the Bosch GBH 11 DE / 0611245732 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108091.A1 1615108091	£33.74	£40.49
2 - FIELD 230V BSD-160422052J.A11 160422052J	£68.42	£82.10
4 - SWITCH BSD-1617200048.A32 1617200048	£18.96	£22.75
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A33 2910011088	£1.75	£2.10
5 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H07 RN-F BSD-1604460449.A33 1604460449	£27.23	£32.68
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A97 1610703053	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A723 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110889.A3 1611110889	£3.72	£4.47
13 - GROOVE BALL BEARING BSD-2610909310.A22 2610909310	£16.41	£19.69
14 - NEEDLE-ROLLER BEARING BSD-1610910089.A66 1610910089	-
15 - FAN BSD-1616610083.A6 1616610083	£21.52	£25.83
20 - TOOLHOLDER BSD-1618597068.A11 1618597068	£93.88	£112.65
21 - PROTECTIVE CAP BSD-1610508023.A6 1610508023	£8.67	£10.41
22 - PROTECTION SLEEVE BSD-1610591014.A6 1610591014	£5.30	£6.36
23 - STOP SLEEVE BSD-1610520001.A16 1610520001	£12.04	£14.45
24 - SPACER TUBE BSD-1610590006.A12 1610590006	£8.67	£10.41
25 - STOPPING DEVICE BSD-1612300027.A59 1612300027	£11.30	£13.56
26 - INDEXING DISK BSD-1610290025.A36 1610290025	£6.52	£7.83
28 - COMPRESSION SPRING BSD-1614621000.A60 1614621000	£2.80	£3.36
31 - DAMPING RING BSD-1610290030.A6 1610290030	£2.61	£3.13
35 - HAMMER PIPE BSD-1615806113.A1 1615806113	£88.07	£105.68
38 - COVERING HOOD BSD-1615190094.A2 1615190094	£23.86	£28.63
39 - COVERING HOOD BSD-1615190096.A1 1615190096	£21.68	£26.01
41 - STRIKER PIN BSD-1613124046.A7 1613124046	£16.74	£20.09
43 - BEARING COVER BSD-1615808083.A3 1615808083	£27.31	£32.77
45 - INTERMEDIATE RING BSD-1610290032.A5 1610290032	£3.72	£4.47
47 - NOTCHED PLATE BSD-1611329016.A6 1611329016	£9.49	£11.39
48 - GEAR SLEEVE BSD-1616334011.A1 1616334011	£27.23	£32.68
51 - CROWN GEAR Z=49 BSD-1616333031.A6 1616333031	£70.24	£84.29
53 - STOP DISC BSD-1610190026.A6 1610190026	£5.58	£6.70
54 - CONTROL DISC BSD-1610190024.A7 1610190024	£21.52	£25.83
56 - HAMMER PISTON BSD-1618700066.A2 1618700066	£18.96	£22.75
57 - STRIKER BSD-1618710066.A6 1618710066	£21.68	£26.01
70 - CONNECTING ROD BSD-1612001034.A1 1612001034	£27.23	£32.68
71 - STRAIGHT PIN BSD-1613100020.A12 1613100020	£2.16	£2.59
73 - HOUSING COVER BSD-1615500291.A11 1615500291	£11.30	£13.56
74 - RETAINING BRACKET BSD-1612386004.A5 1612386004	£14.91	£17.89
75 - HANDLE BSD-1615132083.A2 1615132083	£33.74	£40.49
76 - CLAMP HANDLE BSD-1612026057.A5 1612026057	£10.10	£12.12
80 - SPEED GOVERNOR 220-240V BSD-1617233055.A8 1617233055	£61.98	£74.38
81 - SWITCH-PAWL BSD-1612026084.A0 1612026084	£10.10	£12.12
82 - LIGHT CONDUCTOR BSD-1615510000.A45 1615510000	£2.16	£2.59
84 - AUXILIARY HANDLE BSD-160202507H.A117 160202507H	£11.30	£13.56
85 - SUPPORT CLAMP BSD-1618040059.A7 1618040059	£8.67	£10.41
97 - SUPPORTING DISC 2.0 MM BSD-1610102032.A6 1610102032	£5.30	£6.36
99 - SUPPORTING DISC BSD-1610114020.A6 1610114020	£5.30	£6.36
102 - SHIM 0.2 MM BSD-1610102036.A7 1610102036	£2.80	£3.36
103 - THRUST RING BSD-1610290034.A8 1610290034	£7.36	£8.83
111 - BUSHING BSD-3610501500.A13 3610501500	£21.68	£26.01
112 - THREADED RING BSD-3613461500.A33 3613461500	£12.04	£14.45
113 - SPACER BSD-1610009007.A2 1610009007	£2.16	£2.59
114 - O-RING 30.0x2.5 MM BSD-1610210139.A6 1610210139	£2.61	£3.13
115 - PROTECTIVE CAP BSD-1610508027.A7 1610508027	£2.80	£3.36
116 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A46 1610913029	£4.26	£5.11
117 - NEEDLE-ROLLER ASSEMBLY dia10 MM BSD-1610913011.A58 1610913011	£6.52	£7.83
119 - NEEDLE-ROLLER BEARING BSD-1610910081.A38 1610910081	£14.91	£17.89
120 - INNER RING BSD-1610290037.A5 1610290037	£16.41	£19.69
121 - BEARING RING BSD-1610290035.A5 1610290035	£18.96	£22.75
124 - THRUST BEARING DISC BSD-1610190029.A11 1610190029	£14.91	£17.89
125 - TORX OVAL-HEAD SCREW 5.5x25 BSD-1613435010.A60 1613435010	£2.16	£2.59
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A575 2910211019	£1.75	£2.10
129 - NEEDLE-ROLLER BEARING BSD-1610910085.A6 1610910085	£14.91	£17.89
137 - PLUG BSD-1610591015.A8 1610591015	£3.72	£4.47
138 - SEALING FRAME BSD-1611015043.A6 1611015043	£5.30	£6.36
139 - SEALING DISK BSD-1610290036.A8 1610290036	£4.26	£5.11
141 - ROTARY SHAFT LIP SEAL BSD-1610290028.A41 1610290028	£3.72	£4.47
142 - BUSHING BSD-1610300063.A28 1610300063	£16.41	£19.69
143 - RETAINING RING DIN 7993-28x2 BSD-1614601021.A1 1614601021	£7.36	£8.83
144 - SUPPORTING DISC BSD-1610190028.A1 1610190028	-
153 - SPRING RETAINING RING DIN 472-22x1MM BSD-2916660007.A37 2916660007	£1.75	£2.10
154 - SPRING RETAINING RING DIN 472-68x2.5MM BSD-2916660040.A18 2916660040	£2.16	£2.59
155 - RETAINING RING BSD-1614601020.A23 1614601020	£1.75	£2.10
156 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A84 2916650003	£1.75	£2.10
160 - O-RING 45.0x6.0 MM BSD-1610210132.A12 1610210132	£2.80	£3.36
161 - DAMPING RING BSD-1610290031.A8 1610290031	£2.61	£3.13
162 - O-RING 28.0x5.0 MM BSD-1610210133.A1 1610210133	£5.30	£6.36
163 - O-RING 62.0x3.0 MM BSD-1610210134.A12 1610210134	£4.26	£5.11
164 - O-RING 18x3 MM BSD-1900210117.A68 1900210117	£3.72	£4.47
165 - O-RING 21.0x3.5 MM BSD-1610210096.A15 1610210096	£2.80	£3.36
166 - O-RING 34.0x2.0 MM BSD-1610210084.A12 1610210084	£1.75	£2.10
167 - ROTARY SHAFT LIP SEAL BSD-1610283026.A6 1610283026	£5.58	£6.70
170 - MICROENCAPSULATED SCREW DIN 912-M 5x12-8.8 BSD-2914551117.A56 2914551117	£1.75	£2.10
171 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A131 2910141158	£1.75	£2.10
172 - MICROENCAPSULATED SCREW BSD-1613414021.A7 1613414021	£2.16	£2.59
173 - SCREW AND WASHER ASSEMBLY 6.3x32 BSD-1613433001.A27 1613433001	£1.75	£2.10
174 - TORX OVAL-HEAD SCREW 5.5x25 BSD-1613435010.A59 1613435010	£2.16	£2.59
661 - GREASE TUBE 30 ML BSD-1615430010.A65 1615430010	£6.52	£7.83
802 - SUBASSEMBLY BSD-1607000C3V.A10 1607000C3V	£93.88	£112.65
803 - ARMATURE 220-240V BSD-1614011072.A7 1614011072	£187.56	£225.07
808 - NAMEPLATE BSD-160111A3H3.A3259 160111A3H3	£2.61	£3.13
837 - CONTROL BUSHING BSD-1617000294.A1 1617000294	£31.64	£37.97
840 - IMPACT MECHANISM HOUSING BSD-1617000992.A12 1617000992	£187.56	£225.07
842 - BRUSH HOLDER BSD-1600A005AF.A20 1600A005AF	£40.80	£48.96
842/020 - BRUSH GUIDE BSD-1614336017.A1 1614336017	£12.04	£14.45
842/030 - SPIRAL SPRING BSD-1614652004.A42 1614652004	£7.36	£8.83
842/050 - CARBON-BRUSH SET BSD-1617014126.A2 1617014126	£14.91	£17.89
850/050 - CARBON-BRUSH SET 10 x 1 617 014 126 BSD-1607000481.A17 1607000481	£102.57	£123.08
842/080 - TAPPING SCREW DIN 7981-ST3.5x16-C-H BSD-2910611012.A40 2910611012	-
846 - CYLINDRICAL ROLLER BSD-1617000241.A6 1617000241	£5.58	£6.70
849 - CONTROL FORK BSD-1617000991.A0 1617000991	£18.96	£22.75
860 - SPUR WHEEL CLUTCH Z=53 BSD-1617000993.A1 1617000993	£114.88	£137.86
872 - ECCENTRIC COG WHEEL Z=50 BSD-1617000994.A12 1617000994	£93.88	£112.65
884 - AUXILIARY HANDLE BSD-1612025043.A6 1612025043	£33.74	£40.49
887 - CLAMPING BAND dia87 MM BSD-1617000807.A2 1617000807	£18.96	£22.75
890 - GREASE TUBE 225 ML BSD-1615430015.A1 1615430015	£37.27	£44.72
891 - GREASE TUBE 45 ML BSD-1615430014.A16 1615430014	£11.30	£13.56
893 - GREASE TUBE 225 ML BSD-1615430020.A1 1615430020	£21.52	£25.83
892 - DEPTH-GAUGE SW 6x330 MM BSD-1613001008.A177 1613001008	£8.67	£10.41
895 - OIL RETURN RING BSD-3613344500.A22 3613344500	£10.10	£12.12
897 - WEAR AND TEAR PART SET BSD-1617000224.A1 1617000224	£72.18	£86.62
898 - WEAR AND TEAR PART SET BSD-1617000225.A12 1617000225	£81.81	£98.17
