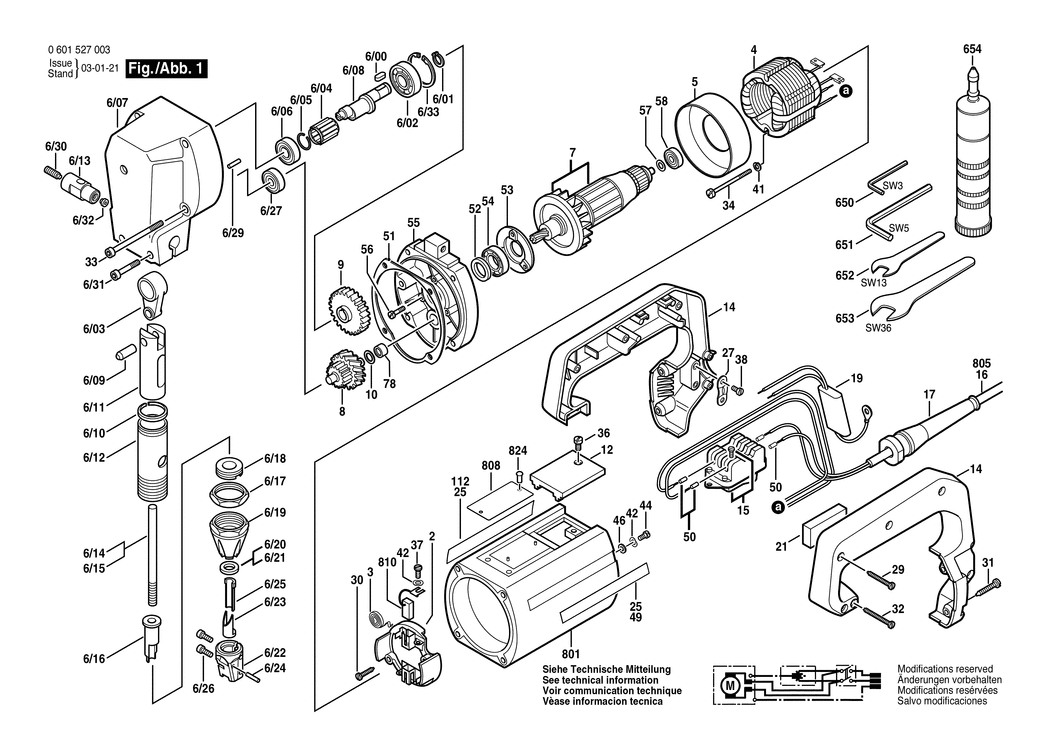

2 - BRUSH HOLDER
BSD-1604336005.A122
1604336005
|
-
|
|
|
|
3 - SPIRAL SPRING
BSD-1604652001.A73
1604652001
|
-
|
|
|
|
4 - FIELD 220-230V
BSD-1604220082.A63
1604220082
|
-
|
|
|
|
5 - AIR-DEFLECTOR RING
BSD-1600209002.A387
1600209002
|
£5.30
|
£6.36
|
|
|
6/00 - PARALLEL KEY DIN 6885-A4x4x10-ST
BSD-1902300041.A0
1902300041
|
-
|
|
|
|
6/01 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A64
2916650003
|
£1.75
|
£2.10
|
|
|
6/02 - GROOVE BALL BEARING 6301 ZY DIN 625
BSD-1900905301.A11
1900905301
|
-
|
|
|
|
6/03 - CONNECTING ROD
BSD-1609220000.A1
1609220000
|
-
|
|
|
|
6/04 - NEEDLE-ROLLER CAGE
BSD-1609209001.A10
1609209001
|
-
|
|
|
|
6/05 - CLAMP RING
BSD-1609202003.A0
1609202003
|
-
|
|
|
|
6/06 - GROOVE BALL BEARING 12x32x10
BSD-1900905225.A0
1900905225
|
£10.10
|
£12.12
|
|
|
6/07 - GEAR HOUSING
BSD-1609251016.A3
1609251016
|
-
|
|
|
|
6/08 - ECCENTRIC SHAFT
BSD-1609261001.A1
1609261001
|
-
|
|
|
|
6/09 - STRAIGHT PIN DIN 6325-10m6x24
BSD-2917530199.A0
2917530199
|
£6.52
|
£7.83
|
|
|
6/10 - PISTON RING dia 33x29.9x2.5 MM
BSD-1609202004.A11
1609202004
|
-
|
|
|
|
6/11 - TAPPET
BSD-1609231004.A3
1609231004
|
-
|
|
|
|
6/12 - GUIDE SLEEVE
BSD-1609203006.A0
1609203006
|
-
|
|
|
|
6/13 - STRAIGHT PIN
BSD-1609231005.A1
1609231005
|
-
|
|
|
|
6/14 - SUPPORT PIN
BSD-1609235002.A1
1609235002
|
-
|
|
|
|
6/15 - SUPPORT PIN
BSD-1609235001.A3
1609235001
|
-
|
|
|
|
6/16 - NIBBLING PUNCH
BSD-1609286052.A0
1609286052
|
-
|
|
|
|
6/17 - HEX NUT
BSD-1609233005.A3
1609233005
|
-
|
|
|
|
6/18 - ROUND NUT
BSD-1609233006.A1
1609233006
|
-
|
|
|
|
6/19 - GUIDE BUSHING
BSD-1609233007.A3
1609233007
|
-
|
|
|
|
6/20 - PLANING KNIFE dia 1.0-2.5 MM
BSD-1609286053.A4
1609286053
|
-
|
|
|
|
6/21 - LOWER DIE dia 1.0 MM
BSD-1609286051.A4
1609286051
|
-
|
|
|
|
6/22 - DIE CARRIER
BSD-1609280024.A1
1609280024
|
-
|
|
|
|
6/23 - GUIDE BUSHING
BSD-1609203007.A4
1609203007
|
-
|
|
|
|
6/24 - STRAIGHT PIN 3 M 6x24 DIN 7
BSD-2917510083.A0
2917510083
|
-
|
|
|
|
6/25 - SUPPORTING PAN
BSD-1609203008.A0
1609203008
|
-
|
|
|
|
6/26 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x15-8.8
BSD-2910141196.A29
2910141196
|
-
|
|
|
|
6/27 - BALL BEARING 9x26x8
BSD-1900905025.A61
1900905025
|
£21.52
|
£25.83
|
|
|
6/29 - STRAIGHT PIN 4 M 6x14 DIN 7-9S20K
BSD-2917510096.A4
2917510096
|
-
|
|
|
|
6/30 - SET SCREW
BSD-1609234014.A0
1609234014
|
-
|
|
|
|
6/31 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x35-8.8
BSD-2910142207.A0
2910142207
|
-
|
|
|
|
6/32 - LUBRICATING NIPPLE M8
BSD-1609274010.A4
1609274010
|
-
|
|
|
|
6/33 - SPRING RETAINING RING DIN 472 37x1.5MM
BSD-2916660016.A34
2916660016
|
£2.61
|
£3.13
|
|
|
7 - ARMATURE WITH FAN 220-230V
BSD-1604010116.A3
1604010116
|
-
|
|
|
|
8 - SPINDLE WITH GEAR Z=13
BSD-1606328097.A0
1606328097
|
-
|
|
|
|
9 - CYLINDRICAL GEAR Z=40
BSD-1606317071.A0
1606317071
|
-
|
|
|
|
10 - SHIM 0.5 MM
BSD-1600100631.A30
1600100631
|
£1.75
|
£2.10
|
|
|
12 - SEALING CAP
BSD-3605500057.A154
3605500057
|
-
|
|
|
|
14 - HANDLE
BSD-1605133029.A0
1605133029
|
-
|
|
|
|
15 - SWITCH
BSD-1607200065.A45
1607200065
|
-
|
|
|
|
17 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A472
3600703011
|
£2.80
|
£3.36
|
|
|
19 - SUPPRESSION CAPACITOR
BSD-1607328006.A0
1607328006
|
-
|
|
|
|
21 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A255
1602381001
|
-
|
|
|
|
25 - MANUFACTURER'S NAMEPLATE
BSD-1601110004.A32
1601110004
|
-
|
|
|
|
27 - FASTENING CLAMP
BSD-1601302014.A250
1601302014
|
£2.61
|
£3.13
|
|
|
29 - TAPPING SCREW DIN 7971-BZ3.9x25
BSD-2910211022.A107
2910211022
|
£1.75
|
£2.10
|
|
|
30 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A337
2910211019
|
£1.75
|
£2.10
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A389
2910011162
|
£1.75
|
£2.10
|
|
|
32 - TAPPING SCREW DIN 7971-3.9x38
BSD-2910215093.A51
2910215093
|
-
|
|
|
|
33 - HEX SOCKET HEAD CAP SCREW M 5x65 DIN 912-8.8
BSD-2910141179.A18
2910141179
|
£5.30
|
£6.36
|
|
|
33 - TAPPING SCREW B4.8x72.5 MM
BSD-1603435013.A3
1603435013
|
£2.16
|
£2.59
|
|
|
34 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8
BSD-2910021176.A46
2910021176
|
-
|
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A756
2910021125
|
£1.75
|
£2.10
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A211
2910021118
|
£1.75
|
£2.10
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A774
2910021116
|
£2.16
|
£2.59
|
|
|
41 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A87
2916680006
|
-
|
|
|
|
42 - SPRING WASHER DIN 137-A4
BSD-1600150006.A754
1600150006
|
-
|
|
|
|
44 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A226
2910110116
|
£1.75
|
£2.10
|
|
|
46 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A385
2916010410
|
-
|
|
|
|
50 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A6
1900452003
|
£2.61
|
£3.13
|
|
|
51 - SEAL
BSD-1601015009.A4
1601015009
|
-
|
|
|
|
52 - FELT DISC
BSD-1600108003.A222
1600108003
|
£1.32
|
£1.58
|
|
|
53 - BEARING COVER
BSD-1600501019.A280
1600501019
|
£23.86
|
£28.63
|
|
|
54 - GROOVE BALL BEARING 17x35x10
BSD-1600900001.A12
1600900001
|
-
|
|
|
|
55 - BEARING FLANGE
BSD-1605820183.A4
1605820183
|
-
|
|
|
|
56 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A757
2910021125
|
£1.75
|
£2.10
|
|
|
57 - SHIM 0.10 MM
BSD-1420100023.A204
1420100023
|
-
|
|
|
|
57 - SHIM 0.2 MM
BSD-1600100632.A335
1600100632
|
£1.75
|
£2.10
|
|
|
58 - BALL BEARING 7x22x7
BSD-1900905018.A606
1900905018
|
£18.96
|
£22.75
|
|
|
78 - NEEDLE BEARING
BSD-1600910013.A66
1600910013
|
£5.58
|
£6.70
|
|
|
650 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A543
2607950004
|
£1.75
|
£2.10
|
|
|
651 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A765
1907950006
|
£4.26
|
£5.11
|
|
|
652 - SINGLE-HEAD ENG. WRENCH DIN 894 SW13
BSD-1907950507.A0
1907950507
|
-
|
|
|
|
653 - SINGLE-HEAD ENG. WRENCH SW36
BSD-1607950521.A4
1607950521
|
-
|
|
|
|
654 - SLOTTED SCREWDRIVER
BSD-1607950035.A0
1607950035
|
-
|
|
|
|
801 - MOTOR HOUSING
BSD-1607000139.A4
1607000139
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A227
1607000228
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A3968
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014101.A41
1607014101
|
£11.30
|
£13.56
|
|
|
824 - ROUND-HEAD GROOVED PIN
BSD-1603133000.A0
1603133000
|
-
|
|
|
