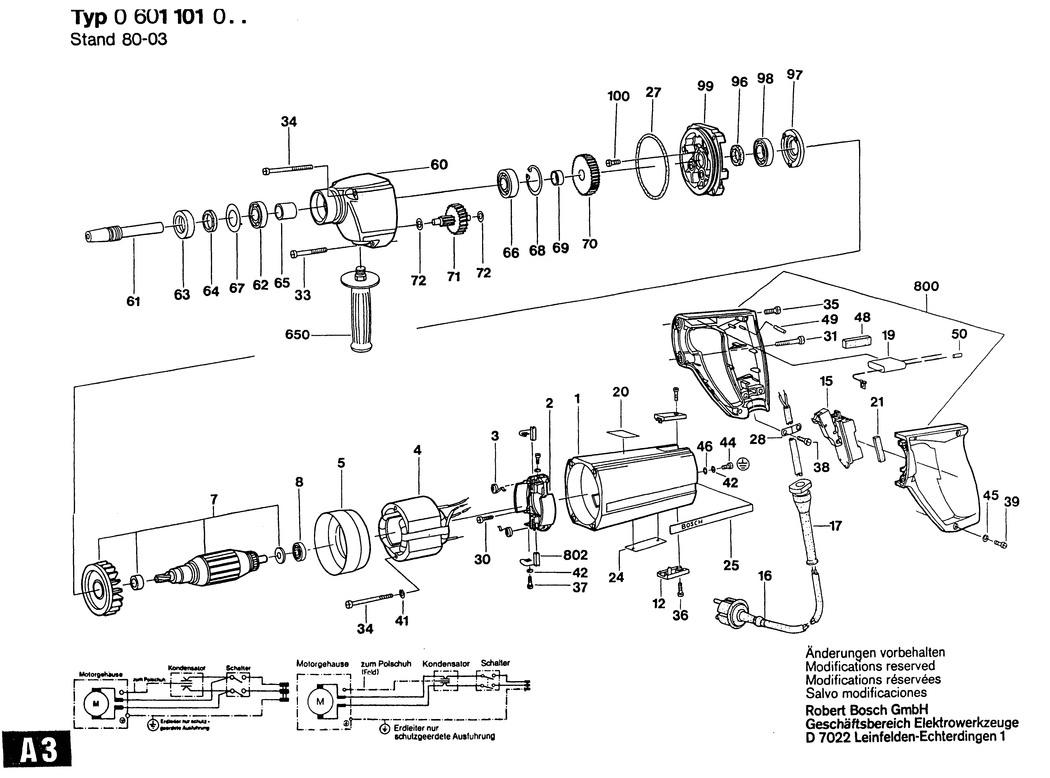

1 - MOTOR HOUSING
BSD-3605108094.A37
3605108094
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336005.A49
1604336005
|
-
|
|
|
|
3 - SPIRAL SPRING
BSD-1604652001.A40
1604652001
|
-
|
|
|
|
4 - FIELD 220-230V
BSD-1604220082.A33
1604220082
|
-
|
|
|
|
5 - AIR-DEFLECTOR RING
BSD-1600209002.A89
1600209002
|
£5.30
|
£6.36
|
|
|
7 - ARMATURE WITH FAN 220-230V
BSD-1604010028.A1
1604010028
|
-
|
|
|
|
8 - BALL BEARING 7x19x6
BSD-2600905032.A258
2600905032
|
£5.57
|
£6.68
|
|
|
12 - SEALING CAP
BSD-3605500057.A163
3605500057
|
-
|
|
|
|
15 - SWITCH
BSD-1607200078.A36
1607200078
|
£42.84
|
£51.41
|
|
|
15 - SWITCH
BSD-1607200037.A98
1607200037
|
£47.95
|
£57.54
|
|
|
16 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A60
1607000227
|
£23.86
|
£28.63
|
|
|
17 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1045
3600703011
|
£2.94
|
£3.53
|
|
|
19 - SUPPRESSION CAPACITOR
BSD-1607328012.A45
1607328012
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-1601110058.A260
1601110058
|
£1.75
|
£2.10
|
|
|
21 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A344
1602381001
|
-
|
|
|
|
25 - MANUFACTURER'S NAMEPLATE
BSD-1601110004.A120
1601110004
|
-
|
|
|
|
27 - O-RING 74.0x3.0 MM
BSD-1600210006.A33
1600210006
|
£1.84
|
£2.21
|
|
|
28 - FASTENING CLAMP
BSD-1601302014.A1000
1601302014
|
£2.74
|
£3.29
|
|
|
30 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1741
2910211019
|
£1.84
|
£2.21
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A45
2910021154
|
£1.75
|
£2.10
|
|
|
33 - SOCKET HEAD CAP SCREW M5x35 DIN 84-5.8
BSD-2910011168.A8
2910011168
|
-
|
|
|
|
33 - SCREW B 4.8x45 MM
BSD-3603415560.A113
3603415560
|
£1.84
|
£2.21
|
|
|
34 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8
BSD-2910021176.A107
2910021176
|
-
|
|
|
|
34 - TAPPING SCREW B 4.8x68 MM
BSD-1613412001.A140
1613412001
|
£1.75
|
£2.10
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM5x22-8.8
BSD-2910021163.A20
2910021163
|
-
|
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A374
2910021125
|
£1.75
|
£2.10
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1161
2910021118
|
£1.84
|
£2.21
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A395
2910021116
|
£2.27
|
£2.72
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-8.8
BSD-2910021128.A68
2910021128
|
-
|
|
|
|
39 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A51
2910211220
|
-
|
|
|
|
41 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A231
2916680006
|
-
|
|
|
|
42 - SPRING WASHER DIN 137-A4
BSD-1600150006.A377
1600150006
|
-
|
|
|
|
44 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A42
2910110116
|
£1.84
|
£2.21
|
|
|
45 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A183
2916690003
|
£1.75
|
£2.10
|
|
|
46 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A28
2916010410
|
-
|
|
|
|
60 - SPINDLE BEARING
BSD-1605806222.A9
1605806222
|
-
|
|
|
|
61 - DRILLING SPINDLE
BSD-1603124039.A15
1603124039
|
-
|
|
|
|
62 - GROOVE BALL BEARING 15x32x8
BSD-1900900201.A89
1900900201
|
-
|
|
|
|
63 - RETAINING SNAP RING
BSD-3607030355.A138
3607030355
|
£19.91
|
£23.89
|
|
|
64 - SEALING DISK
BSD-1600108000.A24
1600108000
|
-
|
|
|
|
65 - SPACER BUSHING
BSD-1600300026.A78
1600300026
|
-
|
|
|
|
66 - GROOVE BALL BEARING 15x35x11
BSD-1900900303.A19
1900900303
|
-
|
|
|
|
67 - SHIM 0.5 MM
BSD-1600102003.A102
1600102003
|
£1.75
|
£2.10
|
|
|
68 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A345
2916660014
|
£1.75
|
£2.10
|
|
|
69 - SPACER BUSHING
BSD-1600300027.A29
1600300027
|
-
|
|
|
|
70 - CYLINDRICAL GEAR Z=50
BSD-1606317045.A91
1606317045
|
-
|
|
|
|
71 - SPINDLE WITH GEAR Z=9/33
BSD-1606328044.A16
1606328044
|
-
|
|
|
|
72 - SHIM 0.5 MM
BSD-1600100631.A414
1600100631
|
£1.75
|
£2.10
|
|
|
96 - FELT DISC
BSD-1600108003.A34
1600108003
|
£1.38
|
£1.66
|
|
|
97 - BEARING COVER
BSD-1600501019.A486
1600501019
|
£25.05
|
£30.06
|
|
|
98 - GROOVE BALL BEARING 17x35x10
BSD-1600900001.A173
1600900001
|
-
|
|
|
|
99 - BEARING FLANGE
BSD-1605820096.A21
1605820096
|
-
|
|
|
|
100 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A373
2910021125
|
£1.75
|
£2.10
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A325
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A395
1602025030
|
£19.91
|
£23.89
|
|
|
651 - KEY CHUCK dia1.5-13 MM. B16
BSD-1608571027.A32
1608571027
|
-
|
|
|
|
800 - HANDLE
BSD-3605133012.A202
3605133012
|
-
|
|
|
|
802 - CARBON-BRUSH SET
BSD-1607014101.A62
1607014101
|
£11.87
|
£14.24
|
|
