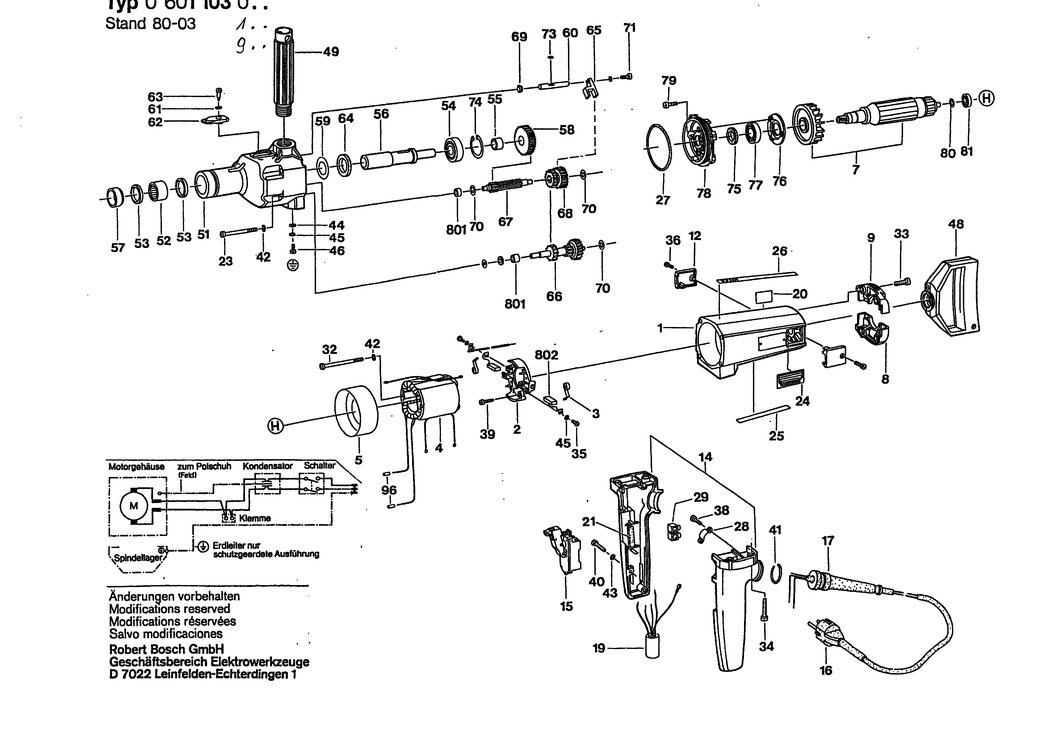

1 - MOTOR HOUSING
BSD-1605108045.A2
1605108045
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336006.A183
1604336006
|
-
|
|
|
|
3 - SPIRAL SPRING
BSD-1604652015.A40
1604652015
|
£2.80
|
£3.36
|
|
|
4 - POLE SHOE 220V
BSD-1604220039.A4
1604220039
|
-
|
|
|
|
5 - AIR-DEFLECTOR RING
BSD-1600209002.A181
1600209002
|
£5.30
|
£6.36
|
|
|
7 - ARMATURE 220V
BSD-1604010048.A9
1604010048
|
-
|
|
|
|
8 - SEALING CAP
BSD-3605500058.A2
3605500058
|
£13.12
|
£15.75
|
|
|
9 - SEALING CAP
BSD-3605500059.A100
3605500059
|
£14.91
|
£17.89
|
|
|
12 - SEALING CAP
BSD-3605500057.A250
3605500057
|
-
|
|
|
|
14 - HANDLE
BSD-3605132023.A50
3605132023
|
-
|
|
|
|
15 - SWITCH
BSD-1607200037.A27
1607200037
|
£45.67
|
£54.80
|
|
|
16 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H05 VV-F
BSD-1604460015.A2
1604460015
|
-
|
|
|
|
17 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1413
3600703011
|
£2.80
|
£3.36
|
|
|
19 - SUPPRESSION FILTER
BSD-1607328034.A350
1607328034
|
£4.26
|
£5.11
|
|
|
20 - REFERENCE PLATE
BSD-1601110058.A281
1601110058
|
£1.75
|
£2.10
|
|
|
21 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A530
1602381001
|
-
|
|
|
|
23 - SOCKET HEAD CAP SCREW DIN 84-BM5x82
BSD-1603410001.A47
1603410001
|
-
|
|
|
|
24 - NAMEPLATE
BSD-160111A3H3.A2218
160111A3H3
|
£2.61
|
£3.13
|
|
|
25 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A54
1601110005
|
-
|
|
|
|
26 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A90
1601110003
|
-
|
|
|
|
27 - O-RING 74.0x3.0 MM
BSD-1600210006.A163
1600210006
|
£1.75
|
£2.10
|
|
|
28 - FASTENING CLAMP
BSD-1601302014.A843
1601302014
|
£2.61
|
£3.13
|
|
|
29 - CONNECTING TERMINAL
BSD-1601091003.A30
1601091003
|
-
|
|
|
|
32 - SOCKET HEAD CAP SCREW
BSD-2910021181.A11
2910021181
|
-
|
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A26
2910011162
|
£1.75
|
£2.10
|
|
|
34 - SOCKET HEAD CAP SCREW DIN 84-AM5x22-8.8
BSD-2910021163.A40
2910021163
|
-
|
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1662
2910021118
|
£1.75
|
£2.10
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A130
2910021125
|
£1.75
|
£2.10
|
|
|
38 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A193
2910021116
|
£2.16
|
£2.59
|
|
|
39 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2315
2910211019
|
£1.75
|
£2.10
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A818
2910021122
|
£2.16
|
£2.59
|
|
|
41 - RETAINING RING 32 DIN 9045
BSD-2916600017.A63
2916600017
|
£1.32
|
£1.58
|
|
|
42 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A401
2916680006
|
-
|
|
|
|
43 - SPRING LOCK WASHER B 4 DIN 127
BSD-2916681005.A101
2916681005
|
£1.75
|
£2.10
|
|
|
44 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A161
2916010410
|
-
|
|
|
|
45 - SPRING WASHER DIN 137-A4
BSD-1600150006.A204
1600150006
|
-
|
|
|
|
46 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A154
2910110116
|
£1.75
|
£2.10
|
|
|
48 - HANDLE
BSD-3605133010.A45
3605133010
|
-
|
|
|
|
49 - HANDLE 400 MM
BSD-1600763010.A22
1600763010
|
£40.80
|
£48.96
|
|
|
51 - SPINDLE BEARING
BSD-3605806066.A27
3605806066
|
-
|
|
|
|
52 - NEEDLE BEARING
BSD-1600910013.A244
1600910013
|
£5.58
|
£6.70
|
|
|
53 - ROTARY SHAFT LIP SEAL
BSD-1600283003.A124
1600283003
|
£4.26
|
£5.11
|
|
|
54 - GROOVE BALL BEARING
BSD-1600900004.A45
1600900004
|
-
|
|
|
|
55 - SPACER BUSHING
BSD-1600300028.A22
1600300028
|
-
|
|
|
|
56 - DRILLING SPINDLE
BSD-1606135009.A38
1606135009
|
-
|
|
|
|
57 - SHIM 0.5 MM
BSD-1600100631.A271
1600100631
|
£1.75
|
£2.10
|
|
|
58 - CYLINDRICAL GEAR Z=50
BSD-1606317045.A14
1606317045
|
-
|
|
|
|
59 - SHIM 0.8 MM
BSD-1600102678.A45
1600102678
|
-
|
|
|
|
60 - ADJUSTING BOLT
BSD-1603104005.A80
1603104005
|
-
|
|
|
|
61 - SHIM 0.2 MM
BSD-1420100620.A48
1420100620
|
£1.32
|
£1.58
|
|
|
62 - CONTROL LEVER
BSD-1602026026.A57
1602026026
|
-
|
|
|
|
63 - SOCKET HEAD CAP SCREW M3.5x5.5 MM
BSD-1603413005.A74
1603413005
|
£2.52
|
£3.02
|
|
|
64 - FELT WASHER
BSD-1600205009.A48
1600205009
|
-
|
|
|
|
65 - CONTROL LEVER
BSD-1602120006.A51
1602120006
|
-
|
|
|
|
66 - SPINDLE WITH GEAR Z=15/26/33
BSD-1606328060.A44
1606328060
|
-
|
|
|
|
67 - SPINDLE WITH GEAR Z=12
BSD-1606309036.A24
1606309036
|
-
|
|
|
|
68 - CYLINDRICAL GEAR Z=30/41
BSD-1606328059.A6
1606328059
|
-
|
|
|
|
69 - ROTARY SHAFT LIP SEAL
BSD-1600283003.A125
1600283003
|
£4.26
|
£5.11
|
|
|
70 - SHIM 0.5 MM
BSD-1600100631.A270
1600100631
|
£1.75
|
£2.10
|
|
|
71 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A819
2910021122
|
£2.16
|
£2.59
|
|
|
73 - SPRING LOCK WASHER DIN 127-B3.5
BSD-2916680004.A82
2916680004
|
-
|
|
|
|
74 - SPRING RETAINING RING DIN 472-42x1.75MM
BSD-2916660019.A33
2916660019
|
£4.26
|
£5.11
|
|
|
75 - FELT DISC
BSD-1600108003.A114
1600108003
|
£1.32
|
£1.58
|
|
|
76 - BEARING COVER
BSD-1600501019.A296
1600501019
|
£23.86
|
£28.63
|
|
|
77 - GROOVE BALL BEARING 17x35x10
BSD-1600900001.A96
1600900001
|
-
|
|
|
|
78 - INTERMEDIATE BEARING
BSD-3605820033.A69
3605820033
|
-
|
|
|
|
79 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A129
2910021125
|
£1.75
|
£2.10
|
|
|
80 - SHIM 0.10 MM
BSD-1420100023.A94
1420100023
|
-
|
|
|
|
80 - SHIM 0.2 MM
BSD-1600100632.A132
1600100632
|
£1.75
|
£2.10
|
|
|
81 - BALL BEARING 7x22x7
BSD-1900905018.A1041
1900905018
|
£18.96
|
£22.75
|
|
|
96 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A166
1900452003
|
£2.61
|
£3.13
|
|
|
650 - DRIFT
BSD-1601030009.A35
1601030009
|
-
|
|
|
|
801 - BUSHING
BSD-1600300902.A17
1600300902
|
£14.72
|
£17.67
|
|
|
802 - CARBON-BRUSH SET
BSD-1607014102.A9
1607014102
|
-
|
|
|
